EcoMini II PC IP65 LED Tri-Proof Light Manufacturer with DIP Power and CCT Selection
A full-PC LED tri-proof light with IP65 protection, IK09 impact protection, built-in dial-code power/CCT selection and a sensor option for indoor or sheltered projects.
- Output Selection: Choose from 20W, 35W or 45W to suit the lighting design.
- Power & CCT Tuning: Built-in dial-code settings make it easy to select output and colour temperature.
What Features Does EcoMini II PC IP65 LED Tri-Proof Light Offer?
EcoMini II is a full-PC IP65 vapor-tight light for indoor or sheltered projects, with built-in dial-code output/CCT selection and a 100% on/off sensor option.
- Verified Power Options: 20W / 35W / 45W
- Flexible CCT: 4 Optional Color Temperatures (3000K / 4000K / 5000K / 6000K)
- Protection and Construction: IP65 ingress protection, IK09 impact protection, full-PC housing and S304 clips.
- Internal Driver: Flicker-free non-isolated internal driver for AC200–240V, 50/60Hz.
- Configuration Functions: Power/CCT tuning, a 100% on/off sensor option and series connection options.
- Long Life: L80B10 over 50,000 hours at Ta = 25°C.
Integrated Full PC Housing
ShineLong private-mold design with a one-piece housing and diffuser.
304 Stainless Steel Bracket
For ceiling-mounted installation. The bracket slides freely along the fixture, so mounting spacing can be adjusted on site.
Custom-Length Suspension Accessories
Suspension accessories can be customised in different lengths to suit the installation height.

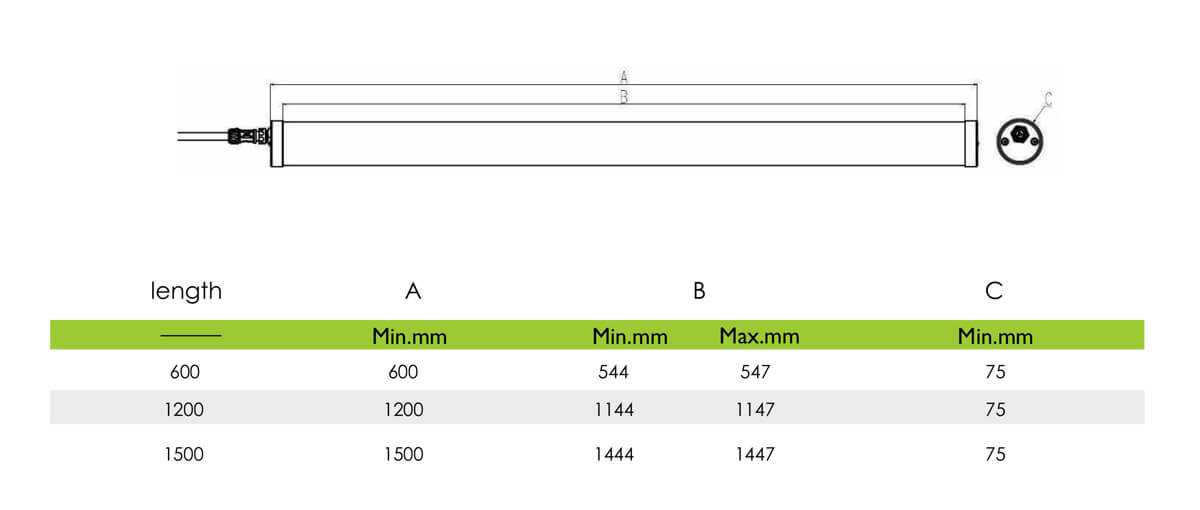

Model Selection
| Article Number | Power (W) | Lumen (lm) | Product Dimension |
|---|---|---|---|
| SL-M65X2-20-X-D | 20W | 2,700–3,000 lm | L600 * W73 * H70mm |
| SL-M65X4-35-X-D | 35W | 4,550–5,250 lm | L1200 * W73 * H70mm |
| SL-M65X5-45-X-D | 45W | 6,075–6,750 lm | L1500 * W73 * H70mm |
← Swipe horizontally to see full specifications →
Diffuser: The first “X” represents diffuser type: F (Frosted).
CCT: The second “X” represents CCT: W (3000K/4000K), P (5000K) or C (6000K). or DIP Version: D (Power/CCT tunable).
Length: 2 = 600mm; 4 = 1200mm; 5 = 1500mm.
General Specifications
Optical Performance Options
| Cover Type | Standard Series | Premium Series |
|---|---|---|
| Frosted PC Cover | 135 lm/W | 150 lm/W |
Technical Notes:
- 1. Above efficacy is measured and based on 4000K color temperature.
- 2. All values are tested under an ambient temperature of 25°C.
- 3. Efficacy tolerance is ±10% and wattage tolerance is ±10%.
- 4. If CRI>90 is required, the overall light efficiency will be reduced by 10-15%.
LUMINOUS INTENSITY DISTRIBUTION DIAGRAM
DIP Switch CCT
Adjust the colour temperature with the built-in DIP switch:W: 3000K / 4000KP: 5000KC: 6000KD: 3000K / 4000K / 5000K or 4000K / 5000K / 6000K
DIP Switch Power
Set the output with the built-in DIP switch:600mm: 12W / 15W / 18W / 20W1200mm: 21W / 26W / 32W / 35W1500mm: 27W / 34W / 40W / 45W
Multiple Series Connection Methods
Supports multiple series installation methods, reducing multi-circuit wiring.:Connection: Linkable, tool-free designSuitable For: Corridors / Warehouses / Linear Layouts
Series Connection Quantity by Power
At 230V, the maximum quantity per series connection is:20W: 46 pcs35W: 22 pcs45W: 15 pcs
Where Can EcoMini II PC IP65 LED Tri-Proof Light Be Used?

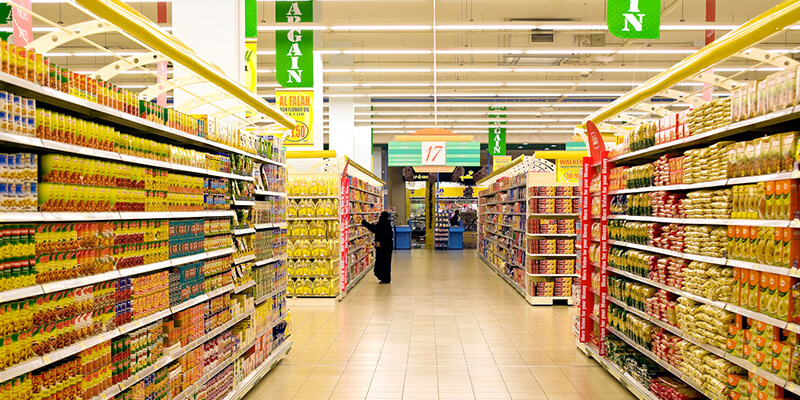

EcoMini II suits indoor or sheltered installations that need a full-PC IP65 and IK09 vapor-tight fixture. Read our LED Tri-proof Lighting Guide for practical selection advice.
Industrial Challenges Solved by ShineLong
Dust & Moisture Protection
Effectively addresses large amounts of dust, particulate matter, dirt, steam, and water droplets common in harsh industrial locations.
Site Condition Review
EcoMini II is designed for indoor or sheltered use, with IP65 and IK09 protection and an operating range of -20°C to +40°C. Match the installation environment to these requirements.
Vandal-Proof & Anti-Collision
IK09 impact protection helps the fixture withstand accidental contact in busy working areas. Choose the right protection level for the complete project environment.
Project-Based Selection
Compare the selected 20W, 35W or 45W model, CCT setting and mounting arrangement with the project lighting design before finalising the configuration.
Which EcoMini II Wiring and Connection Options Fit Your Installation?
Standard Wiring
Standard wiring uses live, neutral and earth connections for everyday installations.
Dali and 1–10V Dimmable Wiring
Compatible control wiring adds DA+ (DIM+) and DA- (DIM−) connections alongside live, neutral and earth.
How Can EcoMini II Simplify Multi-Zone Indoor Project Selection?
EcoMini II is a PC IP65 LED tri-proof light designed for projects that need straightforward output and CCT selection. DIP switches, optional sensor functions and connection choices help purchasers match fixtures to different installation zones.
Match the 600mm, 1200mm or 1500mm length and 20W, 35W or 45W configuration to the layout, then choose the CCT setting, dial-code power setting, 100% on/off sensor option, series connection and mounting method.
Assess the installation through our warehouse lighting, workshop lighting, factory lighting and parking garage lighting guides. Share your project details with us for a suitable EcoMini II recommendation before order placement.
EcoMini II PC IP65 LED Vapor-tight Light Series Video Center
Use verified EcoMini II product, installation and technical videos to support project selection.
1:39
EcoMini II PC IP65 LED Tri-Proof Light
0:24
EcoMini II PC IP65 LED Tri-proof Light Product Introduction
0:26
EcoMini II Before Shippment Test Video
FAQ
Frequently Asked Questions About EcoMini II PC IP65 LED Tri-Proof Light
Review the materials, protection, electrical input and functional options before selecting an EcoMini II configuration for your project.
How do the DIP switches select power and CCT?
The DIP switches allow the available output and CCT settings to be selected on the fixture for the specified EcoMini II version. Only set the switches when the fixture is switched off and fully disconnected from the power supply. Follow the marked dial-code configuration and keep the selected setting consistent across fixtures serving the same area.
What materials and protection ratings does EcoMini II use?
EcoMini II has a full-PC housing with S304 clips. IP65 ingress protection and IK09 impact protection make it a reliable option for suitable indoor and sheltered applications.
How should I evaluate long-term lighting performance?
Compare the model, output, CCT setting and operating conditions rather than assuming all fixtures perform alike. EcoMini II offers L80B10 over 50,000 hours at Ta 25°C, with 135 lm/W ±10% standard efficacy and up to 150 lm/W ±10% for selected configurations.
Which connection method should I choose for EcoMini II?
Choose the connection method from the cable entry direction, wiring route, control requirement and whether fixtures will be connected in a run. Confirm conductor size, stripping length and the required wiring diagram before installation.
What cover, CCT and optical options are available?
EcoMini II uses a frosted full-PC cover. Choose from 3000K, 4000K, 5000K and 6000K colour temperatures; the beam angle is 120 degrees and CRI is greater than 80.
Which configuration functions does EcoMini II support?
EcoMini II offers dial-code power/CCT selection, a 100% on/off sensor option and series connection. Share the required functions, model, settings and quantity with us for a suitable quotation.
Which Certifications are available?
EcoMini II meets CE and RoHS requirements. Ask us for the current technical documents for your selected model.
Which functions are optional rather than standard?
EcoMini II cDIP power and CCT selection, sensor, dimming, emergency and linking functions may not be included in every article number. Ask for the exact model code and option list in the quotation, then compare it with the project requirement before ordering.
Ready to Request an EcoMini II Quote or Place an Order?
Send your application, required model, quantity, installation details and functional options. Our team will recommend the right configuration and support your quotation or order request.
