EcoMini IP65
Motion Sensor Tri-proof LED Light
ShineLong’s Ecomini IP65 motion sensor tri-proof led light
Key Feature
- IP65 Waterproof, IK09 Protection, 94V0 materials
- CE, RoHs Certified

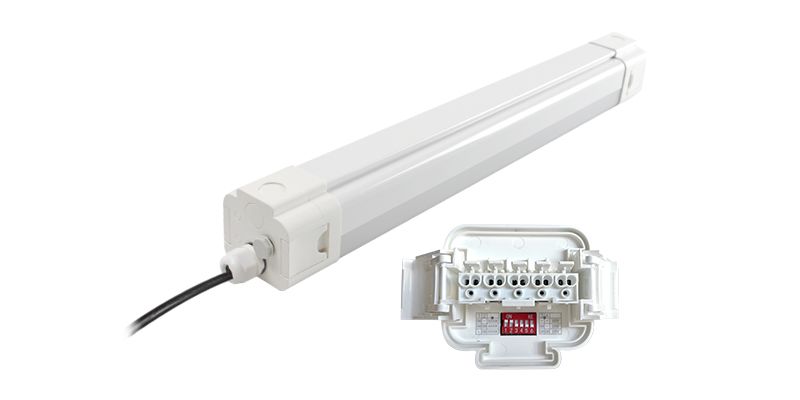

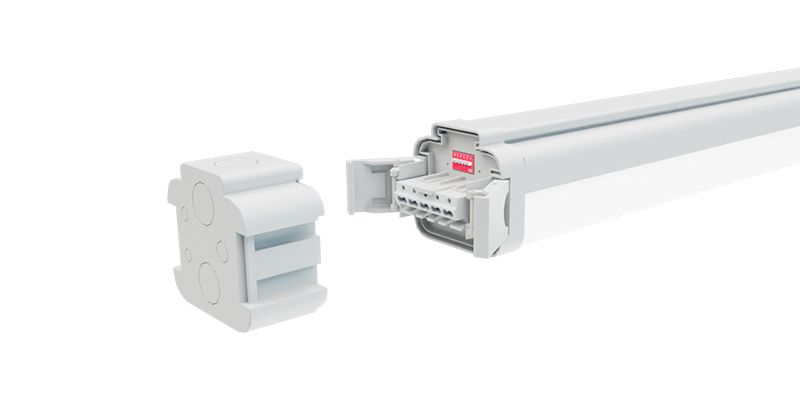

- Support DIP Switch Power Turnable
- Support DIP Switch CCT Turnable
- No Dark Area, Non-cracking, Anti-yellowing
- Material: Full PC housing with S304 clips
- High Efficacy: 135lm/w, up to 145lm/w (+/-10%)
- High CRI: Ra>80, SDCM<4
- Flicker Free Internal Driver

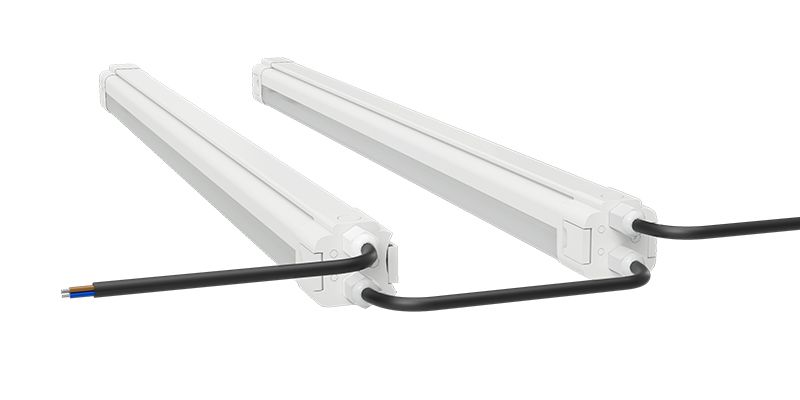

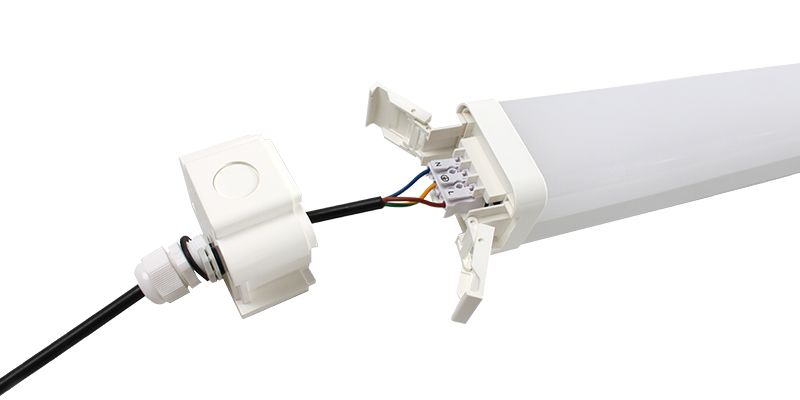

- Linkable / Tool Free, High Cost-effctive
- L80B10 lifespace of 50,000 Hours (@ Ta = 25°C)
- 5 Years Warranty
Standard Date Sheet
| Article Number | Power (W) | Lumen (lm) |
| SL-M65X2-20-X-D | 20 | 2600 |
| SL-M65X4-35-X-D | 35 | 4550 |
| SL-M65X5-45-X-D | 45 | 5850 |
* Where the first “X” represents diffuser type, it can be F(Frosted), T(Transparent)

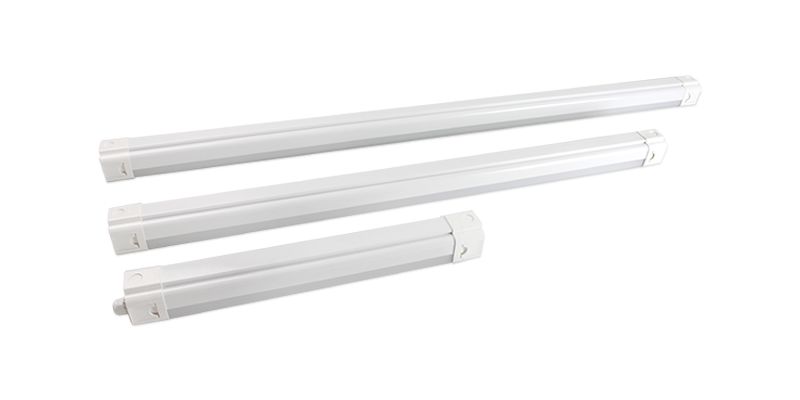

* The number after the first “X” represents length of light. “2”=600mm, “4”=1200mm, “5”=1500mm
* The second “X” represents CCT, it can be W(3000K/4000K), P(5000K), C(6000K)
* DIP Switch Power optional:
- 600mm: 12/15/18/20W
- 1200mm: 20/25/30/35W
- 1500mm: 27/34/40/45W
* DIP Switch CCT optional：
- 3000K/4000K/5000K & 4000K/5000K/6000K
| Light Source | SMD2835 |
| CRI | >80 |
| Beam Angle | 120° |
| CCT | 3000K/4000K/5000K/6000K |
| AC Input | 220-240V |
| DC output | 35-170V |
| SDCM | <4 |
| Power Factory | >0.95 |
| Operating Temperature | -20~+40℃ |
Efficacy Version
Cover Standard Premium
Frosted 135lm/w 145lm/w
Please note:
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
3. Efficacy tolerance is ±10% and wattage tolerance is ±10%
4. If CRI>90, light efficiency will be reduced by 10-15%
LUMINOUS INTENSITY DISTRIBUTION DIAGRAM
Parkade Microwave Sensor
1. 100% on/off Version
Switch on the light on detection of movement, and switch off after a hold time when there is no motion detected.
When there is no motion detected, the sensor does not switch on the lamp.
With insufficient ambient light, the sensor switches on the lamp when motion is detected.
After stand-by period, the sensor switches off the lamp if no motion is detected in its detection zone.
Max. 8M
Hold Time
30s - 2min
Mounting Height
6m Max.
Automatic
On/off
2. 3-step Dimming Version
When used in combination with 1-10V dimmable LED drivers and ballasts, the sensors can achieve 3-step dimming function,
100%—> low light—>off. And the sensors build in adjustable daylight sensors, very easy to install and cost-effective.
When sufficient ambient light, the sensor does not switch on the lamp.
With insufficient ambient light, the sensor switches on the lamp when motion is detected.
After hold time, the sensor dims the lamp at a low light level if no new motion trigger.
After stand-by period, the sensor switches off the lamp if no motion is detected in its detection zone.
Max. 8M
Hold Time
30s - 2min
Mounting Height
6m Max.
Automatic
Dimming
3. 2-step Brightness Dimming Version
The sensors can provide 2-step dimming function, 100 %—> low light (Never turn off). They are particularly suitable for use in corridors, stairwells and underground passages where low light levels are maintained until motion is detected.
No motion detected, the lamp remains at a low light level all the time.
When motion is detected, the sensor brightens the lamp to 100% illumination.
After the hold time, the sensor dims the lamp at a low light level if no motions is detected.
Max. 8M
Hold Time
30s - 2min
Mounting Height
6m Max.
Automatic
Dimming
Product Video

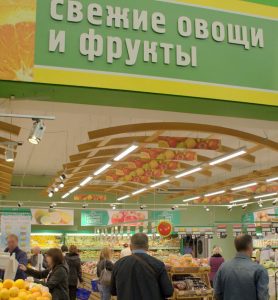

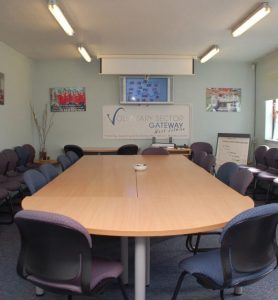

EcoMini Tri-Proof LED Light Applications
EcoMini Function Series
EcoMini IP65 Motion Sensor Tri-proof LED Light Description
This is a high-quality product that can adapt to various indoor environments, It has the following features that distinguish it from other IP65 LED lights:
- It has an IP65 waterproof rating, which means it can resist water, dust, and moisture. This makes it suitable for places such as garages, warehouses, factories, parking lots, supermarkets and more.
- It has a switch color temperature and power adjustment function, which allows the user to choose from four color temperature options (3000K, 4000K, 5000K or 6000K) and different power levels.
- This enables the user to customize the light according to their needs and preferences.
- It has a high cost performance ratio, which means it can save up to 80% of energy consumption compared with traditional light sources.
- This reduces the electricity expenses and the environmental impact of the product.
- It has a long life span of 50000 hours, which minimizes the maintenance costs and the waste generation of the product.

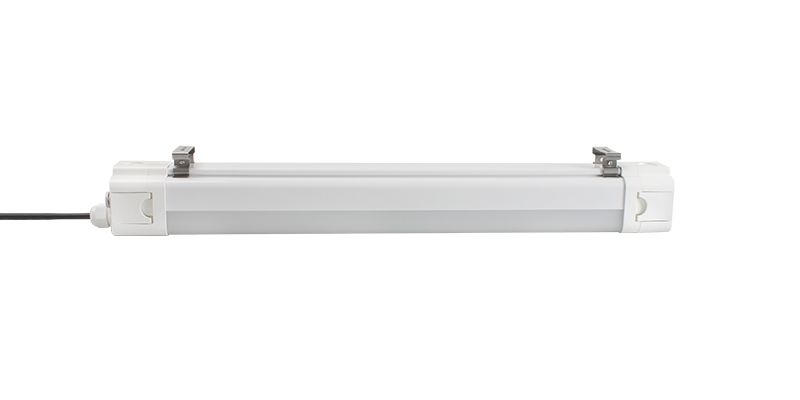

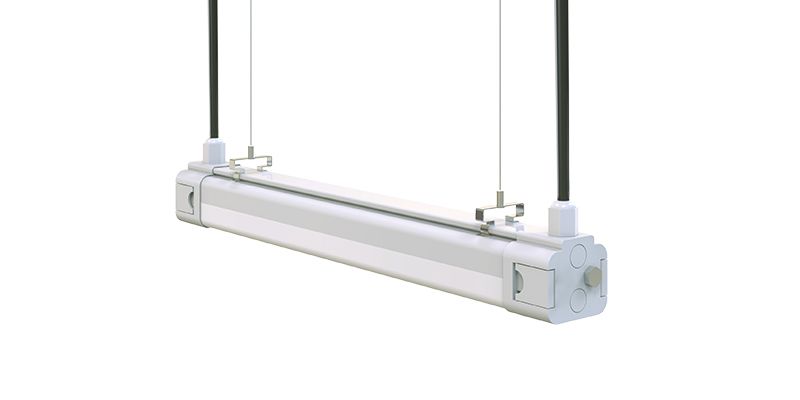

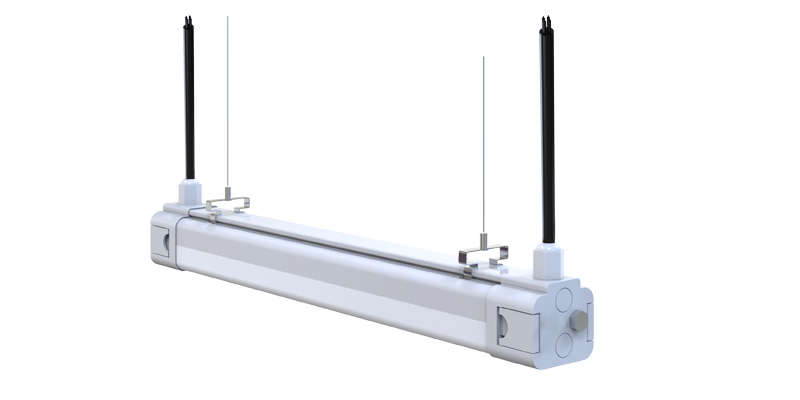

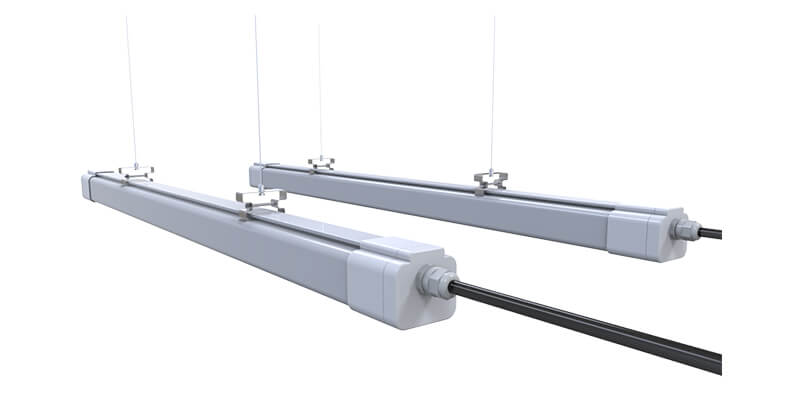

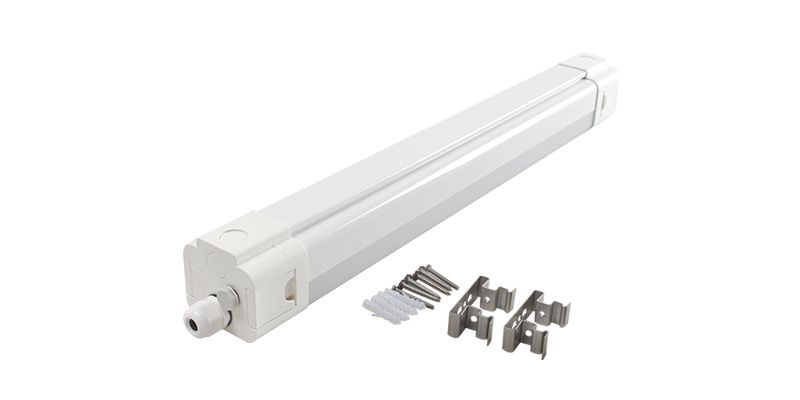

- It has a Tool-free series installation function, which means it can be easily and securely installed on the ceiling or hanging line with 316 stainless steel buckles.
- These buckles ensure the water tightness of the product and allow the user to connect multiple light fixtures without difficulty.
- It has a 1-10V/DALI dimming system function, which means it can adjust the brightness level according to the ambient light or the user’s preference.
- It also has a Microwave induction function that can turn the light on or off automatically when it detects movement.
The IP65 waterproof light is a reliable and efficient product, that provides uniform and bright lighting effects for various indoor occasions. 5-years warranty that guarantees the quality and performance of the product. EcoMini is a product that deserves the user’s attention and consideration.
