K-Lens
Linkable LED Linear Lights
LED Linear Lights
- IP40 Waterproof, IK09 Protection
- Instant seamless connection
- Beam Angle: 45°/90°,Beam angle optional
- Aluminum housing+Asymmetric & Symmetric lens+S304 clips
- SMD2835 LED Light Source with Global Patent Protection
- Flicker Free Internal Driver
- High Efficacy, 130 lumens per watt (+/-5%)
- L80B10 lifespace of 50,000 Hours (@ Ta = 25°C)
- 5 Years Warranty
LED Linear Lights Advantage
- Ceiling mounted lighting systems for use in a variety of environments
- Illuminate large interior spaces efficiently with LED lighting
- Continuous systems with through wiring allow for speedy installation times
- Surface mounting to complement contemporary clean interior designs in workspace, healthcare and education settings
All Products of K-Lens Linkable LED Linear Lights
- Article No.: SL-A40X2-20
- Power: 20W
- Standard: 130lm/w
- Lumen: 2600~2800lm
- Working Current: 450mA
- Size: 600*69*47mm
- CCT: 3000K/4000K/5000K/6000K
- AC Input: 200-240V / 100-277v
- DC Output: 30-40V
- SDCM: <4
- CRI: >80
- Power Factor: >0.95
- Operating Temperature: -20~+40℃
- Article No.: SL-A40X4-36
- Power: 36W
- Standard: 130lm/w
- Lumen: 4680~5000lm
- Working Current: 850mA
- Size: 1200*69*47mm
- CCT: 3000K/4000K/5000K/6000K
- AC Input: 200-240V / 100-277v
- DC Output: 30-40V
- SDCM: <4
- CRI: >80
- Power Factor: >0.95
- Operating Temperature: -20~+40℃
- Article No.: SL-A40X5-45
- Power: 45W
- Standard: 130lm/w
- Lumen: 5800~6300lm
- Working Current: 1000mA
- Size: 1500*69*47mm
- CCT: 3000K/4000K/5000K/6000K
- AC Input: 200-240V / 100-277v
- DC Output: 30-40V
- SDCM: <4
- CRI: >80
- Power Factor: >0.95
- Operating Temperature: -20~+40℃
Why Choose LED Linear Lights?
- Aesthetics – if looks are important to you, then LED Linear has a pretty strong offering. It provides a massive amount of versatility for creating unique and eye-catching designs. Bespoke angles, curves and customised RAL colour powder coating are just a few of the options available that make LED Linear an easy choice.
- Directional light – LEDs are directional, reducing the need for reflectors and diffusers that can trap light.
- Colour temperature – LED Linear lights offer a large range of colour temperatures, which affect the way the eye interprets the light. From cool white to warm white, different temperatures can be used to create mood and atmosphere in a space. Neutral white, or 4000 kelvin to use its technical name, is recommended for offices and retail areas which provides the most comfortable environment.
- Cost-effective – an obvious advantage, LED Linear is extremely efficient to run due to its low energy usage, and also its inherent longevity; an LED will typically last many times longer than a fluorescent tube.
K-lens LED Linear Light Series
0/1-10V Dimmable Reflex Light
Dali Control
Reflex Light
Guarantee with ShineLong
Response Time
Our response time is around 3 hours,so if you have an urgent problem with your project,you can call the business directly to secure your project.
Reliable Delivery
We have implemented ERP,PMC system management.Sample orders about 7 days,large orders about 15 days,special oeders can be expedited delivery time.
Guaranteed Warranty
Factory passed ISO9001:2015 international quality management system,all of LED lights have a 5-7 year warranty and all accessories have certifications.
Energy Savings
Up to 70% energy savings over traditional lights,report a 50 percent drop in their energy bill than they would have with conventional lights.
ShineLong's Five Value-added Services
ODM services, brand product modeling, and promotional materials, LED light design, LED power supply customization, lighting software development, LED lights for the full range of qualification certificates for the docking service and billing.
We ShineLong can provide you with value-added services for deep cooperation customers, and ODM services, only need you to provide LED light software and appearance ideas, our R & D team can help you with free design software and product appearance, in addition to LED light power supply can be specially customized, LED lights after the completion of the development of LED certificates samples and information can also be provided for the whole docking, until the LED Lights on the market, at the same time, our marketing department is responsible for 3D modeling and design colleagues, but also according to the idea to design your brand needs to promote promotional materials and videos. Most importantly, ShineLong also provides a billing period for large LED lighting customers.
Come and join us to make LED light installation easier and let ShineLong light fixtures light up the world.
Discounts for Electrician,Contractor,or other Trade
Our team continuously creates valuable partnerships with various electricians, contractors, lighting solution businesses, lighting design companies, and other tradespeople to ensure you all receive the special discounts and services possible with unbeatable quality and a proven track record.

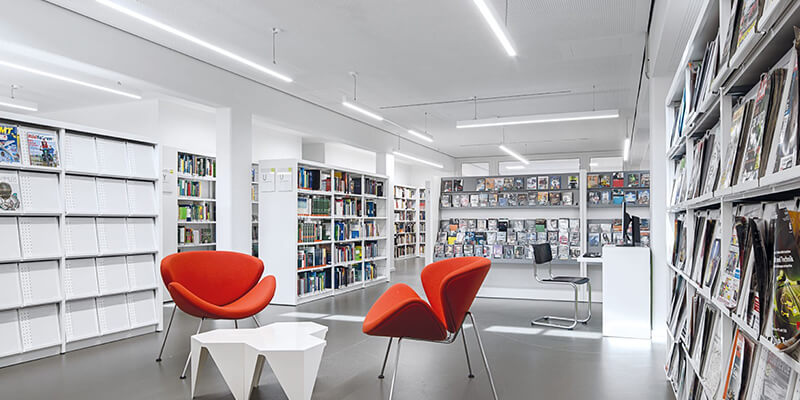

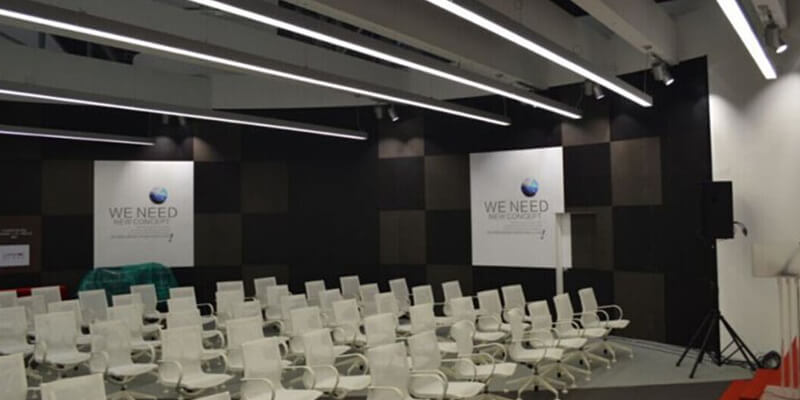

K-Lens Linear Lights Applications
