Rancher
IP69K LED Tri-Proof Light

ShineLong’s Rancher IP69K LED Tri-proof Light

Rancher IP69K LED Tri-proof Light Poultry LED Lighting, tri-proof light means waterproof, dustproof, and corrosion-proof. They are made of special corrosion-resistant materials and silicone sealing rings in order to fulfill the protection requirements of the lamps. Additionally, the cable extends out with a waterproof PG connector at the end for seamless connection, which not only holds the cable in place but also prevents water and dust from entering.

Moreover, IP69K LED tri-proof lights are specially designed to withstand high voltage as well. Typically, IP ratings for tri-proof lights are IP65 and IP66; however, this tri-proof light can even reach IP69. This Tri-proof LED Light is mainly recommended for poultry farms, slaughterhouses, food factories, and other applications, these industrial places lighting environments are usually very poor, with bad light, corrosive environment, more dust, and rain, so the specifications of the tri-proof light is very high.

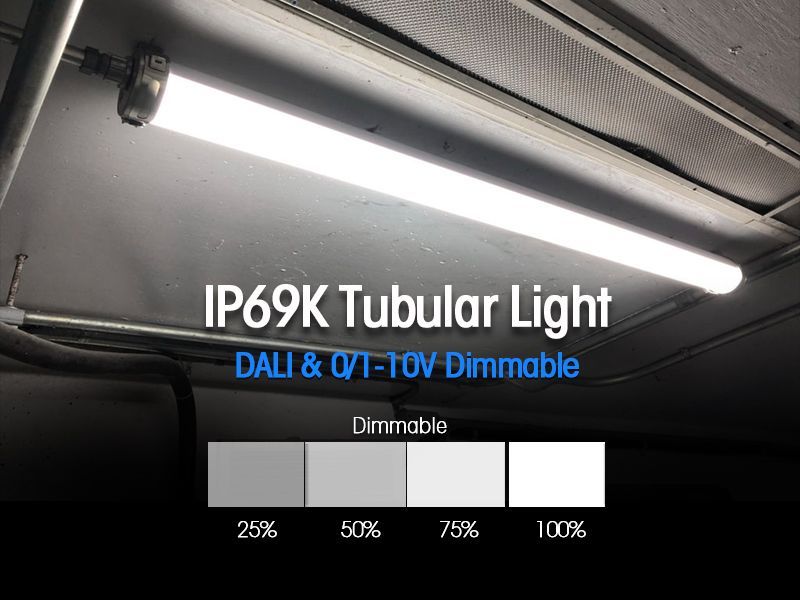

ShineLong Rancher series are available: 0/1-10V Dimming, DALI Dimming, Emergency, and Motion Sensor functions; And it has a 50,000-hour lifespan rating.

Previous slide
Next slide

IP69K LED Tri-proof Light Features

  • Energy savings up to 80% *Durable and low maintenance.

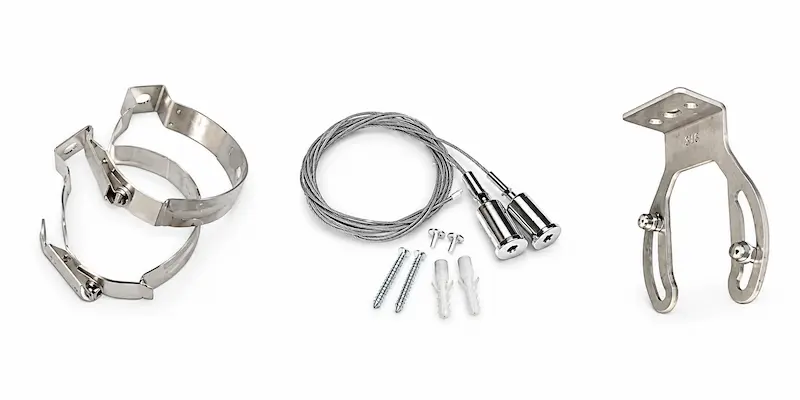

  • Easy installation: suspension mounting, and ceiling mounting.
  • Easily Adaptable: multi-functions with Dimmable, Emergency, Sensor.

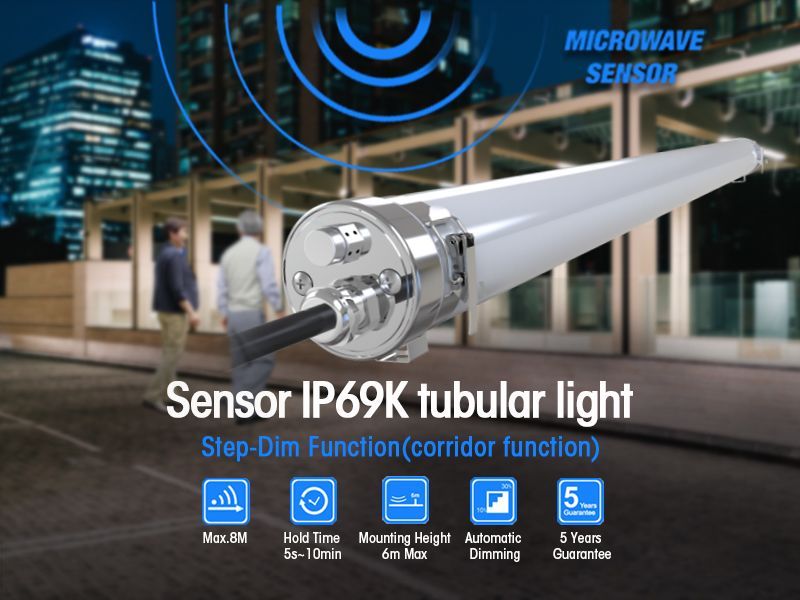

  • Functionalities of Tri-Proof LED Lights: Dimming, Motion Sensor Lights, Emergency Lighting, CCT Adjustable Lights.

Rancher IP69K LED Tri-proof Light Description

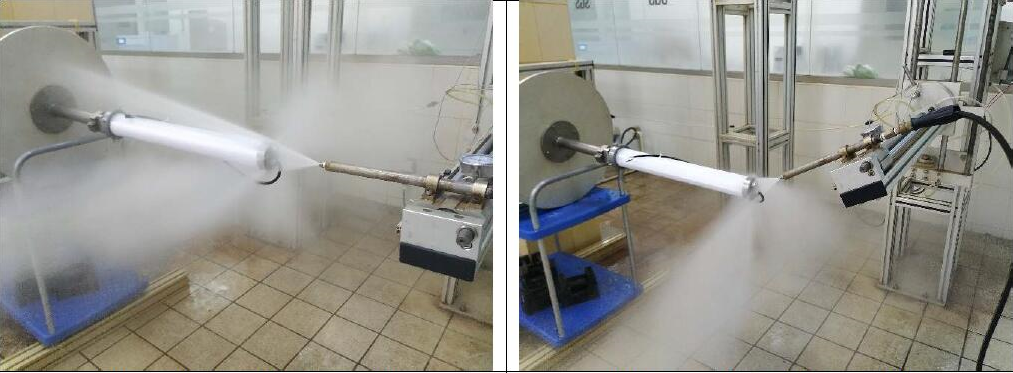

The IP69K LED tri-proof light is a product that has passed the highest rating on the ingress protection (IP) scale. This means it is completely dustproof and, furthermore, can resist water jets at pressures ranging from 80 to 100 bar (1,160 to 1,450 PSI), with flow rates of 14 to 16 l/min, and at temperatures reaching up to 176°F (80°C).

It is a ideal for industries where sanitation is a primary concern, such as food processing and pharmaceutical applications. It can withstand rigorous daily washdown, which helps plants meet strict sanitation standards.

ShineLong IP69K LED tri-proof light is also designed to be energy-efficient, long-lasting, and easy to install. It has a high luminous efficacy, a low power consumption, and a lifespan of over 50,000 hours. It can be mounted on walls, ceilings, or poles, and it has a wide beam angle to cover large areas.

The Rancher IP69K tri-proof LED light is the perfect solution for your lighting needs in challenging conditions. So, don’t settle for inferior products that may fail or sustain damage easily. Instead, choose the IP69K tri-proof light and enjoy the benefits of high-quality illumination and superior protection.

train station triproof lights

Ultimate Protection, Stable Illumination

Rancher IP69K LED Tri-proof Lights

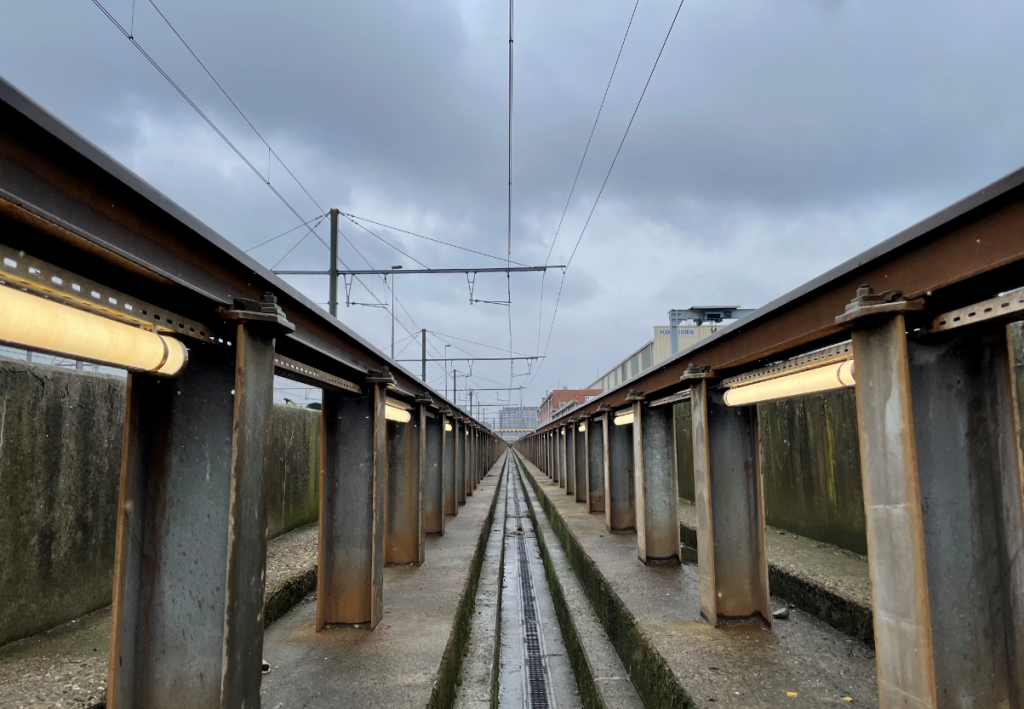

We cordially invite you to consider our IP69K-rated waterproof, dustproof, and shockproof LED lighting solution, tailor-made for railway engineering environments.

The lights installed beneath the rail tracks endure the harsh elements year-round, making quality our foremost consideration.

What features are you looking for in a tri-proof light?

In which locations do you use tri-proof lights? Do these places have some special requirements for the environment?

I can help you recommend the right tri-proof LED light, next, I’ll take you to understand the tri-proof LED light.

Our company has several series of tri-proof LED lights: warehouse tri-proof lights, food industry tri-proof lights, garage parking lot tri-proof LED lights, poultry tri-proof lights, and so on;

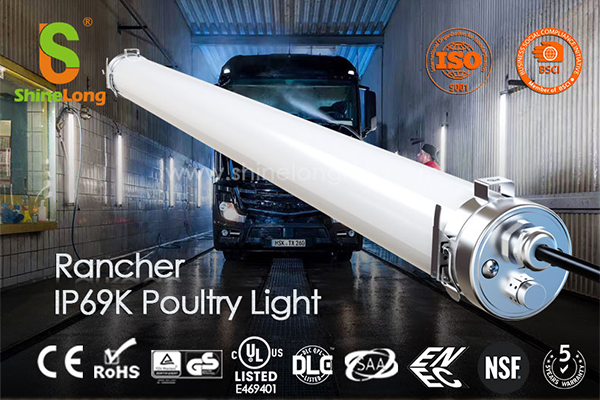

It’s the only product on our catalog that comes with an IP69K rating; meaning it’s fully protected from water, dust, vapor, and jets of water. These features make it ideal for farm use and barn illumination.

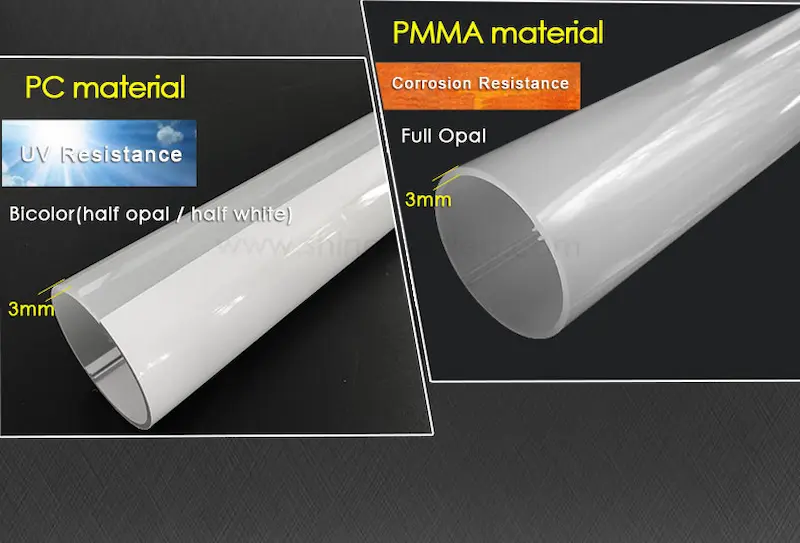

Our Rancher LEDs come with strong, impact-proof, corrosion-resistant, UV-repelling housing materials; this not only guarantees longevity but also ensures your poultry and livestock reside in a safe and well-lit space.

This triproof light has an IP69K protection rating, meaning it is completely impervious to dust, water, steam, and direct water spray as well, and having these great features is perfectly suited for lighting on farms, poultry, barns, and more.

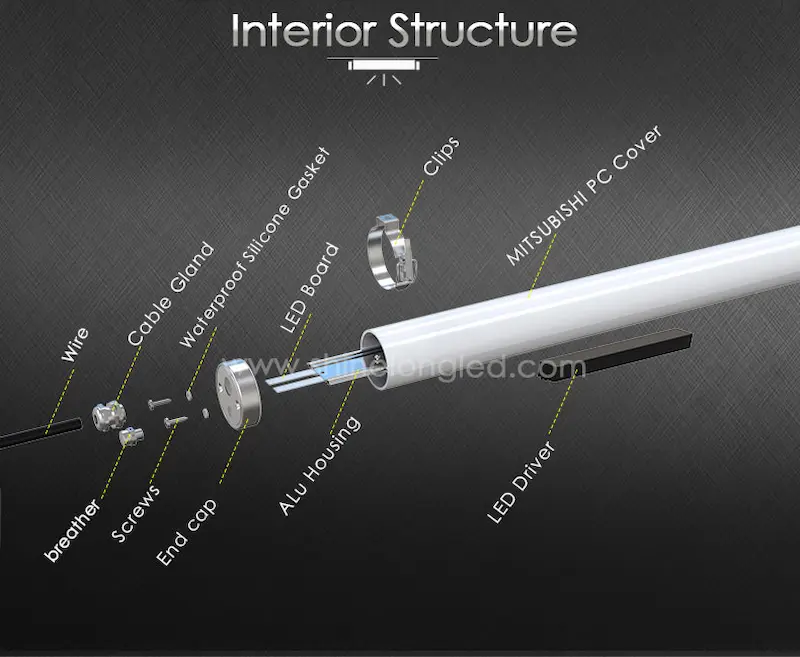

This Rancher Triproof LED Light features dual shock absorbing internal structure and materials for overall shock resistance. Selected lightweight alloy material and high-tech spraying technology, strong, impact-resistant, corrosion-resistant, UV-resistant shell material, the shell does not rust or corrode.

Using tri-proof LED lights can help you avoid the following problems:

    •  Tri-proof lights can avoid the lamps being soaked in water or damp, to ensure the normal work of lighting equipment in a humid environment.
    •  Tri-proof lights can avoid the dust in the lamps and lanterns’ internal influence on luminous effect and life.
    •  Tri-proof lights can avoid sudden power outages during peak periods, and tri-proof lights can start the emergency function to ensure the normal use of industrial premises.
    •  Tri-proof lights can avoid frequent maintenance and replacement costs, and tri-proof lights can run 50,000 hours, far more than traditional light sources.

Therefore, in humid, dusty, or poor light, special industrial places in the environment when using lighting, tri-proof light is a safer and more reliable choice.

This tri-proof light’s meet the needs of your project?

If your project has special customized needs for tri-proof lights, you can send us an email: [email protected]

Article NumberPower (W)Lumen (lm)Working Current (mA)
SL-P69X2-20-X202600450
SL-P69X4-36-X364680850
SL-P69X5-45-X4558501050
SL-P69X2-30-X303900700
SL-P69X4-50-X5065001200
SL-P69X5-50-X5065001200
SL-P69X5-60-X6078001400
Light SourceSMD2835
CRI>80
Beam Angle120°
CCT3000K/4000K/5000K/6000K
AC Input220-240V/100-277V
DC output30-40V
SDCM<4
Power Factory>0.95
Operating Temperature-20~+40℃

Efficacy Version

Cover                Standard                 Premium



Frosted               130lm/w                  145lm/w

Striped                140lm/w                  160lm/w

Please note:

1. Above efficacy based on 4000K

2. All values are based on an ambient temperature of 25°C

3. Efficacy tolerance is ±10% and wattage tolerance is ±10%

4. If CRI>90, light efficiency will be reduced by 10-15%

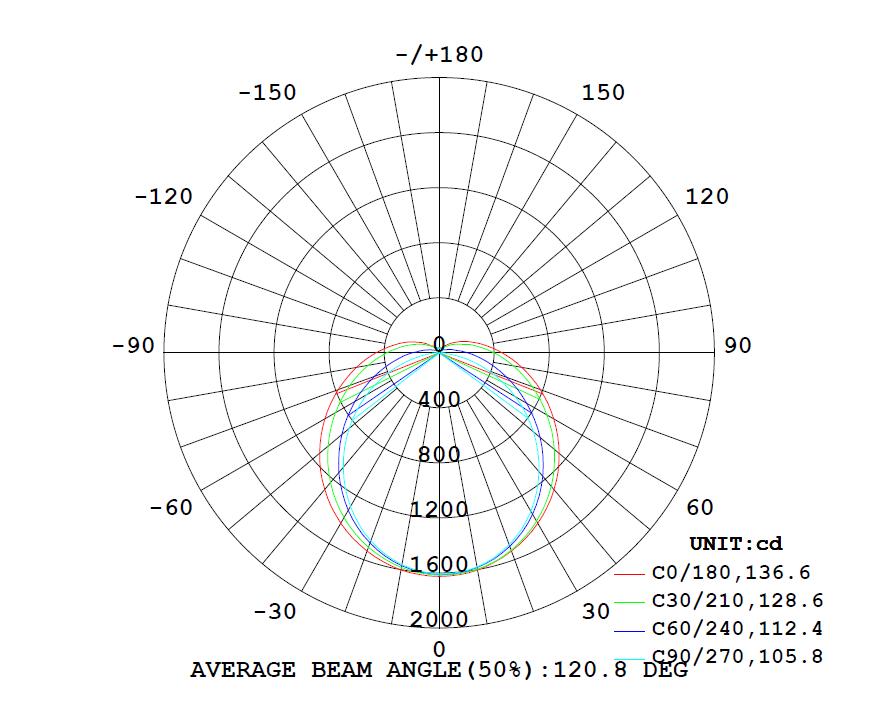

LUMINOUS INTENSITY DISTRIBUTION DIAGRAM

Parkade IP66 tri-proof light IES

You Might Ask: And what if I have a problem with my triproof LED light fixture?

This is a concern that all of our customers ask about, first contact a salesperson to help you troubleshoot the light; our qualified service technicians or partner companies are very responsive because we know that every project is important to you.

At the same time, I am very proud of the fact that ShineLong is the earliest factory to make triple-proof lamps, and our technology can be said to be the leader in the field of tri-proof LED lights.

We have been recognized by many famous brands, and we have been cooperating with big brands OEM/ODM for more than ten years.

Each year, our R&D and sales staff travel abroad to research LED light development trends and visit longstanding customers. During these visits, we discuss market conditions and address technical issues, ensuring ongoing communication and collaboration. This proactive approach allows us to keep pace with market needs and innovations, ensuring that all our tri-proof lights and other lighting solutions remain stable and reliable in industrial projects.

Why choose a tri-proof LED light fixture?

Easy Installation: Our tri-proof lights offer three types of installation methods, each supported by detailed installation videos and online technical guidance. This makes it easy for you to install these fixtures on your own, without needing any professional assistance.

Low Maintenance Costs: First of all, tri-proof lights are typically made from durable materials and feature a simple structural design. This construction enables them to withstand harsh environmental conditions and ensures a long service life, ultimately reducing maintenance costs associated with frequent light replacements.

Stable and Durable: Our tri-proof lights use imported LED chips and the driver has passed ENEC certification, the life span of the tri-proof lights is 50,000 hours.

Tri-proof Lights are Wide Applications: according to my experience general procurement of tri-proof lights traders, generally used in ranches, farms, mushroom factories, car washes, parking lots, workshops, stores, supermarkets, subway stations, warehouses, and other industrial places can be tri-proof lights.

If happens to be similar to your needs, or the need to customize, leave us a message now.

Response Time

Our response time is around 3 hours,so if you have an urgent problem with your project,you can call the business directly to secure your project.

Reliable Delivery

We have implemented ERP,PMC system management.Sample orders about 7 days,large orders about 15 days,special oeders can be expedited delivery time.

Guaranteed Warranty

Factory passed ISO9001:2015 international quality management system,all of LED lights have a 5-7 year warranty and all accessories have certifications.

Energy Savings

Up to 70% energy savings over traditional lights,report a 50 percent drop in their energy bill than they would have with conventional lights.

ShineLong's Five Value-added Services

ODM services, brand product modeling, and promotional materials, LED light design, LED power supply customization, lighting software development, LED lights for the full range of qualification certificates for the docking service and billing.

We ShineLong can provide you with value-added services for deep cooperation customers, and ODM services, only need you to provide LED light software and appearance ideas, our R & D team can help you with free design software and product appearance, in addition to LED light power supply can be specially customized, LED lights after the completion of the development of LED certificates samples and information can also be provided for the whole docking, until the LED Lights on the market, at the same time, our marketing department is responsible for 3D modeling and design colleagues, but also according to the idea to design your brand needs to promote promotional materials and videos. Most importantly, ShineLong also provides a billing period for large LED lighting customers.

Come and join us to make LED light installation easier and let ShineLong light fixtures light up the world.

Factory Lights

Poultry LED Lighting

Mushroom Lighting

Product Video

Discounts for Electrician,Contractor,or other Trade

Our team continuously creates valuable partnerships with various electricians, contractors, lighting solution businesses, lighting design companies, and other tradespeople to ensure you all receive the special discounts and services possible with unbeatable quality and a proven track record.


★Direct from factory prices – means you get the lowest prices. There are no middlemen to add extra cost. Our customers are our biggest customers, and your satisfaction is our highest priority.
★Get assistance with rebate research and application– making it easier for you to find and file rebates available in your area. we are here to help you save money and money on any rebate or incentive program you need to take advantage of.
★Go on our referral list of contractors, installers, and other lighting services– at no extra cost, you will enjoy an opportunity to increase your business through our unique database of lighting consistently do quality work so you can talk with them directly.
★Priority service in providing free lighting plans– allowing you to give immediate results to your customers and claim your money saved on our low-cost service. All the information will be collated and ready for you to present to your customers as soon as they contact you.
Contractors-Installers-Resellers-Distributors
★Huge discounts for larger bulk orders– the more deals with us, the merrier for your business. Discounted prices are confirmed after you place a valid bulk order for our lighting products.
