Rancher IP69K
Emergency LED Tri-Proof Light

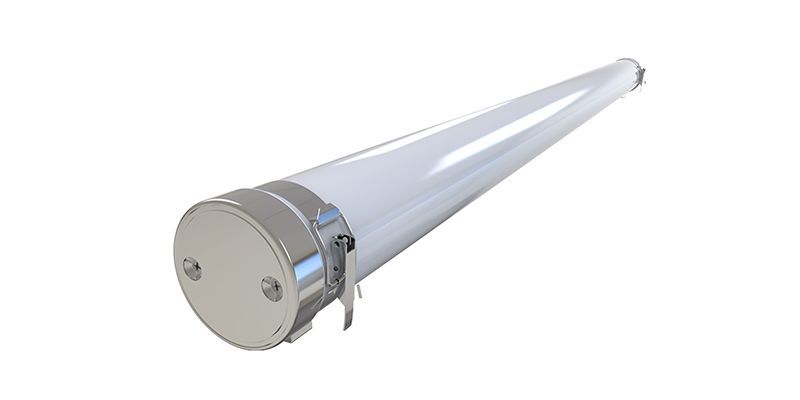

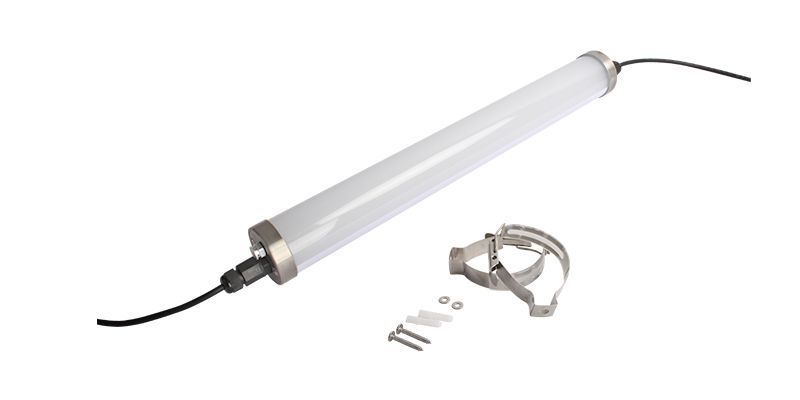

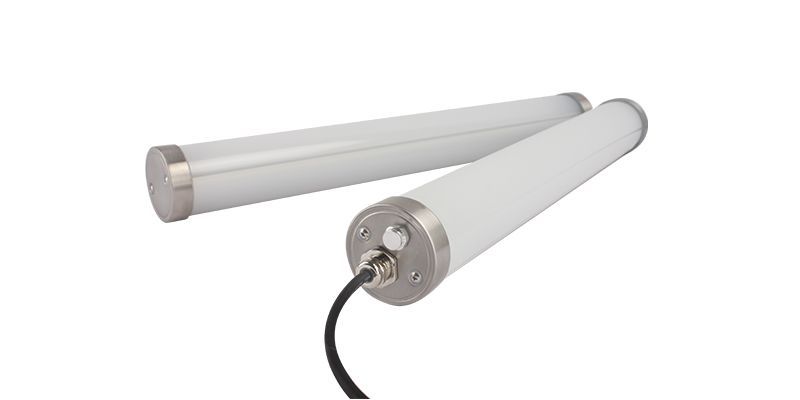

ShineLong’s Rancher IP69K Emergency LED Tri-proof Light
Key Feature
- 3 Hours Emergency Battery Backup
- IP69K Waterproof, IK10 Protection, 94V0 materials
- SAA, UKCA, ERP, CE, RoHs, D-Mark Certified
- Anti-corrosion (PMMA) & Anti-UV (PC), 850°C glow wire test
- Material: Full PC or Full PMMA housing + S316 end cap with AL Rebreather
- The dimensions can be customized
- No dark, Non-cracking, Anti-yellowing

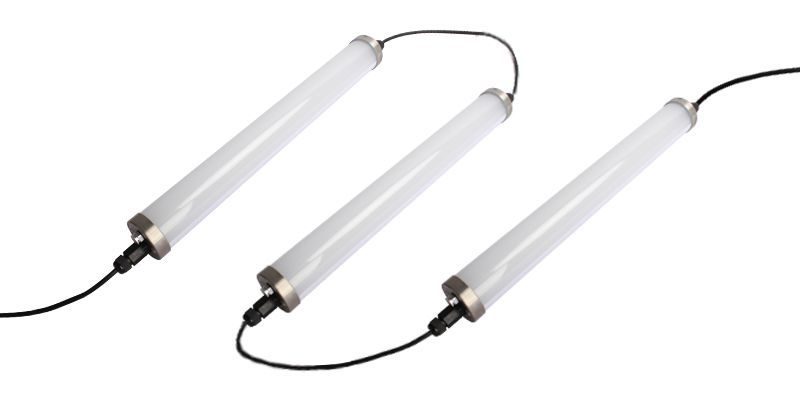

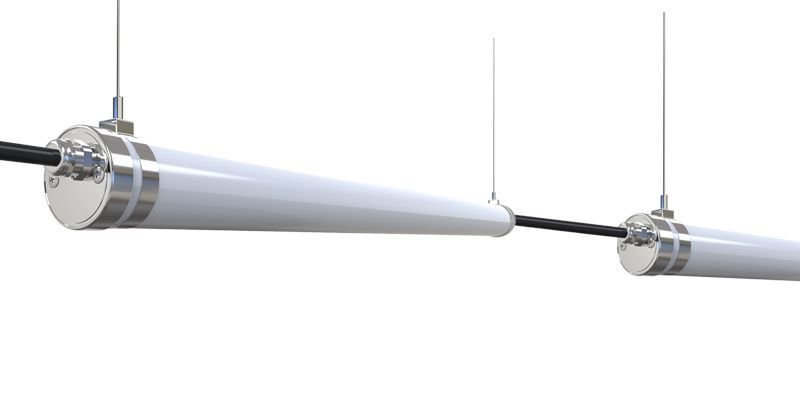

- Linkable / S316 components
- High Efficacy: 130lm/w, up to 160 lm/w (+/-10%)
- 3 Years Warranty
Data Sheet
| Article Number | Power (W) | Lumen (lm) | Working Current (mA) | |
| SL-P69X2-20-XB | 20 | 2600 | 450 | |
| SL-P69X4-36-XB | 36 | 4680 | 850 | |
| SL-P69X5-45-XB | 45 | 5850 | 1050 | |
| SL-P69X2-30-XB | 30 | 3900 | 700 | |
| SL-P69X4-50-XB | 50 | 6500 | 1200 | |
| SL-P69X5-50-XB | 50 | 6500 | 1200 | |
| SL-P69X5-60-XB | 60 | 7800 | 1400 | |
* Where the first “X” represents diffuser type, it can be F(Frosted), S(Striped)
* The number after the first “X” represents length of light. “2”=600mm, “4”=1200mm, “5”=1500mm
* The second “X” represents CCT, it can be W(3000K/4000K), P(5000K), C(6000K)
* PC or PMMA Housing for 20, 36, 45W
* PC Housing Only for 30, 50, 60W
| Light Source | SMD2835 |
| CRI | >80 |
| Beam Angle | 120° |
| CCT | 3000K/4000K/5000K/6000K |
| AC Input | 220-240V/100-277V |
| DC output | 30-40V |
| SDCM | <4 |
| Power Factory | >0.95 |
| Operating Temperature | -20~+40℃ |
Efficacy Version
Cover Standard Premium
Frosted 130lm/w 145lm/w
Striped 140lm/w 160lm/w
Please note:
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
3. Efficacy tolerance is ±10% and wattage tolerance is ±10%
4. If CRI>90, light efficiency will be reduced by 10-15%
LUMINOUS INTENSITY DISTRIBUTION DIAGRAM

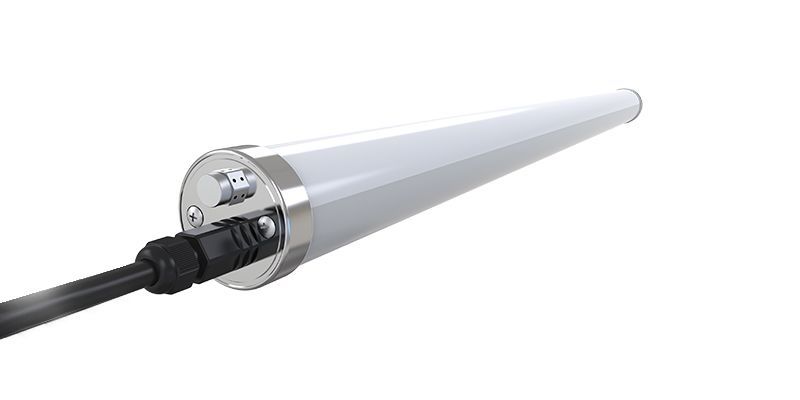

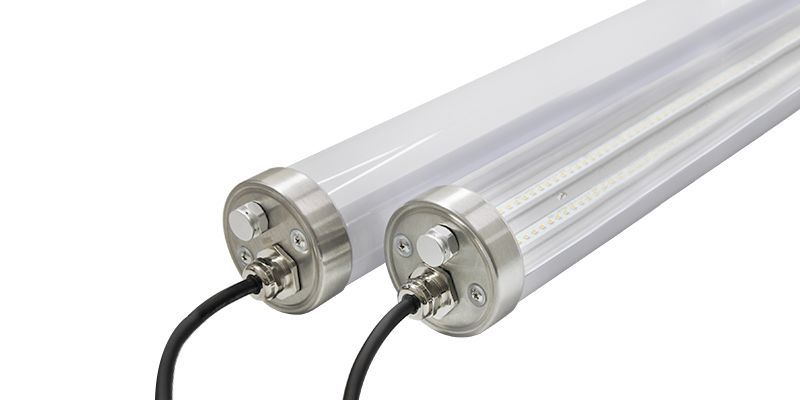

Rancher Details
Rancher Emergency Battery Information
Article Number Emergency Power Battery Parameters
SL-P69X2-20-XB 3W 6.4V 1800mAh
SL-P69X4-36-XB 3W 6.4V 1800mAh
SL-P69X5-45-XB 3W 6.4V 1800mAh
SL-P69X2-30-XB 3W 6.4V 1800mAh
SL-P69X4-50-XB 3W 6.4V 1800mAh
SL-P69X5-50-XB 3W 6.4V 1800mAh
SL-P69X5-60-XB 3W 6.4V 1800mAh
Remark:
1. Indicator color (Green – Recharging & Working, Yellow – malfunction)
2. Battery can be recharged at least 500 times. In order to maintain the battery well it must be discharged every 3 months.

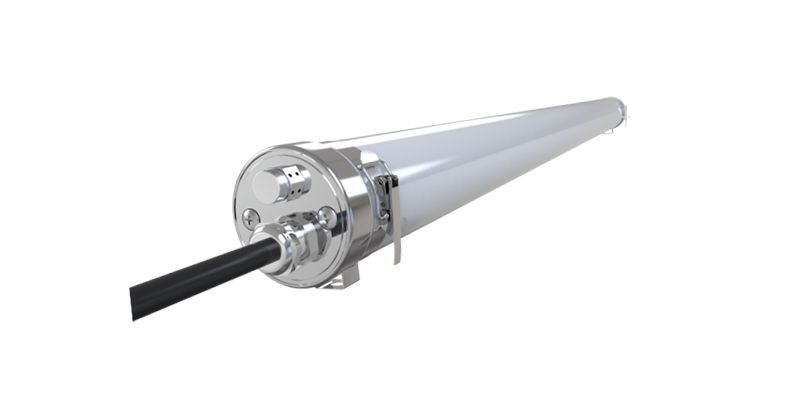

Rancher Details
Product Video
Rancher Emergency Tri-proof Light Description
The Emergency LED Tri-Proof Light is a tough and reliable lighting solution suitable for a variety of industrial and commercial settings. With its waterproof construction and high-quality LED technology, it can withstand harsh environments and provide efficient illumination. It has an emergency mode that activates automatically during power failures, making it ideal for safety-critical areas such as hospitals, warehouses, and parking garages. Its tri-proof design makes it resistant to dust, water, and other environmental factors, requiring little maintenance and enhancing durability. The light is easy to install and energy-efficient, giving you excellent value for your money.
