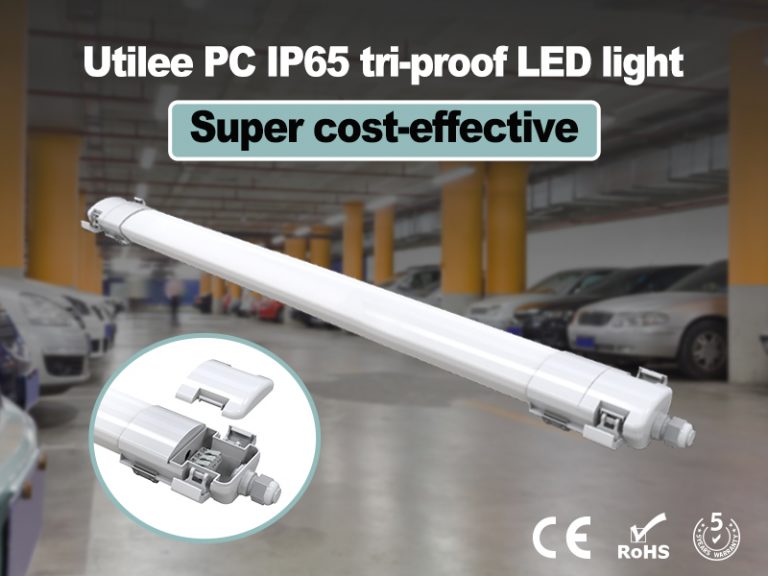

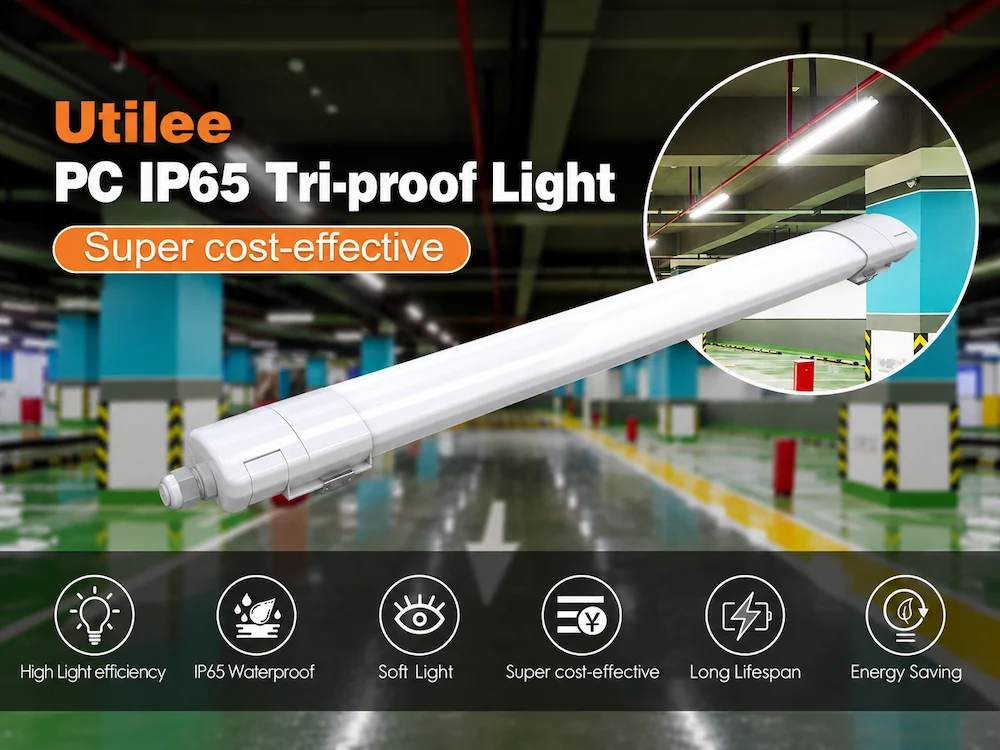

Utilee PC IP65 LED Tri-Proof Light:
How Can A Cost-Effective Configuration Fit Your Project?
A full-PC LED tri-proof light with IP65 protection, IK09 impact protection, 20W / 40W / 50W models and linkable series connection for indoor or sheltered applications.
- Output Selection: Choose from 20W, 40W or 50W to suit the lighting design and budget.
- Compact Installation: Choose a 600mm, 1200mm or 1500mm length with ceiling-mounted or suspended installation.
What Makes Utilee a Cost-Effective PC IP65 Tri-Proof Light?
Utilee combines a full PC housing, frosted PC cover and S304 clips for value-focused protected lighting in indoor or sheltered projects.
- Original Design: 100% original design, private mold product.
- Power Options: 20W / 40W / 50W
- Flexible CCT: 4 Optional Color Temperatures (3000K / 4000K / 5000K / 6000K)

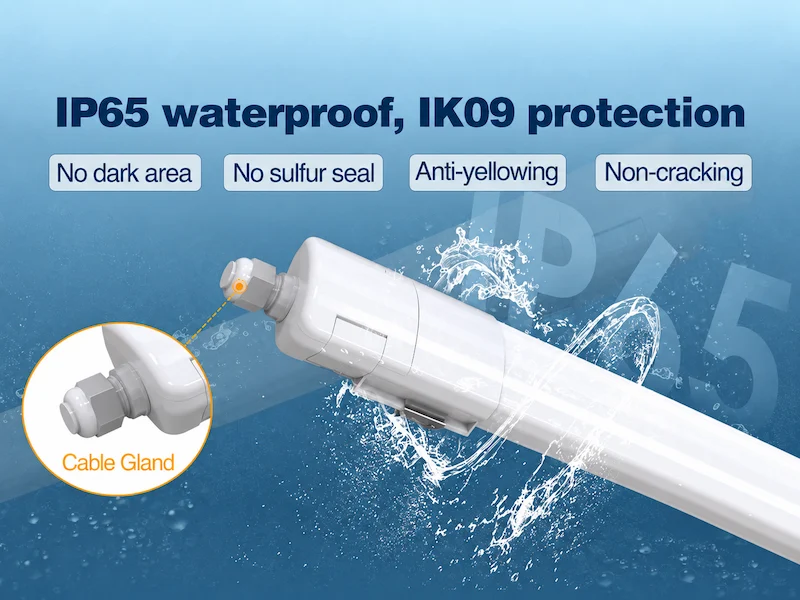

- Protection and Construction: IP65 ingress protection, IK09 impact protection, full PC housing, frosted PC cover and S304 stainless-steel clips.
- UV-Resistant Housing: The PC material supports UV resistance, anti-yellowing and non-cracking performance.

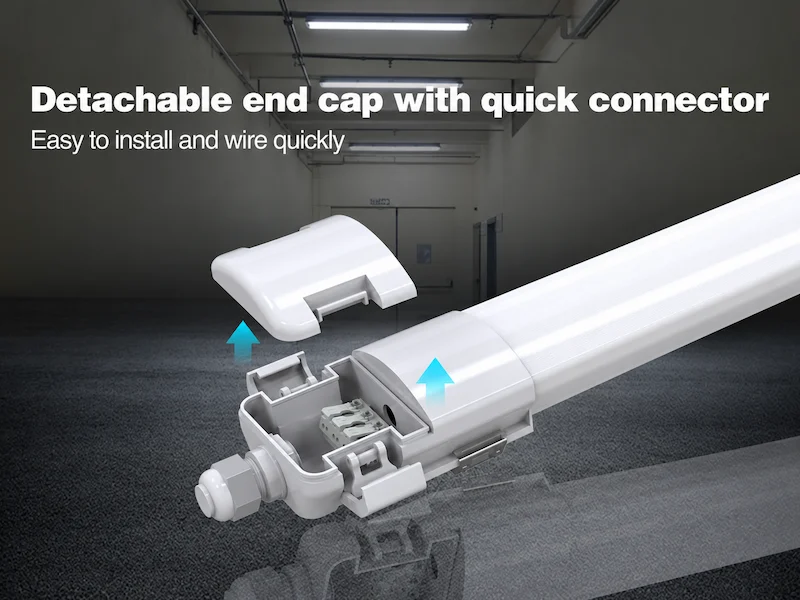

- Cost-Effective Installation: Tool-free linkable connection and a detachable end cap support practical continuous-row installation.
- Series Connection: Linkable construction supports continuous lighting layouts within the stated maximum quantity per voltage.
- Long Life: L80B10 over 50,000 hours at Ta = 25°C.

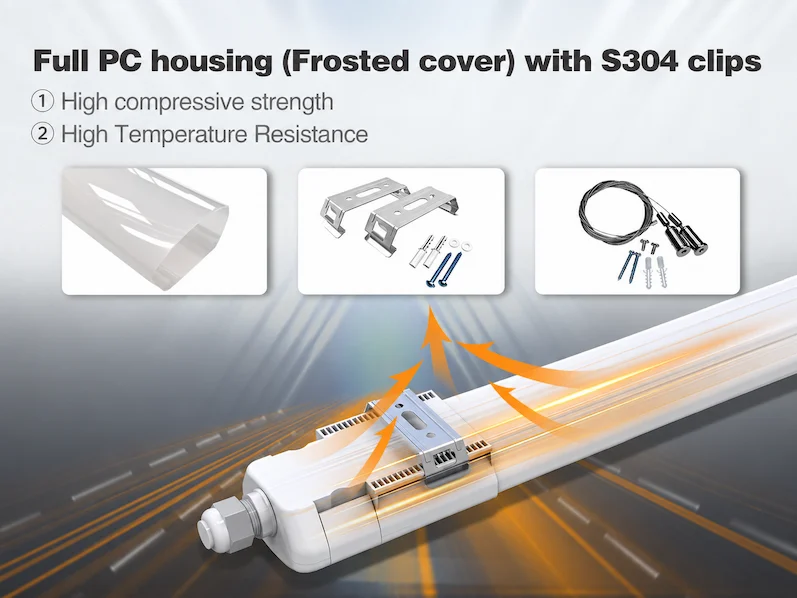

Full PC Housing
A high-strength PC round tube provides a compact, UV-resistant housing for suitable installations.
S304 Stainless Steel Clips
S304 stainless-steel clips support ceiling mounting of the full PC fixture.

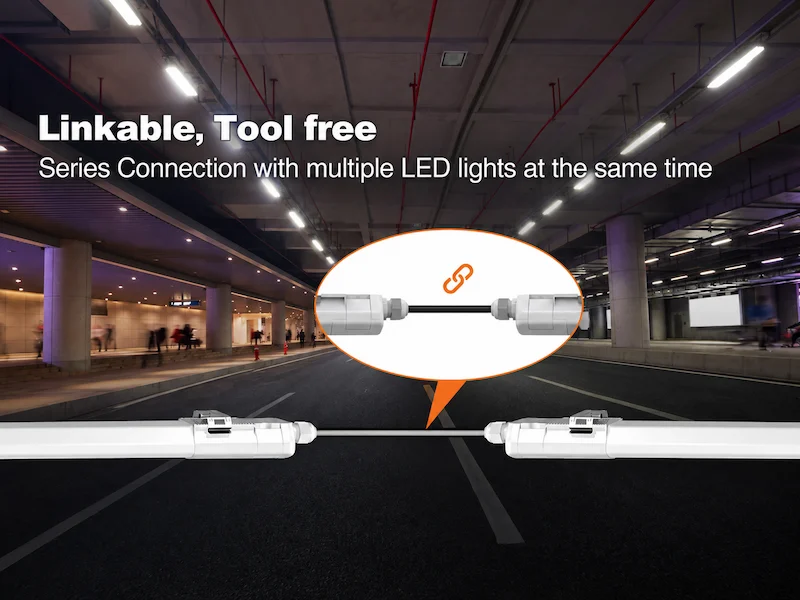

Linkable, Tool-Free Design
Linkable construction helps create continuous runs for corridors and linear layouts.
Model Selection
| Article Number | Power (W) | Lumen (lm) | Dimension (mm) | Housing Material |
|---|---|---|---|---|
| SL-M65X2-20-XE-E | 20W | 2,200–2,800 lm | L600*W75*H43mm | Full PC Housing |
| SL-M65X4-40-XE-E | 40W | 4,800–6,000 lm | L1200*W75*H43mm | Full PC Housing |
| SL-M65X5-50-XE-E | 50W | 6,000–7,500 lm | L1500*W75*H43mm | Full PC Housing |
← Swipe horizontally to see full specifications →
Cover: The frist X represents the cover, it can be F (Frosted).
CCT: W: represents 3000K/4000K, P: represents 5000K and C: represents 6000K.
Length: 2 = 600mm; 4 = 1200mm; 5 = 1500mm.
General Specifications

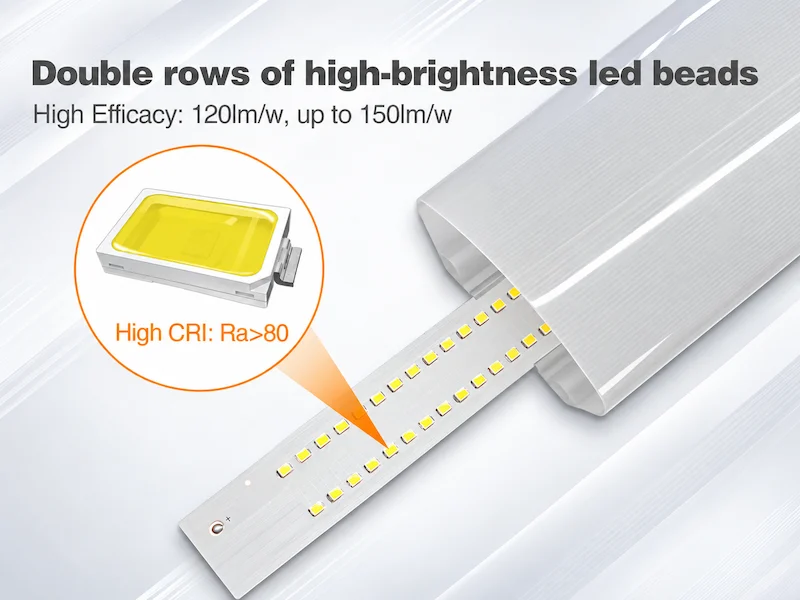

Optical Performance Options
| Cover Type | Standard Series | Premium Series |
|---|---|---|
| Frosted PC Cover | 125 lm/W | 140 lm/W |
Technical Notes:
- 1. Above efficacy is measured and based on 4000K color temperature.
- 2. All values are tested under an ambient temperature of 25°C.
- 3. Efficacy tolerance is ±10% and wattage tolerance is ±10%.
- 4. If CRI>90 is required, the overall light efficiency will be reduced by 10-15%.

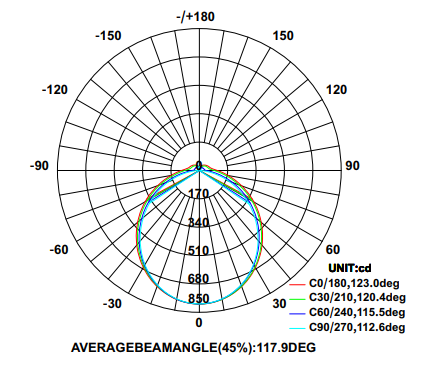

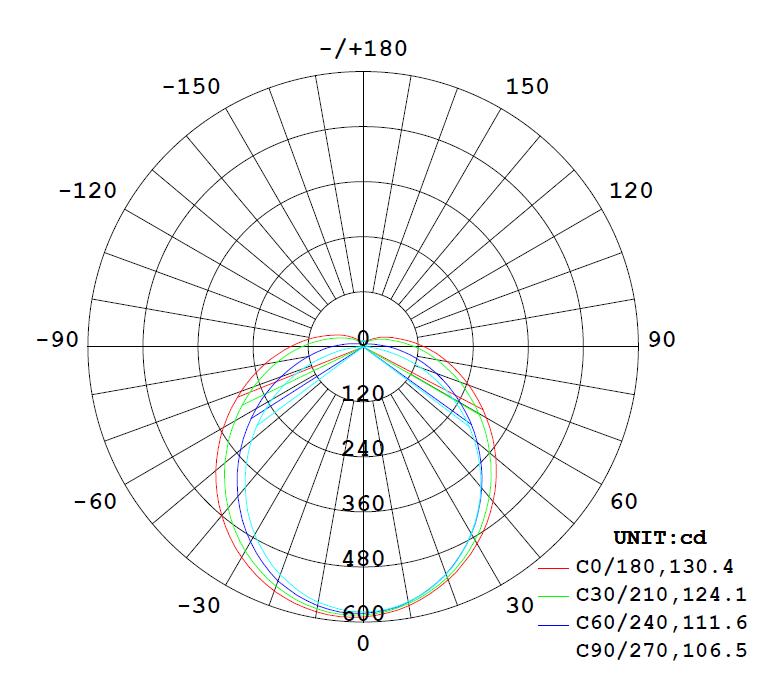

LUMINOUS INTENSITY DISTRIBUTION DIAGRAM
How Do Utilee Connection Methods and Series Limits Work?
Choose the regional wiring method, then use the matching voltage limit when planning a linkable Utilee lighting run.
- Use cable: 0.75-1.5mm²
- Use a solid cable end
- Wire stripping: 10-12mm
- Match the output to the lighting layout
- Use the documented 230V series quantity
- Confirm the site circuit before installation
Linkable Series Connection
Available Quantity in Series Connection
| Power | Input Voltage | Maximum Quantity Connecting In Series |
|---|---|---|
| 20W | 230V | 46 pcs |
| 40W | 230V | 22 pcs |
| 50W | 230V | 18 pcs |
Where Do Utilee PC IP65 LED Tri-Proof Light Work Best?
Utilee suits indoor or sheltered reception rooms, corridors, platforms, meeting rooms, repair shops and offices that need a compact IP65 and IK09 tri-proof fixture. Read our LED Tri-proof Lighting Guide for practical selection advice.
Industrial Challenges Solved by ShineLong
Dust & Moisture Protection
Effectively addresses large amounts of dust, particulate matter, dirt, steam, and water droplets common in harsh industrial locations.
Reliable Installation Conditions
Utilee is suited to indoor or sheltered use, with IP65 and IK09 protection and an operating range of -20°C to +40°C.
Impact Protection
IK09 impact protection helps the fixture withstand accidental contact in busy working areas.
Project-Based Selection
Match the selected 20W, 40W or 50W model, CCT and mounting arrangement to the project lighting design.
Which Installation Method Fits Your Utilee Project?

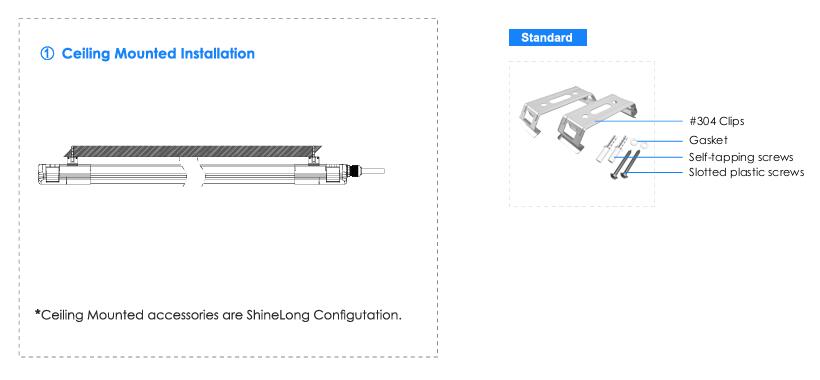

Ceiling Mounted Installation
Use the supplied S304 stainless-steel clips for surface mounting. Switch off power before wiring and ensure the protective earth is securely connected.

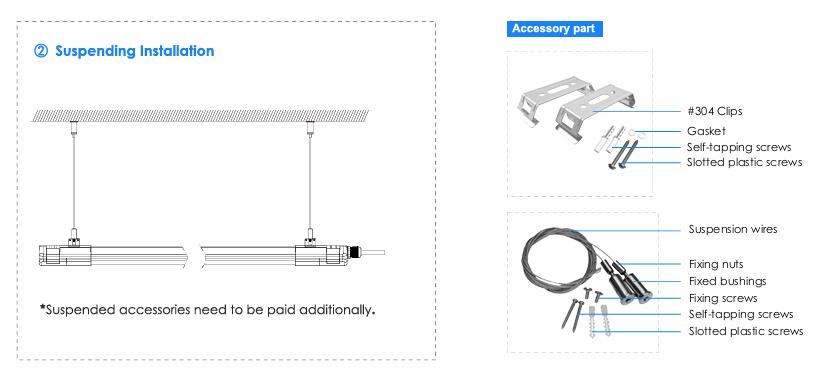

Suspending Installation
Use compatible suspension accessories for an overhead layout. Install indoors or under shelter and keep the site within the -20°C to +40°C operating range.
Installation Note: Use indoors or under shelter, avoid corrosive locations, and confirm secure grounding before energising the fixture.
How Can Utilee PC IP65 LED Tri-Proof Light Support Compact Project Layouts?
Utilee combines a full PC body, IP65 protection and IK09 impact protection for indoor or sheltered projects operating from -20°C to +40°C.
Match the 600mm, 1200mm or 1500mm length and 20W, 40W or 50W model to the layout, then select CCT, series connection and mounting method.
Explore our workshop lighting, factory lighting and warehouse lighting pages for project context. Share the site details and quantity to receive a suitable Utilee quotation.
Utilee LED Tri-Proof Light Video
Explore the Utilee LED tri-proof light before selecting a configuration for your project.
0:30
Utilee LED Tri-Proof Light Overview
00:22
Utilee LED Tri-Proof Light IP65 Testing
FAQ
Frequently Asked Questions About Utilee PC IP65 LED Tri-Proof Light
Find the key details for selecting a cost-effective Utilee PC IP65 configuration, connection method and mounting arrangement.
Where Can Utilee Be Installed?
Utilee is intended for indoor use or sheltered outdoor use from -20°C to +40°C. It suits reception rooms, corridors, platforms, meeting rooms, repair shops and offices when the specified conditions fit the site.
What Protection and Construction Does Utilee Offer?
The fixture has IP65 ingress protection and IK09 impact protection. Its construction uses a full PC housing, frosted PC cover and S304 stainless-steel clips.
Which Sizes and Power Options Are Available?
Choose 600mm / 20W, 1200mm / 40W or 1500mm / 50W. The corresponding frosted-cover lumen ranges are 2,200-2,800 lm, 4,800-6,000 lm and 6,000-7,500 lm.
What CCT and Optical Performance Are Available?

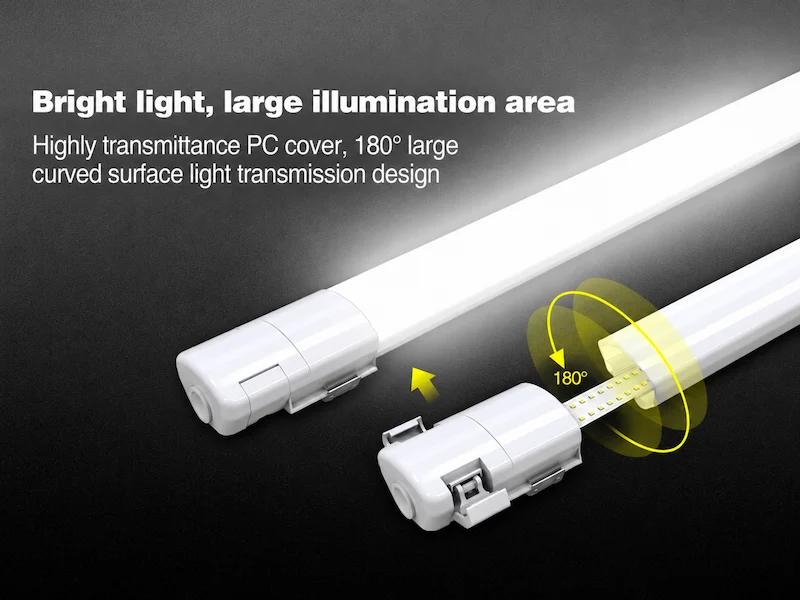

Utilee uses a frosted PC cover with a 120° beam angle and CRI over 80. Available colour temperatures are 3000K, 4000K, 5000K and 6000K.
Which Input Voltage Should I Select?
Available AC input options are AC200-240V or AC200-240V at 50/60Hz. Confirm the local electrical supply before placing an order.
Can I Connect Multiple Fixtures in Series?
Yes. At 230V, the maximum series quantities are 46 fixtures for 20W, 22 fixtures for 40W and 18 fixtures for 50W. Use the correct connection method and cable preparation for the selected voltage region.
Which Mounting Methods Are Available?
Ceiling mounting uses #304 brackets. A suspended installation can be arranged with the matching accessory set; include the mounting method in your inquiry.
Why Is Utilee Suitable For Cost-Conscious Projects?
Utilee offers three output and length formats, full PC construction, IP65 / IK09 protection and tool-free linkable connection. This enables buyers to select the required fixture level and installation approach without adding unneeded product complexity.
What Information Helps Prepare a Quote?
Send the application, required length, power, CCT, connection requirement, mounting method and quantity. This lets the ShineLong team recommend a cost-effective Utilee configuration for the project.
Ready to Request a Utilee Quote or Place an Order?
Send your application, required length, model, CCT, input voltage, series-connection requirement, mounting method and quantity. Our team will recommend the right configuration and support your quotation or order request.
