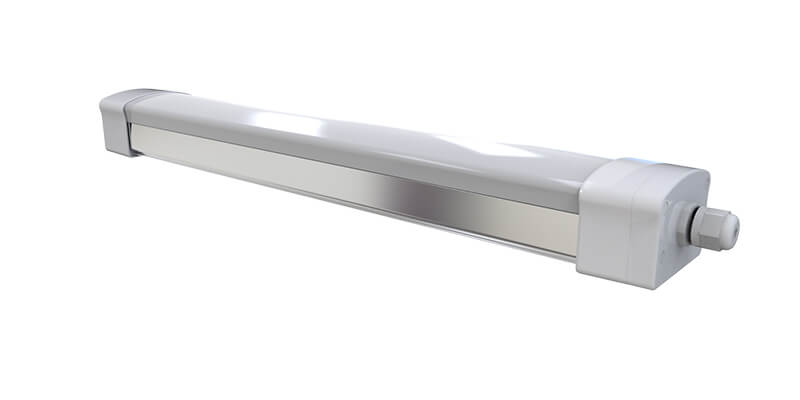

Parkade Series LED Tri-proof Light
A dependable lighting solution for underground parking garages and other demanding commercial and industrial environments. Built to handle dust, moisture, impacts and long-term daily use where reliable protection really matters.
Parkade IP66 LED Tri-Proof Light Manufacturer
For Garage Projects
Yes—Parkade combines IP66 ingress protection, IK10 impact resistance, aluminium construction and configurable control options for parking-garage and commercial lighting projects.
- 80% Energy Saving: Cuts operational costs instantly compared to traditional fixtures.
- Certified Drivers: Equipped with premium ENEC or UL Class P certified flicker-free drivers.
IP66 LED Tri-proof Light Features
Engineered to deliver heavy-duty performance in high-impact, wet, and dusty industrial environments.
- Versatile Output: 7 Selectable Wattages (20W / 30W / 40W / 50W / 60W / 80W / 100W)
- Flexible CCT: 4 Optional Color Temperatures (3000K / 4000K / 5000K / 6000K)
- Heavy-Duty Protection: IP65/IP66 waterproof & dustproof, IK10 impact resistance, 94V0 flame-retardant materials.
- Premium Engineering: Patented SMD2835 LED light source with global protection & ENEC certified or UL Class P certified flicker-free drivers.
- Smart Adaptability: Optional dimming controls, integrated microwave motion sensors, and emergency battery backups.
- Long Lifespan: L80B10 stability rated for >89,000 Hours of operational life (@ Ta = 25°C).
Flame-Resistance
Tested durability against active direct fire hazards.
94V0 Fireproof
D-Mark certified structural safety enclosure.
High Transmission
Premium Mitsubishi PC cover optimized for light efficiency.
Optical Performance Options
| Cover Type | Standard Series | Premium Series |
|---|---|---|
| Frosted | 135 lm/W | 145 lm/W |
| Striped | 140 lm/W | 155 lm/W |
Technical Notes:
- 1. Above efficacy is measured and based on 4000K color temperature.
- 2. All values are tested under an ambient temperature of 25°C.
- 3. Efficacy tolerance is ±10% and wattage tolerance is ±10%.
- 4. If CRI>90 is required, the overall light efficiency will be reduced by 10-15%.
LUMINOUS INTENSITY DISTRIBUTION DIAGRAM
Model Selection
| Article Number | Power (W) | Lumen (lm) | Working Current (mA) |
|---|---|---|---|
| SL-A65X2-20-X | 20W | 2,700~2,900 lm | 450 mA |
| SL-A65X2-30-X | 30W | 4,050~4,350 lm | 750 mA |
| SL-A65X4-40-X | 40W | 5,400~5,800 lm | 950 mA |
| SL-A65X4-50-X | 50W | 6,750~7,250 lm | 1200 mA |
| SL-A65X5-50-X | 50W | 6,750~7,250 lm | 1200 mA |
| SL-A65X5-60-X | 60W | 8,100~8,700 lm | 1400 mA |
← Swipe horizontally to see full specifications →
Diffuser: The first “X” represents diffuser type: F (Frosted) or S (Striped).
Length: The number after the first “X” represents light length: 4 = 1200mm; 5 = 1500mm.
CCT: The second “X” represents CCT: W (3000K/4000K), P (5000K) or C (6000K).
General Specifications
Certified Drivers
The driver is the heart of reliable LED engineering. All our tri-proof lights feature European ENEC-certified and US Class P certified drivers, ensuring optimal stability, electrical safety, and an extended operational lifespan.
Smart Dimming Function
Fully compatible with 0/1-10V / DALI dimming systems. When paired with microwave motion sensors, the fixtures support intelligent 3-step dimming to maximize energy efficiency in 24/7 parking lot zones.
Emergency Battery Backup
Optional integrated emergency lighting modules. In the event of an unexpected power outage or circuit failure, the built-in battery automatically activates to provide uninterrupted path safety illumination.
Extensive Accessories
We provide full hardware kits tailored for three versatile installation methods. All precise fittings are organized via automated packaging equipment, guaranteeing zero missing components on-site.
Versatile Commercial & Industrial Applications
Engineered to deliver high-performance illumination across diverse architectural and harsh environments:
Industrial Challenges Solved by ShineLong
Dust & Moisture Protection
Effectively addresses large amounts of dust, particulate matter, dirt, steam, and water droplets common in harsh industrial locations.
Corrosion & Maintenance Free
Resists corrosive gases and chemicals, drastically reducing the ongoing maintenance and replacement costs of your lamps and lanterns.
Vandal-Proof & Anti-Collision
Withstands severe mechanical impacts and accidental collisions, ensuring a safer working environment and reducing employee injuries.
Up to 80% Cost Savings
Eliminates the high running costs of traditional vapor tights. Save up to 80% on both labor maintenance overhead and electricity bills.
Where Can LED Tri-proof Lights Be Used?
If you would like to know more about this product or quotaion, please call us. (+0086 0755 8520-3898)
What Types of Application Projects Use IP66 LED Tri-proof Light？
Engineered for Demanding Environments
Airport
Subway Station
Car Wash
Spraying Factory
Workshop
Library
Parking Garage
Warehouse
How Do You Specify IP66 Lighting for Parking Garage Projects?
Parkade is a protected linear LED option for covered parking decks, drive lanes, ramps and service areas where fixture protection, impact resistance and practical control options must be reviewed alongside the lighting layout.
Its stated IP66 ingress protection, IK10 impact protection and aluminium housing help procurement teams assess suitability for moisture, dust and incidental contact in demanding garage zones. Confirm the required power, CCT, cover, controls and emergency function against the actual operating conditions before specification.
For project planning, review ShineLong’s indoor parking garage lighting solution for lanes, bays, ramps and pedestrian routes. For layout and selection considerations, see the parking garage lighting selection guide.
What Functions Does The IP66 LED Tri-proof Light Have?
Sensor Version
Parkade IP65 Alu Tri-proof LED light with built-in Microwave Sensor. Features 100% ON/OFF or 3-step automatic dimming.
DALI Dimmable Version
Parkade IP65 Alu Tri-proof. Compatible with DALI dimming systems.
Parkade Series Video Center
Explore our technical demonstrations, stress tests, and real-world installation case studies for elite engineering projects.
1:01

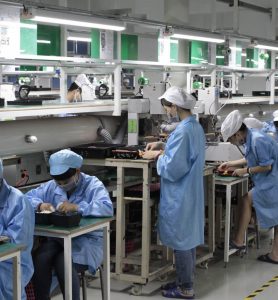

Parkade IP66 Alu LED Tri-proof Lights Factory Overview
1:13
Indoor Garage Lighting | Parkade Installation & Light Performance
0:39
Emergency IP66 Tri-proof Light Battery Backup Duration Test
0:45
IP66 LED Tri-proof Light Structural & Waterproof Material Showcase
0:43
LED Tri-proof Light Global Project Application Real Case Show
Explore Heavy-Duty Tri-proof Series
Rancher IP69K LED Tri-proof Light
Alpha Vapor Tight Light
Rancher Mini LED Tri-proof Light
Eco-Rancher IP66 Tri-proof Light
Eco-mini II PC Tri-proof Light
Eco-Alpha Vapor-tight Light
Frequently Asked Questions About Parkade IP66 LED Tri-Proof Light
Selection guidance for parking-garage, commercial and industrial lighting projects.
Where Can Parkade IP66 LED Tri-Proof Lights Be Used?
Parkade is designed for indoor parking garages and other commercial or industrial areas that need robust linear lighting. Review installation height, operating conditions and the required lighting level before selecting a configuration.
What Protection Does Parkade Provide?
The Parkade IP66 series combines IP66 ingress protection with IK10 impact resistance and 94V0 material protection. This construction is intended for demanding sites where dust, moisture and accidental impact are practical considerations.
Which Power, Lumen And CCT Options Are Available?
Verified standard models cover 20W, 30W, 40W, 50W and 60W, with outputs from 2,700–2,900 lm to 8,100–8,700 lm depending on the article number. CCT options are 3000K, 4000K, 5000K and 6000K.
Can Parkade Be Supplied With Dimming, Sensor Or Emergency Functions?
Yes. Parkade supports 0/1–10V and DALI dimming, microwave sensor operation and an optional emergency battery backup. Confirm the selected function, connector and control compatibility for the final article number before ordering.
What Materials Are Used In The Parkade Fixture?
The product page specifies an aluminium housing and PCB with a Mitsubishi PC cover. The Parkade series also uses 94V0 materials to support its protection-focused design.

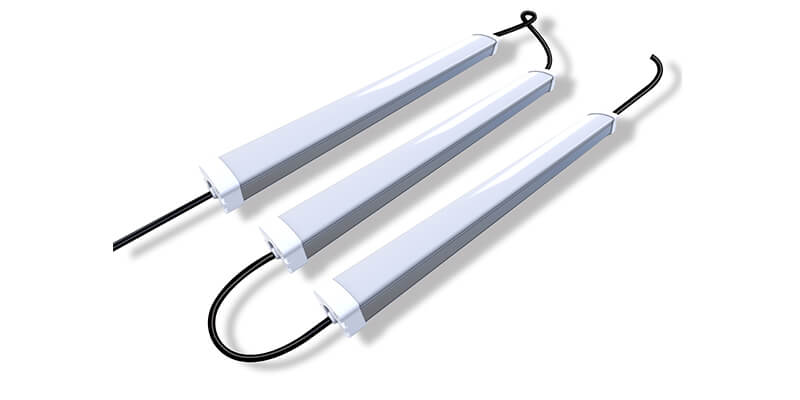

Is Parkade Linkable And Easy To Install?
Parkade offers a linkable, tool-free configuration. The page also lists installation accessories and multiple installation methods; confirm the site layout and the required fittings before placing an order.
How Long Does The Emergency Version Operate?
The Parkade emergency version is listed with a rechargeable integrated battery and up to 3 hours of emergency runtime. Confirm the required emergency configuration and local project requirements before finalising the order.
What Information Should I Provide For A Parkade Project Quote?
Provide the application, installation height, quantity, required power and CCT, input voltage, control or emergency requirement, and mounting or linking layout. This allows the ShineLong team to match a suitable Parkade configuration to the project.
Request Parkade IP66 Technical Data
Share the application, installation height, quantity, required power, CCT and control or emergency function. Our team will help match a Parkade configuration for your project.
