EcoRancher Mini LED Tubular Lights:
Which 40mm IP66 Configuration Fits Your Project?
A 40mm PC tubular LED light with IP66 protection, IK09 impact protection, 10W / 20W / 30W models and linkable series connection for indoor or sheltered applications.
IP66
Waterproof Protect
IK09 Impact
Excellent Impact Protection
125-140 Lm/W
Configured Efficacy
40mm / Linkable
Slim / Linkable
- Output Selection: Choose from 10W, 20W or 30W to suit the lighting design.
- Compact Installation: Choose a 600mm, 1200mm or 1500mm length with ceiling-mounted or suspended installation.
What Makes EcoRancher Mini a Compact IP66 Tubular Light?
EcoRancher Mini combines a 40mm full-PC housing, frosted cover, PC end caps and plastic rebreather for compact protected lighting in indoor or sheltered projects.
- Power Options: 10W / 20W / 30W
- Flexible CCT: 4 Optional Color Temperatures (3000K / 4000K / 5000K / 6000K)

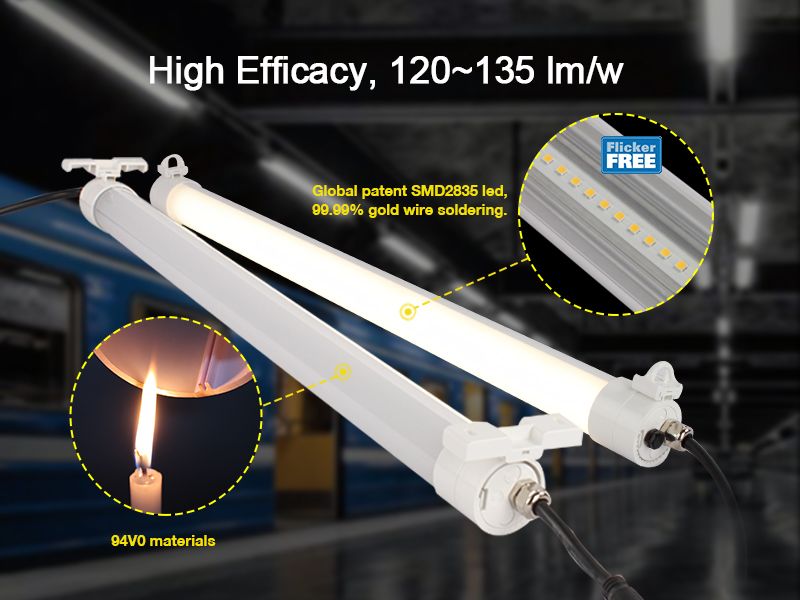

- Protection and Construction: IP66 ingress protection, IK09 impact protection, 94V0 materials, full-PC housing, frosted cover, PC end caps and a plastic rebreather.
- UV-Resistant Housing: The PC material supports UV resistance, anti-yellowing and non-cracking performance.
- Internal Driver: Flicker-free internal driver for AC100–277V or AC200–240V, 50/60Hz.
- Series Connection: Linkable construction supports continuous lighting layouts within the stated maximum quantity per voltage.
- Long Life: L80B10 over 50,000 hours at Ta = 25°C.

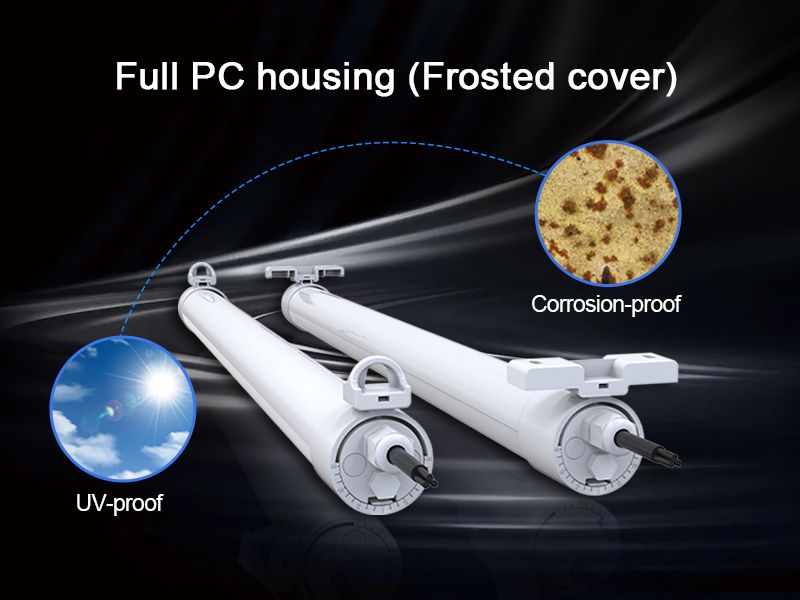

Full PC Housing
A high-strength PC round tube provides a compact, UV-resistant housing for suitable installations.
Full-PC Construction
A full-PC housing, frosted cover and PC end caps support a compact protected fixture.

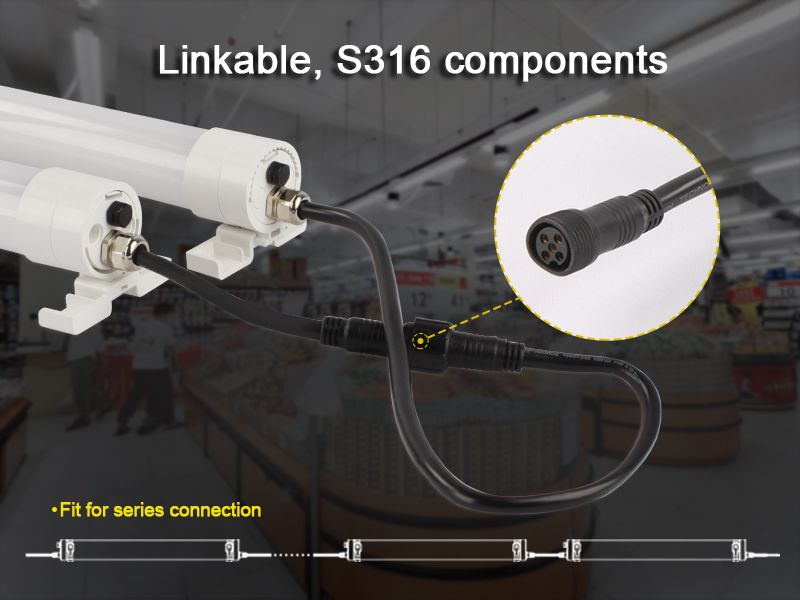

Linkable, Quick-connect Design
Linkable construction helps create continuous runs for corridors and linear layouts.
Model Selection
| Article Number | Power (W) | Lumen (lm) | Dimension (mm) | Housing Material |
|---|---|---|---|---|
| SL-C40AF2-10-XE | 10W | 1,250–1,400 lm | 600 * D40 mm | Full-PC Housing |
| SL-C40AF4-20-XE | 20W | 2,500–2,800 lm | 1200 * D40 mm | Full-PC Housing |
| SL-C40AF5-30-XE | 30W | 3,750–4,200 lm | 1500 * D40 mm | Full-PC Housing |
← Swipe horizontally to see full specifications →
CCT Code: X represents W for 3000K/4000K, P for 5000K or C for 6000K.
Length Code: 2 = 600mm; 4 = 1200mm; 5 = 1500mm.
General Specifications
Optical Performance Options
| Cover Type | Standard Series | Premium Series |
|---|---|---|
| Frosted PC Cover | 125 lm/W | 140 lm/W |
Technical Notes:
- 1. Above efficacy is measured and based on 4000K color temperature.
- 2. All values are tested under an ambient temperature of 25°C.
- 3. Efficacy tolerance is ±10% and wattage tolerance is ±10%.
- 4. If CRI>90 is required, the overall light efficiency will be reduced by 10-15%.
LUMINOUS INTENSITY DISTRIBUTION DIAGRAM
How Do EcoRancher Mini Connection Methods and Series Limits Work?
Choose the regional wiring method, then use the matching voltage limit when planning a linkable EcoRancher Mini lighting run.
- Use cable: 0.75-1.5mm²
- Use a solid cable end
- Wire stripping: 10-12mm
- Use cable: AWG18
- Use a solid cable end
- Wire stripping: 0.39-0.47 inch
Linkable Series Connection
Available Quantity in Series Connection
| Power | 110V | Maximum Quantity | 277V | Maximum Quantity | 230V | Maximum Quantity |
|---|---|---|---|---|---|---|
| 10W | 110V | 44 pcs | 277V | 110 pcs | 230V | 92 pcs |
| 20W | 110V | 16 pcs | 277V | 41 pcs | 230V | 46 pcs |
| 30W | 110V | 11 pcs | 277V | 27 pcs | 230V | 30 pcs |

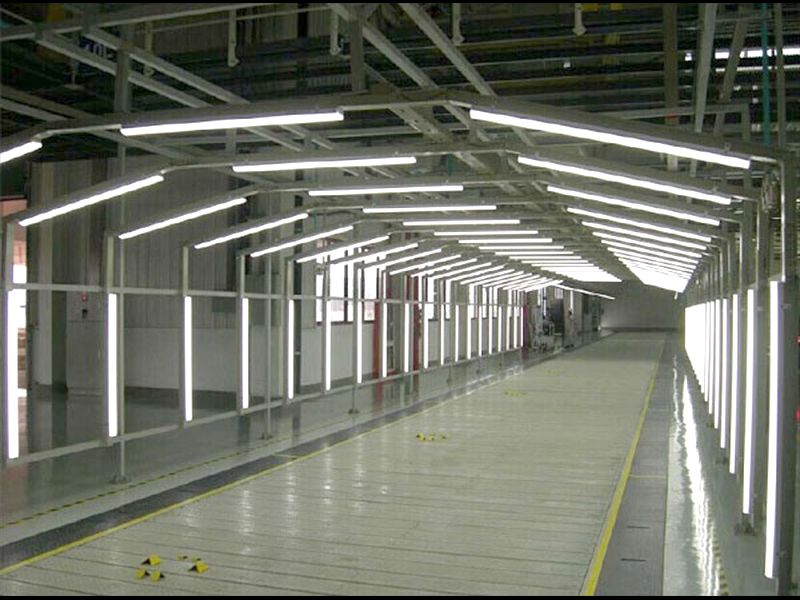

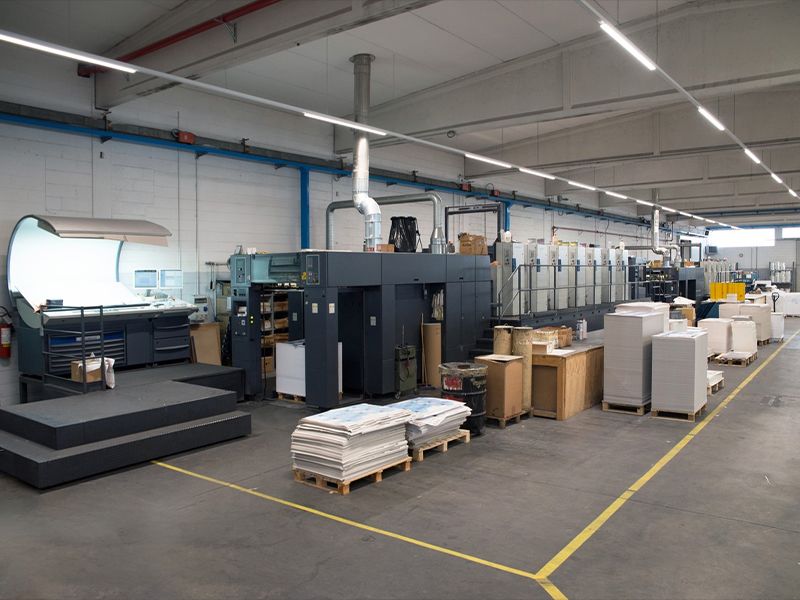

Where Do EcoRancher Mini LED Tubular Lights Work Best?

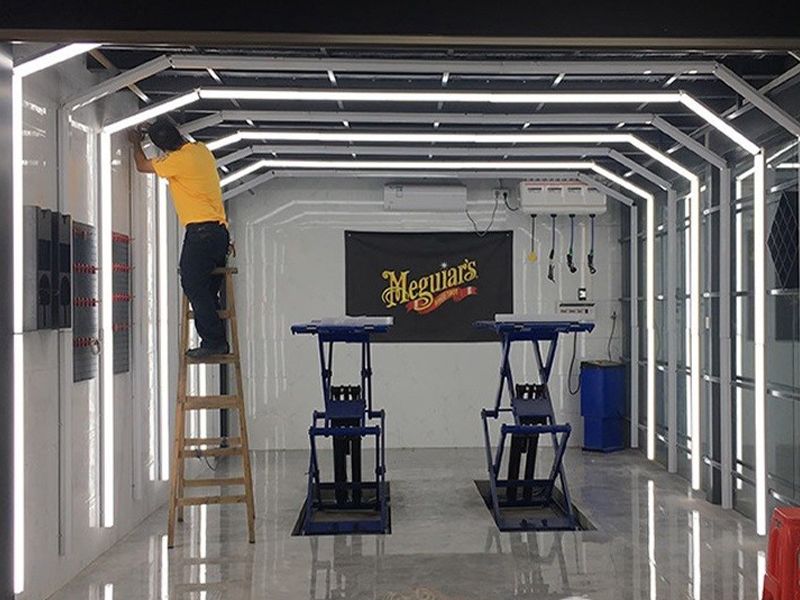

EcoRancher Mini suits indoor or sheltered reception rooms, corridors, platforms, meeting rooms, repair shops and offices that need a compact IP66 and IK09 tubular fixture. Read our LED Tri-proof Lighting Guide for practical selection advice.
Industrial Challenges Solved by ShineLong
Dust & Moisture Protection
Effectively addresses large amounts of dust, particulate matter, dirt, steam, and water droplets common in harsh industrial locations.
Reliable Installation Conditions
EcoRancher Mini is suited to indoor or sheltered use, with IP66 and IK09 protection and an operating range of -20°C to +40°C.
Impact Protection
IK09 impact protection helps the fixture withstand accidental contact in busy working areas.
Project-Based Selection
Match the selected 10W, 20W or 30W model, CCT and mounting arrangement to the project lighting design.
Which Connection Method Fits Your Rancher Mini Installation?

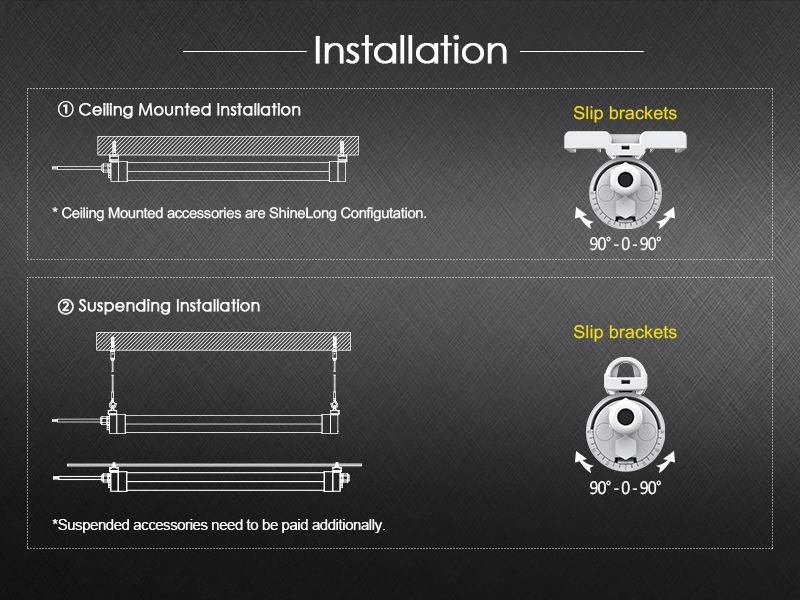

Ceiling Mounted & Suspending
Select the appropriate installation method based on actual installation requirements; ceiling mounted accessories is the standard configuration for ShineLong.
Installation Rendering

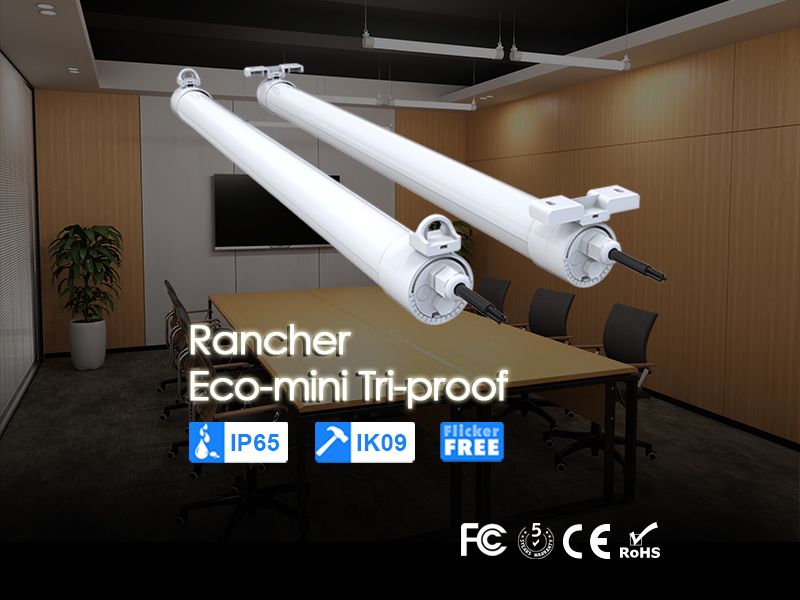

Diagram of ceiling mounted installation for small meeting rooms.
How Can EcoRancher Mini LED Tubular Lights Support Compact Project Layouts?
EcoRancher Mini combines a 40mm full-PC housing, frosted cover and IP66 / IK09 protection for indoor or sheltered projects operating from -20°C to +40°C.
Match the 600mm, 1200mm or 1500mm length and 10W, 20W or 30W model to the layout, then select the CCT, input voltage, series connection and mounting method.
Explore our workshop lighting, factory lighting and warehouse lighting pages for project context. Share the site details and quantity to receive a suitable EcoRancher Mini quotation.
Rancher Mini LED Tubular Light Video
Explore the Rancher Mini LED tubular light before selecting a configuration for your project.
0:39
Rancher Mini LED Tubular Light Overview
0:36
Rancher Mini LED Tri-proof Light Installation
FAQ
Frequently Asked Questions About EcoRancher Mini LED Tubular Lights
Find the key details for selecting the right 40mm tubular light configuration, connection method and mounting arrangement.
Where Can EcoRancher Mini Be Installed?
EcoRancher Mini is intended for indoor use or sheltered outdoor use from -20°C to +40°C. It suits reception rooms, corridors, platforms, meeting rooms, repair shops and offices when the specified conditions fit the site.
What Protection and Construction Does EcoRancher Mini Offer?
The fixture has IP66 ingress protection and IK09 impact protection. Its compact construction uses a full-PC housing with a frosted cover, PC end caps and a plastic rebreather.
Which Sizes and Power Options Are Available?
Choose 600mm / 10W, 1200mm / 20W or 1500mm / 30W. The corresponding lumen ranges are 1,250-1,400 lm, 2,500-2,800 lm and 3,750-4,200 lm.
What CCT and Optical Performance Are Available?
EcoRancher Mini uses a frosted PC cover with a 120° beam angle and CRI over 80. Available colour temperatures are 3000K, 4000K, 5000K and 6000K.
Which Input Voltage Should I Select?
Available AC input options are AC100-277V or AC200-240V at 50/60Hz. Confirm the local electrical supply before placing an order.
Can I Connect Multiple Fixtures in Series?
Yes. At 230V, the maximum series quantities are 92 fixtures for 10W, 46 fixtures for 20W and 30 fixtures for 30W. Use the correct connection method and cable preparation for the selected voltage region.
Which Mounting Methods Are Available?
Ceiling mounting uses the supplied slip brackets. A suspended installation can be arranged with the matching accessory set; include the mounting method in your inquiry.
What Information Helps Prepare a Quote?
Send the application, required length, power, CCT, input voltage, connection requirement, mounting method and quantity. EcoRancher Mini carries a five-year warranty and uses a flicker-free internal driver.
Ready to Request an EcoRancher Mini Quote or Place an Order?
Send your application, required length, model, CCT, input voltage, series-connection requirement, mounting method and quantity. Our team will recommend the right configuration and support your quotation or order request.
What Styles of Tri-proof Lights Are Available to Choose From?
Parkade Aluminum IP65 LED Tri-proof Light
Rancher IP69K LED Tri-proof Light
Alpha PC IP65 LED Vapor Tight Light

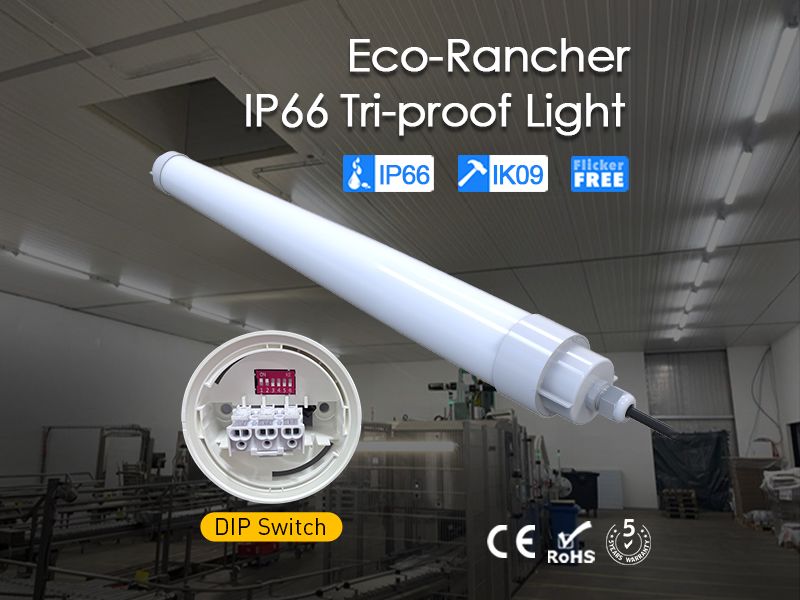

Eco-Rancher IP66 Tri-proof Light
