Nerion 10-Inch LED Pool Light for Project Supply
Select warm, neutral or cool white from one 3-CCT fixture. A wall switch changes the color temperature, and the light remembers the previous setting.
Why Choose 3-CCT White Light?
Specify white-light tone and output without adding a separate color controller.
Three White-Light Settings
Switch between 3000K, 4500K and 6500K; the latest specification lists 4500K as the default.
Defined White-Light Output
35W delivers 4,550 lm and 55W delivers 7,150 lm in the current product specification.

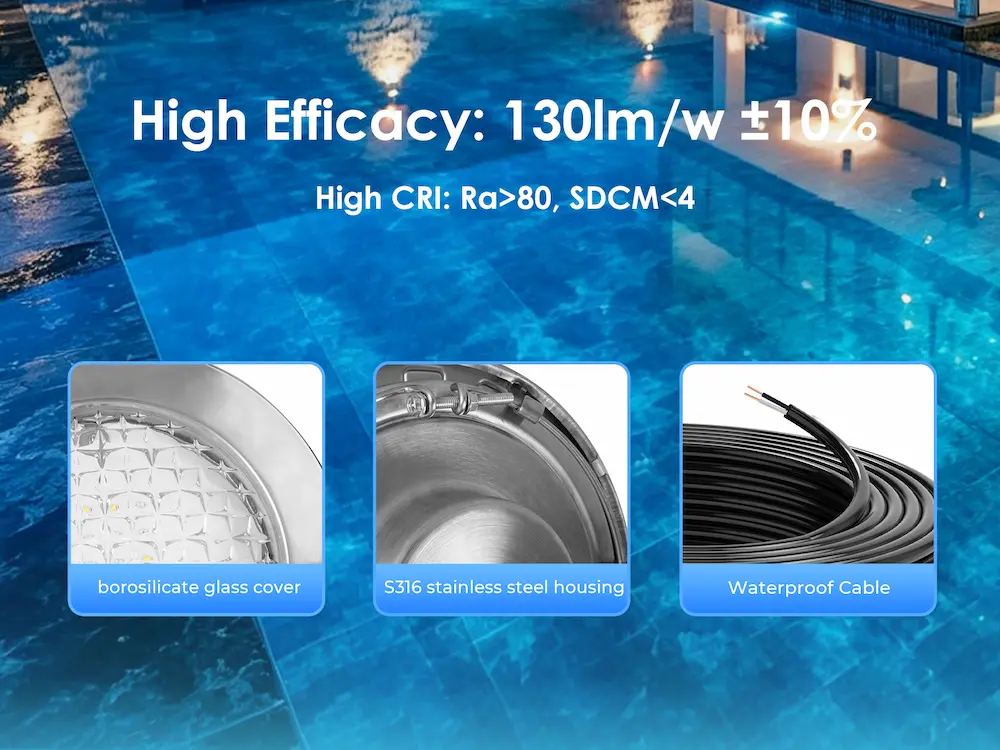

Submerged Construction
S316 stainless steel housing and a borosilicate glass cover; IP68 fixture rating.

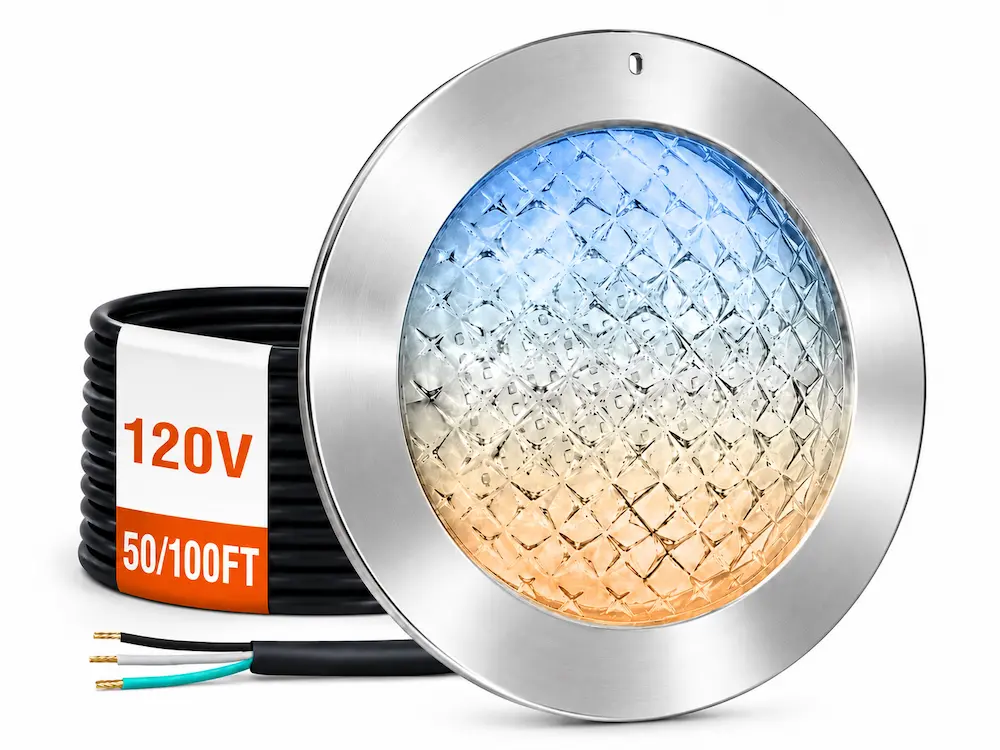

3-CCT Specifications
Select the article number first; then confirm the niche and cable plan.
| Article Number | Power | Fixture Input | Specified Light Output |
|---|---|---|---|
| SL-P10-35CCT-05 | 35W | AC120V, 50/60Hz | 4,550 lm |
| SL-P10-55CCT-05 | 55W | AC120V, 50/60Hz | 7,150 lm |
Construction and Dimensions
- S316 stainless steel housing; borosilicate glass cover
- IP68 fixture rating; niche mounting
- Ø257 × 91.3 mm fixture size
- Specified water depth: less than 5 m
Order Configuration
- 15 m standard cable; custom length available
- White-light settings: 3000K / 4500K / 6500K; default 4500K
- CRI: Ra > 80; color consistency: SDCM < 4
10-Inch Pool Niche Types
Nerion is a niche-mounted fixture. Review the existing niche construction and exact dimensions before selecting a replacement light.

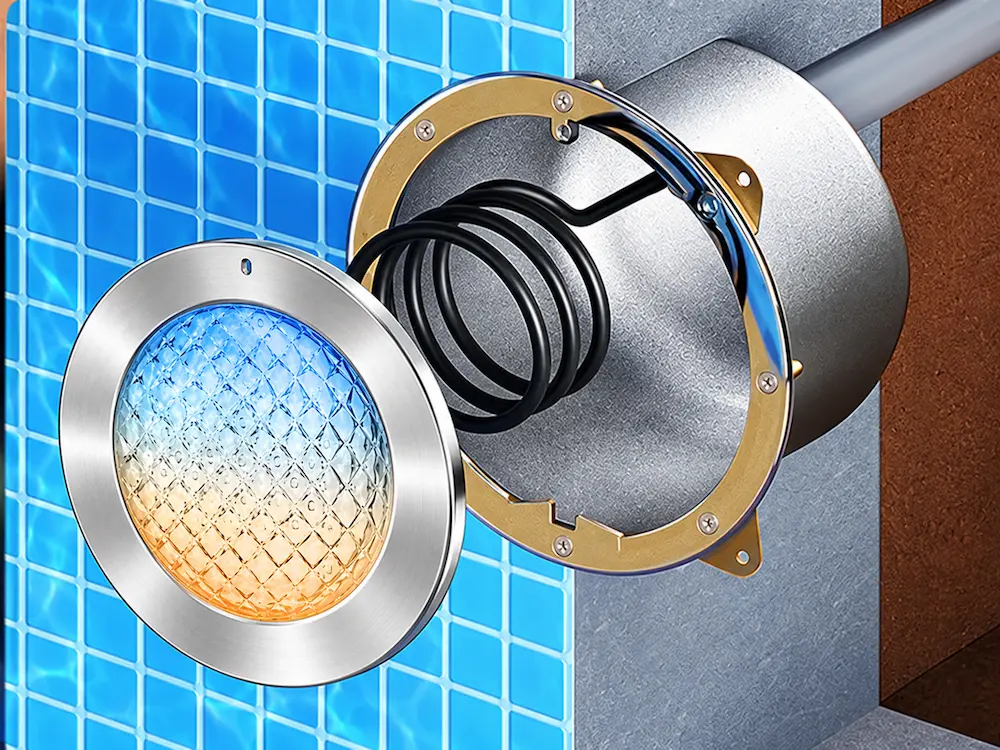

Stainless Steel Niche
Concrete pool installation

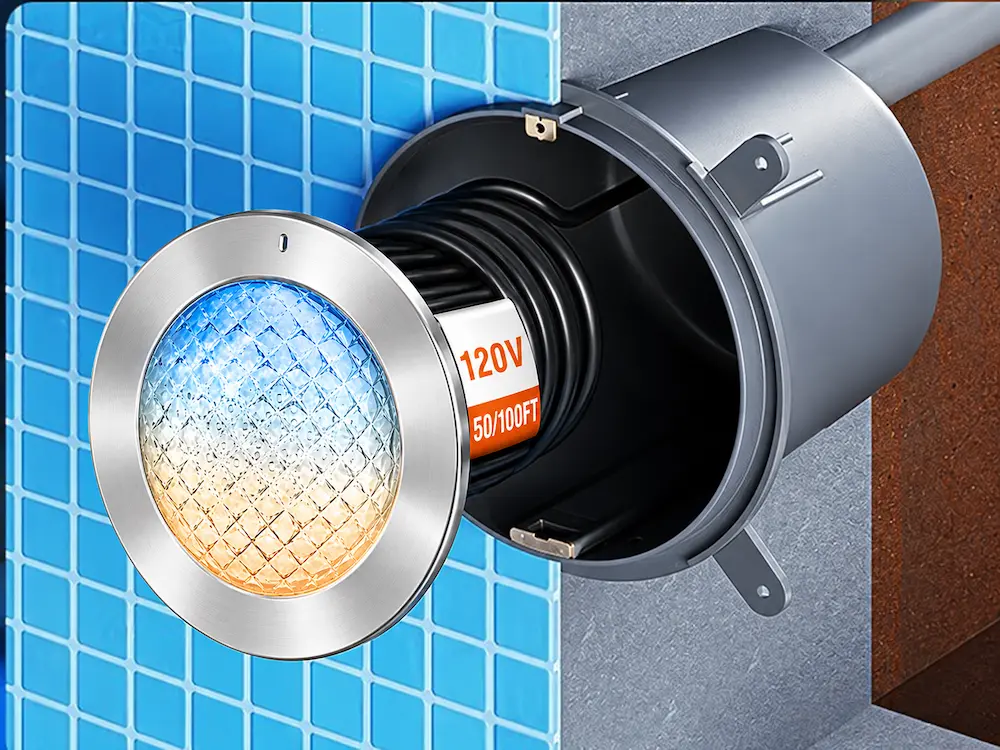

Polymer Niche
Concrete pool installation

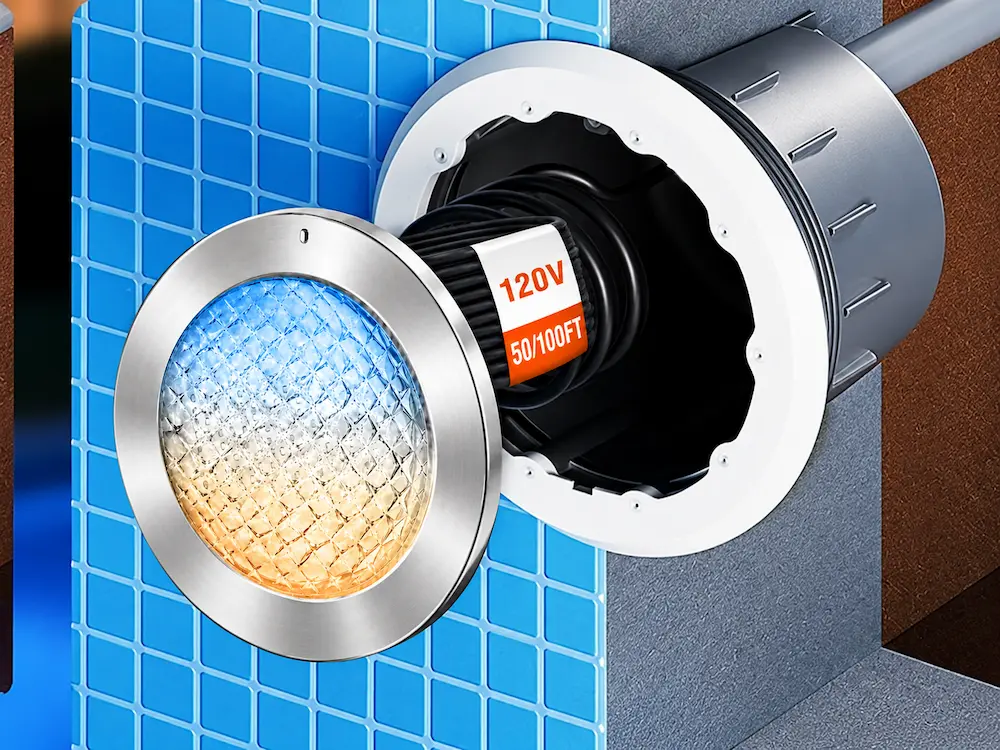

Flanged Polymer Niche
Vinyl-liner or fiberglass pool
For a Pentair, Hayward, Jandy, Jacuzzi or Sta-Rite niche, send the exact model number or dimension drawing. ShineLong will review the opening, mounting point and cable route before confirming fit.
Factory Manufacturing for Nerion Pool Light Orders
Work directly with ShineLong’s Shenzhen factory team on Nerion model selection, production quantities, cable length and technical requirements.
We coordinate production planning, quality control and technical documents for contractors, distributors and project buyers. Share your niche drawing and electrical requirements so the selected version fits the installation.
What Defines the Nerion Underwater Fixture?
Nerion combines an IP68 fixture rating with an S316 stainless steel housing, a borosilicate glass cover and niche mounting for underwater projects.
- Bright & Dark spots
- Energy efficent
- IP68 waterproof & Durable
- Soft & Ambient
- Easy to install & Upgrade

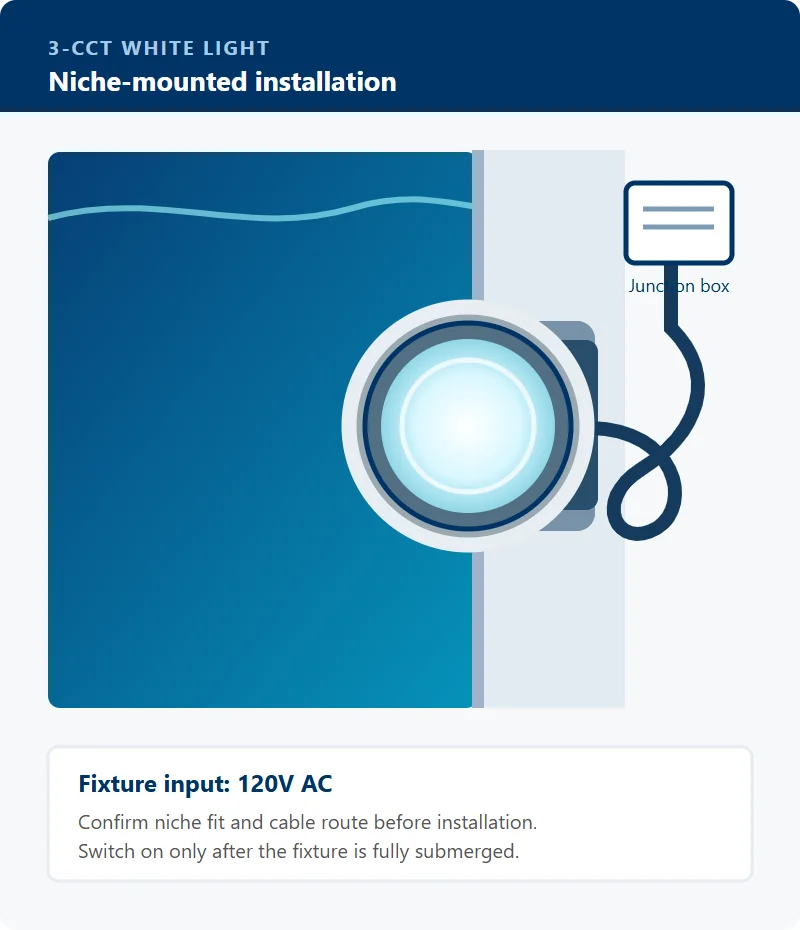

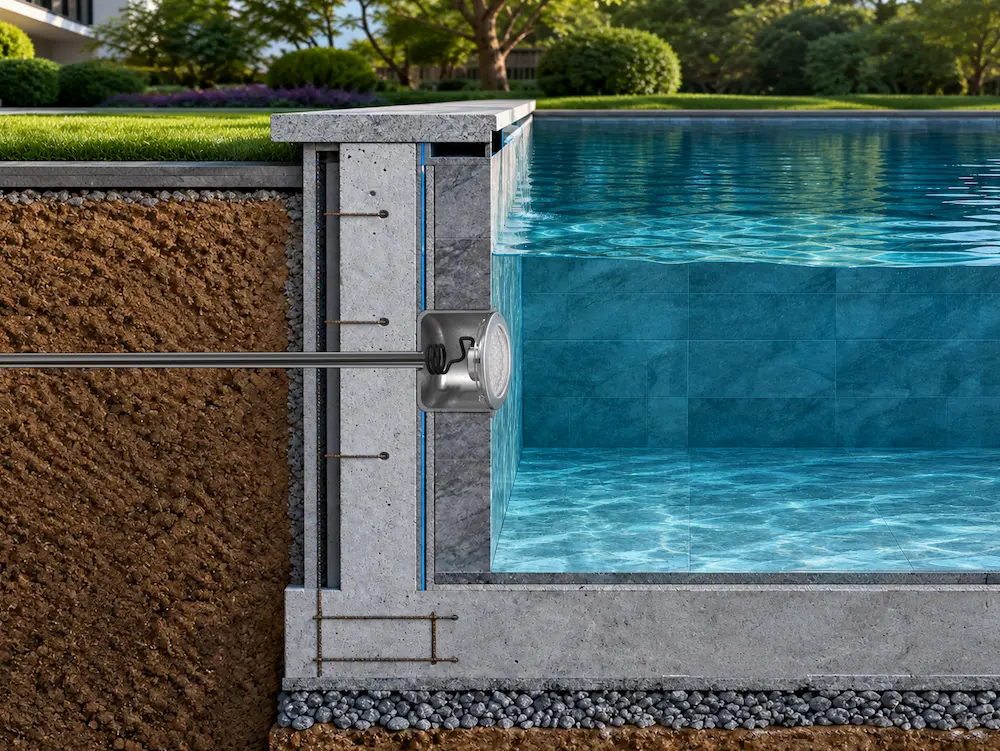

What Must Be Checked Before Niche Installation?
It is necessary to check the size of the niche, whether the power is off, and the length of the wiring, etc.
A licensed electrician or qualified pool professional should complete the installation in accordance with local requirements.
- Niche Compatibility Check the Ø257 mm face, 91.3 mm fixture depth, fixing point and niche drawing before ordering. The niche is a separate installation component. Compatible with common pool light niches available on the market.
- Route the cable With power isolated, route the fixture cable through the conduit to the junction box. Keep at least 4 ft (1.22 m) of cable coiled behind the fixture for service.
- Wire the correct version Connect the AC120V fixture on a GFCI-protected circuit using the wiring diagram for the ordered model.
- Secure and submerge Seat the fixture in the niche and secure it with the specified pilot screw. Fill the pool until the light is fully submerged before switching on.
Place the junction box and electrical equipment as required by the project’s current local code and the supplied installation documents.

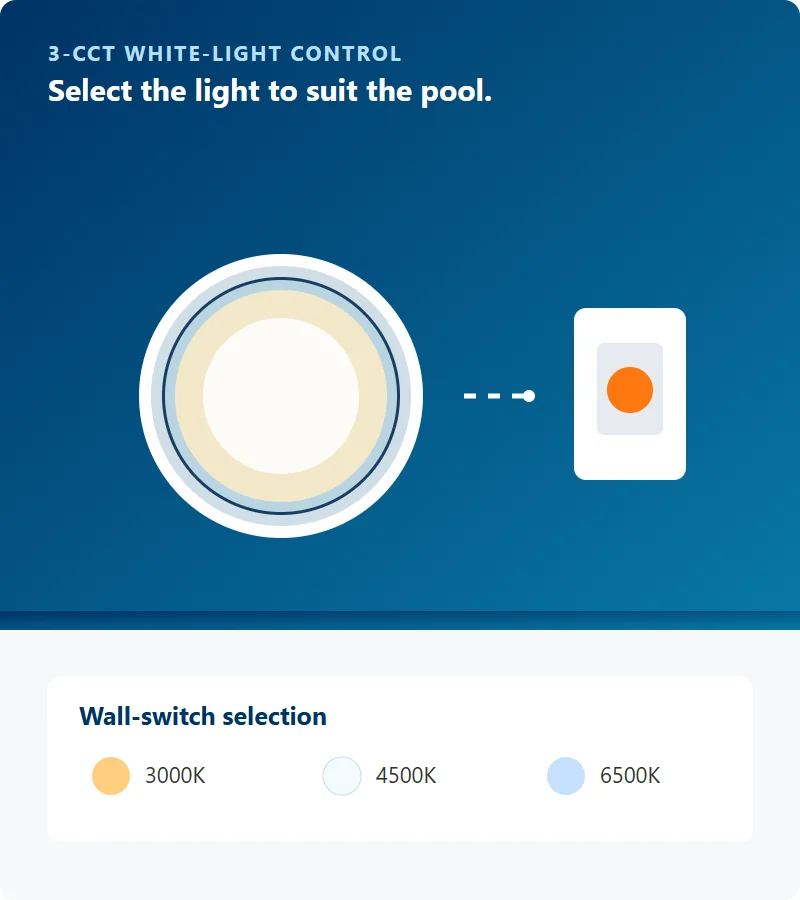

3-CCT White-Light Operation
Select one of three white-light settings with a standard wall switch.
Wall-switch control
No separate controller or remote is required for the 3-CCT model.
Change the setting
Each quick switch cycle moves to the next white-light setting; stop at the one you want.
Setting memory
When it works
When an external power outage lasts longer than 10 seconds, the system will automatically trigger its memory function.
What happens
Once the light is turned back on, it will automatically restore the previous settings.
Reset and synchronization
How to reset
Switch OFF and ON twice in rapid succession, with each cycle within 1 second.
What happens
Fixtures on the same switch return to a shared starting setting.
Safety Before and During Installation
Keep the installation manual with the project records and follow the applicable local electrical and pool rules.
Isolate power first
Switch off and verify the electrical supply before installation, inspection or servicing.
Never run dry
Do not energize the fixture until it is fully submerged. Operation out of water can cause overheating.
Do not modify the sealed unit
Do not disassemble the fixture, use a mains dimmer or splice the cable underwater or behind the niche.
Inspect before installation
Do not install a fixture with a cracked lens or damaged cable. A damaged cord requires replacement of the complete luminaire.

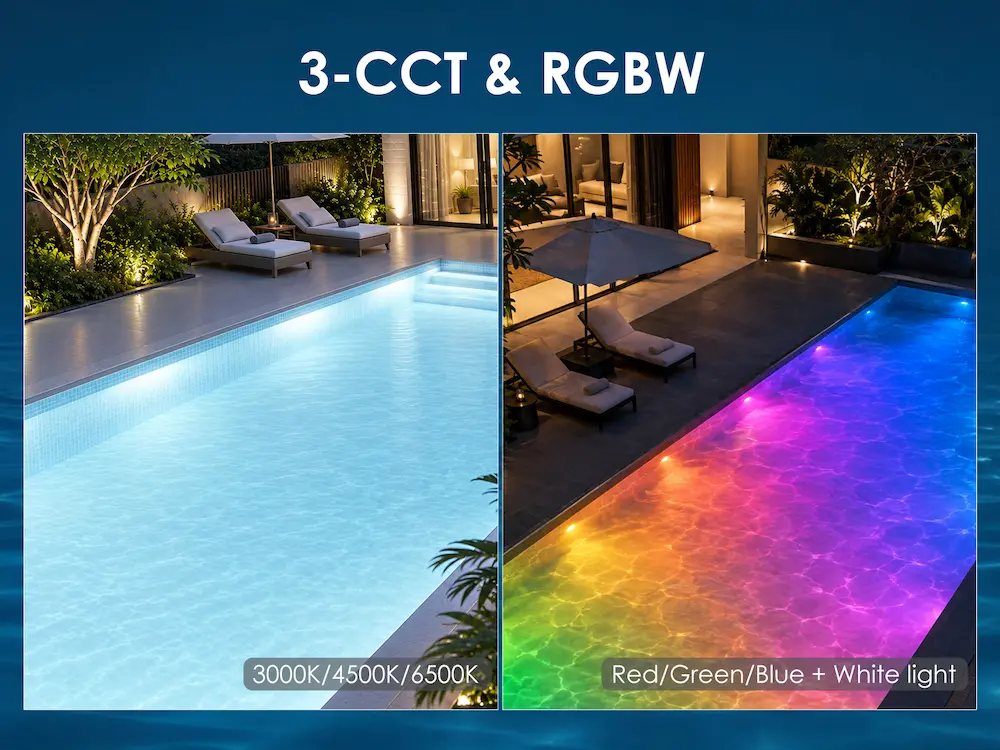

3-CCT vs RGBW: Which Nerion Fits Your Project?
Compare light options and electrical requirements, then confirm the installation environment before ordering.
| Decision Point | 3-CCT White Light | RGBW Color + White |
|---|---|---|
| Best fit | Selectable white light for a consistent pool appearance | Color scenes and white light for variable pool ambience |
| Fixture input | AC120V, 50/60Hz | AC12V |
| Control | Wall-switch CCT selection | Wall switch; optional dedicated controller |
| Light options | 3000K / 4500K / 6500K | Red / green / blue / white |
Need the other version? View 10-Inch RGBW Color + White.
Project Applications
Nerion is designed for submerged swimming pool and water-feature projects. For fountain pools, artificial lakes, aquariums, oceanariums or koi ponds, ask ShineLong to review the water chemistry, niche and electrical design before selecting a model.
Frequently Asked Questions
Does the 3-CCT model need a controller?
No dedicated RGBW controller is required. Use a wall switch to cycle between the three specified white-light settings.
Which color temperatures are available?
The current specification lists 3000K, 4500K and 6500K, with 4500K as the default setting.
What is the Nerion warranty period?
The current Nerion product specification lists a 3-year warranty. Ask ShineLong for the formal warranty terms with the quotation to confirm coverage, claim process and exclusions for your order.
Can this LED pool light be installed in an existing niche?
It may fit some standard wall niches, but compatibility must be confirmed. Check the niche drawing, fixing points and available depth against the Ø257 × 91.3 mm fixture dimensions. Send the niche details to ShineLong before ordering; fit is not universal.
Can the fixture operate before the pool is full?
No. The pool light fixture must be completely submerged before operation. Operating it out of water can cause rapid overheating and may permanently damage the fixture.
Can I replace a damaged fixture cable?
No. The installation manual states that the external flexible cord cannot be replaced. Replace the complete luminaire if the cord is damaged.
Can I specify a different cable length?
The current specification lists a 15 m standard cable and allows custom lengths. Confirm the required length and cable route before production.
Why is GFCI protection required for a 120V underwater pool light?
A 120V underwater pool light requires appropriate ground-fault protection in accordance with applicable electrical codes. GFCI protection helps reduce the risk of electric shock if electrical leakage occurs. Installation must follow the current NEC requirements, local electrical codes and the requirements of the authority having jurisdiction.
What is the maximum immersion depth for this LED pool light?
The current product specification lists IP68 protection and a maximum immersion depth of 5 meters (16.4 feet). Do not exceed the rated immersion depth.
Request a Factory-Direct Nerion Pool Light Quote
Send your pool or water-feature application, niche drawing, quantity, supply voltage, color mode, cable length and document requirements. ShineLong’s factory team will confirm the production configuration and quotation.
