Home > Products > LED Tri-proof Light > Alpha Vapor Tight LED Light
Home > Products > LED Tri-proof Light > Alpha Vapor Tight LED Light

Alpha
Vapor Tight LED Light

ShineLong’s Alpha vapor tight led light

Key Feature

Date Sheet

Article NumberPower (W)Lumen (lm)Working Current (mA)
SL-P65X2-20-X202600450
SL-P65X2-30-X303900750
SL-P65X4-40-X405200950
SL-P65X4-50-X5065001200
SL-P65X5-50-X5065001200
SL-P65X5-60-X6078001400

* Where the first “X” represents diffuser type, it can be F(Frosted), S(Striped)

* The number after the first “X” represents length of light. “2”=600mm, “4”=1200mm, “5”=1500mm

* The second “X” represents CCT, it can be W(3000K/4000K), P(5000K), C(6000K)

Light SourceSMD2835
CRI>80
Beam Angle120°
CCT3000K/4000K/5000K/6000K
AC Input220-240V/100-277V
DC output30-40V
SDCM<4
Power Factory>0.95
Operating Temperature-20~+40℃

Efficacy Version

Cover                Standard                 Premium



Frosted               130lm/w                  140m/w

Striped                140lm/w                  150lm/w

Please note:

1. Above efficacy based on 4000K

2. All values are based on an ambient temperature of 25°C

3. Efficacy tolerance is ±10% and wattage tolerance is ±10%

4. If CRI>90, light efficiency will be reduced by 10-15%

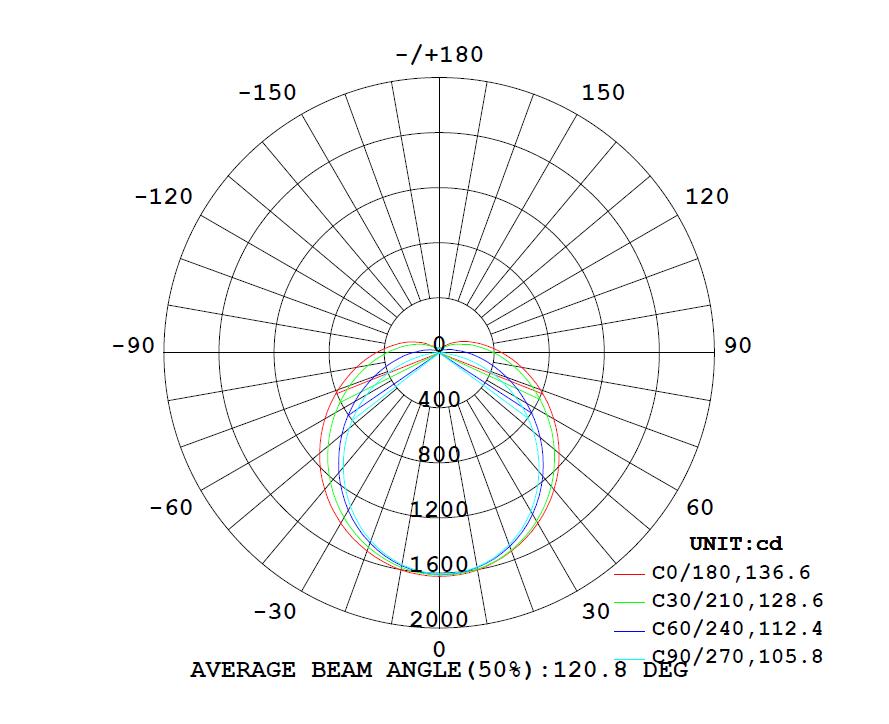

LUMINOUS INTENSITY DISTRIBUTION DIAGRAM

Parkade IP66 tri-proof light IES

Alpha Details

Efficacy Version

Cover                Standard                 Premium



Frosted               130lm/w                  140m/w

Striped                140lm/w                  150lm/w

Please note:

1. Above efficacy based on 4000K

2. All values are based on an ambient temperature of 25°C

3. Efficacy tolerance is ±10% and wattage tolerance is ±10%

4. If CRI>90, light efficiency will be reduced by 10-15%

LUMINOUS INTENSITY DISTRIBUTION DIAGRAM

Parkade IP66 tri-proof light IES

Alpha Details

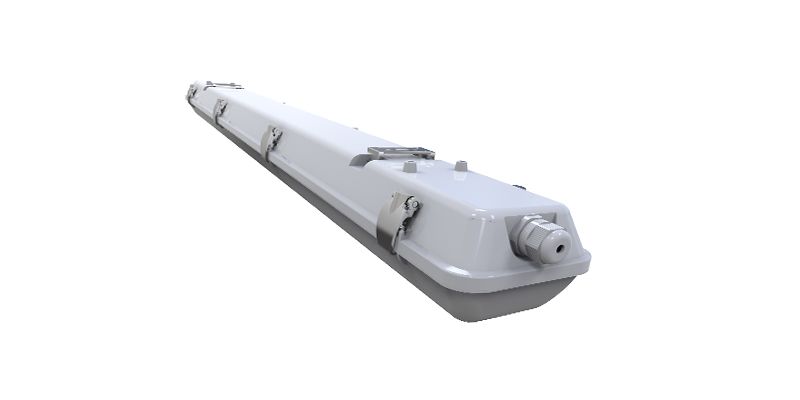

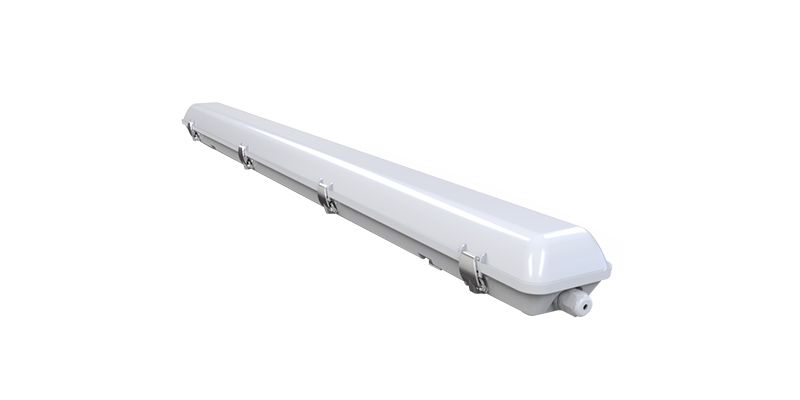

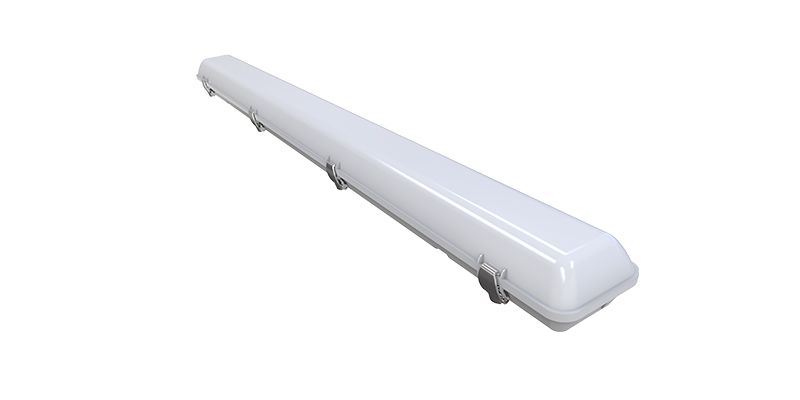

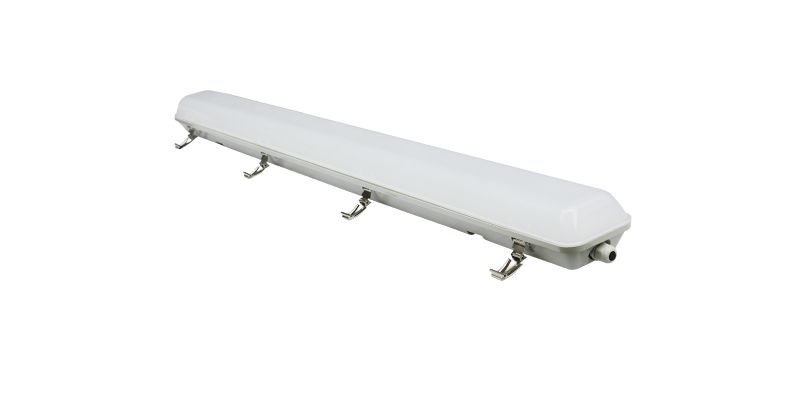

Alpha Vapor Tight LED Light Description

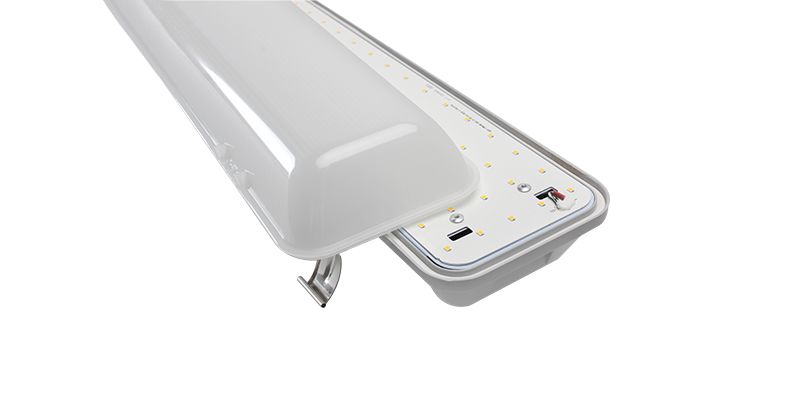

This Alpha vapor tight led light is made of high-quality PC material, known for its superior durability and resistance to damage, the lamp exceeds the IK09 impact resistance rating. High transparency mask, which ensures maximum brightness, illuminating every corner of the surrounding. Unlike other lights, which typically turn yellow with prolonged use, this light has been specifically manufactured to resist any form of yellowing over time.

Additionally, the light is fully waterproof with an increased IP65 rating, allowing it to withstand harsh environmental conditions without failure. It has successfully passed various stringent quality control tests, and as a result has been certified by several international organizations, including UL, DLC, SAA, UKCA, CE and RoHS.

There is no doubt that this light is the perfect solution to your lighting problems as it has various smart functions such as emergency lighting, sensor lighting and dimming lighting. With its ability to adapt to different environments and user-friendly settings, it remains ideal for homeowners or businesses looking for a long-lasting lighting option. Finally, this light is backed by an unrivaled 5-year warranty that covers any failures due to manufacturing defects.

Thinking about the environment and you!

Previous slide
Next slide

Alpha Vapor Tight Lights Features

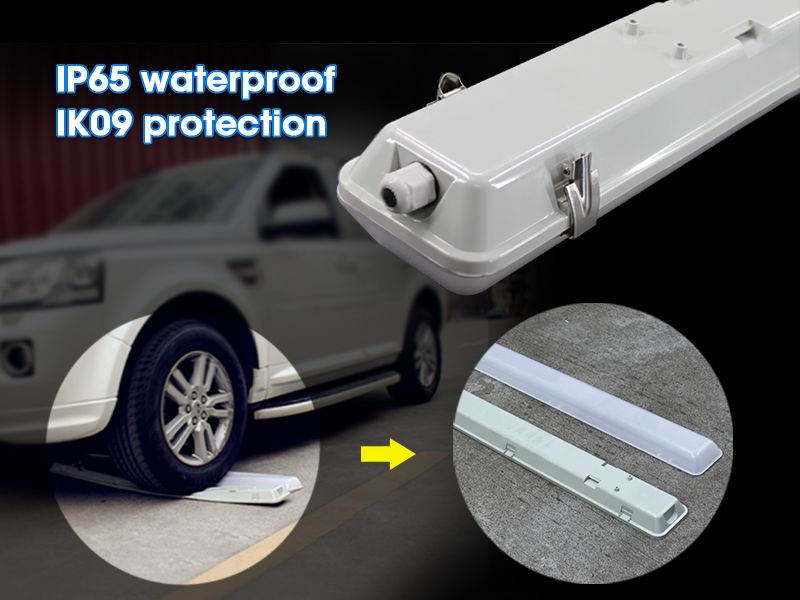

1. IP65 Waterproof, IK09 Protection, 94V0 materials.

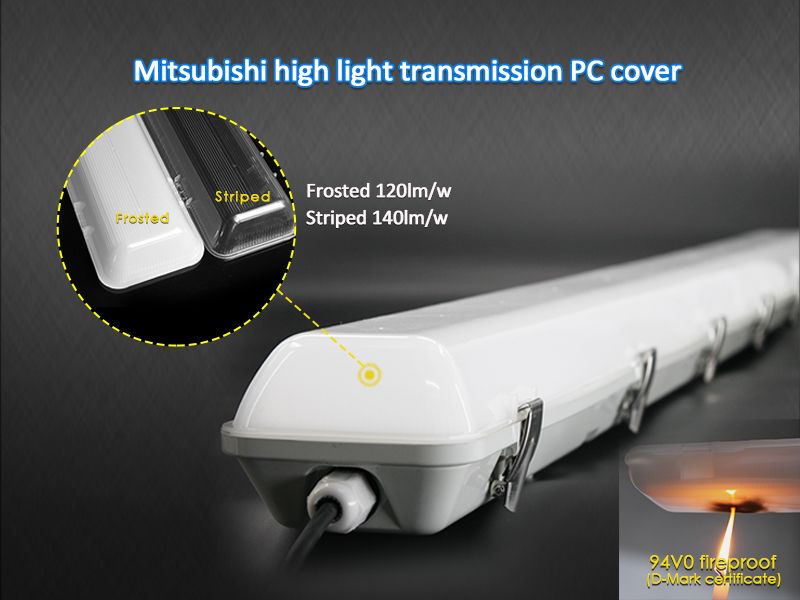

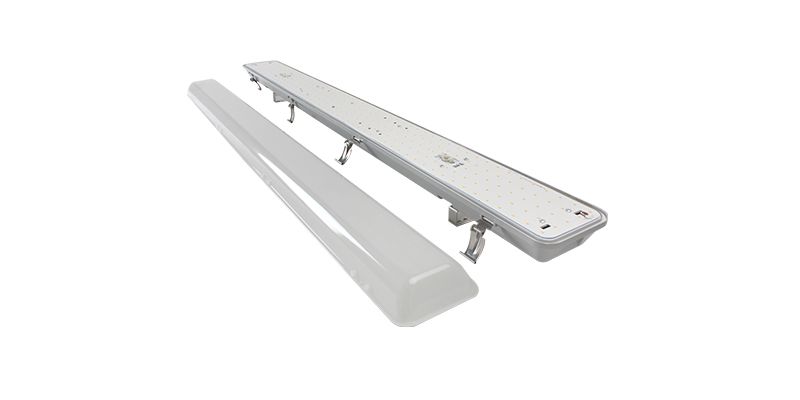

2. High-quality PC shell + PC lampshade, high light transmittance, durable, no dark, non-cracking, anti-yellowing

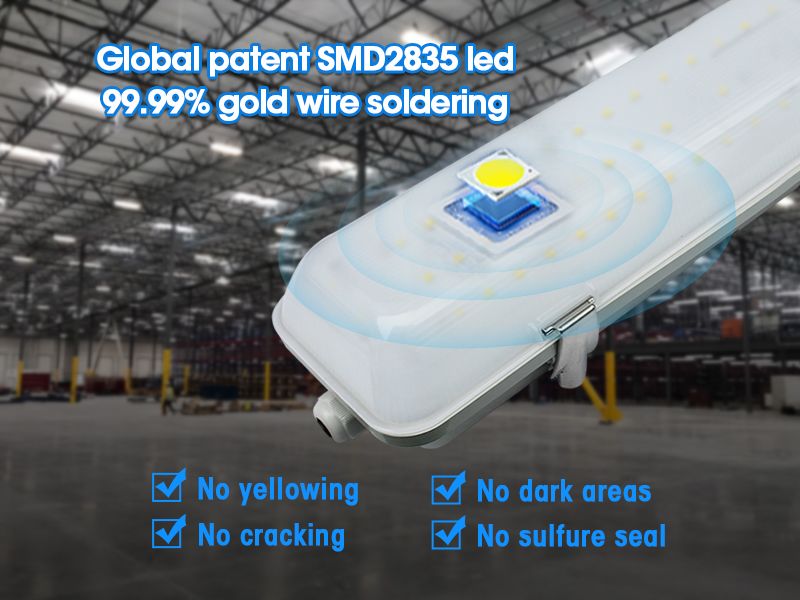

3. SANAN SMD2835 chip, high luminous efficacy, 100-120lm/w or 120-140lm/w

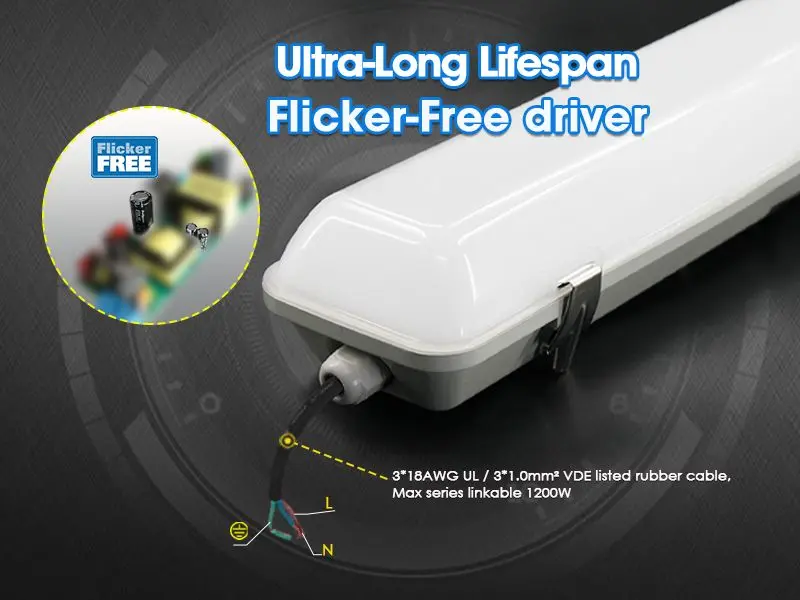

4. Multi-function: 0-10V dimming, sensor, emergency battery, 347V/480V, can be spliced and connected, etc.
5. Certificate: UL、DLC、SAA、UKCA、ERP、CE、RoHs.
6. Warranty: 5 years.

Alpha Vapor Tight LED Light Description

This Alpha vapor tight led light is made of high-quality PC material, known for its superior durability and resistance to damage, the lamp exceeds the IK09 impact resistance rating. High transparency mask, which ensures maximum brightness, illuminating every corner of the surrounding. Unlike other lights, which typically turn yellow with prolonged use, this light has been specifically manufactured to resist any form of yellowing over time.

Additionally, the light is fully waterproof with an increased IP65 rating, allowing it to withstand harsh environmental conditions without failure. It has successfully passed various stringent quality control tests, and as a result has been certified by several international organizations, including UL, DLC, SAA, UKCA, CE and RoHS.

There is no doubt that this light is the perfect solution to your lighting problems as it has various smart functions such as emergency lighting, sensor lighting and dimming lighting. With its ability to adapt to different environments and user-friendly settings, it remains ideal for homeowners or businesses looking for a long-lasting lighting option. Finally, this light is backed by an unrivaled 5-year warranty that covers any failures due to manufacturing defects.

Are You a Contractor?
Contact us for special pricing here!

Have you ever encountered a vapor-tight LED light with inferior components before?

Commodity LEDs and drivers this is going to lead to poor lumen maintenance and early failure and degradation of the product and then finally a lot of these companies are just rebranding generic products, that are insufficiently designed for heat dissipation can the fixture keep itself cool so the components can perform and last and so when you ignore all of these, you know features what you’re going to see is early failure you’re going to see early degradation excessive light loss and so.

A common misperception today is that all industrial products are the same and there’s a lack of understanding about what’s required for a product to perform in industrial spaces where there are challenges of power quality and high temperatures. you know these are much different than air condition control controlled environments like residential or indoor.
We know these are much different than air condition control controlled environments like residential or indoor.

This is like proper surge protection making sure the fixture can withstand a lot of the challenging power quality environments that exist.

Let Me Tell You More About Alpha Vapor Tight LED Light Details

This Alpha vapor-tight LED light is made of high-quality PC material, and is known for its superior durability and resistance to damage, the lamp exceeds the IK09 impact resistance rating. High transparency mask, which ensures maximum brightness, illuminating every corner of the surroundings.

Unlike other lights, which typically turn yellow with prolonged use, this light has been specifically manufactured to resist any form of yellowing over time. Additionally, the light is fully waterproof with an increased IP65 rating, allowing it to withstand harsh environmental conditions without failure. It has successfully passed various stringent quality control tests, and as a result has been certified by several international organizations, including UL, DLC, SAA, UKCA, CE, and RoHS.

There is no doubt that this light is the perfect solution to your lighting problems as it has various smart functions such as emergency lighting, sensor lighting, and dimming lighting. With its ability to adapt to different environments and user-friendly settings, it remains ideal for homeowners or businesses looking for a long-lasting lighting option. Finally, this light is backed by an unrivaled 5-year warranty that covers any failures due to manufacturing defects.

What Are the Three Levels of Protection Offered?
  1. Dustproof: The first protection a tri-proof light offers is protection against dust. Tri-proof lights are rated six for their protection from dust. This means that these lights are entirely shielded from dust and dust particles. Multiple coatings protect the light bulb from dust.
  2. Waterproof: Tri-proof lights have silicone seals that prevent the ingress of water. With a rating of 5 on the Ingress protection scale, tri-proof lights offer resistance from jets of water thrown in every direction. Some tri-proof lights have an IP rating that is as high as IP69. This means they can prevent water from entering the fixture when immersed in water at a particular depth.
  3. Corrosion-resistant: Tri-proof lights are coated with anti-corrosion materials that prevent the light bulb from being vulnerable to disintegration.

Besides being LED lights with over 50,000 years of activeness, brighter lights, low energy consumption, suitable color temperature, and low maintenance cost, tri-proof lights come with various features that help them save energy and work smart. Tri-Proof lights categories, according to their light management features, are:

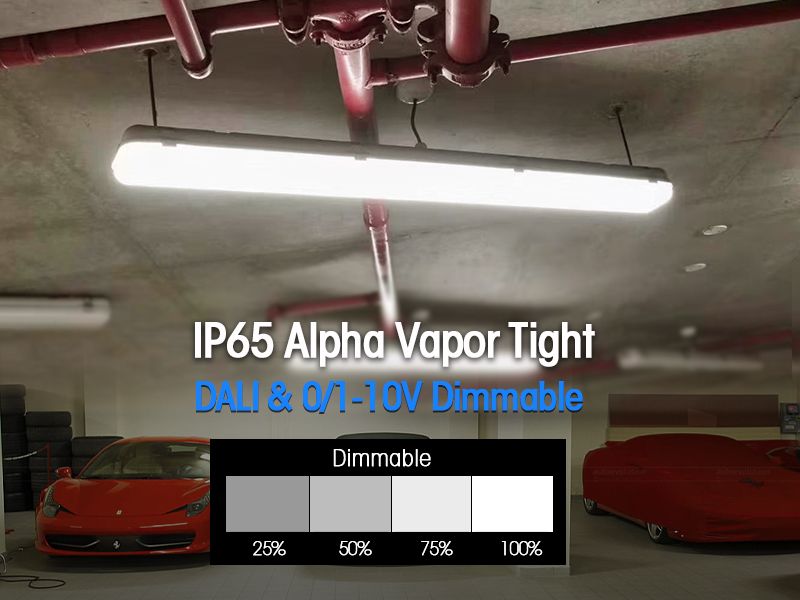

  1. Dimming: Some Tri-proof lights have dimming features that regulate the amount of light. Tri-proof lights equipped with a dimming system allow you to create an ambiance and adjust the fixture’s brightness to a level that you are comfortable with at that time.

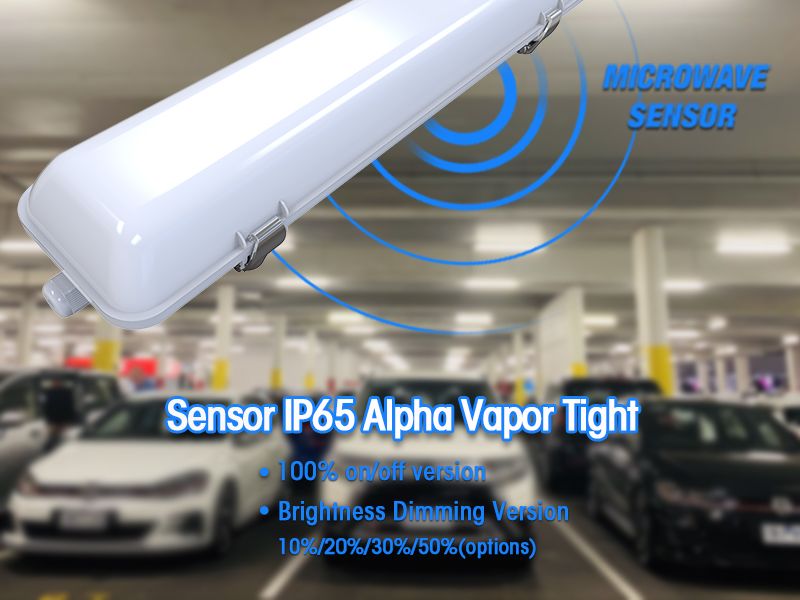

  2. Motion Sensor Lights: Tri-proof lights designed with this technology turn on when they detect motion. These lights are best for security reasons as the sudden switching on of the light will alert you of someone’s presence. These lights may not be a good option for commercial purposes.

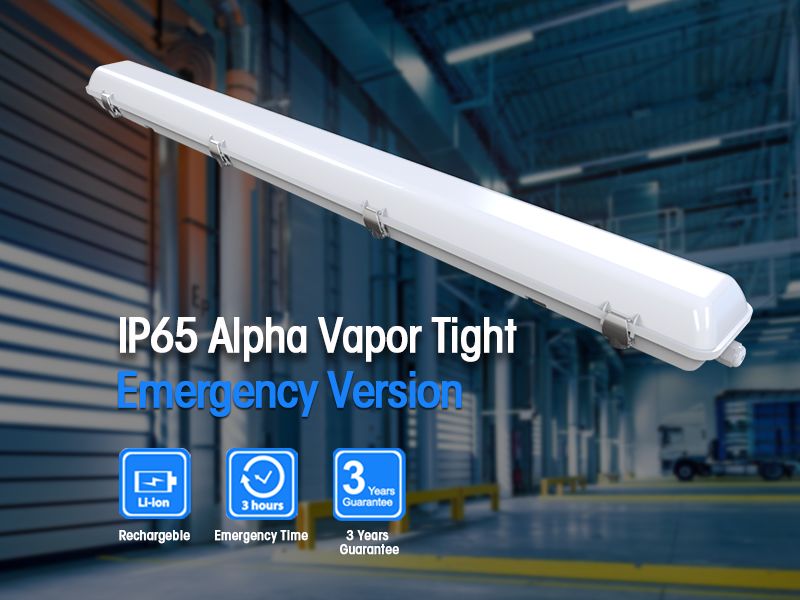

  3. Emergency Lighting: These light fixtures automatically turn on during emergencies. This way, you can take note of a problem early enough.

  4. CCT Adjustable Lights: Tri-proof lights with adjustable color temperatures are suitable for semi-outdoor scenes and food processing plants. You can adjust the light temperature between 3000k-4000k. This will depend on how cool and natural you want the light to look.

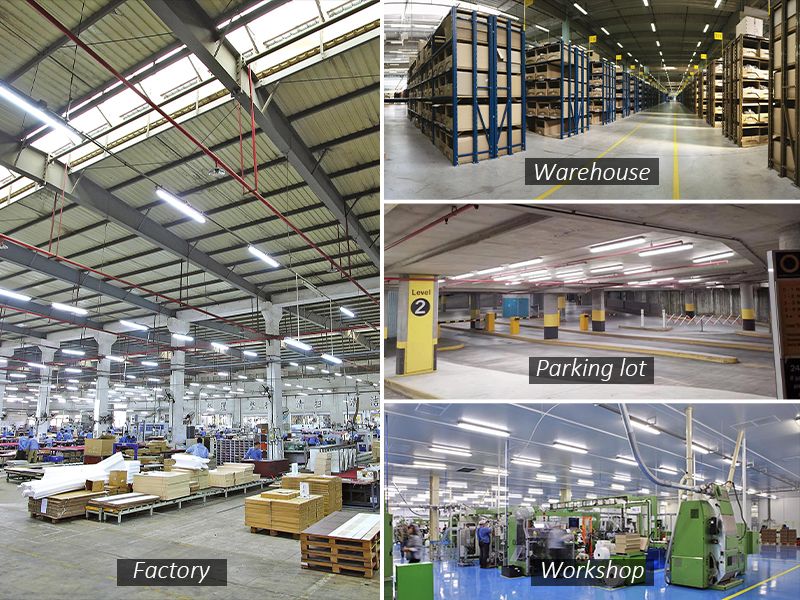

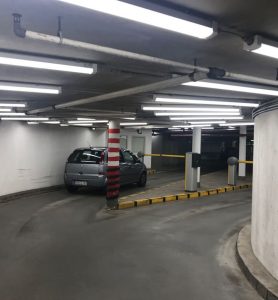

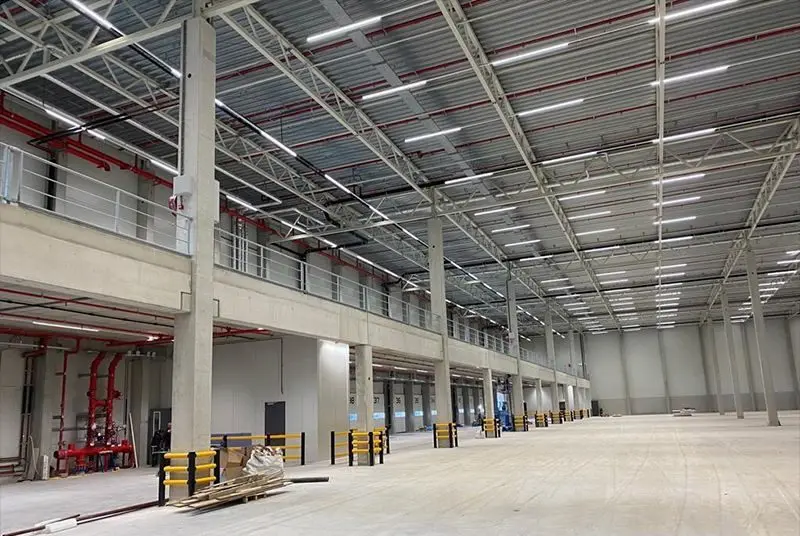

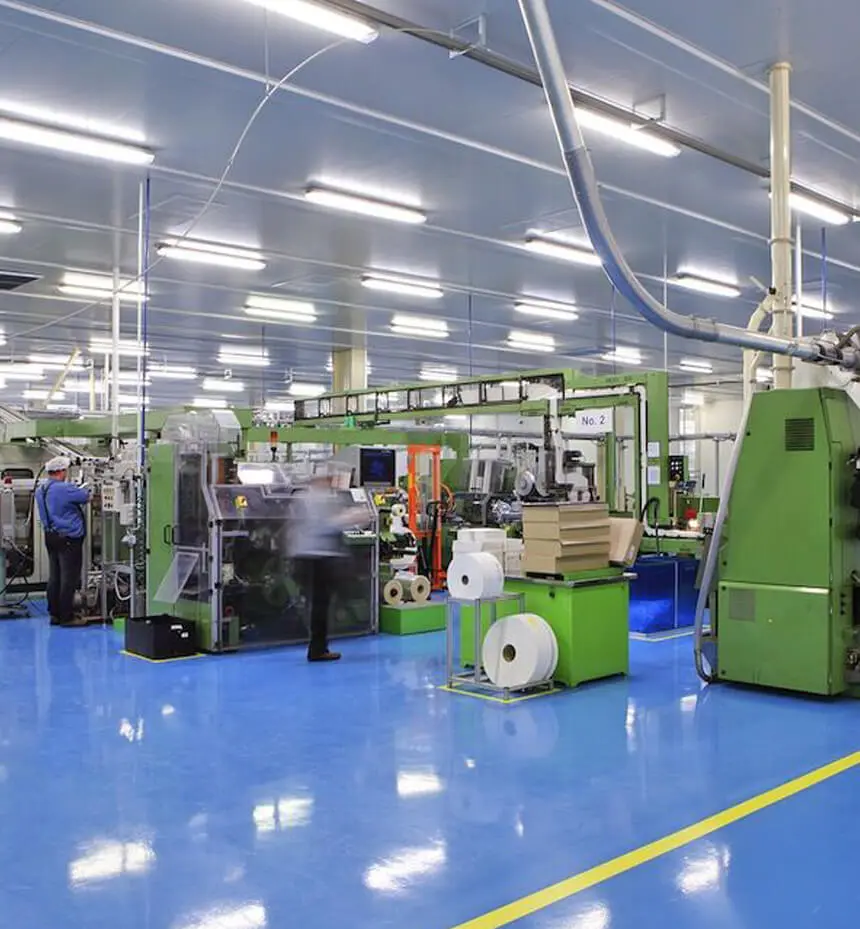

Indoor Garages and Parking Lots, Poultry Shed, High-Pressure Carwash, Food Processing Factories, Warehouses.

Efficacy Version

Cover                Standard                 Premium



Frosted               130lm/w                  140m/w

Striped                140lm/w                  150lm/w

Please note:

1. Above efficacy based on 4000K

2. All values are based on an ambient temperature of 25°C

3. Efficacy tolerance is ±10% and wattage tolerance is ±10%

4. If CRI>90, light efficiency will be reduced by 10-15%

LUMINOUS INTENSITY DISTRIBUTION DIAGRAM

Parkade IP66 tri-proof light IES
Article NumberPower (W)Lumen (lm)Working Current (mA)
SL-P65X2-20-X202600450
SL-P65X2-30-X303900750
SL-P65X4-40-X405200950
SL-P65X4-50-X5065001200
SL-P65X5-50-X5065001200
SL-P65X5-60-X6078001400
Light SourceSMD2835
CRI>80
Beam Angle120°
CCT3000K/4000K/5000K/6000K
AC Input220-240V/100-277V
DC output30-40V
SDCM<4
Power Factory>0.95
Operating Temperature-20~+40℃
