Alpha Motion Sensor
Vapor Tight LED Light
ShineLong’s Alpha vapor tight led light
Key Feature
- IP65 Waterproof, IK09 Protection, 94V0 materials
- UL, DLC, SAA, UKCA, ERP, CE, RoHs Certified
- Motion Sensor (Microwave Sensor) Function
- No dark, Non-cracking, Anti-yellowing
- Material: Full PC housing with S304 clips
- High Efficacy: 130lm/w, up to 150lm/w (+/-10%)
- High CRI: Ra>80, SDCM<4
- ENEN / UL Class P Certified Flicker Free Internal Driver
- Linkable / Tool Free
- L80B10 lifespace of 50,000 Hours (@ Ta = 25°C)
- 5 Years Warranty
Date Sheet
| Article Number | Power (W) | Lumen (lm) | Working Current (mA) | |
| SL-P65X2-20-XM | 20 | 2600 | 450 | |
| SL-P65X2-30-XM | 30 | 3900 | 750 | |
| SL-P65X4-40-XM | 40 | 5200 | 950 | |
| SL-P65X4-50-XM | 50 | 6500 | 1200 | |
| SL-P65X5-50-XM | 50 | 6500 | 1200 | |
| SL-P65X5-60-XM | 60 | 7800 | 1400 | |
* Where the first “X” represents diffuser type, it can be F(Frosted), S(Striped)
* The number after the first “X” represents length of light. “2”=600mm, “4”=1200mm, “5”=1500mm
* The second “X” represents CCT, it can be W(3000K/4000K), P(5000K), C(6000K)
| Light Source | SMD2835 |
| CRI | >80 |
| Beam Angle | 120° |
| CCT | 3000K/4000K/5000K/6000K |
| AC Input | 220-240V/100-277V |
| DC output | 30-40V |
| SDCM | <4 |
| Power Factory | >0.95 |
| Operating Temperature | -20~+40℃ |
Efficacy Version
Cover Standard Premium
Frosted 130lm/w 140m/w
Striped 140lm/w 150lm/w
Please note:
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
3. Efficacy tolerance is ±10% and wattage tolerance is ±10%
4. If CRI>90, light efficiency will be reduced by 10-15%
LUMINOUS INTENSITY DISTRIBUTION DIAGRAM
Alpha Motion Sensor Details
1. 100% on/off Version
Switch on the light on detection of movement, and switch off after a hold time when there is no motion detected.

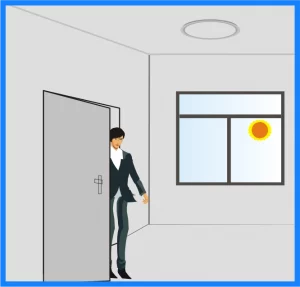

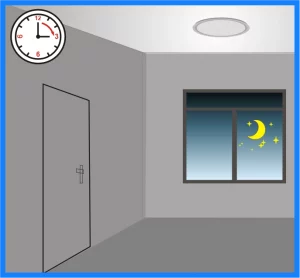

When there is no motion detected, the sensor does not switch on the lamp.

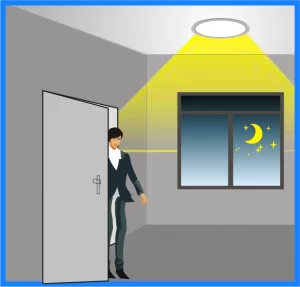

With insufficient ambient light, the sensor switches on the lamp when motion is detected.
After stand-by period, the sensor switches off the lamp if no motion is detected in its detection zone.
Max. 8M
Hold Time
30s - 2min
Mounting Height
6m Max.
Automatic
On/off
2. 3-step Dimming Version
When used in combination with 1-10V dimmable LED drivers and ballasts, the sensors can achieve 3-step dimming function,
100%—> low light—>off. And the sensors build in adjustable daylight sensors, very easy to install and cost-effective.
When sufficient ambient light, the sensor does not switch on the lamp.

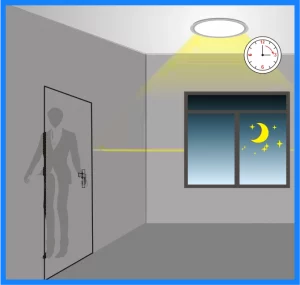

With insufficient ambient light, the sensor switches on the lamp when motion is detected.
After hold time, the sensor dims the lamp at a low light level if no new motion trigger.
After stand-by period, the sensor switches off the lamp if no motion is detected in its detection zone.
Max. 8M
Hold Time
30s - 2min
Mounting Height
6m Max.
Automatic
Dimming
3. 2-step Brightness Dimming Version
The sensors can provide 2-step dimming function, 100 %—> low light (Never turn off). They are particularly suitable for use in corridors, stairwells and underground passages where low light levels are maintained until motion is detected.

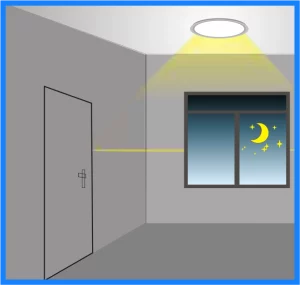

No motion detected, the lamp remains at a low light level all the time.
When motion is detected, the sensor brightens the lamp to 100% illumination.

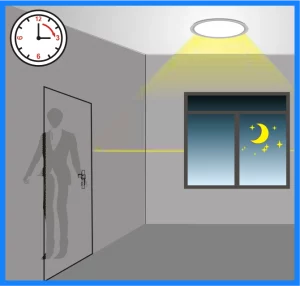

After the hold time, the sensor dims the lamp at a low light level if no motions is detected.
Max. 8M
Hold Time
30s - 2min
Mounting Height
6m Max.
Automatic
Dimming
Product Video
Alpha Vapor Tight Motion Sensor LED Light Description
The Motion sensor LED Light is an energy-efficient lighting solution perfect for industrial and commercial areas. Its microwave sensor detects motion, maximizing the lifespan and efficiency of the light. The LED technology provides bright and clear illumination and is weather-resistant and dust-resistant. Its slim design is easy to install, making it perfect for kitchens, car parks, stairwells, and corridors. Enjoy convenience and safety with the Microwave sensor LED Tri-proof Light.
