Parkade Series LED Tri-proof Light
A dependable lighting solution for underground parking garages and other demanding commercial and industrial environments. Built to handle dust, moisture, impacts and long-term daily use where reliable protection really matters.
Parkade IP66 LED Tri-Proof Light Manufacturer
For Garage Projects
Yes—Parkade combines IP66 ingress protection, IK10 impact resistance, aluminium construction and configurable control options for parking-garage and commercial lighting projects.
- 80% Energy Saving: Cuts operational costs instantly compared to traditional fixtures.

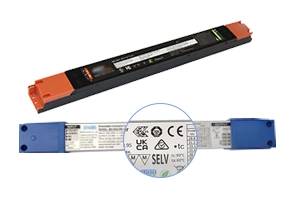

- Certified Drivers: Equipped with premium ENEC or UL Class P certified flicker-free drivers.
IP66 LED Tri-proof Light Features
Engineered to deliver heavy-duty performance in high-impact, wet, and dusty industrial environments.
- Original Design: Original design by ShineLong; not a mass-market product.
- Versatile Output: 7 Selectable Wattages (20W / 30W / 40W / 50W / 60W / 80W / 100W)
- Flexible CCT: 4 Optional Color Temperatures (3000K / 4000K / 5000K / 6000K)
- Heavy-Duty Protection: IP65/IP66 waterproof & dustproof, IK10 impact resistance, 94V0 flame-retardant materials.
- Materials: Aluminum housing + PC Cover (Frosted or Striped optional)
- Premium Engineering: Patented SMD2835 LED light source with global protection & ENEC certified or UL Class P certified flicker-free drivers.
- Smart Adaptability: Optional dimming controls, integrated microwave motion sensors, and emergency battery backups.
- Long Lifespan: L80B10 stability rated for >89,000 Hours of operational life (@ Ta = 25°C).

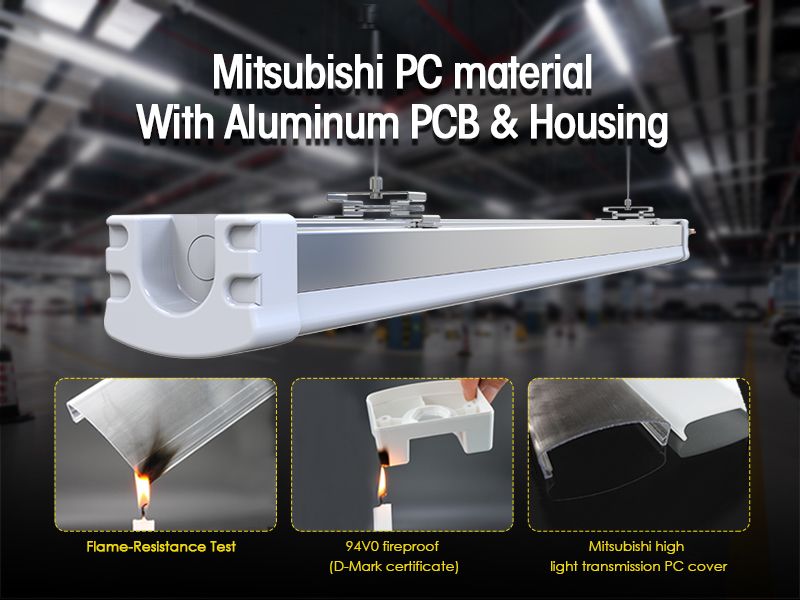

Flame-Resistance
Tested durability against active direct fire hazards.
94V0 Fireproof
D-Mark certified structural safety enclosure.
High Transmission
Premium Mitsubishi PC cover optimized for light efficiency.
Optical Performance Options
| Cover Type | Standard Series | Premium Series |
|---|---|---|
| Frosted | 135 lm/W | 145 lm/W |
| Striped | 140 lm/W | 155 lm/W |
Technical Notes:
- 1. Above efficacy is measured and based on 4000K color temperature.
- 2. All values are tested under an ambient temperature of 25°C.
- 3. Efficacy tolerance is ±10% and wattage tolerance is ±10%.
- 4. If CRI>90 is required, the overall light efficiency will be reduced by 10-15%.
LUMINOUS INTENSITY DISTRIBUTION DIAGRAM
Model Selection
| Article Number | Power (W) | Lumen (lm) | Working Current (mA) | Product Dimension (mm) |
|---|---|---|---|---|
| SL-A65X2-20-X | 20W | 2,700~2,900 lm | 450 mA | L600 * W94 * H69mm |
| SL-A65X2-30-X | 30W | 4,050~4,350 lm | 750 mA | L600 * W94 * H69mm |
| SL-A65X4-40-X | 40W | 5,400~5,800 lm | 950 mA | L1200 * W94 * H69mm |
| SL-A65X4-50-X | 50W | 6,750~7,250 lm | 1200 mA | L1200 * W94 * H69mm |
| SL-A65X5-50-X | 50W | 6,750~7,250 lm | 1200 mA | L1500 * W94 * H69mm |
| SL-A65X5-60-X | 60W | 8,100~8,700 lm | 1400 mA | L1500 * W94 * H69mm |
← Swipe horizontally to see full specifications →
Diffuser: The first “X” represents diffuser type: F (Frosted) or S (Striped).
Length: The number after the first “X” represents light length: 4 = 1200mm; 5 = 1500mm.
CCT: The second “X” represents CCT: W (3000K/4000K), P (5000K) or C (6000K).
General Specifications
How Can Parkade IP66 LED Tri-Proof Lights Be Connected?
Select the power-entry method, wiring type and connector arrangement that fit the Parkade project layout.
Single-Side Wiring Input

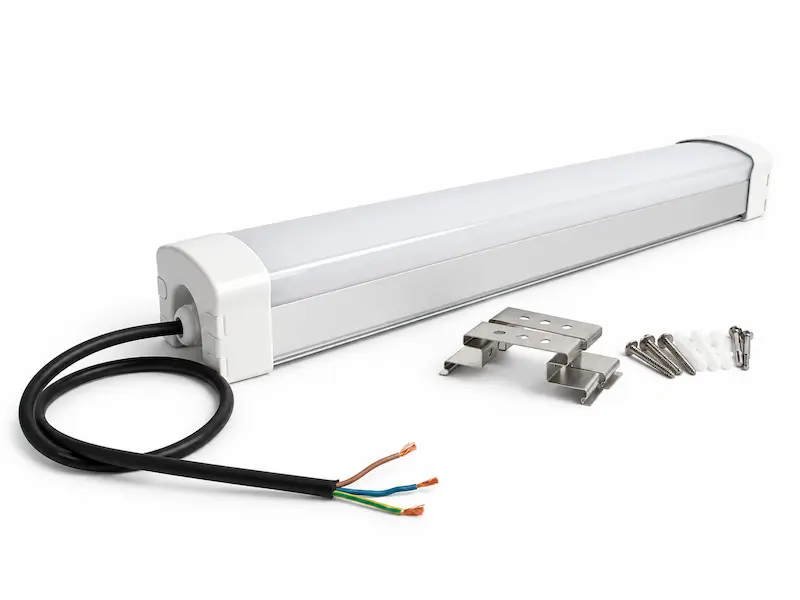

Single-Side Input
Power input at one end of the fixture.
Back-Side Input
Power input from the back side of the fixture.

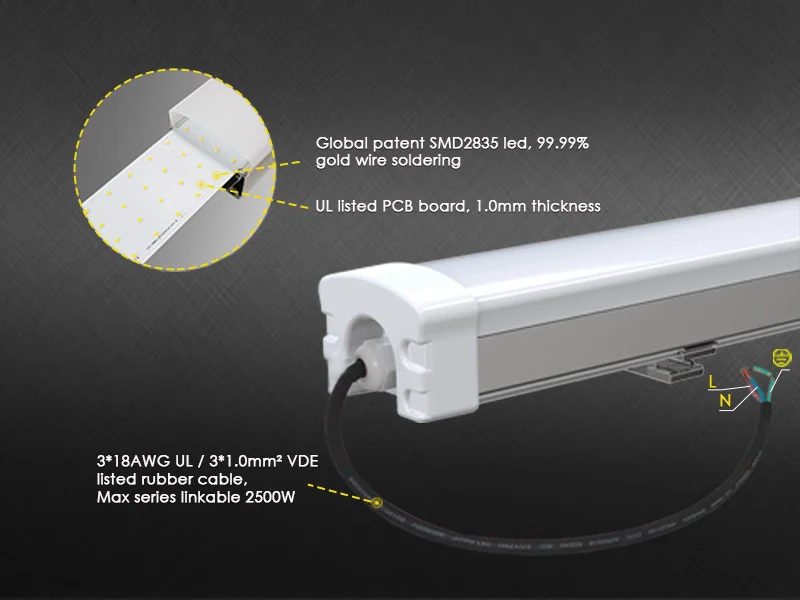

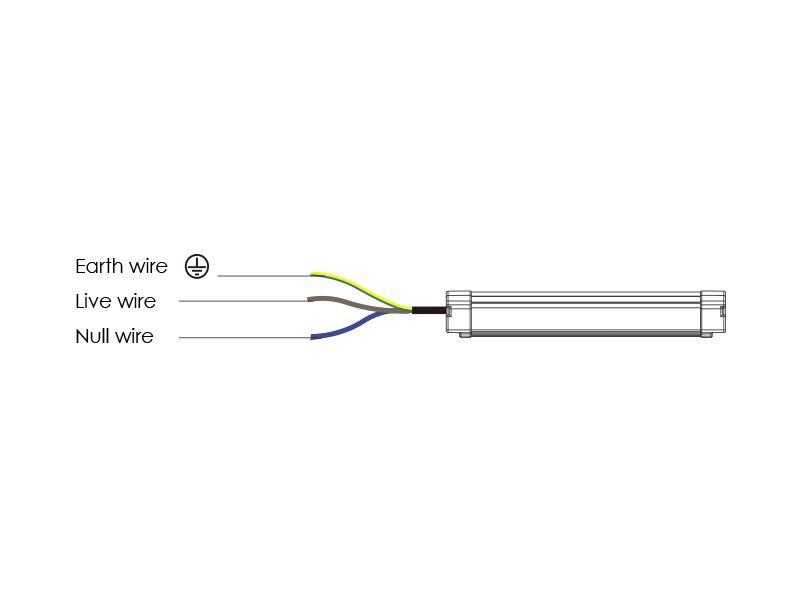

Standard Wiring
EU / AU (VDE Listed Cable) : 3 × 1.0 mm² · Yellow-Green earth · Brown live · Blue neutral
US (UL Listed Cable) : AWG18# · Green earth · Black live · White neutral

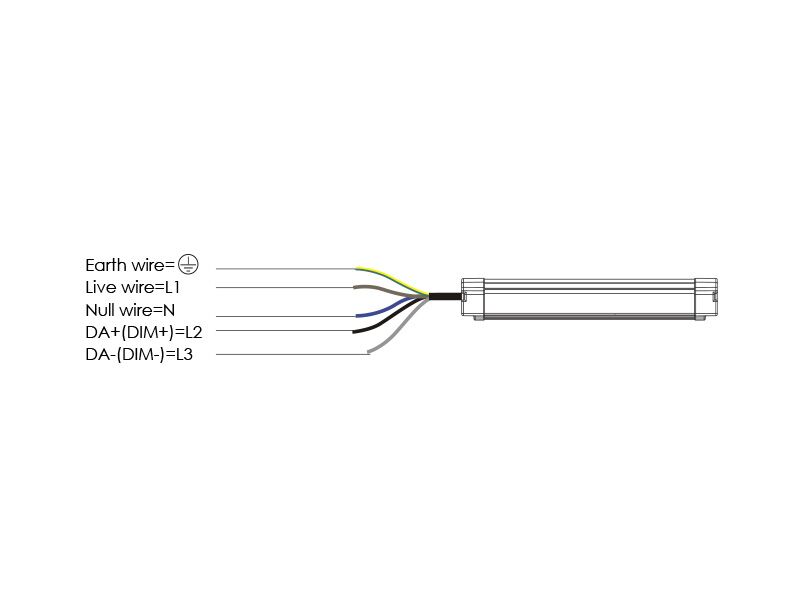

DALI & 0/1–10V Wiring
EU / AU (VDE Listed Cable) : 5 × 1.0 mm² · Black DA+ (DIM+) / L2 · Gray DA- (DIM-) / L3
US (UL Listed Cable) : AWG18# · Purple DA+ (DIM+) / L2 · Pink DA- (DIM-) / L3

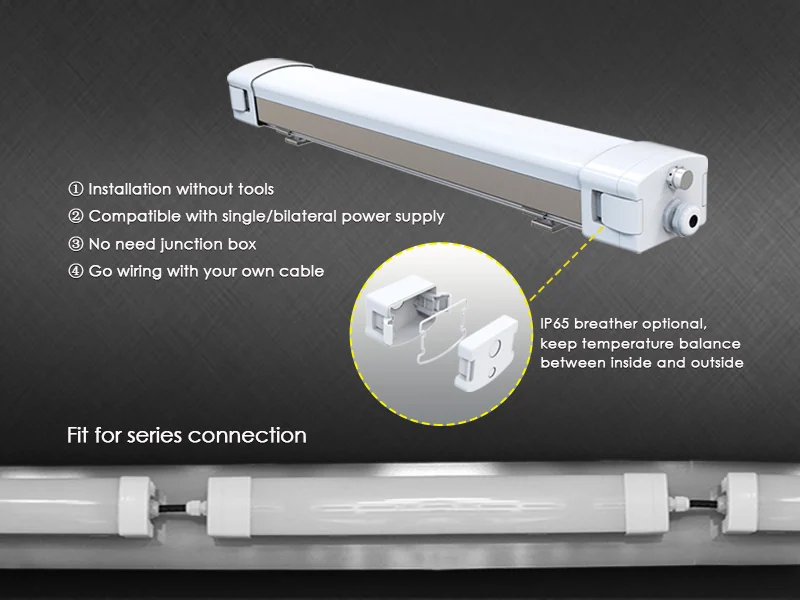

Double-Side Wiring Input

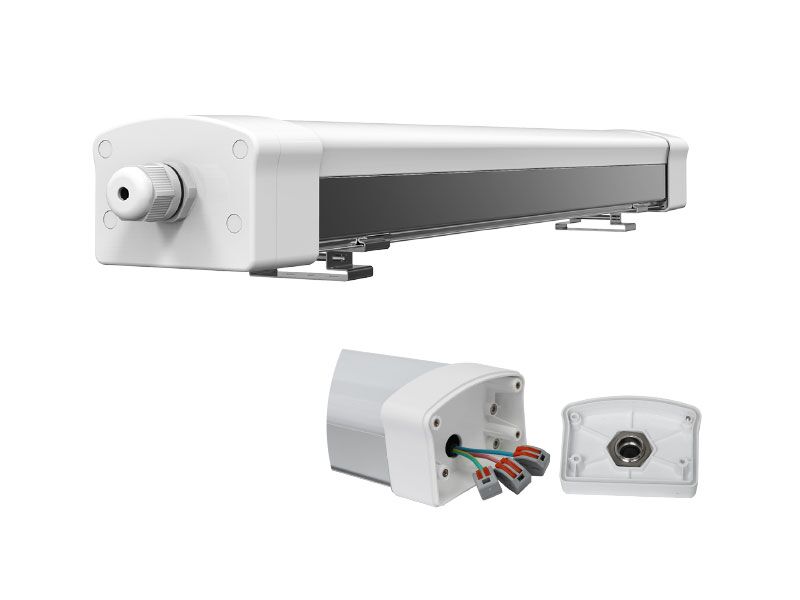

Detachable End Cap With Screws
Suitable for low mounting heights. The end cap requires tools to open, helping prevent unauthorised access.

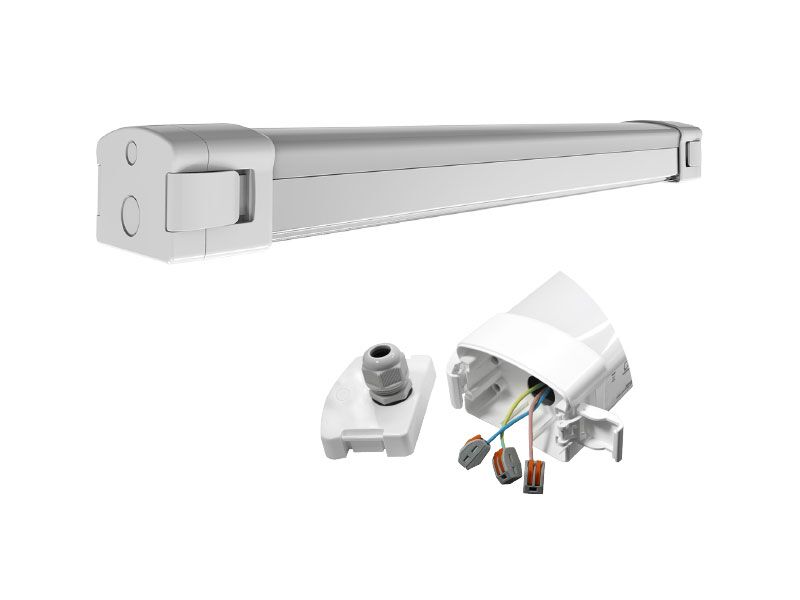

Tool-Free Detachable End Cap
The end cover opens without tools to support fast wiring for higher installation positions.

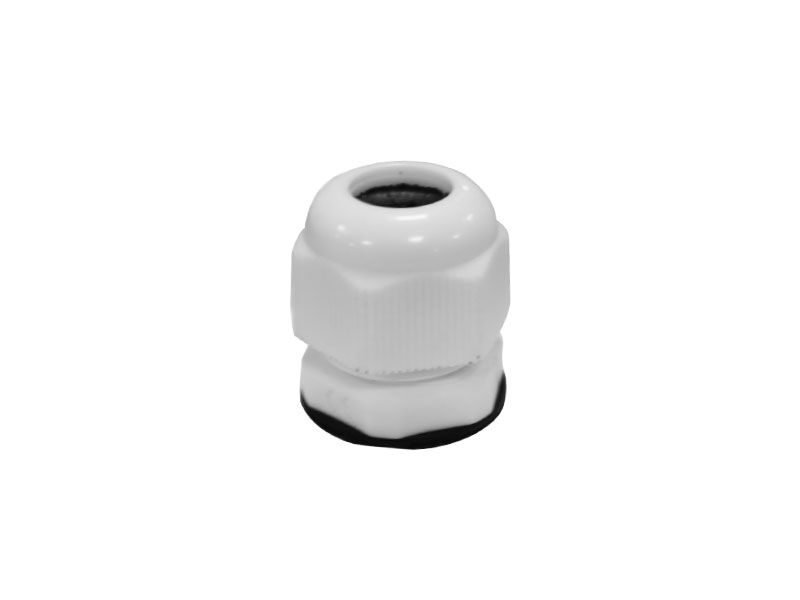

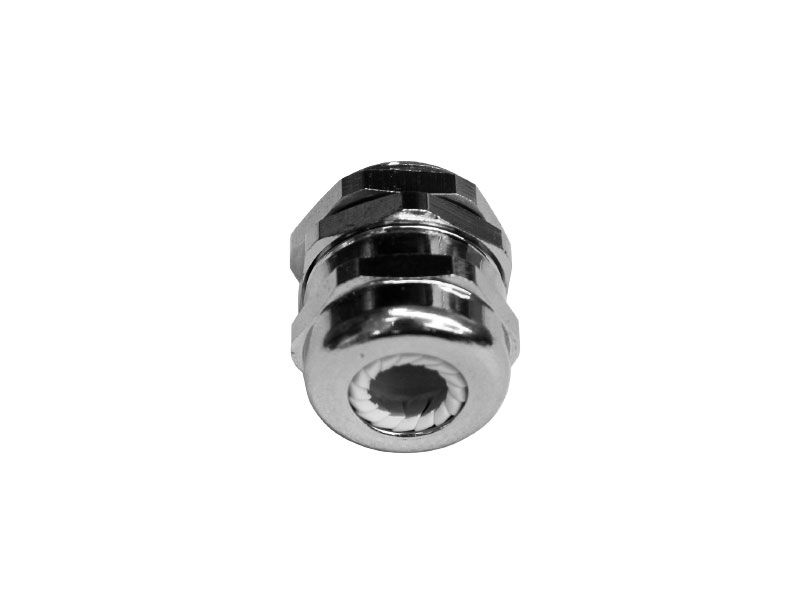

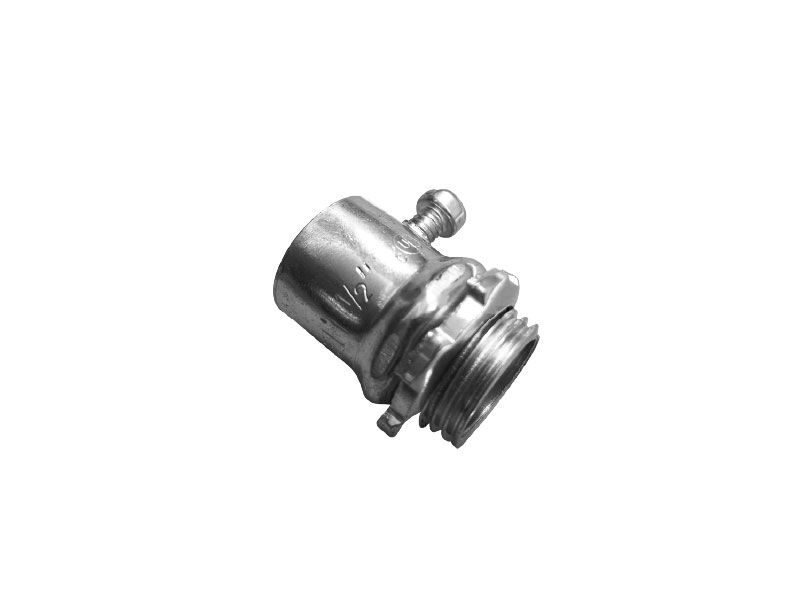

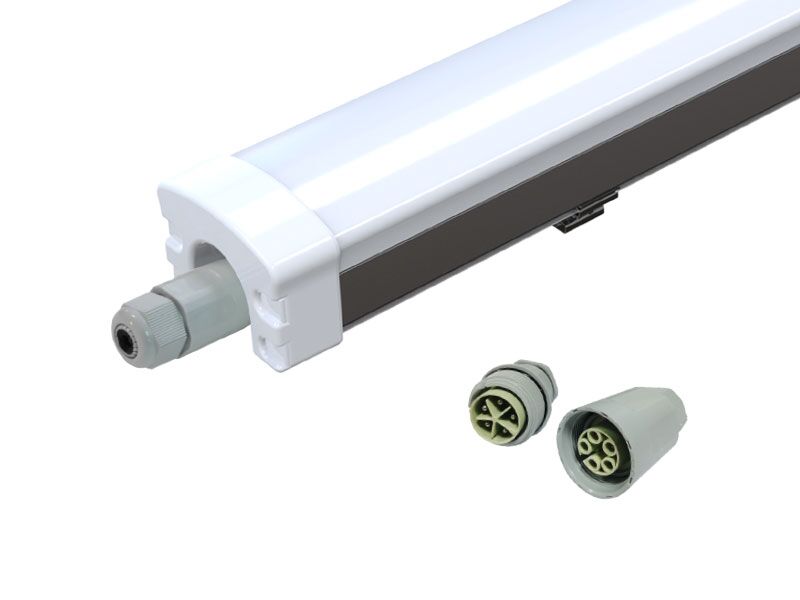

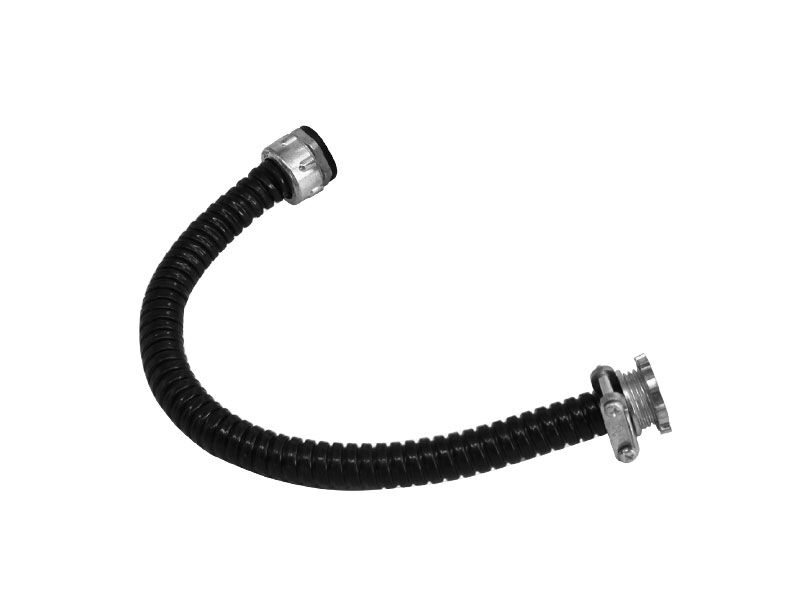

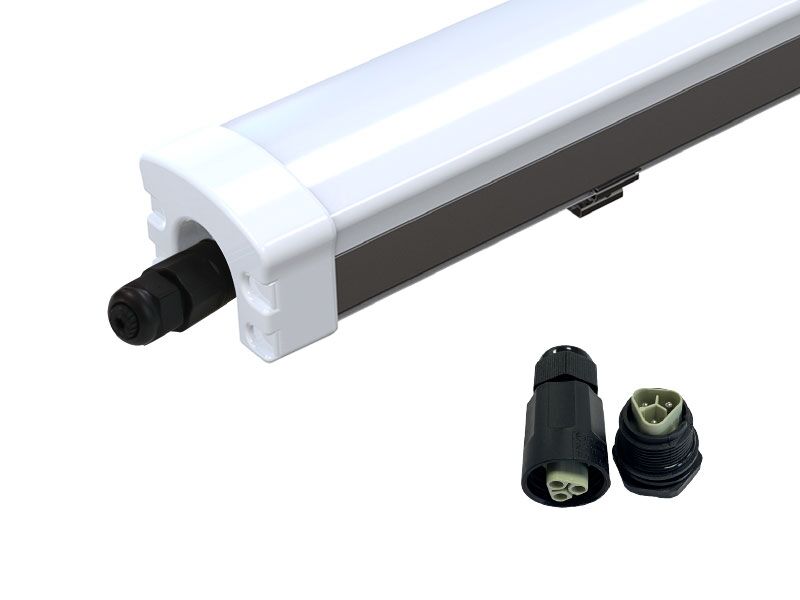

What Connector Options Are Available for Tri-proof LED Lights?
Available Quantity in Series Connection
EU / AU — 230V
| Power | Maximum Quantity |
|---|---|
| 20W | 44 pcs |
| 30W | 29 pcs |
| 40W | 22 pcs |
| 50W | 18 pcs |
| 60W | 15 pcs |
US — 110V / 277V
| Power | 110V | 277V |
|---|---|---|
| 20W | 16 pcs | 41 pcs |
| 30W | 11 pcs | 27 pcs |
| 40W | 8 pcs | 20 pcs |
| 50W | 6 pcs | 16 pcs |
| 60W | 5 pcs | 13 pcs |

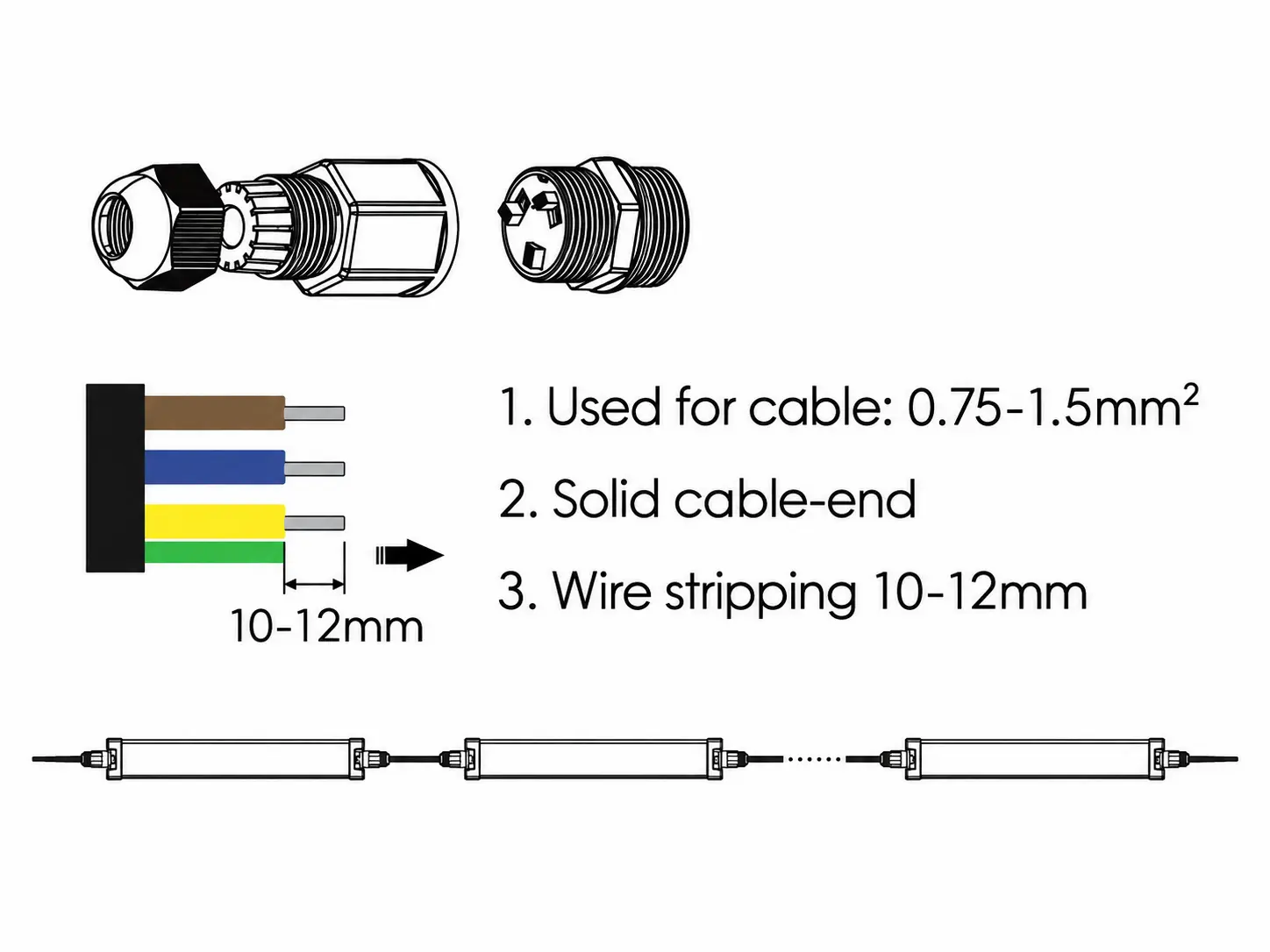

Cable Preparation Before Wiring
Check the cable specification, strip length and cable-end preparation before installation to support reliable terminal contact and sealing performance.
- EU / AU: 0.75–1.5 mm² solid cable end; strip 10–12 mm.
- US: AWG18# solid cable end; strip 0.39–0.47 inch.
Versatile Commercial & Industrial Applications
Engineered to deliver high-performance illumination across diverse architectural and harsh environments:
Industrial Challenges Solved by ShineLong
Dust & Moisture Protection
Effectively addresses large amounts of dust, particulate matter, dirt, steam, and water droplets common in harsh industrial locations.
Corrosion & Maintenance Free
Resists corrosive gases and chemicals, drastically reducing the ongoing maintenance and replacement costs of your lamps and lanterns.
Vandal-Proof & Anti-Collision
Withstands severe mechanical impacts and accidental collisions, ensuring a safer working environment and reducing employee injuries.
Up to 80% Cost Savings
Eliminates the high running costs of traditional vapor tights. Save up to 80% on both labor maintenance overhead and electricity bills.
Where Can LED Tri-proof Lights Be Used?
If you would like to know more about this product or quotaion, please call us. (+0086 0755 8520-3898)
What Types of Application Projects Use IP66 LED Tri-proof Light？
Engineered for Demanding Environments
Airport

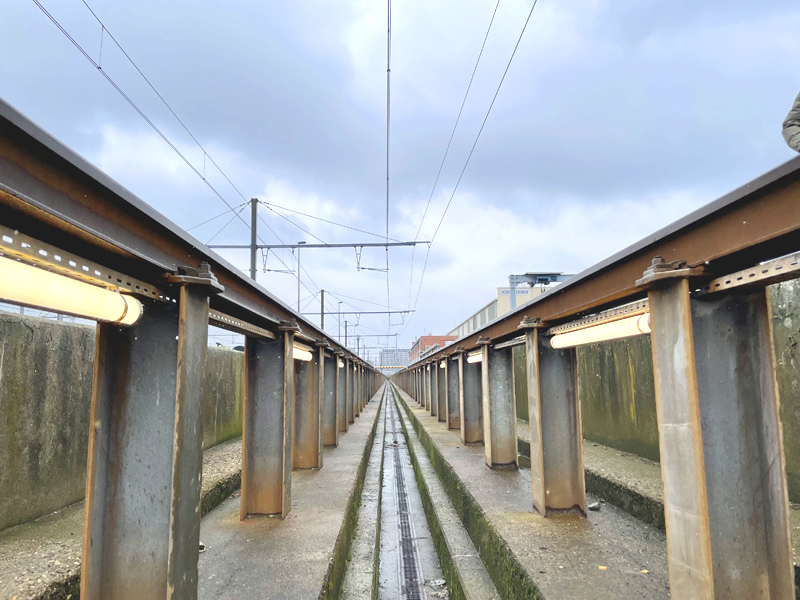

Subway Station

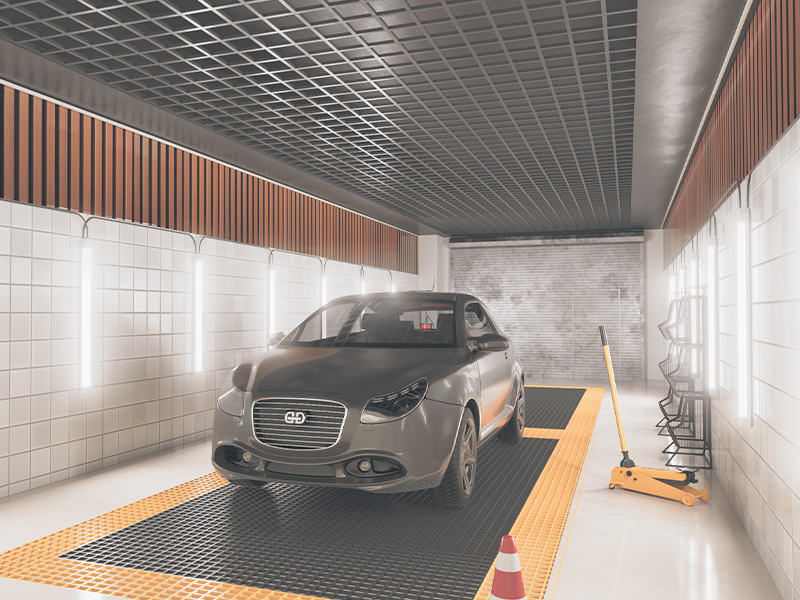

Car Wash
Spraying Factory
Workshop
Library

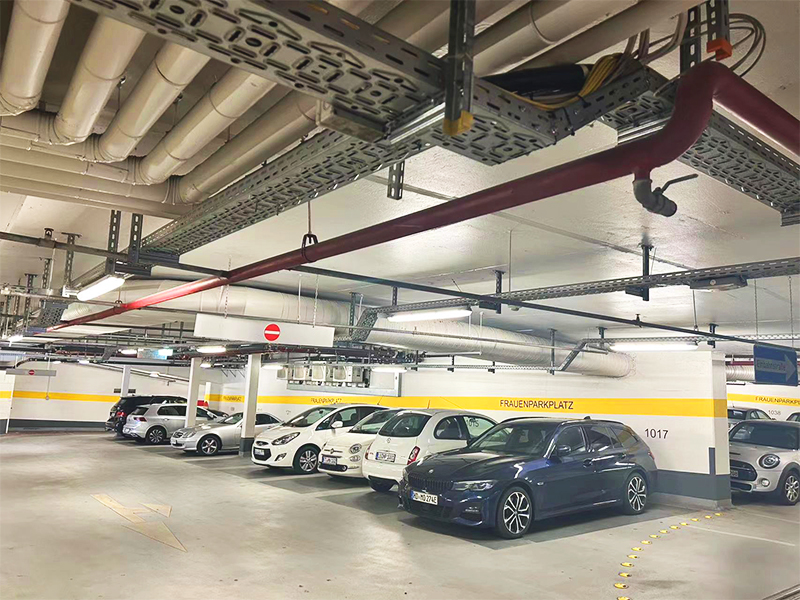

Parking Garage
Warehouse
How Do You Specify IP66 Lighting for Parking Garage Projects?
Parkade is a protected linear LED option for covered parking decks, drive lanes, ramps and service areas where fixture protection, impact resistance and practical control options must be reviewed alongside the lighting layout.
Its stated IP66 ingress protection, IK10 impact protection and aluminium housing help procurement teams assess suitability for moisture, dust and incidental contact in demanding garage zones. Confirm the required power, CCT, cover, controls and emergency function against the actual operating conditions before specification.
For project planning, review ShineLong’s indoor parking garage lighting solution for lanes, bays, ramps and pedestrian routes. For layout and selection considerations, see the parking garage lighting selection guide.
What Functions Does The IP66 LED Tri-proof Light Have?

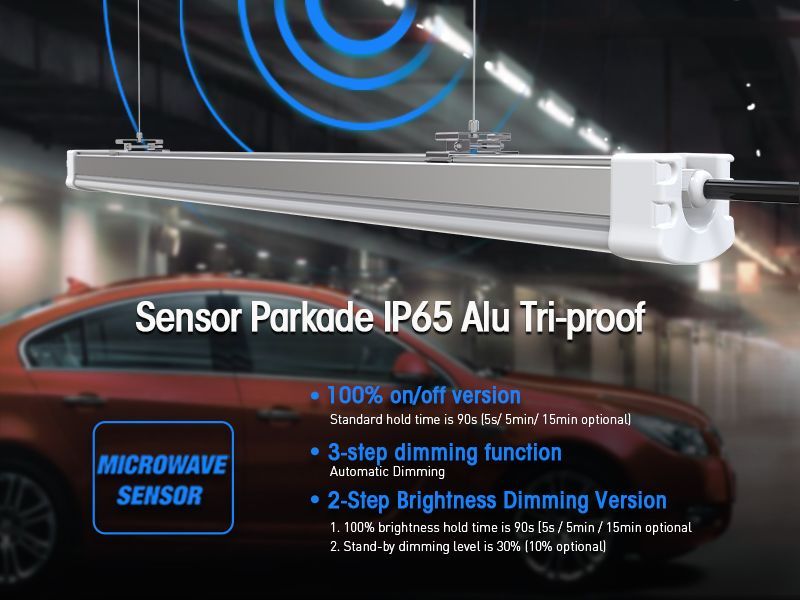

Sensor Version
Parkade IP65 Alu Tri-proof LED light with built-in Microwave Sensor. Features 100% ON/OFF or 3-step automatic dimming.

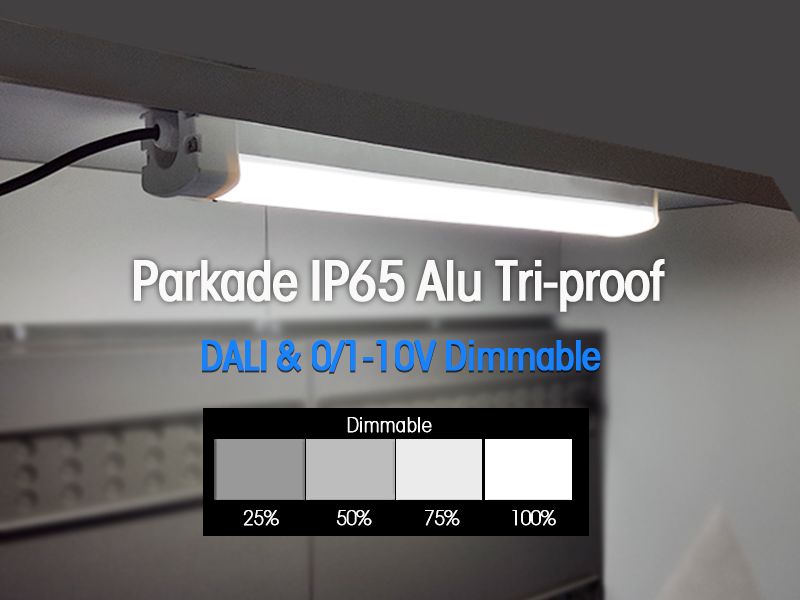

DALI Dimmable Version
Parkade IP65 Alu Tri-proof. Compatible with DALI dimming systems.
Parkade Series Video Center
Explore our technical demonstrations, stress tests, and real-world installation case studies for elite engineering projects.
1:01
Parkade IP66 Alu LED Tri-proof Lights Factory Overview
1:13
Indoor Garage Lighting | Parkade Installation & Light Performance
0:39
Emergency IP66 Tri-proof Light Battery Backup Duration Test
0:45
IP66 LED Tri-proof Light Structural & Waterproof Material Showcase
0:43
LED Tri-proof Light Global Project Application Real Case Show
Frequently Asked Questions About Parkade IP66 LED Tri-Proof Light
Selection guidance for parking-garage, commercial and industrial lighting projects.
Where Can Parkade IP66 LED Tri-Proof Lights Be Used?
Parkade is designed for indoor parking garages and other commercial or industrial areas that need robust linear lighting. Review installation height, operating conditions and the required lighting level before selecting a configuration.
What Protection Does Parkade Provide?
The Parkade IP66 series combines IP66 ingress protection with IK10 impact resistance and 94V0 material protection. This construction is intended for demanding sites where dust, moisture and accidental impact are practical considerations.
Which Power, Lumen And CCT Options Are Available?
Verified standard models cover 20W, 30W, 40W, 50W and 60W, with outputs from 2,700–2,900 lm to 8,100–8,700 lm depending on the article number. CCT options are 3000K, 4000K, 5000K and 6000K.
Can Parkade Be Supplied With Dimming, Sensor Or Emergency Functions?
Yes. Parkade supports 0/1–10V and DALI dimming, microwave sensor operation and an optional emergency battery backup. Confirm the selected function, connector and control compatibility for the final article number before ordering.
What Materials Are Used In The Parkade Fixture?
The product page specifies an aluminium housing and PCB with a Mitsubishi PC cover. The Parkade series also uses 94V0 materials to support its protection-focused design.
Is Parkade Linkable And Easy To Install?

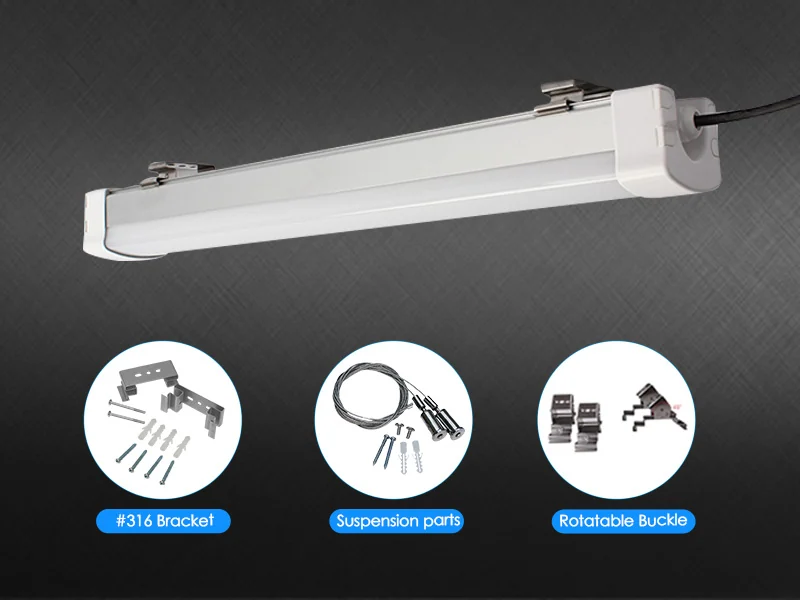

Parkade offers a linkable, tool-free configuration. The page also lists installation accessories and multiple installation methods; confirm the site layout and the required fittings before placing an order.
How Long Does The Emergency Version Operate?
The Parkade emergency version is listed with a rechargeable integrated battery and up to 3 hours of emergency runtime. Confirm the required emergency configuration and local project requirements before finalising the order.
What Information Should I Provide For A Parkade Project Quote?
Provide the application, installation height, quantity, required power and CCT, input voltage, control or emergency requirement, and mounting or linking layout. This allows the ShineLong team to match a suitable Parkade configuration to the project.
Ready to Request a Parkade IP66 Quote or Place an Order?
Send the application, installation height, quantity, required power, CCT and control or emergency function. Our team will confirm the configuration and support your quotation or order request.
How to Choose LED Tri-proof Lights for Different Application Scenarios?
Select the appropriate protection level and material based on the actual application scenario and in consideration of the cost budget.
Rancher IP69K LED Tri-proof Light

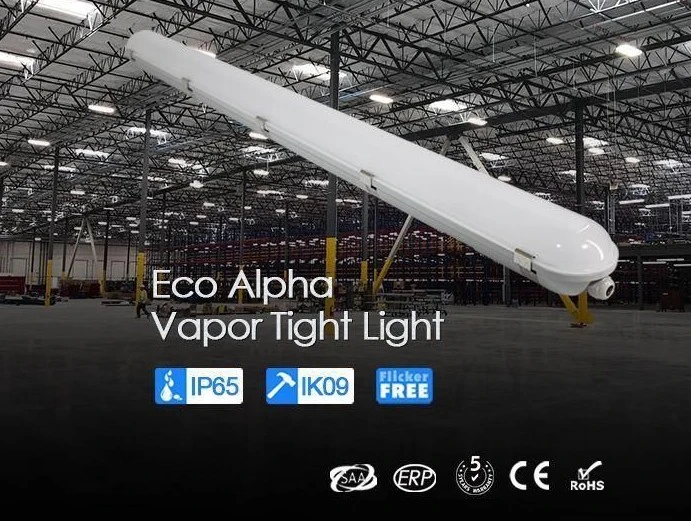

Alpha Vapor Tight Light
