T5 Tube Lights
Previous
Next
Key Feature
- Capable with both constant current or constant voltage version
- ±90° rotatable end cap, 94V0 fire resistance
- Material: Aluminum + PC housing (Frosted&clear cover optional)
- SMD2835 LED Light Source with Global Patent Protection
- Easy installation and replacement, able to be connected into series
- Free of risk, 100% insulation test and sampling hi-pot test before delivery
- L80B10(Ta=25℃)>50,000hrs. Warranty: 5 years
All Products of T5 Tube Lights
2ft 10W T5 Tube Lights
4ft 15W T5 Tube Lights
4ft 20W T5 Tube Lights
5ft 22W T5 Tube Lights
5ft 25W T5 Tube Lights
5ft 30W T5 Tube Lights
2ft 10W T5 Tube Lights
- Article No.: SL-T52X10-60-X
- Power: 10W
- Standard: 100lm/w
- Lumen: 900~1000lm
- Working Current: 250mA
- Length: 600mm
- CCT: 3000K/4000K/5000K/6000K
- DC Input: 34-42V
- SDCM: <4
- CRI: >82
- Power Factor: >0.95
- Operating Temperature: -20~+40℃
4ft 15W T5 Tube Lights
- Article No.: SL-T54X15-96-X
- Power: 15W
- Standard: 100lm/w
- Lumen: 1500~1600lm
- Working Current: 280mA
- Length: 1200mm
- CCT: 3000K/4000K/5000K/6000K
- DC Input: 34-42V
- SDCM: <4
- CRI: >82
- Power Factor: >0.95
- Operating Temperature: -20~+40℃
4ft 20W T5 Tube Lights
- Article No.: SL-T54X20-108-X
- Power: 20W
- Standard: 100lm/w
- Lumen: 2000~2200lm
- Working Current: 450mA
- Length: 1200mm
- CCT: 3000K/4000K/5000K/6000K
- DC Input: 34-42V
- SDCM: <4
- CRI: >82
- Power Factor: >0.95
- Operating Temperature: -20~+40℃
5ft 22W T5 Tube Lights
- Article No.: SL-T55X22-144-X
- Power: 22W
- Standard: 100lm/w
- Lumen: 2200~2400lm
- Working Current: 500mA
- Length: 1500mm
- CCT: 3000K/4000K/5000K/6000K
- DC Input: 34-42V
- SDCM: <4
- CRI: >82
- Power Factor: >0.95
- Operating Temperature: -20~+40℃
5ft 25W T5 Tube Lights
- Article No.: SL-T55X25-168X
- Power: 25W
- Standard: 100lm/w
- Lumen: 2500~2700lm
- Working Current: 600mA
- Length: 1500mm
- CCT: 3000K/4000K/5000K/6000K
- DC Input: 34-42V
- SDCM: <4
- CRI: >82
- Power Factor: >0.95
- Operating Temperature: -20~+40℃
5ft 30W T5 Tube Lights
- Article No.: SL-T55X30-192-X
- Power: 30W
- Standard: 100lm/w
- Lumen: 3000~3300lm
- Working Current: 750mA
- Length: 1500mm
- CCT: 3000K/4000K/5000K/6000K
- DC Input: 34-42V
- SDCM: <4
- CRI: >82
- Power Factor: >0.95
- Operating Temperature: -20~+40℃
Request A Quote
Need something helped in a short time? We’ve got a plan for you.

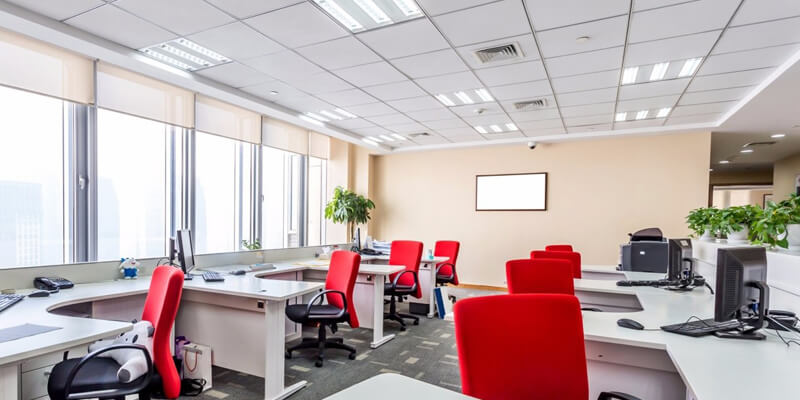

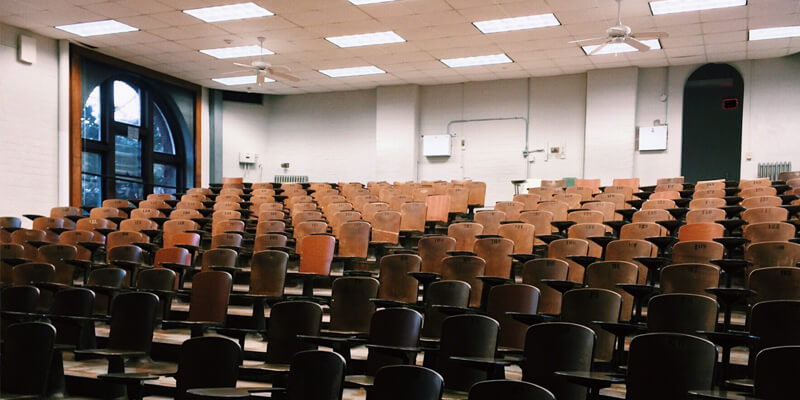

T5 Tube Lights Applications
