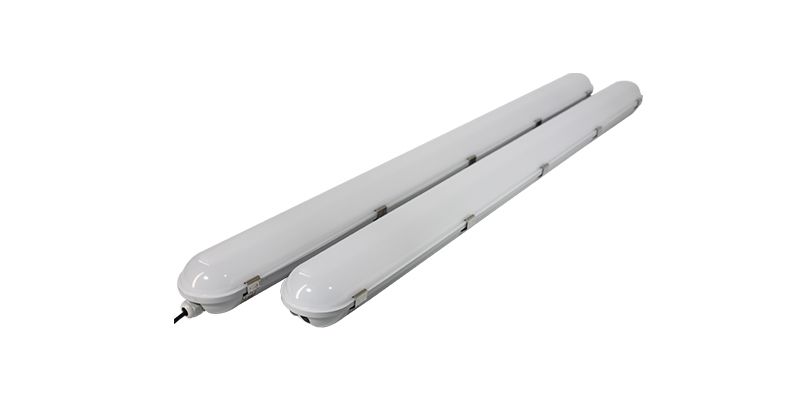

EcoAlpha PC IP65 LED Vapor Tight Light:
Which Configuration Fits Your Indoor Project?

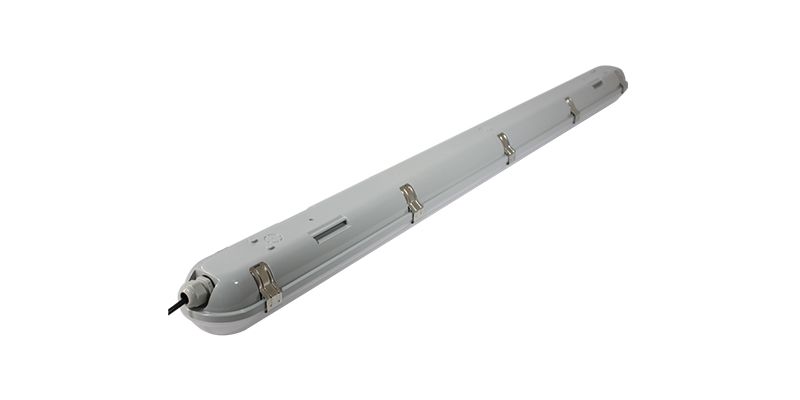

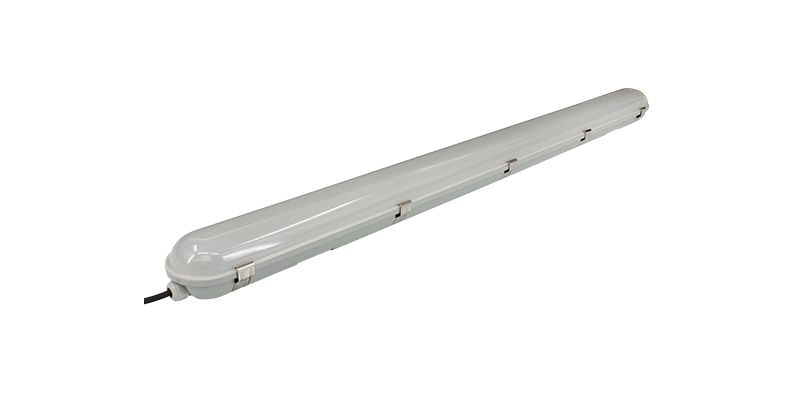

A full-PC LED vapor-tight light with IP65 ingress protection, IK09 impact protection and configurable controls for indoor or sheltered projects.
- Output Selection: Choose the published 20W, 40W or 60W configuration to suit the lighting design.
- Market-Specific Driver: ENEC flicker-free driver for EU/AU specification or UL Class P driver for US specification.
What Features Does EcoAlpha PC IP65 LED Vapor Tight Light Offer?
A full-PC IP65 vapor-tight light for indoor or sheltered projects that need selectable output, CCT and functional options. Select the EU/AU or US version according to the project’s electrical market.
- Verified Power Options: 20W / 40W / 60W
- Flexible CCT: 4 Optional Color Temperatures (3000K / 4000K / 5000K / 6000K)

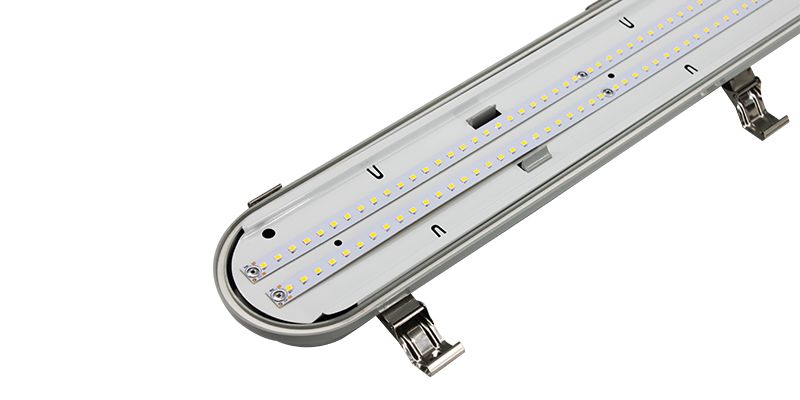

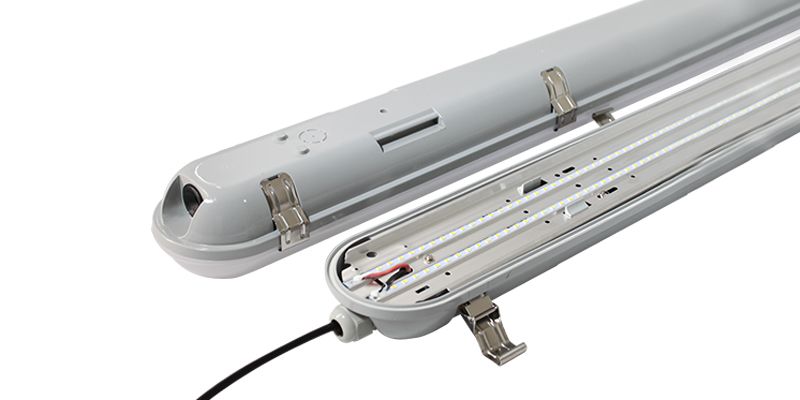

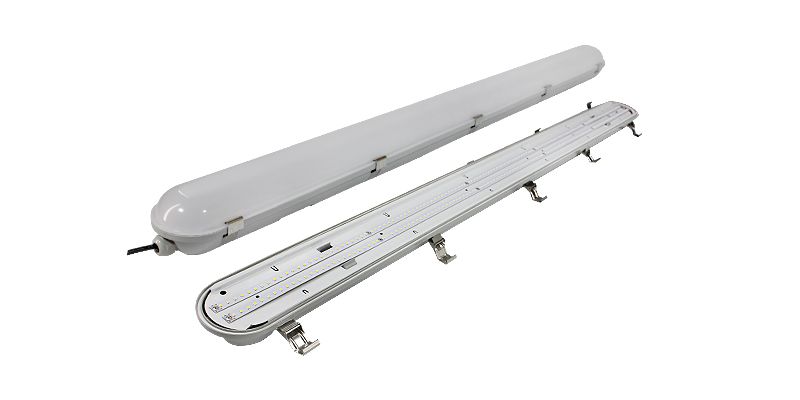

- Protection and Construction: IP65 ingress protection, IK09 impact protection, full-PC housing and S304 clips.
- Market-Specific Driver: ENEC flicker-free driver for EU/AU specification; UL Class P driver for US specification.
- Smart Adaptability: Optional dimming controls, integrated microwave motion sensors, and emergency battery backups.
- Published Lifespan: L80B10 of 50,000 hours at Ta = 25°C.

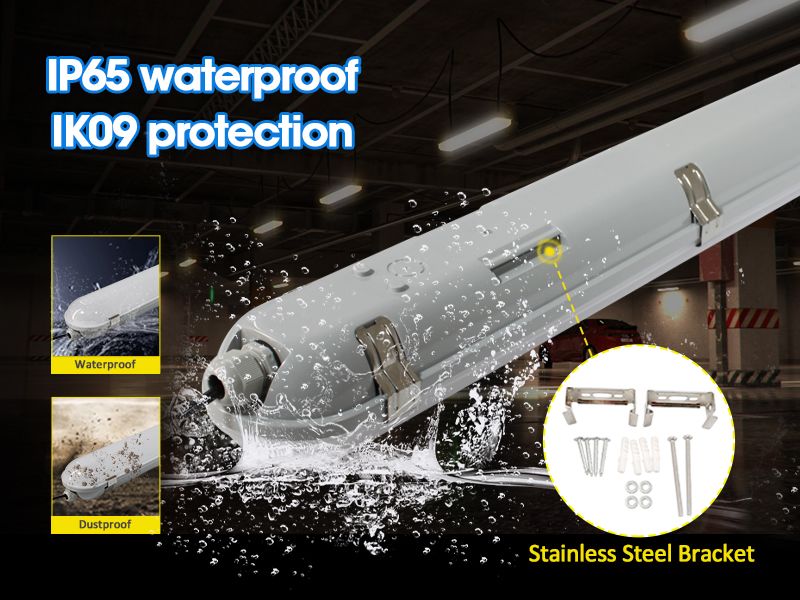

IP65 Protection
Published ingress protection for the configured EcoAlpha model.
IK09 Protection
Published impact-protection rating.
High Transmission

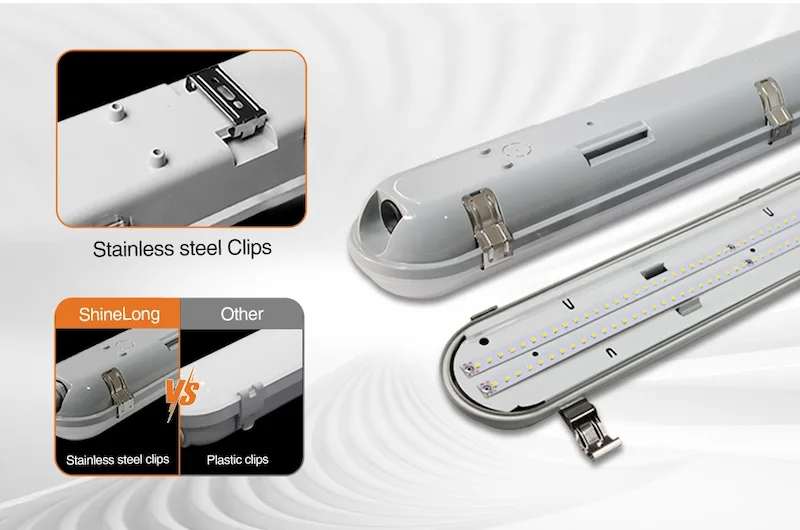

full-PC housing with S304 clips; cover selection affects configured efficacy.
Model Selection
| Article Number | Power (W) | Lumen (lm) | Working Current (mA) | Product Dimension |
|---|---|---|---|---|
| SL-P65X4-20-X | 20W | 2,400-2,700 lm | 450 mA | L1200 * W100 * H75mm |
| SL-P65X4-40-X | 40W | 4,800-5,400 lm | 950 mA | L1200 * W100 * H75mm |
| SL-P65X5-40-X | 40W | 4,800-5,400 lm | 1200 mA | L1500 * W100 * H75mm |
| SL-P65X5-60-X | 60W | 7,200-8,100 lm | 1400 mA | L1500 * W100 * H75mm |
← Swipe horizontally to see full specifications →

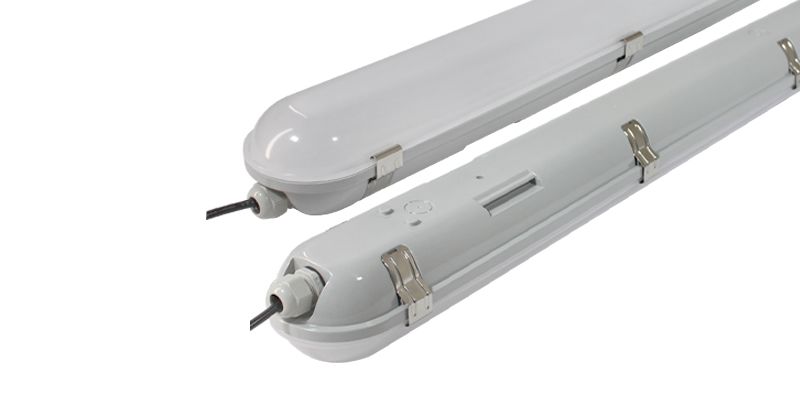

Diffuser: The first “X” represents diffuser type: F (Frosted) or S (Striped).
Length: The number after the first “X” represents light length: 4 = 1200mm; 5 = 1500mm.
CCT: The second “X” represents CCT: W (3000K/4000K), P (5000K) or C (6000K).
General Specifications
Optical Performance Options
| Cover Type | Standard Series | Premium Series |
|---|---|---|
| Frosted PC Cover | 120 lm/W | 135 lm/W |
| Striped PC Cover | 125 lm/W | 140 lm/W |
Technical Notes:
- 1. Above efficacy is measured and based on 4000K color temperature.
- 2. All values are tested under an ambient temperature of 25°C.
- 3. Efficacy tolerance is ±10% and wattage tolerance is ±10%.
- 4. If CRI>90 is required, the overall light efficiency will be reduced by 10-15%.
LUMINOUS INTENSITY DISTRIBUTION DIAGRAM
Market-Specific Drivers
Select the ENEC flicker-free driver for EU/AU specification or the UL Class P driver for US specification. Confirm the market version before ordering.
Smart Dimming Function
1-10V dimming is documented for the EcoAlpha function series. Microwave sensor configurations support the published on/off, 3-step or 2-step operation where specified.
Emergency Battery Backup
Optional emergency modules are listed in the EcoAlpha specification. Confirm the selected model, market version and published emergency output before ordering.

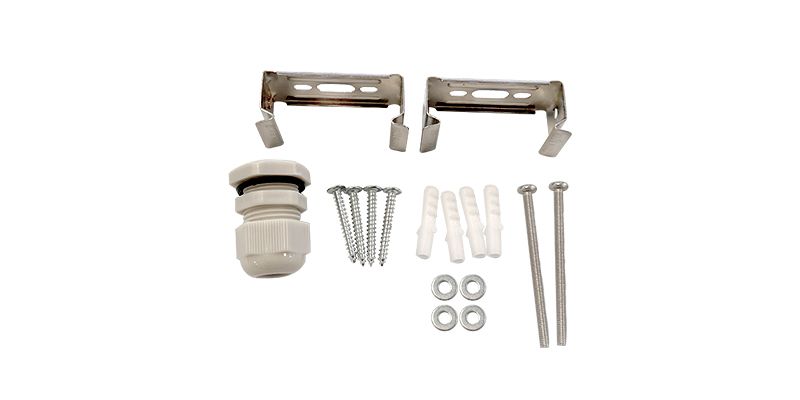

Extensive Accessories
We provide full hardware kits tailored for three versatile installation methods. All precise fittings are organized via automated packaging equipment, guaranteeing zero missing components on-site.

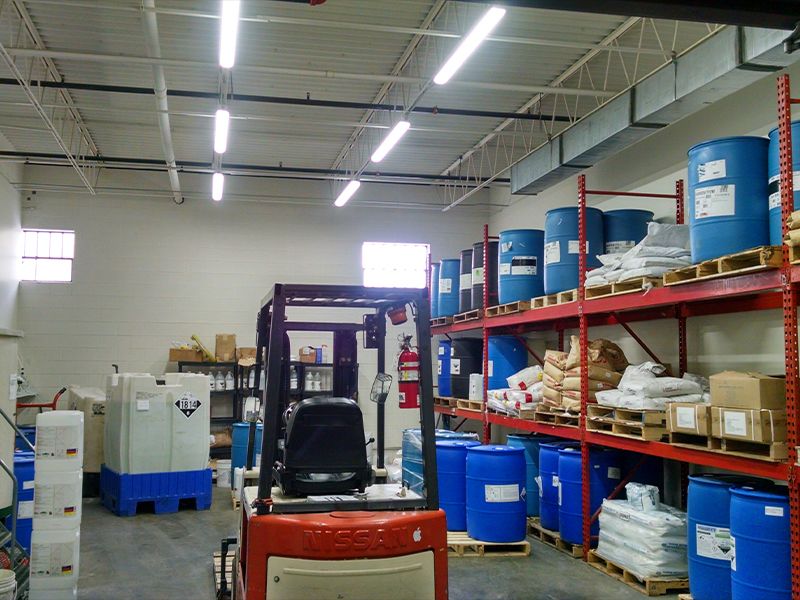

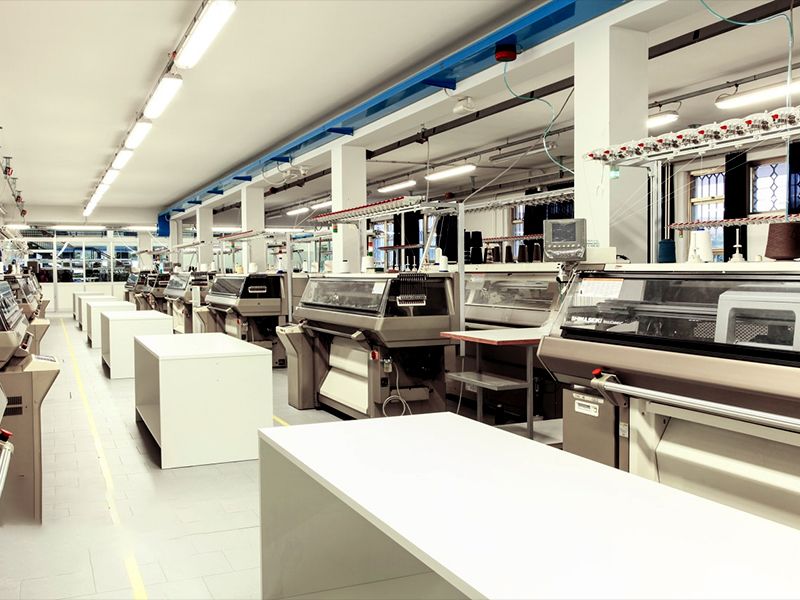

Where Can EcoAlpha PC IP65 LED Vapor Tight Light Be Used?
EcoAlpha supports indoor or sheltered installations that need a full-PC IP65 and IK09 vapor-tight fixture within the documented operating conditions. Read our LED Tri-proof Lighting Guide for practical selection advice.
Industrial Challenges Solved by ShineLong
Dust & Moisture Protection
Effectively addresses large amounts of dust, particulate matter, dirt, steam, and water droplets common in harsh industrial locations.
Site Condition Review
EcoAlpha is intended for indoor or sheltered use. Do not specify it where large quantities of chemical corrosive substances are present.
Vandal-Proof & Anti-Collision
Withstands severe mechanical impacts and accidental collisions, ensuring a safer working environment and reducing employee injuries.
Project-Based Selection
Compare the specified EcoAlpha output and optical option with the project lighting design before finalizing the configuration.
What Functions Can the EcoAlpha PC IP65 LED Vapor Tight Light Perform?
Sensor Version
EcoAlpha PC IP65 vapor-tight light with the published microwave sensor option. Available sensor behavior includes 100% on/off, 3-step dimming or 2-step brightness dimming where specified.

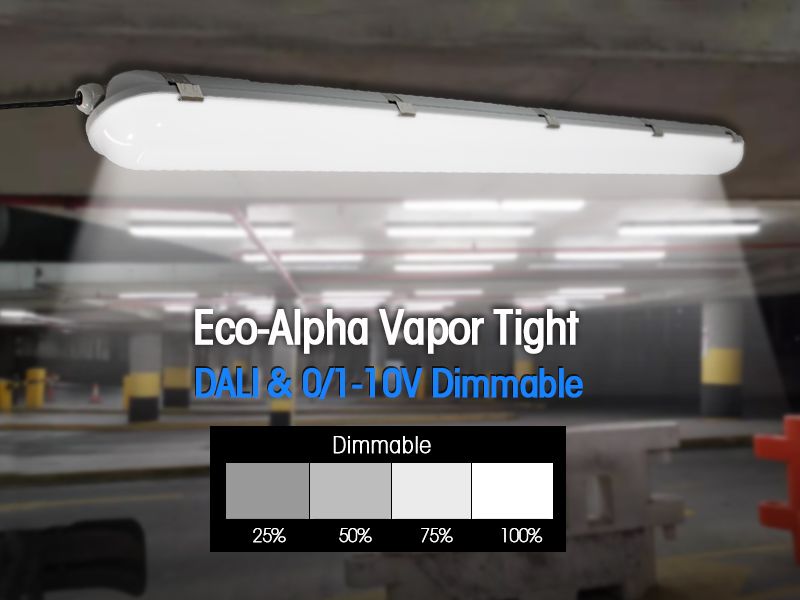

DALI Dimmable Version
EcoAlpha PC IP65 vapor-tight light with the published DALI dimming function.
How Can EcoAlpha PC IP65 LED Vapor Tight Light Support Indoor Projects?
EcoAlpha is a full-PC IP65 and IK09 vapor-tight option for indoor or sheltered installations operating from -20 to +40 degrees C. Select the EU/AU or US electrical version before specifying the fixture.
Match the 1200mm or 1500mm length and 20W, 40W or 60W configuration to the layout, then confirm the frosted or striped cover, CCT, dimming, sensor, emergency and linking requirements.
Assess the installation through our warehouse lighting, workshop lighting, factory lighting and parking garage lighting guides. Do not use EcoAlpha in locations with large quantities of chemical corrosive substances.
EcoAlpha PC IP65 LED Vapor-tight Light Series Video Center
Explore our technical demonstrations, stress tests, and real-world installation case studies for elite engineering projects.
0:47
EcoAlpha PC IP65 LED Vapor Tight Light
0:41
EcoAlpha PC IP65 Vapor-tight Light Production Flow
0:41
What's different for the vapor tight light?
Which Related LED Tri-Proof Light Series Can You Compare?
Parkade Aluminum IP65 LED Tri-proof Light
Rancher Mini LED Tri-proof Light
Rancher IP69K LED Tri-proof Light
Alpha PC IP65 LED Vapor Tight Light
Eco-mini II PC Tri-proof Light
Eco-Rancher IP66 LED Tri-proof Light
FAQ
Frequently Asked Questions About EcoAlpha PC IP65 LED Vapor Tight Light
Review the published material, protection, electrical and functional options before selecting an EcoAlpha configuration for your project.
Are all vapor-tight LED lights suitable for the same industrial project?
No. Selection should start with the documented electrical market, protection level, operating environment, installation method and required functions. EcoAlpha is designed for indoor or sheltered use from -20 to +40 ℃ and should not be used where large quantities of chemical corrosive substances are present.
What materials and protection ratings does EcoAlpha use?
EcoAlpha has a full-PC housing with S304 clips. Its published protection ratings are IP65 for ingress protection and IK09 for impact resistance, so the application and installation conditions still need to be confirmed before ordering.
How should I evaluate long-term lighting performance?
Review the published model, output, cover, CCT and operating condition rather than assuming all fixtures perform alike. EcoAlpha is specified at L80B10 50,000 hours at Ta 25 ℃; published efficacy varies by cover and selected standard or premium configuration.
Which electrical version should I select for the project?
EU/AU specification is 200-240V, 50/60Hz with an ENEC flicker-free driver. US specification is 100-277V, 50/60Hz with a UL Class P driver. Select the electrical version that matches the project market before ordering.
What cover, CCT and optical options are published?
Choose frosted or striped PC cover. Published CCT options are 3000K, 4000K, 5000K and 6000K; the beam angle is 120 degrees and CRI is greater than 80.
Can EcoAlpha include smart control or emergency functions?
The specification lists 1-10V dimming, microwave sensor, emergency and series-connection options. Confirm the required function set, selected model and market version with the quotation.
Which compliance documents can be confirmed?
The latest EcoAlpha specification identifies an ENEC flicker-free driver for EU/AU and a UL Class P driver for US configurations. Request the current technical document package for the exact selected model rather than assuming other approvals apply to every configuration.
What warranty and quotation information should be confirmed?
The published warranty is five years. For a technical recommendation or quotation, provide the project market, required length and power, cover, CCT, control or emergency requirement, linking requirement, quantity and installation condition.
