Wholesale Backlit LED Panel Lights
ShineLong’s Backlit LED Panel Lights
Commercial Backlit LED Panel Light
- One-time stretching process
- CE, RoHs Certification
- Efficacy:100lm/w
- Flicker free driver
- Material: High-quality Aluminum
- High Power Factor: >0.90
- Input Voltage: AC200-240V 50/60Hz
- Warranty: 3 years
- Suspending&Ceiling mounted&Recessed installation
All Products of Backlit LED Panel
- Article No.: SL-P2240-X-BX22
- Power: 40 W
- Standard: 100 lm/w
- Lumen: 4000 lm
- Working Current: 950 mA
- Size: 595x595x32 mm
- CCT: 3000K/4000K/5000K/6000K
- AC Input: 200-240V 50/60Hz
- DC Output: 30-40V
- SDCM: <4
- CRI: >80
- Power Factor: >0.90
- Operating Temperature: -20~+40℃
- Article No.: SL-P2240-X-BX22A
- Power: 40 W
- Standard: 100 lm/w
- Lumen: 4000 lm
- Working Current: 950 mA
- Size: 620x620x32 mm
- CCT: 3000K/4000K/5000K/6000K
- AC Input: 200-240V 50/60Hz
- DC Output: 30-40V
- SDCM: <4
- CRI: >80
- Power Factor: >0.90
- Operating Temperature: -20~+40℃
- Article No.: SL-P1440-X-BX22
- Power: 40 W
- Standard: 100 lm/w
- Lumen: 4000 lm
- Working Current: 950 mA
- Size: 295x1195x32 mm
- CCT: 3000K/4000K/5000K/6000K
- AC Input: 200-240V 50/60Hz
- DC Output: 30-40V
- SDCM: <4
- CRI: >80
- Power Factor: >0.90
- Operating Temperature: -20~+40℃
- Article No.: SL-P2440-X-BX22
- Power: 40 W
- Standard: 100 lm/w
- Lumen: 4000 lm
- Working Current: 950 mA
- Size: 595x1195x32 mm
- CCT: 3000K/4000K/5000K/6000K
- AC Input: 200-240V 50/60Hz
- DC Output: 30-40V
- SDCM: <4
- CRI: >80
- Power Factor: >0.90
- Operating Temperature: -20~+40℃
Specifications
| Light Source | SMD2835 |
| CRI | >80 |
| Beam Angle | 120° |
| CCT | 3000K/4000K/5000K/6000K |
| AC Input | 220-240V/ 50/60Hz |
| DC output | 30-40V |
| SDCM | <4 |
| Power Factory | >0.90 |
| Operating Temperature | -20~+40℃ |
Cover Standard Premium
Frosted 100lm/w 125lm/w
Please note:
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
3. Efficacy tolerance is ±10% and wattage tolerance is ±10%
4. If UGR＜ 19, light efficiency will be reduced by 5-8%
5. If CRI> 90, light efficiency will be reduced by 10-15%

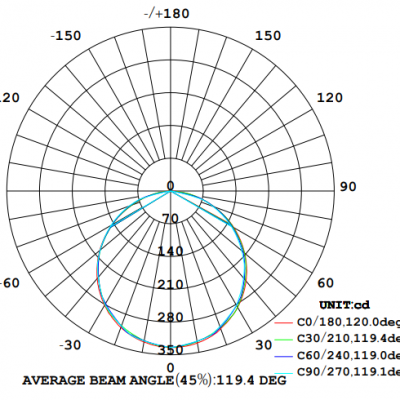

LUMINOUS INTENSITY DISTRIBUTION DIAGRAM
Guarantee with ShineLong
Response Time
Our response time is around 3 hours,so if you have an urgent problem with your project,you can call the business directly to secure your project.
Reliable Delivery
We have implemented ERP,PMC system management.Sample orders about 7 days,large orders about 15 days,special oeders can be expedited delivery time.
Guaranteed Warranty
Factory passed ISO9001:2015 international quality management system,all of LED lights have a 5-7 year warranty and all accessories have certifications.
Energy Savings
Up to 70% energy savings over traditional lights,report a 50 percent drop in their energy bill than they would have with conventional lights.
ShineLong's Five Value-added Services
ODM services, brand product modeling, and promotional materials, LED light design, LED power supply customization, lighting software development, LED lights for the full range of qualification certificates for the docking service and billing.
We ShineLong can provide you with value-added services for deep cooperation customers, and ODM services, only need you to provide LED light software and appearance ideas, our R & D team can help you with free design software and product appearance, in addition to LED light power supply can be specially customized, LED lights after the completion of the development of LED certificates samples and information can also be provided for the whole docking, until the LED Lights on the market, at the same time, our marketing department is responsible for 3D modeling and design colleagues, but also according to the idea to design your brand needs to promote promotional materials and videos. Most importantly, ShineLong also provides a billing period for large LED lighting customers.
Come and join us to make LED light installation easier and let ShineLong light fixtures light up the world.
Discounts for Electrician,Contractor,or other Trade
Our team continuously creates valuable partnerships with various electricians, contractors, lighting solution businesses, lighting design companies, and other tradespeople to ensure you all receive the special discounts and services possible with unbeatable quality and a proven track record.

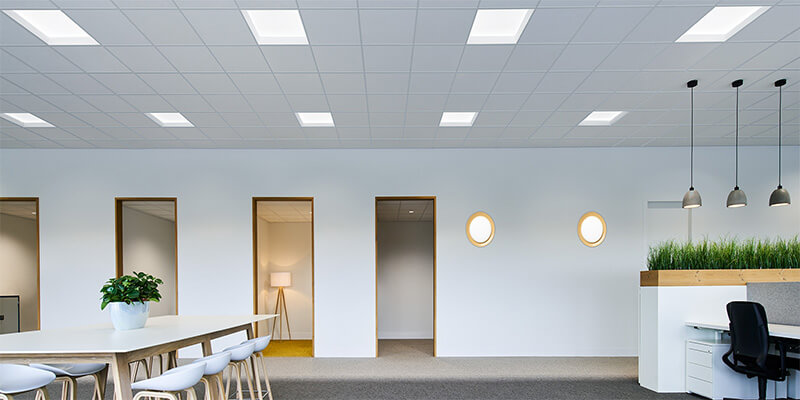

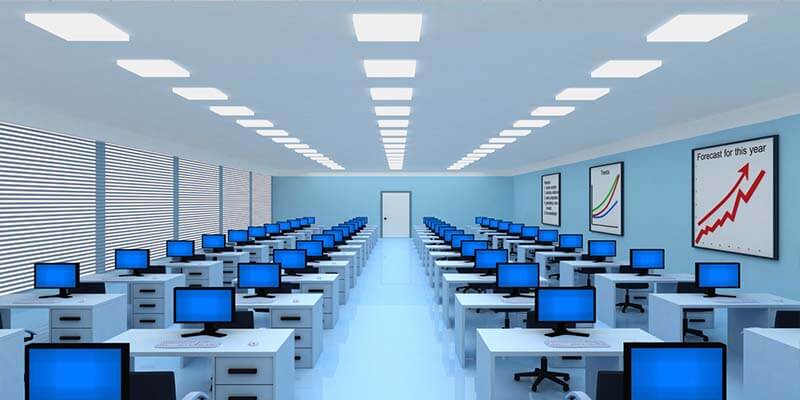

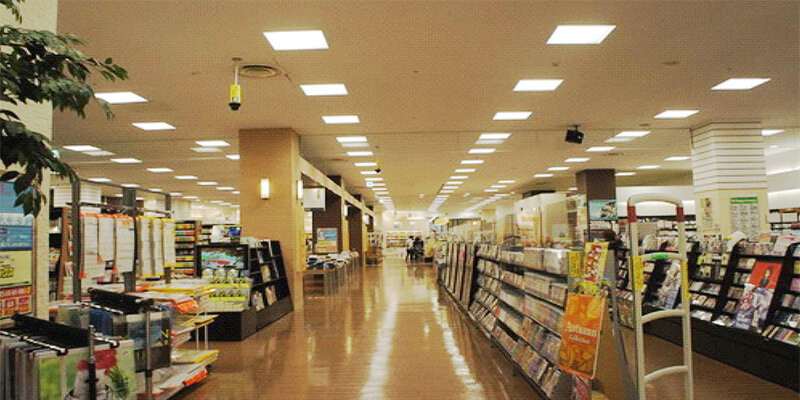

Application
