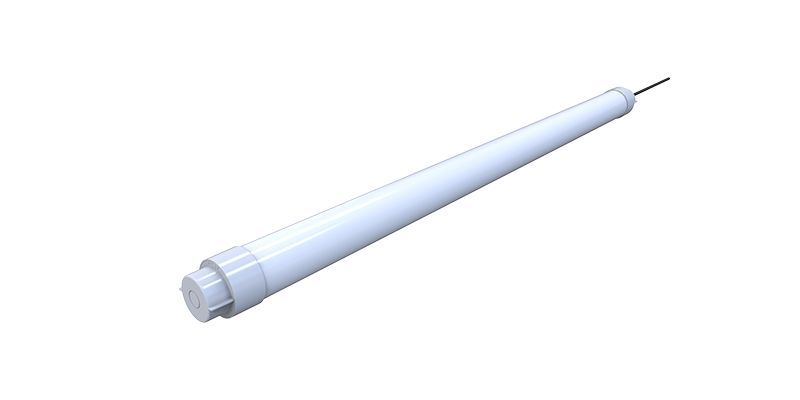

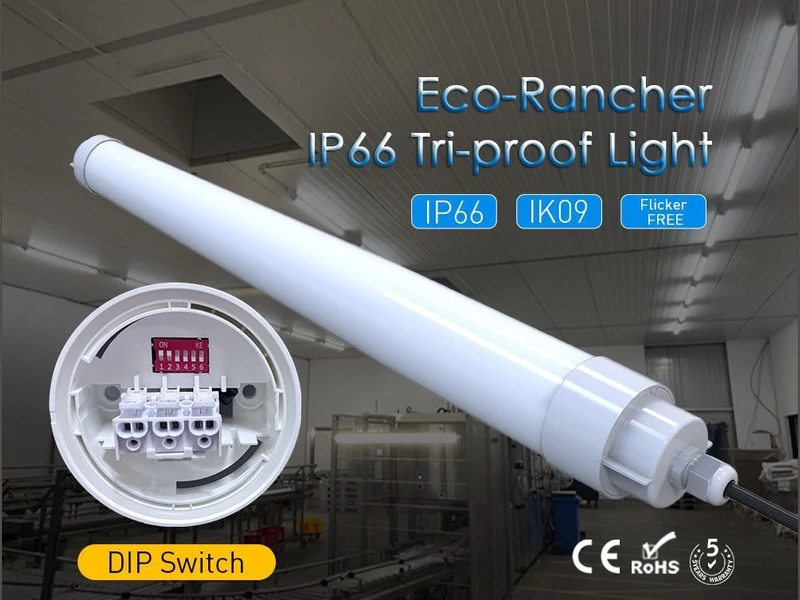

Eco-Rancher IP66 LED Tri-Proof Light:
Which Configuration Fits Your Indoor Project?
A full-PC LED tri-proof light with IP66 water and dust protection, IK09 impact protection, DIP power/CCT settings and flexible control options for demanding projects.
- Output Selection: Choose from 20W, 36W or 45W to suit the lighting design.
- DIP Switch Settings: Adjust output and colour temperature at the fixture to suit the application.

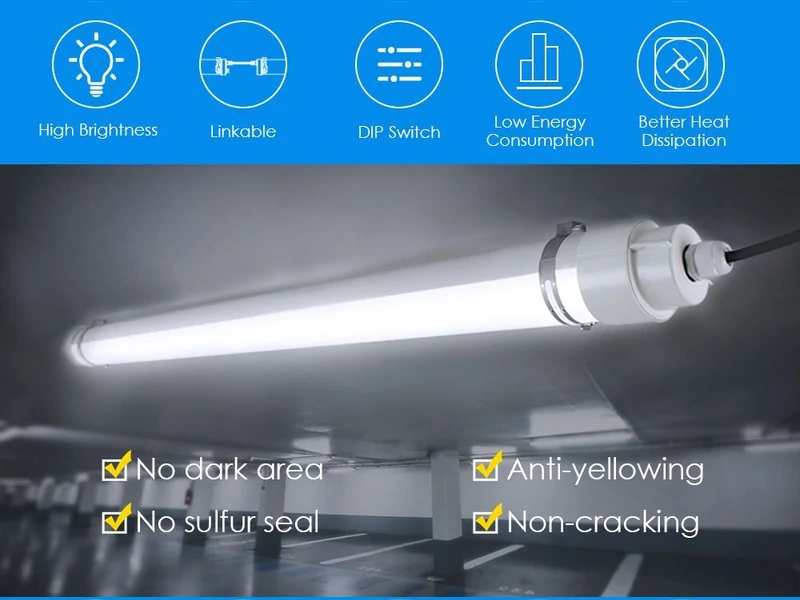

What Features Does Eco-Rancher IP66 LED Tri-Proof Light Offer?

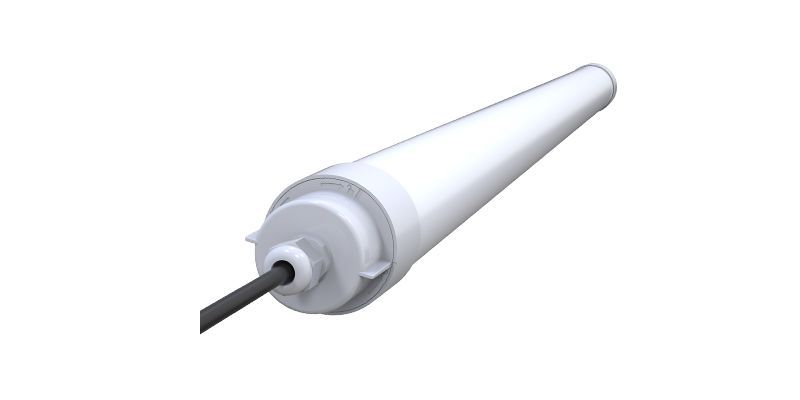

Eco-Rancher is a full-PC IP66 vapor-tight light for indoor or sheltered projects, with built-in dial-code output/CCT selection and a 100% on/off sensor option.
- Power Options: 20W / 36W / 45W
- Flexible CCT: 4 Optional Color Temperatures (3000K / 4000K / 5000K / 6000K)
- Protection and Construction: IP66 ingress protection, IK09 impact protection, full-PC housing and S316 clips.
- Internal Driver: Flicker-free non-isolated internal driver for AC200–240V, 50/60Hz.

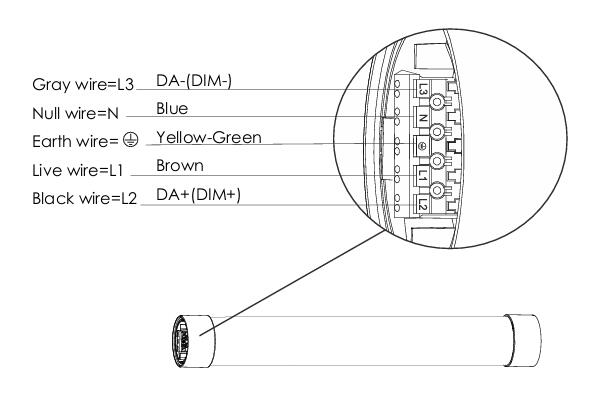

- Control Options: DIP power/CCT settings, 1–10V dimming and microwave sensor options.

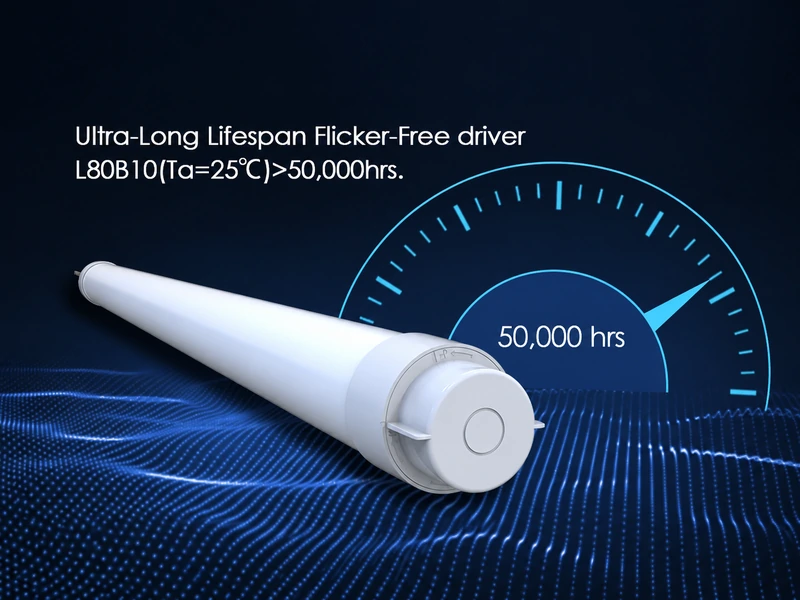

- Long Life: L80B10 over 50,000 hours at Ta = 25°C.
- Warranty: 5 Years.

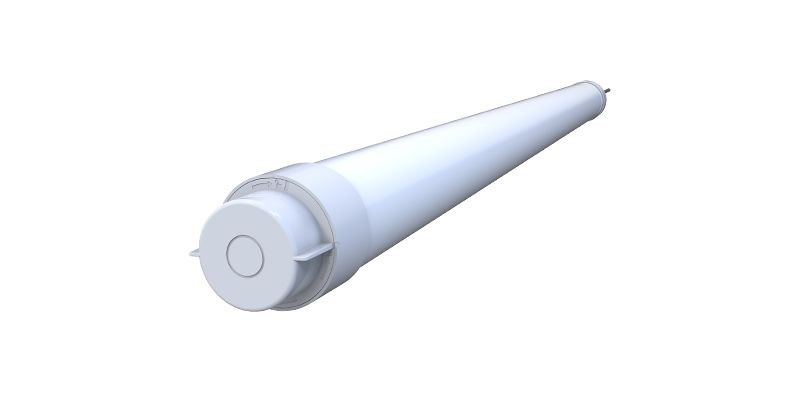

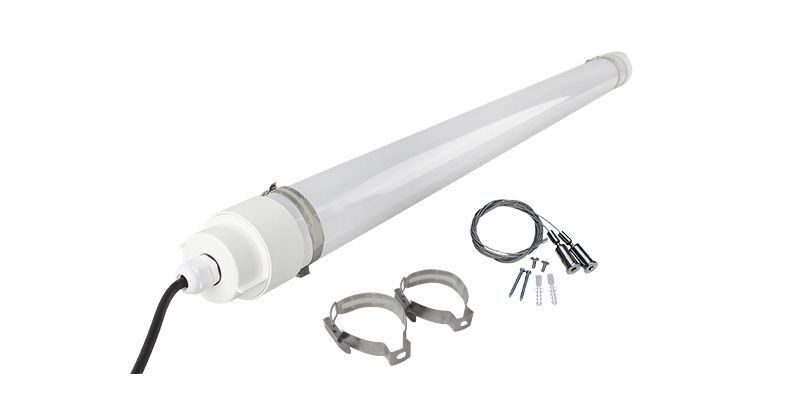

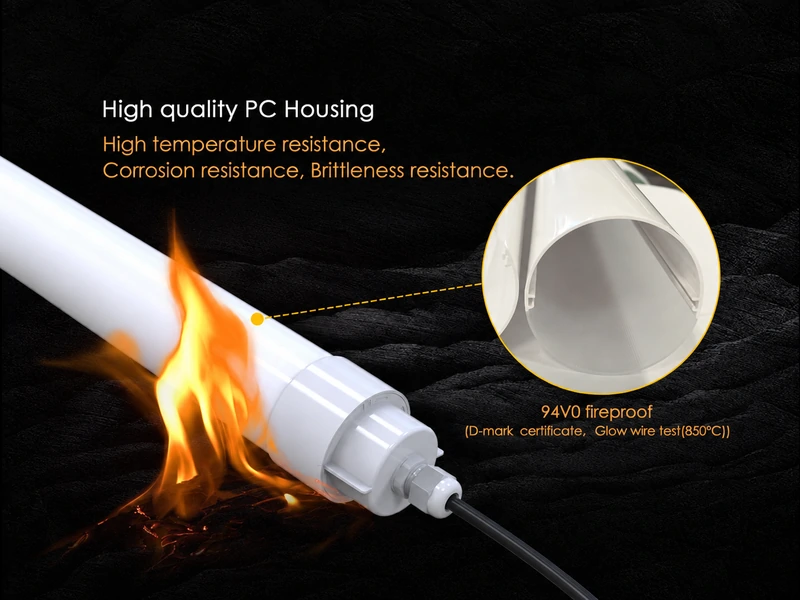

Full PC Housing
Frosted full-PC housing provides a durable, clean finish for industrial and commercial installations.

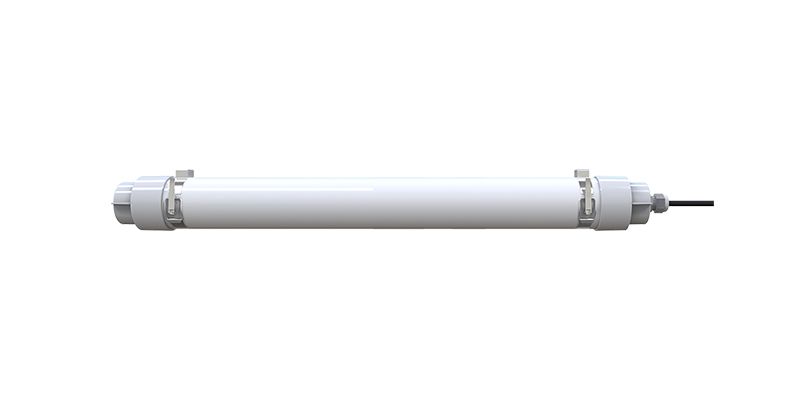

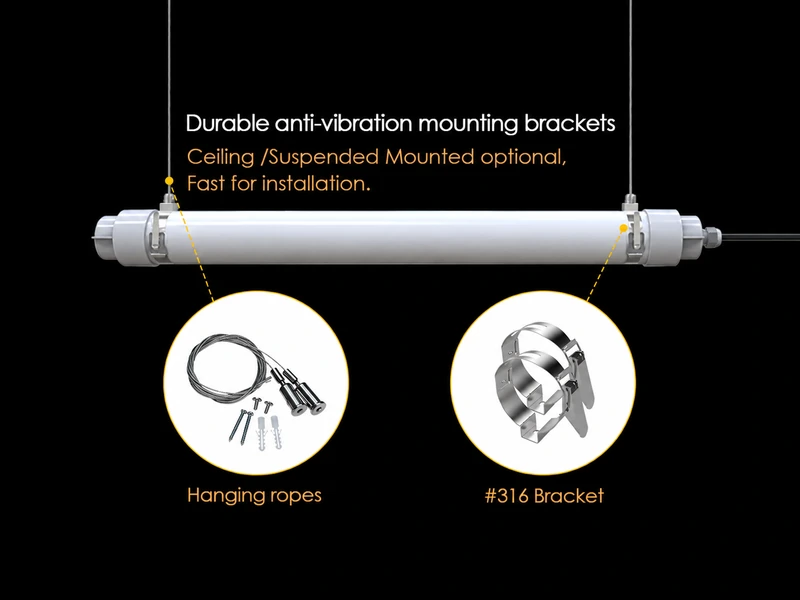

S316 Stainless Steel Clips
S316 clips support secure installation where durable fixture components are required.

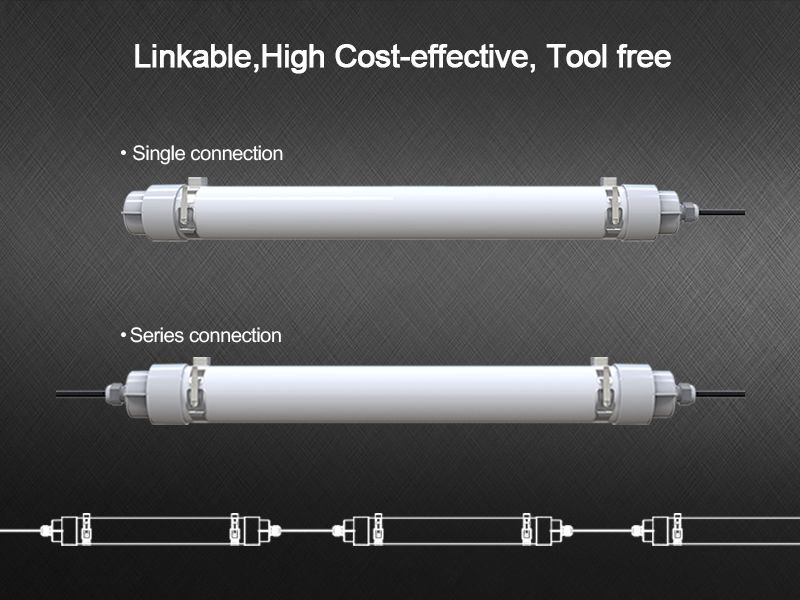

Linkable, Tool-Free Design
Link fixtures into continuous lighting runs with a practical, tool-free connection design.
Model Selection
| Article Number | Power (W) | Lumen (lm) | Product Dimension |
|---|---|---|---|
| SL-P66X2-20-XE-D | 20W | 2,700–3,000 lm | 600mm * D75mm |
| SL-P66X4-36-XE-D | 36W | 4,860–5,400 lm | 1200mm * D75mm |
| SL-P66X5-45-XE-D | 45W | 6,075–6,750 lm | 1500mm * D75mm |
← Swipe horizontally to see full specifications →
Diffuser: F represents the frosted cover.
CCT: W represents 3000K/4000K, P represents 5000K and C represents 6000K. DIP Version: D represents selectable power and CCT settings.
Length: 2 = 600mm; 4 = 1200mm; 5 = 1500mm.
General Specifications

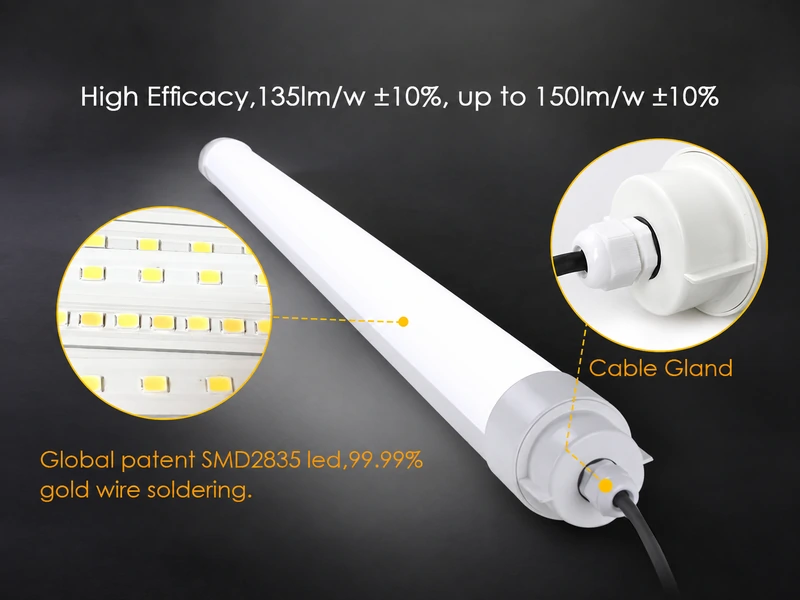

Optical Performance Options
| Cover Type | Standard Series | Premium Series |
|---|---|---|
| Frosted PC Cover | 135 lm/W | 150 lm/W |
Technical Notes:
- 1. Above efficacy is measured and based on 4000K color temperature.
- 2. All values are tested under an ambient temperature of 25°C.
- 3. Efficacy tolerance is ±10% and wattage tolerance is ±10%.
- 4. If CRI>90 is required, the overall light efficiency will be reduced by 10-15%.

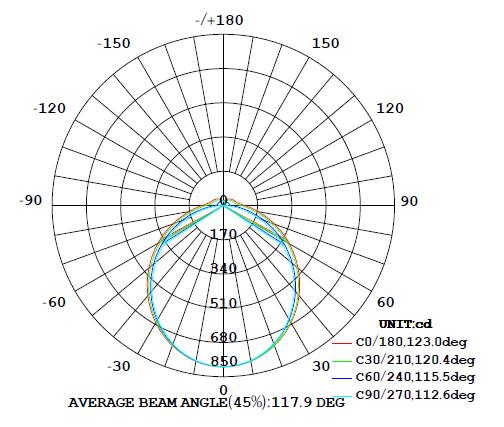

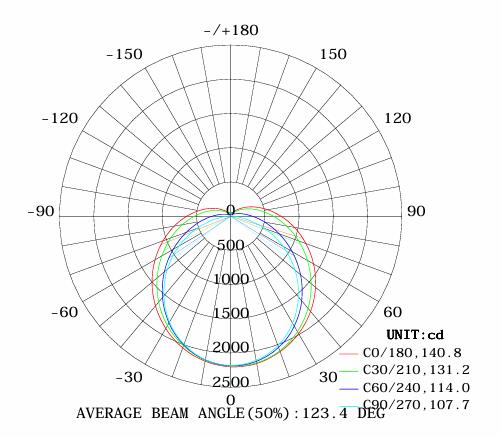

LUMINOUS INTENSITY DISTRIBUTION DIAGRAM

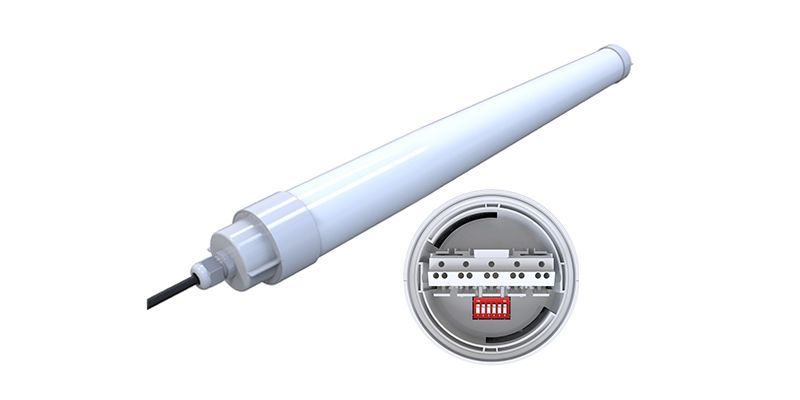

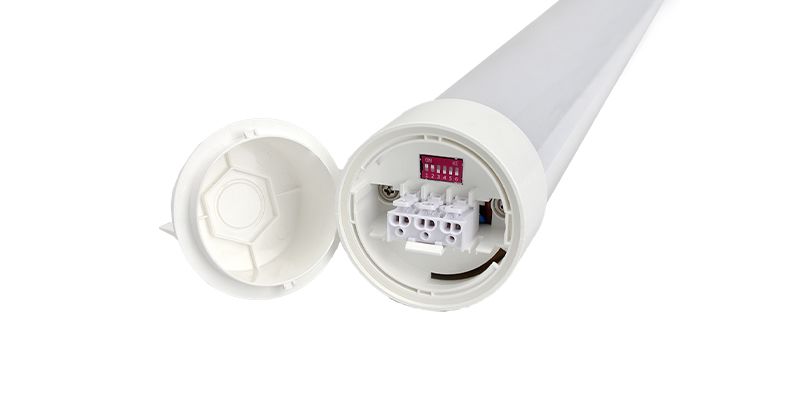

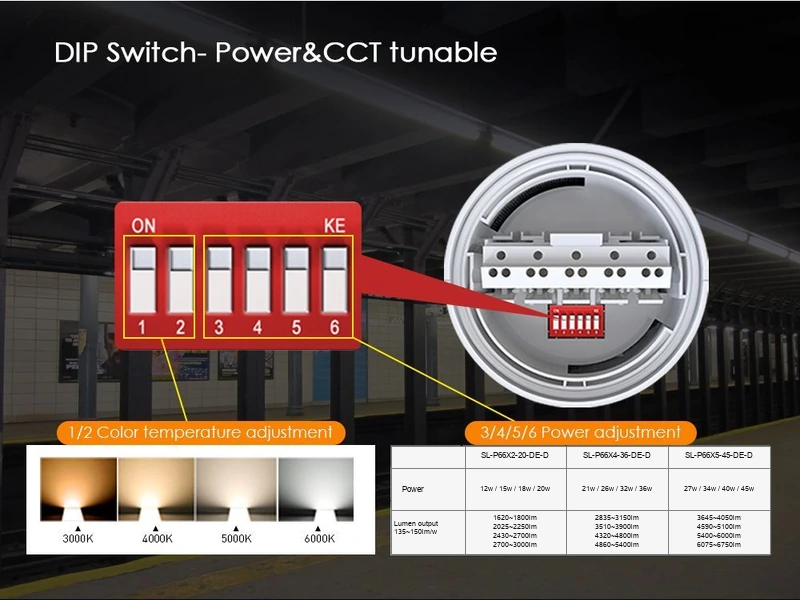

DIP Switch CCT
Adjust the colour temperature with the built-in DIP switch:W: 3000K / 4000KP: 5000KC: 6000KD: 3000K / 4000K / 5000K or 4000K / 5000K / 6000K

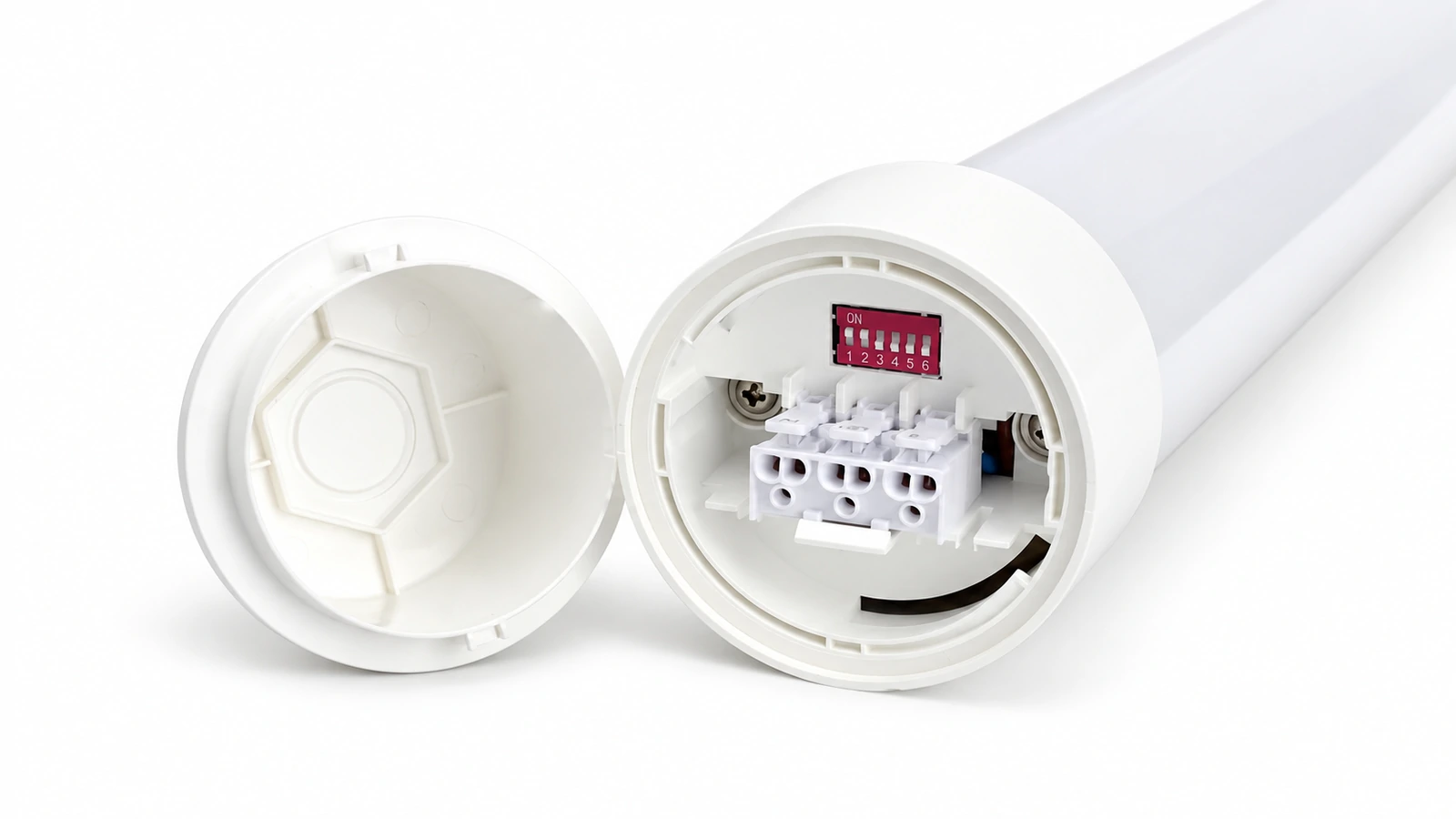

DIP Switch Power
Set the output with the built-in DIP switch:600mm: 12W / 15W / 18W / 20W1200mm: 21W / 26W / 32W / 36W1500mm: 27W / 34W / 40W / 45W

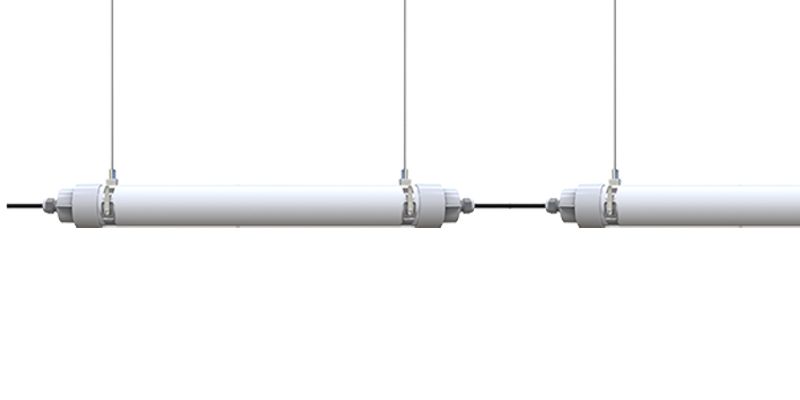

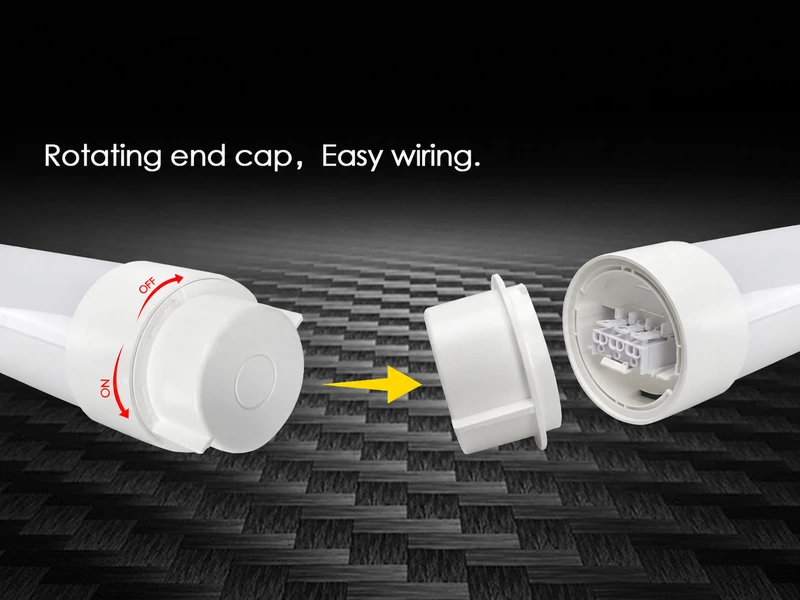

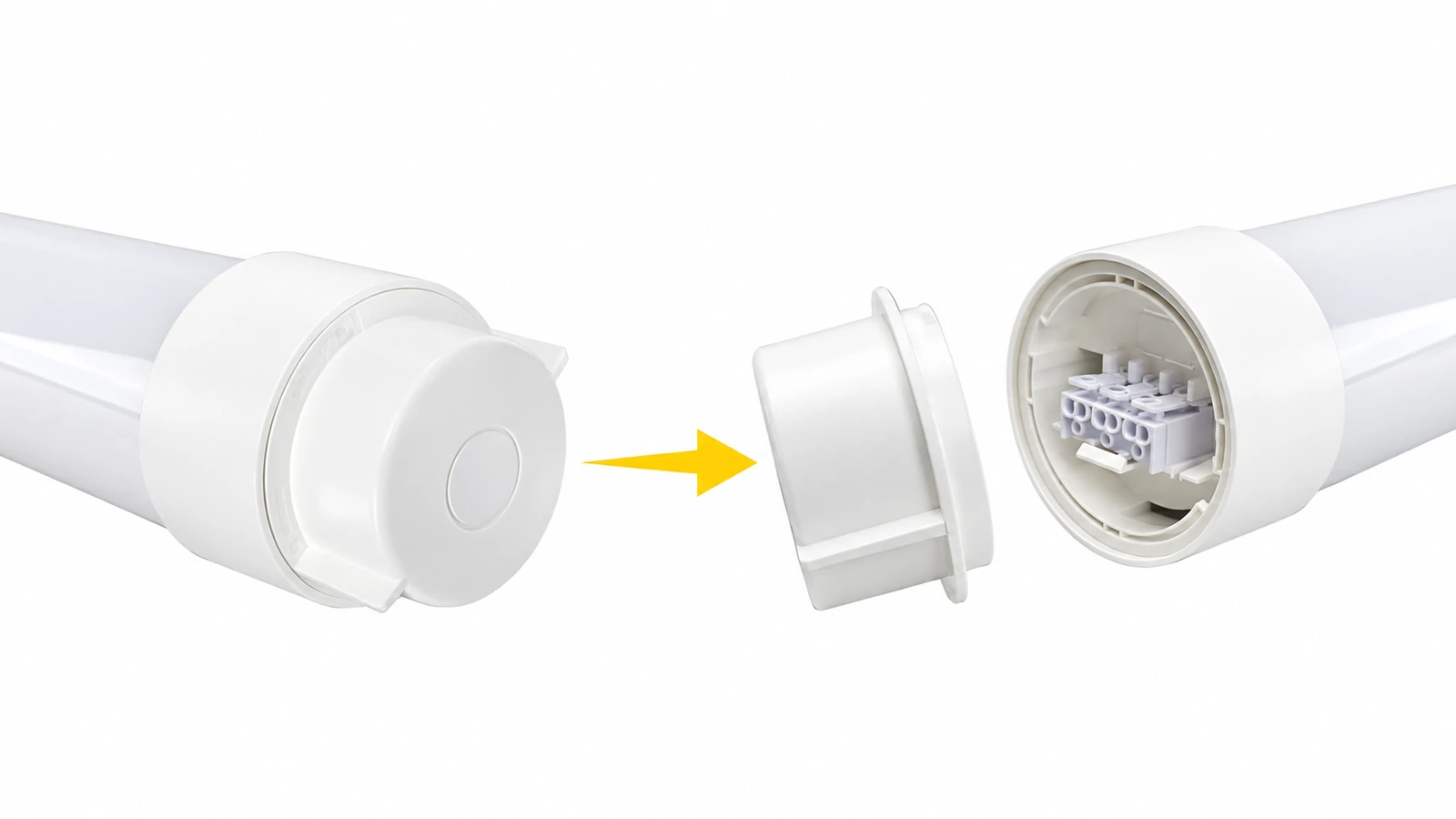

Tool-Free Series Connection
Create continuous lighting runs with a practical linkable design:Connection: Tool-free series connectionSuitable For: Corridors / Warehouses / Linear Layouts
Series Connection Quantity by Power
At 230V, the maximum quantity per series connection is:20W: 46 pcs36W: 22 pcs45W: 15 pcs

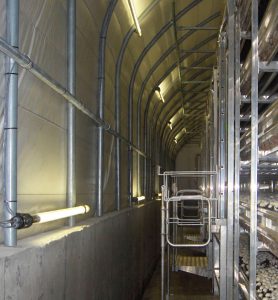

Where Can Eco-Rancher IP66 LED Tri-Proof Light Be Used?
Eco-Rancher is built for parking areas, warehouses, railway stations, corridors and galleries that need a full-PC IP66 and IK09 tri-proof fixture. Read our LED Tri-proof Lighting Guide for practical selection advice.
Industrial Challenges Solved by ShineLong

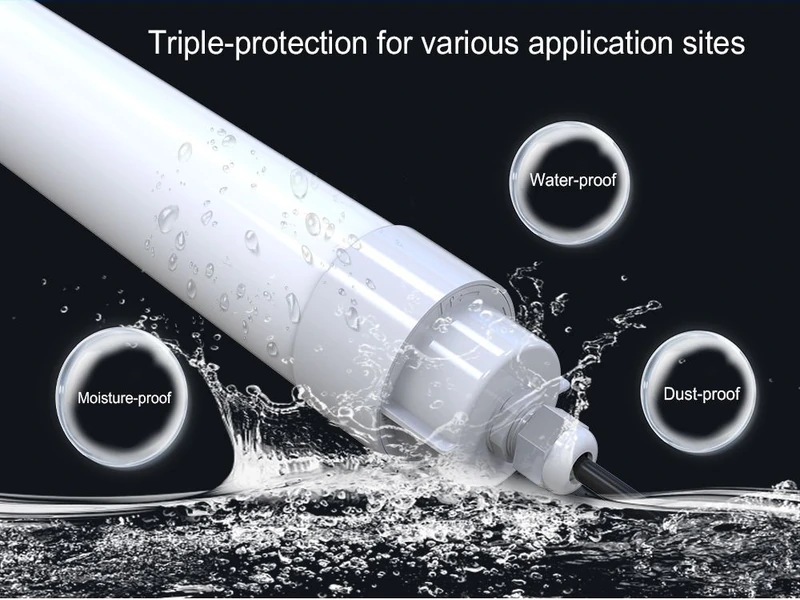

Dust & Moisture Protection
Effectively addresses large amounts of dust, particulate matter, dirt, steam, and water droplets common in harsh industrial locations.
Reliable Installation Conditions
Eco-Rancher is suited to indoor or sheltered use, with IP66 and IK09 protection and an operating range of -20°C to +40°C.
Impact Protection
IK09 impact protection helps the fixture withstand accidental contact in busy working areas.
Project-Based Selection
Compare the selected 20W, 36W or 45W model, CCT setting and mounting arrangement with the project lighting design before finalising the configuration.
How Can Eco-Rancher IP66 LED Tri-Proof Light Support Indoor Projects?
Eco-Rancher is a full-PC IP66 and IK09 tri-proof option for indoor or sheltered installations operating from -20°C to +40°C with AC200–240V, 50/60Hz input.
Match the 600mm, 1200mm or 1500mm length and 20W, 36W or 45W configuration to the layout, then choose the CCT setting, DIP power setting, 1–10V dimming or microwave sensor option, series connection and mounting method.
Assess the installation through our warehouse lighting, workshop lighting, factory lighting and parking garage lighting guides. Share your project details with us for a suitable Eco-Rancher recommendation before order placement.
Eco-Rancher IP66 LED Vapor-tight Light Series Video Center
Explore Eco-Rancher product, installation and technical videos to support project selection.
1:09
Eco-Rancher IP66 LED Tri-Proof Light
0:38
Eco-Rancher IP66 LED Tri-proof Light Product Introduction
FAQ
Frequently Asked Questions About Eco-Rancher IP66 LED Tri-Proof Light
Explore the materials, protection, electrical input and functional options to select an Eco-Rancher configuration for your project.
Are all vapor-tight LED lights suitable for the same industrial project?
No. Start with the required protection level, operating environment, input voltage, installation method and functions. Eco-Rancher is designed for indoor or sheltered use from -20°C to +40°C, so match the installation environment to these conditions.
What Materials and Protection Ratings Does Eco-Rancher Use?
Eco-Rancher has a frosted full-PC housing with S316 clips. IP66 ingress protection and IK09 impact protection make it a strong choice for suitable indoor and sheltered applications.
How Should I Evaluate Long-Term Lighting Performance?
Compare the model, output, CCT setting and operating conditions rather than assuming all fixtures perform alike. Eco-Rancher offers L80B10 over 50,000 hours at Ta 25°C, with 135 lm/W ±10% standard efficacy and up to 150 lm/W ±10% for selected configurations.
What Electrical Input Does Eco-Rancher Use?
Eco-Rancher runs on AC200–240V, 50/60Hz and uses a flicker-free non-isolated internal driver. Match the electrical input to your local project requirements before ordering.
What Cover, CCT and Optical Options Are Available?
Eco-Rancher uses a frosted full-PC cover. Choose from 3000K, 4000K, 5000K and 6000K colour temperatures; the beam angle is 120 degrees and CRI is greater than 80.
Which Configuration Functions Does Eco-Rancher Support?
Eco-Rancher offers DIP power/CCT settings, 1–10V dimming, microwave sensor options and series connection. Share the required functions, model, settings and quantity with us for a suitable quotation.
Which Certifications Are Available?
Eco-Rancher meets CE and RoHS requirements. Our team can provide the technical details for your selected model.
What Details Help Us Prepare a Quote?
Eco-Rancher comes with a five-year warranty. Send the installation environment, required length and power, CCT, DIP setting, dimming, sensor or linking requirement, mounting method and quantity for a tailored recommendation.
Ready to Request an Eco-Rancher Quote or Place an Order?
Send your application, required model, quantity, installation details and functional options. Our team will recommend the right configuration and support your quotation or order request.
