Gauls IP68 LED Tri-proof Light
ShineLong’s Guals IP68 LED Tri-proof Light
Key Feature
- IP68 Waterproof, IK10 Protection, 94V0 materials
- TUV, SAA, UL, DLC, UKCA, ERP, CE, RoHs Certified
- Material: Full PC Housing with S304 clips
- The dimensions can be customized
- No dark, Non-cracking, Anti-yellowing
- Linkable with quick connector
- High Efficacy: 120lm/w, up to 140 lm/w (+/-10%)
- L80B10 lifespace of 50,000 Hours (@ Ta = 25°C)
- 5 Years Warranty
Date Sheet
| Article Number | Power (W) | Lumen (lm) | Working Current (mA) |
| SL-P68X2-20-X | 20 | 2400 | 450 |
| SL-P68X2-30-X | 30 | 3600 | 750 |
| SL-P68X4-40-X | 40 | 4800 | 950 |
| SL-P68X4-50-X | 50 | 6000 | 1200 |
| SL-P68X5-50-X | 50 | 6000 | 1200 |
| SL-P68X5-60-X | 60 | 7200 | 1400 |
* Where the first “X” represents diffuser type, it can be F(Frosted), T(Transparent)
The number after the first “X” represents length of light. “2”=600mm, “4”=1200mm, “5”=1500mm
The second “X” represents CCT, it can be W(3000K/4000K), P(5000K), C(6000K)
| Light Source | SMD2835 |
| CRI | >80 |
| Beam Angle | 120° |
| CCT | 3000K/4000K/5000K/6000K |
| AC Input | 220-240V/100-277V |
| DC output | 30-40V |
| SDCM | <4 |
| Power Factory | >0.95 |
| Operating Temperature | -20~+40℃ |
Efficacy Version
Cover Standard Premium
Frosted 120lm/w 140lm/w
Transparent 130lm/w 150lm/w
Please note:
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
3. Efficacy tolerance is ±10% and wattage tolerance is ±10%
4. If CRI>90, light efficiency will be reduced by 10-15%
LUMINOUS INTENSITY DISTRIBUTION DIAGRAM
Gauls Details
Product Video

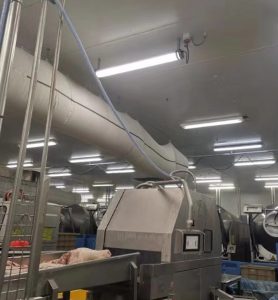

Gauls IP68 LED Tri-proof Light Applications
Gauls IP68 LED Tri-proof Light Description
Gauls IP68 LED tri-proof light is a lighting product with the highest waterproof level, which is widely used in fields with high ambient humidity.
This product adopts high-brightness LED chips and advanced heat dissipation technology, ensure long-term stable operation of the light source under high temperature and high humidity conditions.
It adopts an integrated PC housing, stainless steel end cap, and technological sealing, making it IP68 waterproof and dustproof, and it can work well even in harsh environments.
IP68 waterproof and dustproof LED lights have many advantages such as energy saving, durability, reliability, safety, and ease of use. They have broad application prospects in the market and can meet the needs of different users.
