Gauls 1-10V Dimming
IP68 LED Tri-proof Light
ShineLong’s Guals 1-10V Dimming IP68 LED Tri-proof Light
Gauls 1-10V Dimming IP68 LED Tri-proof Light
- IP68 Waterproof, IK10 Protection, 94V0 materials
- TUV, SAA, UL, DLC, UKCA, ERP, CE, RoHs Certified
- 0/1-10V soft dimming and flicker free at any brightness
- Unique Design, Aluminum Housing
- Material: Full PC Cover with S304 clips
- The dimensions can be customized
- No dark, Non-cracking, Anti-yellowing
- Linkable with quick connector
- High Efficacy: 120lm/w, up to 140 lm/w (+/-10%)
- L80B10 lifespace of 50,000 Hours (@ Ta = 25°C)
- 5 Years Warranty
Gauls 1-10V Dimming IP68 LED Tri-proof Light Description
Gauls 1-10V dimming IP68 LED tri-proof lights are designed for places where controlling the brightness is essential, making them a suitable option for a variety of settings. This type of light features advanced technology that allows adjusting the brightness by employing a 0/1-10V input signal. This enables further control over the lighting and saves energy by reducing the power consumption of the lights.
LED tri-proof lights are designed to withstand harsh environments, meaning they are waterproof, dustproof, and moistureproof. Therefore, they are ideal for humid or dusty places, such as industrial facilities, garages, parking lots, food processing, car washing etc. A dimming feature reduces the amount of light emitted and, consequently, reduces energy consumption, making them a more eco-friendly and cost-effective lighting solution.
Overall, Gauls 0/1-10V IP68 dimming LED tri-proof lights offer a versatile and durable lighting solution with a range of applications in different settings. So, it can be a wise decision for those looking for a reliable and efficient lighting solution.
Product Video
Date Sheet
| Article Number | Power (W) | Lumen (lm) | Working Current (mA) |
| SL-P68X2-20-XD | 20 | 2400 | 450 |
| SL-P68X2-30-XD | 30 | 3600 | 750 |
| SL-P68X4-40-XD | 40 | 4800 | 950 |
| SL-P68X4-50-XD | 50 | 6000 | 1200 |
| SL-P68X5-50-XD | 50 | 6000 | 1200 |
| SL-P68X5-60-XD | 60 | 7200 | 1400 |
* Where the first “X” represents diffuser type, it can be F(Frosted), T(Transparent)
The number after the first “X” represents length of light. “2”=600mm, “4”=1200mm, “5”=1500mm
The second “X” represents CCT, it can be W(3000K/4000K), P(5000K), C(6000K)
| Light Source | SMD2835 |
| CRI | >80 |
| Beam Angle | 120° |
| CCT | 3000K/4000K/5000K/6000K |
| AC Input | 220-240V/100-277V |
| DC output | 30-40V |
| SDCM | <4 |
| Power Factory | >0.95 |
| Operating Temperature | -20~+40℃ |
Efficacy Version
Cover Standard Premium
Frosted 120lm/w 140lm/w
Transparent 130lm/w 150lm/w
Please note:
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
3. Efficacy tolerance is ±10% and wattage tolerance is ±10%
4. If CRI>90, light efficiency will be reduced by 10-15%
LUMINOUS INTENSITY DISTRIBUTION DIAGRAM
Gauls Details

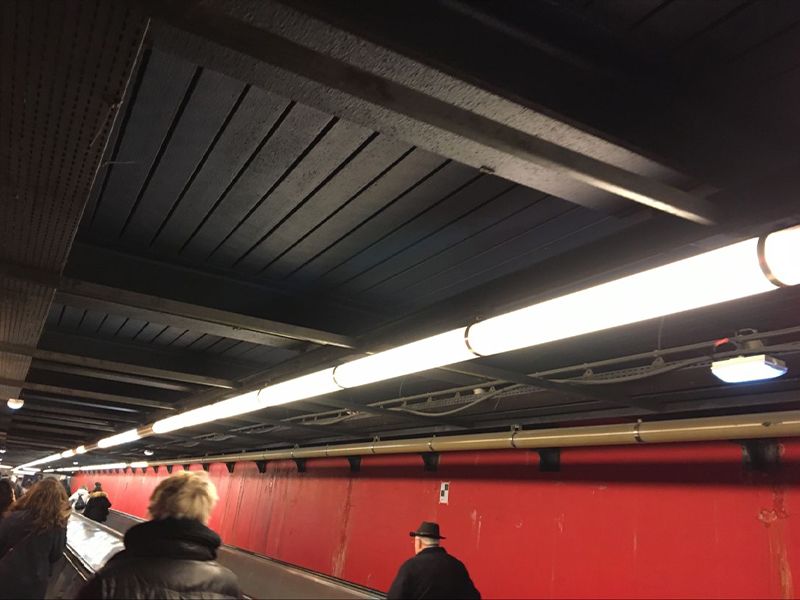

Gauls IP68 LED Tri-proof Light Applications
