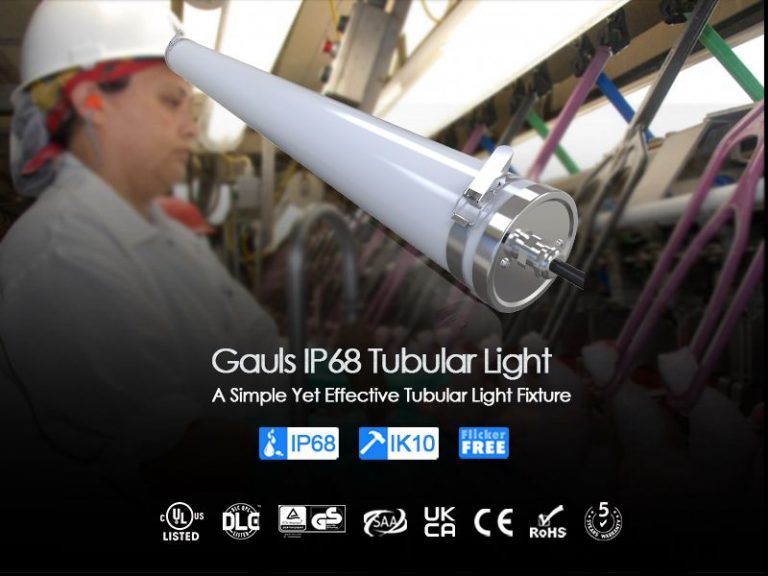

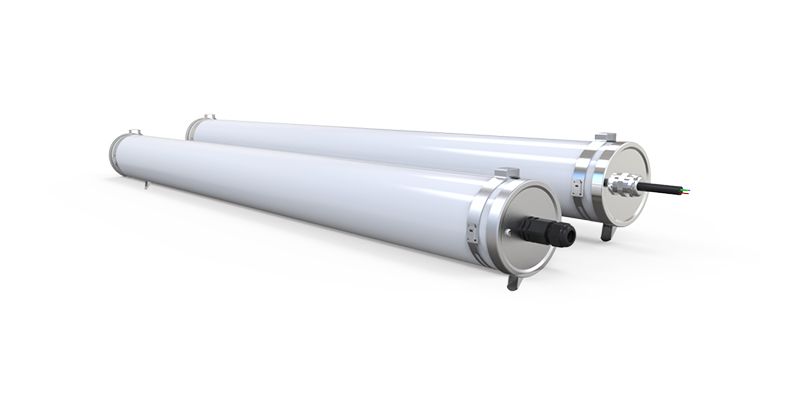

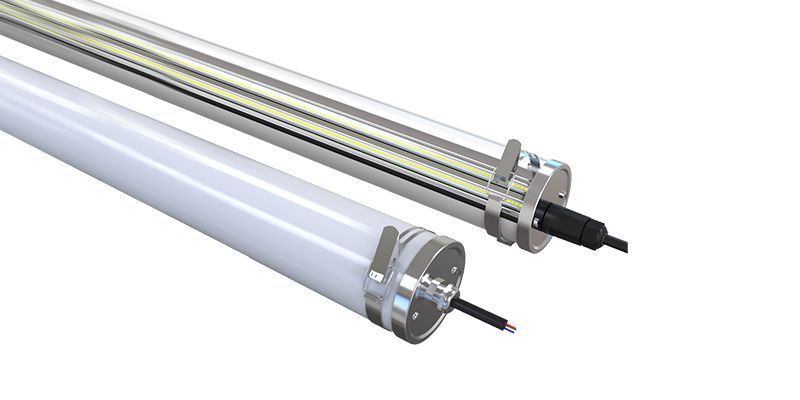

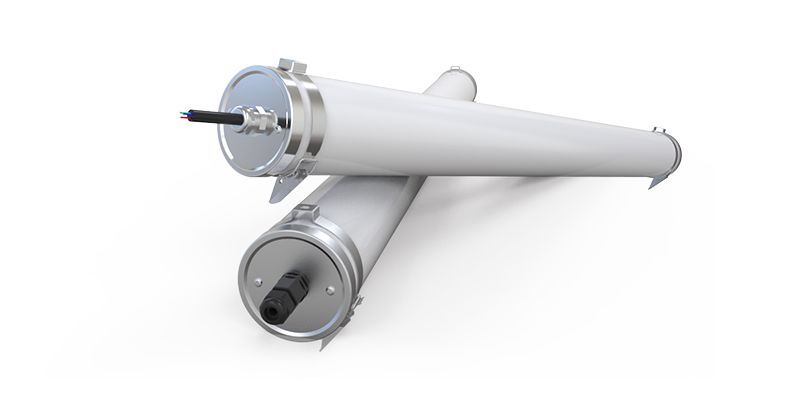

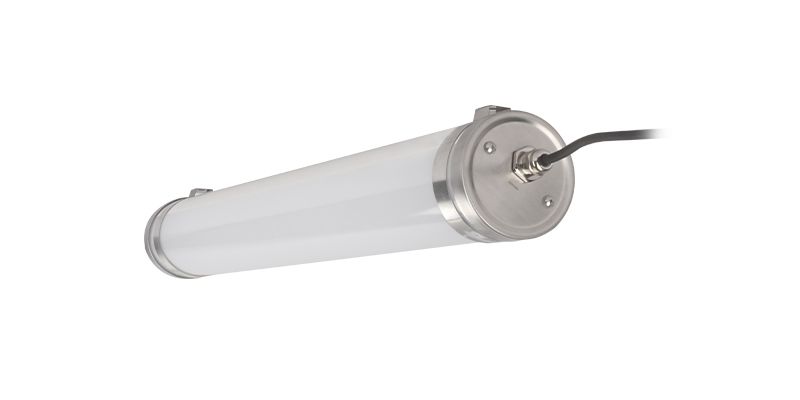

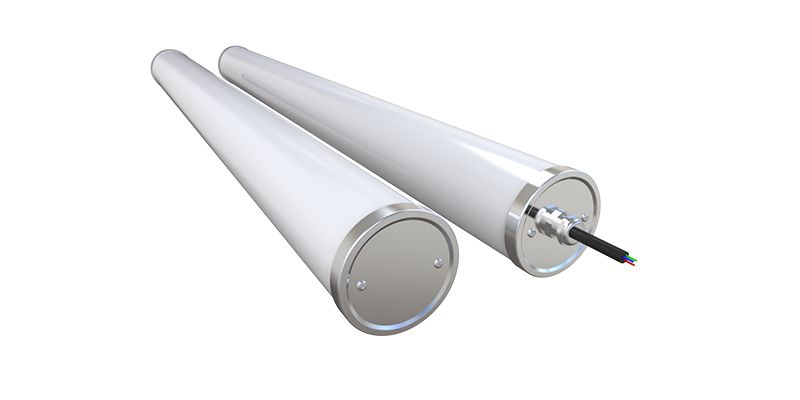

Gauls IP68 LED Tri-proof Light
ShineLong’s Guals IP68 LED Tri-proof Light
Key Feature
- IP68 Waterproof, IK10 Protection, 94V0 materials
- TUV, SAA, UL, DLC, UKCA, ERP, CE, RoHs Certified

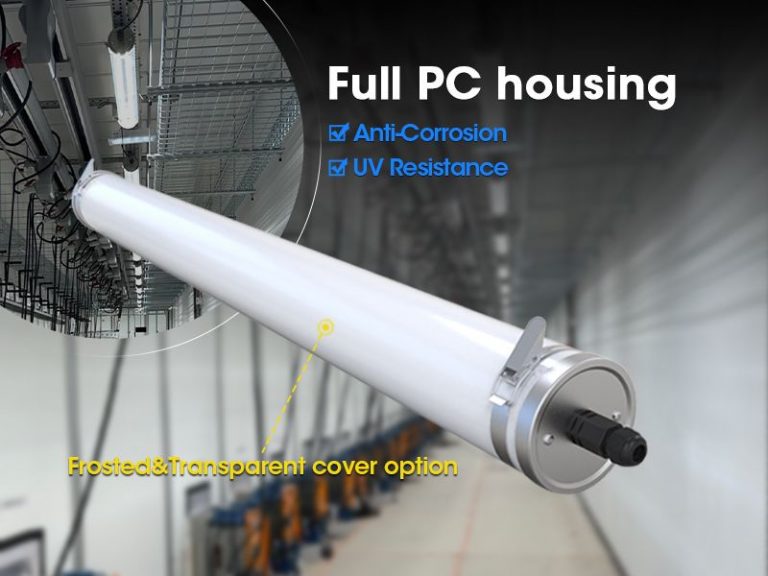

- Material: Full PC Housing with S304 clips
- The dimensions can be customized
- No dark, Non-cracking, Anti-yellowing
- Linkable with quick connector
- High Efficacy: 120lm/w, up to 140 lm/w (+/-10%)
- L80B10 lifespace of 50,000 Hours (@ Ta = 25°C)
- 5 Years Warranty
Best Gauls IP68 LED Tri-proof Light Solution
Safe and stable lighting is critical for some applications due to their harsher working environment or the huge flow of people. For example, the Parking lot has higher requirements on the quality of lighting fixtures to protect passengers from being hurt. Lighting fixtures may break or fall off because of the vibration. Therefore, safe and stable lighting fixtures are necessary for those applications. Safety and stability of lighting fixtures are related to the resistance to water, dust, impact, corrosion, etc. To ensure the safety and stability of lighting fixtures, a kind of LED fixture called ‘LED Tri-proof Light’ is typically designed.
Next, I’ll take you through what a tri-proof light and and introduce the best Gauls LED Tri-proof lighting solution.

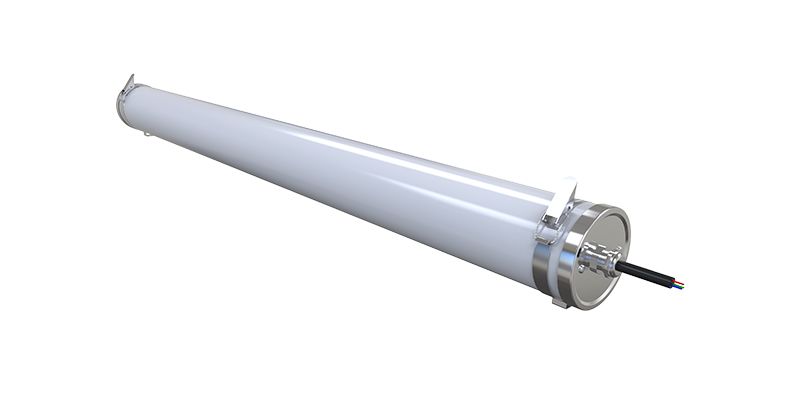

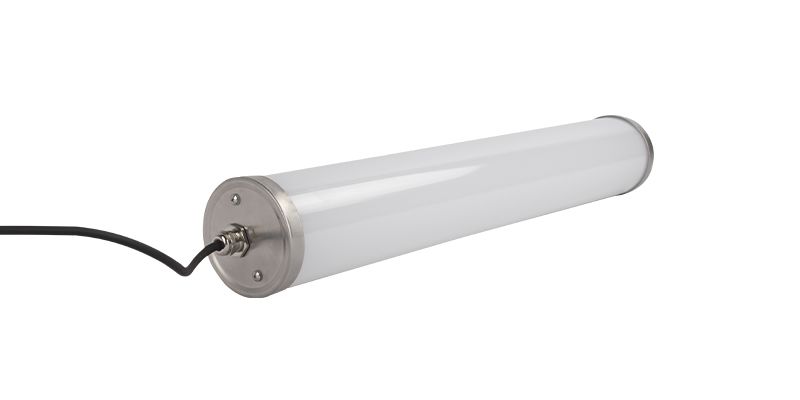

Gauls IP68 LED Tri-proof Light Description
- Gauls IP68 LED tri-proof light is a lighting product with the highest waterproof level, which is widely used in fields with high ambient humidity.
- This product adopts high-brightness LED chips and advanced heat dissipation technology, ensure long-term stable operation of the light source under high temperature and high humidity conditions.

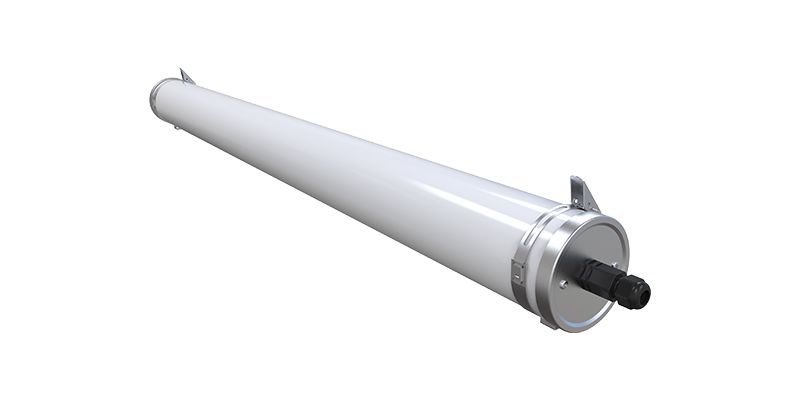

- It adopts an integrated PC housing, stainless steel end cap, and technological sealing, making it IP68 waterproof and dustproof, and it can work well even in harsh environments.
- IP68 waterproof and dustproof LED lights have many advantages such as energy saving, durability, reliability, safety, and ease of use. They have broad application prospects in the market and can meet the needs of different users.
What is LED Tri-proof Light?

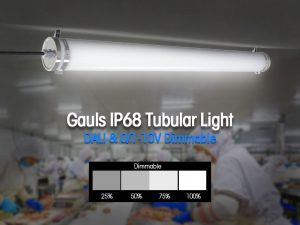

LED Tri-proof light refers to an LED lighting fixture that is waterproof, dust-proof, and corrosion-resistant. To achieve resistance to water, dust, and corrosion, specialized anti-corrosion materials, heat sinks, and sealing rings are used for LED Tri-proof lighting fixtures. Suspended and ceiling-mounted are optional for installation. Sensor and smart control are also available for LED Tri-proof lighting fixtures to save more energy.

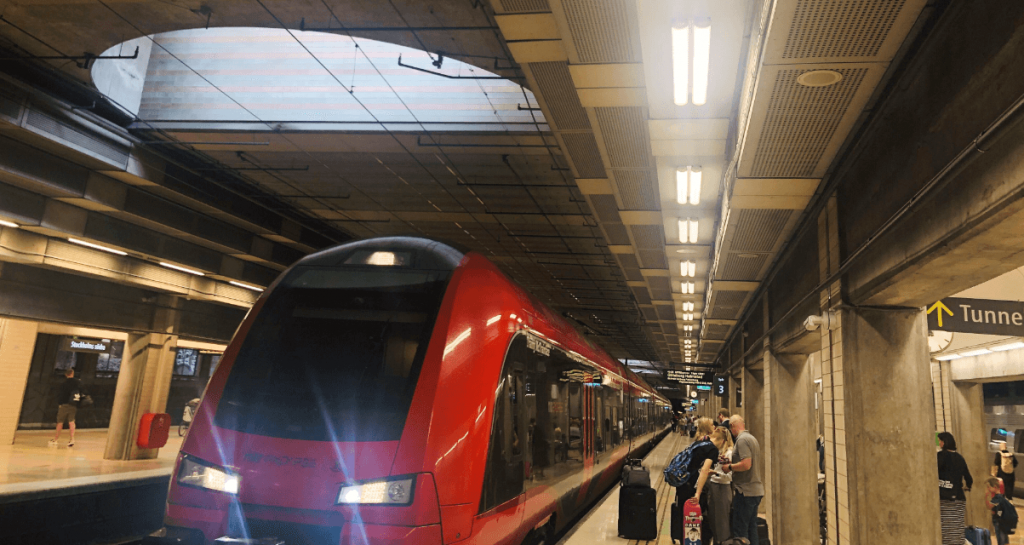

LED Tri-proof light is fit for commercial and industrial areas from 4 m to 8 m in height, such as warehouses, production workshops, parking areas, stations, food processing plants, gas stations, etc. As a result of the Tri-proof features, LED Tri-proof light is ideal for places that are moist and dusty.
Why Choose LED Tri-proof Light?
- Full protection:
LED Tri-proof light is waterproof, dust-proof and anti-corrosion. The integrated resistances provide full protection to lighting fixture. Anti-corrosion materials postpone the reactions between lighting fixture and environment (including water, oxygen, alkali, solvent, etc.). External cover prevent lighting source and electronic circuit from being damaged by water and dust. Well sealed connectors block the water and dust entering interior of lighting fixture. - Longer lifespan:
LED Tri-proof Light has a longer lifespan due to the high-quality LED light source. LEDs can last up to 500,000 hours, significantly longer than other traditional light sources. Moreover, LED fixtures are durable. Unlike the rapid lighting output decay of conventional light sources, LEDs just slowly lose their lighting output over time. - Excellent heat dissipation:
Guals LED Tri-proof light is made of premium aluminum material and PC cover, offering excellent heat dissipation. It adopts an integrated PC housing and stainless steel end cap. Built-in heat sinks help conduct out the heat of LED chips, which improves the lifespan of the whole lamp and reduces the lumens depreciation. - Lower energy consumption:
LED Tri-proof light has higher efficacy than traditional lamps, which means LEDs can emit more light with the same power consumed. It is said that LEDs can save up to 80 percent of energy consumption than conventional light sources.
LED Tri-proof Lighting Solution
I recommend one of the best LED tri-proof lighting solutions, Gauls IP68 LED Tri-proof Light is a high-quality and durable LED lighting fixture. It is waterproof, dust-proof and corrosion-resistant. It could be used in a wide variety of industrial and commercial environments such as car wash operations, maintenance areas, parking garages, stairwells, and warehouses.

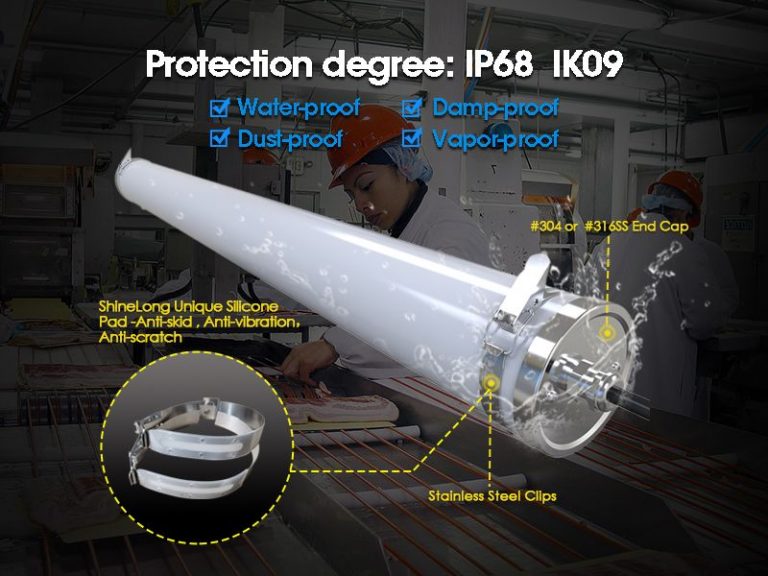

Lighting fixture Protection: Gauls LED Tri-proof light is equipped with IP68 and IK09 protection.
Excellent heat dissipation: Gauls LED Tri-proof light is made of premium aluminum material and PC cover, offering excellent heat dissipation.

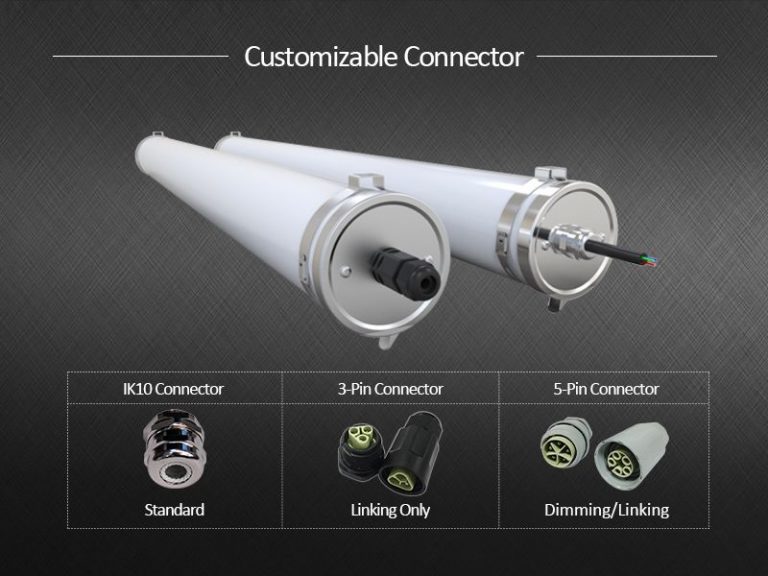

Link-able design: Unlike traditional Tri-proof lights, Gauls LED Tri-proof light is Link-able. It is flexible in wiring connection and can be connected from the side. The wiring process is convenient and fast without opening the lamp. Just click the terminal clock, insert the wire into the connector L-N-G directly, and then tighten the waterproof connector. The LED Tri-proof lights can be on or off separately according to your needs.

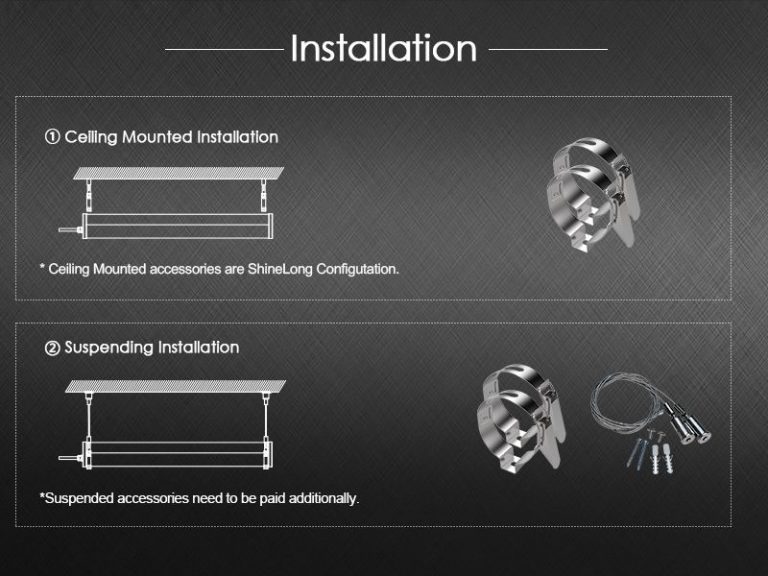

Easy installation: Gauls LED Tri-proof light can be installed optionally with the adjustable installation buckle. Easy access to terminal blocks makes installation easier and more flexible. The easy installation also provides the possibility of self-installing. Suspended and ceiling-mounted installations are available.
Date Sheet
| Article Number | Power (W) | Lumen (lm) | Working Current (mA) |
| SL-P68X2-20-X | 20 | 2400 | 450 |
| SL-P68X2-30-X | 30 | 3600 | 750 |
| SL-P68X4-40-X | 40 | 4800 | 950 |
| SL-P68X4-50-X | 50 | 6000 | 1200 |
| SL-P68X5-50-X | 50 | 6000 | 1200 |
| SL-P68X5-60-X | 60 | 7200 | 1400 |
* Where the first “X” represents diffuser type, it can be F(Frosted), T(Transparent)
The number after the first “X” represents length of light. “2”=600mm, “4”=1200mm, “5”=1500mm
The second “X” represents CCT, it can be W(3000K/4000K), P(5000K), C(6000K)
| Light Source | SMD2835 |
| CRI | >80 |
| Beam Angle | 120° |
| CCT | 3000K/4000K/5000K/6000K |
| AC Input | 220-240V/100-277V |
| DC output | 30-40V |
| SDCM | <4 |
| Power Factory | >0.95 |
| Operating Temperature | -20~+40℃ |

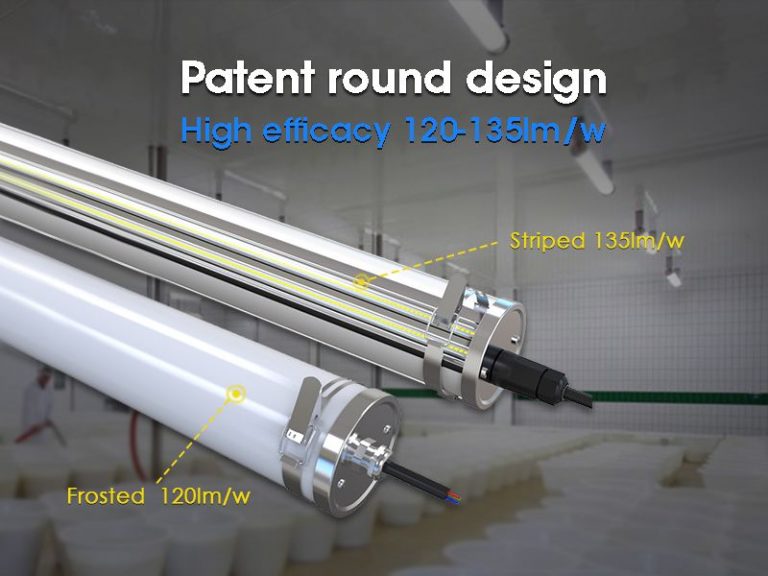

Efficacy Version
Cover Standard Premium
Frosted 120lm/w 140lm/w
Transparent 130lm/w 150lm/w
Please note:
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
3. Efficacy tolerance is ±10% and wattage tolerance is ±10%
4. If CRI>90, light efficiency will be reduced by 10-15%
LUMINOUS INTENSITY DISTRIBUTION DIAGRAM
You Might Ask: And what if I have a problem with my vapor-tight light fixture?
The tri-proof LED light is a very mature product that has been proven by many customers, which in turn has allowed us to gain a lot of user advice and the knowledge and experience needed for an efficient service.
Our qualified service technicians or partner companies are very responsive because we know that every project is important to you.
Guarantee with ShineLong
Response Time
Our response time is around 3 hours,so if you have an urgent problem with your project,you can call the business directly to secure your project.
Reliable Delivery
We have implemented ERP,PMC system management.Sample orders about 7 days,large orders about 15 days,special oeders can be expedited delivery time.
Guaranteed Warranty
Factory passed ISO9001:2015 international quality management system,all of LED lights have a 5-7 year warranty and all accessories have certifications.
Energy Savings
Up to 70% energy savings over traditional lights,report a 50 percent drop in their energy bill than they would have with conventional lights.
ShineLong's Five Value-added Services
ODM services, brand product modeling, and promotional materials, LED light design, LED power supply customization, lighting software development, LED lights for the full range of qualification certificates for the docking service and billing.
We ShineLong can provide you with value-added services for deep cooperation customers, and ODM services, only need you to provide LED light software and appearance ideas, our R & D team can help you with free design software and product appearance, in addition to LED light power supply can be specially customized, LED lights after the completion of the development of LED certificates samples and information can also be provided for the whole docking, until the LED Lights on the market, at the same time, our marketing department is responsible for 3D modeling and design colleagues, but also according to the idea to design your brand needs to promote promotional materials and videos. Most importantly, ShineLong also provides a billing period for large LED lighting customers.
Come and join us to make LED light installation easier and let ShineLong light fixtures light up the world.

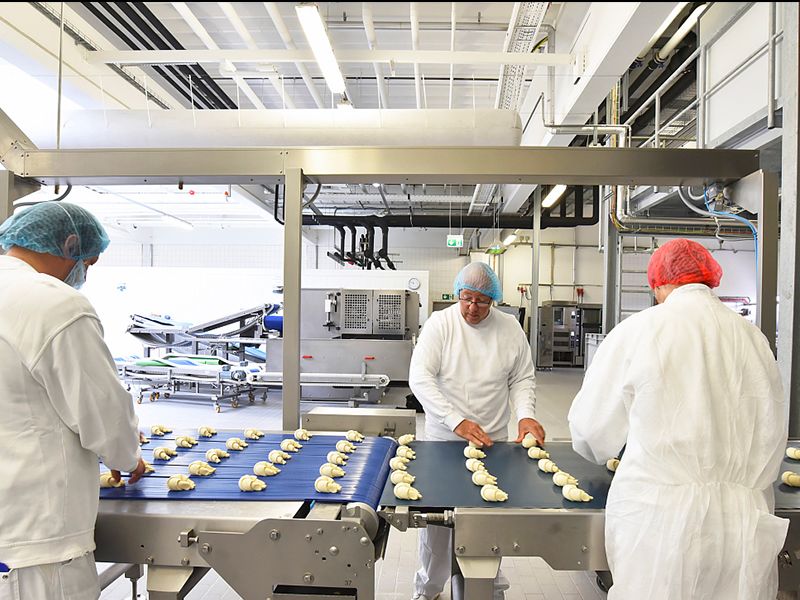

Gauls IP68 LED Tri-proof Light Applications
