EcoMini
1-10V Dimmable Tri-proof LED Light
ShineLong’s Ecomini 1-10V dimmable tri-proof led light
Key Feature
- IP65 Waterproof, IK09 Protection, 94V0 materials
- CE, RoHs Certified
- 1-10V Dimmable Function

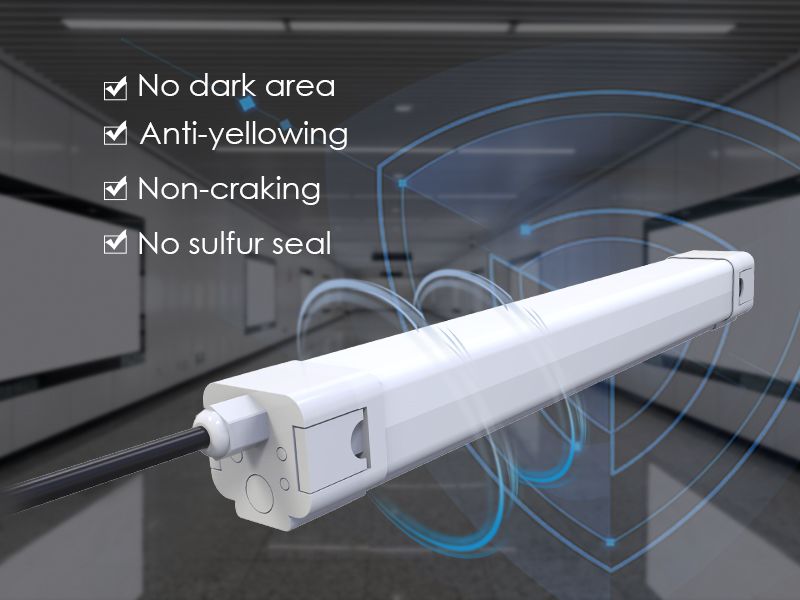

- No Dark Area, Non-cracking, Anti-yellowing
- Material: Full PC housing with S304 clips
- High Efficacy: 135lm/w, up to 145lm/w (+/-10%)
- High CRI: Ra>80, SDCM<4
- Flicker Free Internal Driver
- Linkable / Tool Free, High Cost-effctive
- L80B10 lifespace of 50,000 Hours (@ Ta = 25°C)
- 5 Years Warranty
Standard Date Sheet
| Article Number | Power (W) | Lumen (lm) |
| SL-M65X2-20-X-D | 20 | 2600 |
| SL-M65X4-35-X-D | 35 | 4550 |
| SL-M65X5-45-X-D | 45 | 5850 |
* Where the first “X” represents diffuser type, it can be F(Frosted), T(Transparent)
* The number after the first “X” represents length of light. “2”=600mm, “4”=1200mm, “5”=1500mm
* The second “X” represents CCT, it can be W(3000K/4000K), P(5000K), C(6000K)
* DIP Switch Power optional:
- 600mm: 12/15/18/20W
- 1200mm: 20/25/30/35W
- 1500mm: 27/34/40/45W
* DIP Switch CCT optional：
- 3000K/4000K/5000K & 4000K/5000K/6000K
| Light Source | SMD2835 |
| CRI | >80 |
| Beam Angle | 120° |
| CCT | 3000K/4000K/5000K/6000K |
| AC Input | 220-240V |
| DC output | 35-170V |
| SDCM | <4 |
| Power Factory | >0.95 |
| Operating Temperature | -20~+40℃ |
Efficacy Version
Cover Standard Premium
Frosted 135lm/w 145lm/w
Please note:
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
3. Efficacy tolerance is ±10% and wattage tolerance is ±10%
4. If CRI>90, light efficiency will be reduced by 10-15%
LUMINOUS INTENSITY DISTRIBUTION DIAGRAM
EcoMini IP65 Tri-proof Light Details
Product Video
EcoMini Tri Proof LED Light Applications
EcoMini Function Series
EcoMini IP65 Tri-proof LED Light Description
This is a high-quality product that can adapt to various indoor environments, It has the following features that distinguish it from other IP65 LED lights:
- It has an IP65 waterproof rating, which means it can resist water, dust, and moisture. This makes it suitable for places such as garages, warehouses, factories, parking lots, supermarkets and more.

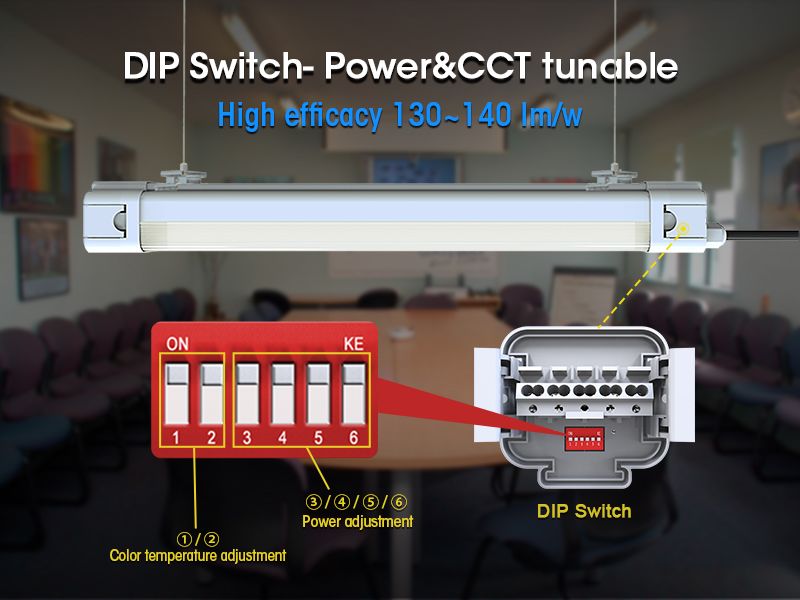

- It has a switch color temperature and power adjustment function, which allows the user to choose from four color temperature options (3000K, 4000K, 5000K or 6000K) and different power levels.
- This enables the user to customize the light according to their needs and preferences.
- It has a high cost performance ratio, which means it can save up to 80% of energy consumption compared with traditional light sources.
- This reduces the electricity expenses and the environmental impact of the product.
- It has a long life span of 50000 hours, which minimizes the maintenance costs and the waste generation of the product.
- It has a Tool-free series installation function, which means it can be easily and securely installed on the ceiling or hanging line with 316 stainless steel buckles.
- These buckles ensure the water tightness of the product and allow the user to connect multiple light fixtures without difficulty.
- It has a 1-10V/DALI dimming system function, which means it can adjust the brightness level according to the ambient light or the user’s preference.

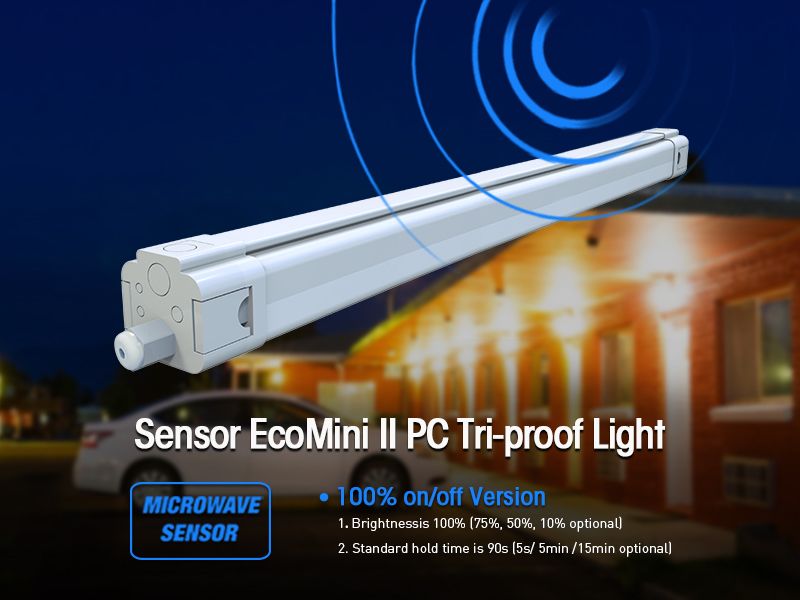

- It also has a Microwave induction function that can turn the light on or off automatically when it detects movement.
The IP65 waterproof light is a reliable and efficient product, that provides uniform and bright lighting effects for various indoor occasions. 5-years warranty that guarantees the quality and performance of the product. EcoMini is a product that deserves the user’s attention and consideration.
