Rancher IP69K LED Tri-proof Light
Rancher is an IP69K LED tri-proof light for facilities where regular washdown, moisture and demanding industrial conditions shape the lighting specification. Use the configuration section to match power, controls, mounting and project documentation to the application.
Rancher IP69K LED Tri-Proof Light Manufacturer
For Washdown Projects
Yes—Rancher combines IP69K washdown protection, IK10 impact resistance, PC or PMMA housing options and configurable controls for agricultural, food-processing and other harsh environments.
- 80% Energy Saving: Cuts operational costs instantly compared to traditional fixtures.
- Flicker-Free Driver: ENEC, UL Class P certified flicker-free driver with THD <15%, according to the verified Rancher specification source.
Rancher IP69K LED Tri-Proof Light Features

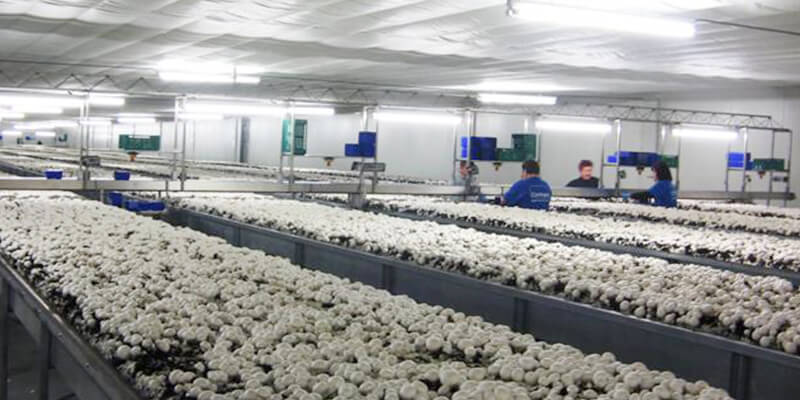

Built for applications that require high-pressure washdown protection, impact resistance and corrosion-resistant material selection, including poultry, food processing, car wash and mushroom-house environments.
- Versatile Output: Verified Models: 20W / 30W / 36W / 45W / 50W / 60W
- Flexible CCT: 4 Optional Color Temperatures (3000K / 4000K / 5000K / 6000K)
- Housing Material: Anti-corrosion(PMMA) & Anti-UV(PC), 850℃ glow wire test,
- Heavy-Duty Protection: IP69K washdown protection, IK10 impact resistance, S316 stainless-steel components.
- Premium Engineering: SMD2835 LED light source with an ENEC / UL Class P certified flicker-free driver and THD <15%, according to the verified Rancher specification source.
- Smart Adaptability: Optional dimming controls, integrated microwave motion sensors, and emergency battery backups.
- Long Lifespan: L80B10 stability rated for >50,000 Hours of operational life (@ Ta = 25°C).
Flame-Resistance
Tested durability against active direct fire hazards.
94V0 Fireproof
850℃ Glow wire test, D-Mark certified structural safety enclosure.
High Transmission
PC or PMMA housing with an aluminium board; cover selection affects configured efficacy.
Model Selection
| Article Number | Power (W) | Lumen (lm) | Working Current (mA) | Product Dimension (mm) |
|---|---|---|---|---|
| SL-P69X2-20-X | 20W | 2,600–2,900 lm | 450 mA | L600 * D75mm |
| SL-P69X2-30-X | 30W | 3,900–4,050 lm | 750 mA | L600 * D75mm |
| SL-P69X4-36-X | 36W | 4,680–5,220 lm | 850 mA | L1200 * D75mm |
| SL-P69X4-50-X | 50W | 6,500–6,750 lm | 1200 mA | L1200 * D75mm |
| SL-P69X5-50-X | 50W | 6,500–6,750 lm | 1200 mA | L1500 * D75mm |
| SL-P69X5-60-X | 60W | 7,800–8,100 lm | 1400 mA | L1500 * D75mm |
← Swipe horizontally to see full specifications →
Diffuser: The first “X” represents diffuser type: F (Frosted) or T (Transparent).
Length: The number after the first “X” represents light length: 2 = 600mm; 4 = 1200mm; 5 = 1500mm.
CCT: The second “X” represents CCT: W (3000K/4000K), P (5000K), C (6000K), R (Red), B (Blue), Y (Yellow) or G (Green) etc.
General Specifications
Optical Performance Options
| Cover Type | Standard Series | Premium Series |
|---|---|---|
| Frosted PC Cover | 130 lm/W | 145 lm/W |
| Frosted PMMA Cover | 135 lm/W | 150 lm/W |
Technical Notes:
- 1. Above efficacy is measured and based on 4000K colour temperature.
- 2. All values are based on an ambient temperature of 25°C.
- 3. Efficacy tolerance is ±10% and wattage tolerance is ±10%.
- 4. If CRI>90 is required, the overall light efficiency will be reduced by 10–15%.
Luminous Intensity Distribution Diagram
Certified Drivers
The driver is the heart of reliable LED engineering. All our tri-proof lights feature European ENEC-certified and US Class P certified drivers, ensuring optimal stability, electrical safety, and an extended operational lifespan.
Smart Dimming Function
0/1–10V and DALI dimming are documented options. Microwave sensor configurations support step-dim operation where specified.
Emergency Battery Backup
Optional integrated emergency lighting modules. In the event of an unexpected power outage or circuit failure, the built-in battery automatically activates to provide uninterrupted path safety illumination.
Extensive Accessories
We provide full hardware kits tailored for three versatile installation methods. All precise fittings are organized via automated packaging equipment, guaranteeing zero missing components on-site.
How Do Rancher IP69K LED Tri-proof Light Connection Methods and Series Limits Work?
Choose the regional wiring method, then use the matching voltage limit when planning a linkable Rancher IP69K lighting run.
- Use cable: 0.75-1.5mm²
- Use a solid cable end
- Wire stripping: 10-12mm
- Use cable: AWG18
- Use a solid cable end
- Wire stripping: 0.39-0.47 inch
Linkable Series Connection
Available Quantity in Series Connection
| Power | 110V | Maximum Quantity | 277V | Maximum Quantity | 230V | Maximum Quantity |
|---|---|---|---|---|---|---|
| 20W | 110V | 16 pcs | 277V | 41 pcs | 230V | 44 pcs |
| 30W | 110V | 11 pcs | 277V | 27 pcs | 230V | 29 pcs |
| 36W | 110V | 10 pcs | 277V | 26 pcs | 230V | 25 pcs |
| 45W | 110V | 7 pcs | 277V | 18 pcs | 230V | 20 pcs |
| 50W | 110V | 6 pcs | 277V | 16 pcs | 230V | 18 pcs |
| 60W | 110V | 5 pcs | 277V | 13 pcs | 230V | 15 pcs |
Rancher IP69K Application Environments
Suitable for verified Rancher applications where washdown, moisture, dust or corrosive conditions require a robust tubular tri-proof light. Read our LED Tri-proof Lighting Guide for practical selection and application advice:
Industrial Challenges Solved by ShineLong
Dust & Moisture Protection
Effectively addresses large amounts of dust, particulate matter, dirt, steam, and water droplets common in harsh industrial locations.
Corrosion & Maintenance Free
Resists corrosive gases and chemicals, drastically reducing the ongoing maintenance and replacement costs of your lamps and lanterns.
Vandal-Proof & Anti-Collision
Withstands severe mechanical impacts and accidental collisions, ensuring a safer working environment and reducing employee injuries.
Up to 80% Cost Savings
Eliminates the high running costs of traditional vapor tights. Save up to 80% on both labor maintenance overhead and electricity bills.
Which Rancher IP69K Options Support Washdown Projects?
Sensor Version
Rancher IP69K Tri-proof LED light with built-in Microwave Sensor. Features 100% ON/OFF or 3-step automatic dimming.
DALI Dimmable Version
Rancher IP69K Tri-proof LED light compatible with DALI-2 dimming systems.
How Do You Specify an IP69K Light for Washdown Areas?
For areas exposed to routine washdowns, moisture, impact and aggressive cleaning conditions, a high-protection tubular LED fixture is usually the better choice. Rancher combines high ingress protection, impact resistance, corrosion-resistant material options and practical mounting flexibility for demanding environments.
Cover material also affects long-term performance. If you are deciding between polycarbonate and acrylic, see our PC vs PMMA for LED lighting guide to compare impact resistance, optical performance and durability.

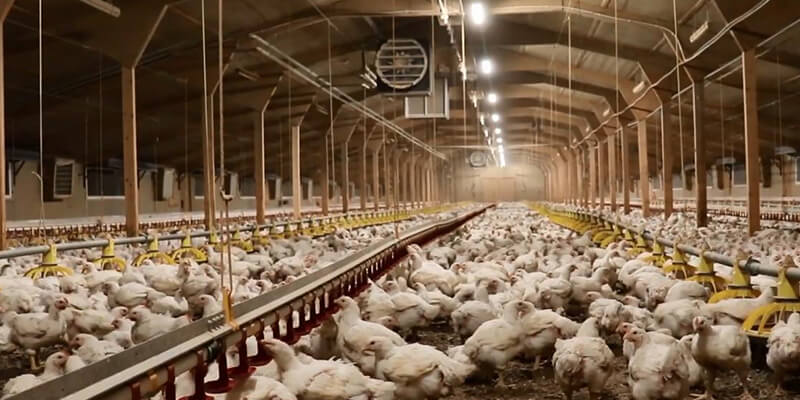

For agricultural projects, see ShineLong’s chicken farm lighting solution or cow house lighting guidance. For hygienic processing areas, assess the environment through the food industry lighting application.
Rancher IP69K Series Video Center
Explore our technical demonstrations, stress tests, and real-world installation case studies for elite engineering projects.
0:58
Rancher IP69K LED Tri-proof Light
0:45
Rancher IP69K Tri-proof Light Testing Process
0:30
How to Assembly IP69K LED Tri-proof Light
0:25
How to connect the IP69K LED Tri-proof Light
1:09
IP69K LED Tri-proof Light for Poultry Lighting
Frequently Asked Questions About Rancher IP69K LED Tri-Proof Light
Where is an IP69K LED tri-proof light typically specified?
IP69K fixtures are specified where routine high-pressure and high-temperature washdown is part of the operating process, such as hygienic processing, agricultural buildings and other demanding cleaning environments. The cleaning pressure, temperature, chemicals and frequency must be reviewed together; an IP rating alone does not confirm suitability for every site.
What is the difference between IP66 and IP69K lighting?
IP66 is designed to resist powerful water jets. IP69K addresses a more demanding washdown condition involving high-pressure, high-temperature water. If the facility only has normal washdown or outdoor exposure, IP66 may be sufficient; if the fixture is regularly cleaned with high-pressure hot water, assess IP69K and the material compatibility of the full installation.
What Is The Difference Between Rancher IP69K And A Standard Tri-Proof Light?
Rancher IP69K provides a higher level of protection than standard tri-proof lighting. It combines IP69K ingress protection with IK10 impact resistance, a PC or PMMA housing, an aluminium board and S316 stainless-steel end caps, clips and mounting components.
What information is needed for a Rancher IP69K project quotation?
Provide the installation area, cleaning method and chemical exposure, voltage, required output and CCT, mounting method, quantity and any dimming, sensor, emergency or linking requirement. This allows the article number and available options to be confirmed before purchase.
Which Rancher IP69K LED Light Models And Outputs Are Available?
Rancher IP69K models are available in 20W, 30W, 36W, 45W, 50W and 60W configurations. Typical outputs range from 2,600–2,900 lm for the 20W model to 7,800–8,100 lm for the 60W model, depending on the selected article number, cover and configuration.
Which Rancher IP69K control, emergency and mounting options should be confirmed before ordering?
Confirm whether the project needs 0/1-10V or DALI control, sensor operation, emergency operation, ceiling mounting, suspension or linking. Also confirm that the requested option is available for the selected power, voltage and cover configuration; do not assume every option can be combined with every model.
How Is Rancher IP69K Installed And Maintained?
Rancher IP69K supports ceiling-mounted and suspended installation. S316 stainless-steel brackets are standard, while rotating buckles and suspension accessories are available as options. For maintenance, isolate the power supply before inspection or cleaning and use cleaning agents compatible with the fixture materials.
How Can I Request Technical Support For A Rancher IP69K Project?
Contact the ShineLong sales team with the required article number, application details, installation information and a description of your requirements. Photos, drawings and washdown or operating conditions can also help the technical team recommend a suitable configuration.
Ready to Request a Rancher IP69K Quote or Place an Order?
Send the application, washdown conditions, required model, quantity, mounting method and functional options. Our team will confirm the configuration and support your quotation or order request.
