Parkade, Indoor Garage Lights

  • Parkade with IP65 and IK10 protection
  • Parkade IP65 tri proof lights
  • Parkade indoor garage lighting
  • Parkade is made of PC cover and alu body

Product detail

  • CE, RoHs, ERP, TUV-GS, SAA, UL, DLC
  • IP 66, IK10
  • 5 Years Warranty
  • Dimming, DALI, Sensor, Emergency version
Contact us

Parkade, Features

Tri-proof

Water-proof, Dust-proof, Damp-proof, Vapor-proof

Unique design

Mitsubishi PC Cover + Aluminum housing + Aluminum PCB

LEDs

Global patent protection led source, SMD2835

Long Lifespan

L80B50 lifespan(Ta=25℃): 75,000hrs

Version

100~120 lm/w or 130~150 lm/w

Connection

Available in one side, back, plug-and-play in connection, and self-wiring connection

Temperature

Operating: -20 ~ +50°C

Application

Parking place, Tunnel / Corridor / Gallery, Railway / Bus / MTR Station, Warehouse

Parkade, Description

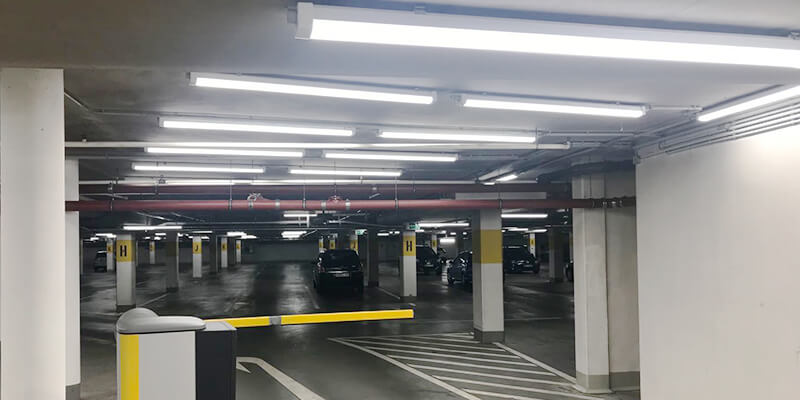

Your All-in-One Lighting Solution to Indoor Garage Lighting

Are you tired of having lousy and costly indoor garage lighting fixtures in your parking spaces? If so, the ShineLong Parkade LED light is exactly what you need. Thanks to their stunning design, unrivaled durability, impressive strength, and high luminous flux, our parkades offer you everything you need in a parking light. And aside from being beautiful luminaries, these LEDs are designed to be very efficient hence saving you a lot of money on power bills and maintenance.

So, what do you get when you buy our Parkade LED Lights? Well, there are quite a number of perks and features that come with these luminaries.

For example, if your indoor garage lighting expenses have been weighing you down, our parkade LEDs’ 100~120lm/w or 130~150lm/w energy efficiency eases the burden by providing you with more light at a low power consumption rate. In addition, the fact that these fixtures can last up to 75,000 hours  (8+ years of uninterrupted lighting) means that you also get to save a lot on maintenance and replacements.

What’s more, the Parkade is designed to be robust and comes with an IP66 and IK10 protection rating. This means that you won’t have to worry about your lighting fixtures getting damaged by dust, water, vapor, or impact. These LEDs are manufactured using the best and strongest materials including an Aluminum casing, stainless steel, and PC covers to effectively combat the effects of aging and corrosion. And to top it all off, you can get your parkades with a few added features including a hydronic microwave sensor, 0~10V, DALI, and TRIAC dimming as well as an emergency version capable of lasting up to 3 hours.

Our Parkade LEDs are eco-friendly and certified by international authorities including CE, RoHS, SAA, ERP, DLC, UL, and TUV-GS. The best part about these luminaries is that they are very easy to install and offer you flexible connection options including wall mounting, side connection, plug-and-play, and self-wiring connections. Also, they come in different sizes, lengths, and wattages offering you more options to fit into your lighting requirements and preferences. This makes them ideal for indoor commercial spaces including parking garages, warehouses, tunnels, airports, metro stations, supermarkets, gas stations, showrooms and so on. Are you impressed? If so, ask for your FREE and competitively-priced quote today!

Parkade, Data Sheet

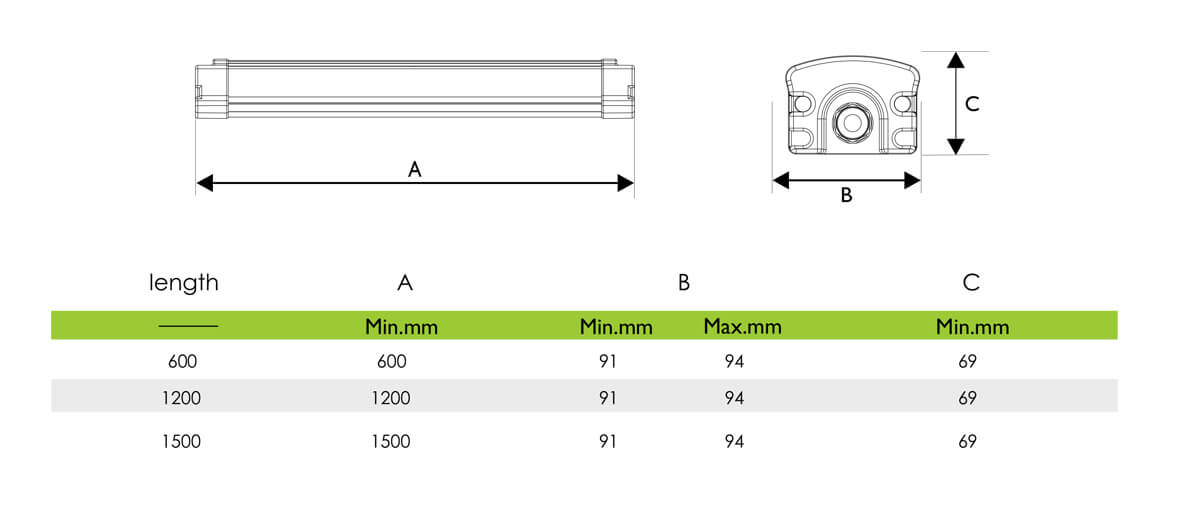

Parkade Dimension
Article Number SL-A65X2-20-X SL-A65X2-30-X SL-A65X4-40-X SL-A65X4-50-X SL-A65X5-50-X SL-A65X5-60-X
Size 600*94*69 mm 600*94*69 mm 1200*94*69 mm 1200*94*69 mm 1500*94*69 mm 1500*94*69 mm
Power 20 W 30 W 40 W 50 W 50 W 60 W
LEDs 156 208 260 312 312 416
Beam Angle 120° 120° 120° 120° 120° 120°
CRI > 80 > 80 > 80 > 80 > 80 > 80
AC Input 200~240 V / 100~277 V 200~240 V / 100~277 V 200~240 V / 100~277 V 200~240 V / 100~277 V 200~240 V / 100~277 V 200~240 V / 100~277 V
DC Output 30~40 V 30~40 V 30~40 V 30~40 V 30~40 V 30~40 V
SDCM < 4 < 4 < 4 < 4 < 4 < 4
Efficiency(±5%) 100~120 lm/w 100~120 lm/w 100~120 lm/w 100~120 lm/w 100~120 lm/w 100~120 lm/w
Lumen Output 1900～2300 lm 2900~3500 lm 3800~4600 lm 4800~5800 lm 4800~5800 lm 5800~7000 lm
Packing info 6 pcs/ctn 6 pcs/ctn 6 pcs/ctn 6 pcs/ctn 6 pcs/ctn 6 pcs/ctn
Carton Size 660*220*230 mm 660*220*230 mm 1260*220*230 mm 1260*220*230 mm 1560*220*230 mm 1560*220*230 mm
N.W.(kg)/CTN 9 9 15 15 18 18
G.W.(kg)/CTN 11 11 18 18 22 22
20’GP 629 CTNs 629 CTNs 304 CTNs 304 CTNs 262 CTNs 262 CTNs
40’GP 1286 CTNs 1286 CTNs 708 CTNs 708 CTNs 550 CTNs 550 CTNs
40’HQ 1513CTNs 1513CTNs 792 CTNs 792 CTNs 659 CTNs 659 CTNs

ASK FOR FREE

We are preparing the catalog, specification, IES file, test report, and DIALUX, please contact us for FREE.
