Why Choose a Full-PC IP65 Vapor Tight Light for Indoor Projects?
A full-PC IP65 LED vapor-tight solution engineered for reliable, energy-efficient illumination in indoor and sheltered projects, including warehouses, factories, workshops and covered commercial areas.
Alpha PC IP65 LED Vapor Tight Light Manufacturer for Indoor Project Configuration
A full-PC LED vapor-tight light with IP65 ingress protection, IK09 impact protection and configurable controls for indoor or sheltered projects.
- Output Selection: Choose the published 20W to 60W configuration to suit the lighting design.
- Market-Specific Driver: ENEC flicker-free driver for EU/AU specification or UL Class P driver for US specification.
Full-PC IP65 Construction and Project Configuration Options
A full-PC IP65 vapor-tight light for indoor or sheltered projects that need selectable output, CCT and functional options. Select the EU/AU or US version according to the project’s electrical market.
- Verified Power Options: 20W / 30W / 40W / 50W / 60W
- Flexible CCT: 4 Optional Color Temperatures (3000K / 4000K / 5000K / 6000K)
- Protection and Construction: IP65 ingress protection, IK09 impact protection, full-PC housing and S304 clips.
- Market-Specific Driver: ENEC flicker-free driver for EU/AU specification; UL Class P driver for US specification.
- Smart Adaptability: Optional dimming controls, integrated microwave motion sensors, and emergency battery backups.
- Published Lifespan: L80B10 of 50,000 hours at Ta = 25°C.
IP65 Protection
Published ingress protection for the configured Alpha model.
IK09 Protection
Published impact-protection rating.
High Transmission
full PC housing with an aluminium board; cover selection affects configured efficacy.
Model Selection
| Article Number | Power (W) | Lumen (lm) | Working Current (mA) | Product Dimension (mm) |
|---|---|---|---|---|
| SL-P65X2-20-X | 20W | 2,700–3,000 lm | 450 mA | L670 * W125 * H95mm |
| SL-P65X2-30-X | 30W | 4,050–4,500 lm | 750 mA | L670 * W125 * H95mm |
| SL-P65X4-40-X | 40W | 5,400–6,000 lm | 950 mA | L1270 * W125 * H95mm |
| SL-P65X4-50-X | 50W | 6,750–7,500 lm | 1200 mA | L1270 * W125 * H95mm |
| SL-P65X5-50-X | 50W | 6,750–7,500 lm | 1200 mA | L1570 * W125 * H95mm |
| SL-P65X5-60-X | 60W | 8,100–9,000 lm | 1400 mA | L1570 * W125 * H95mm |
← Swipe horizontally to see full specifications →
Diffuser: The first “X” represents diffuser type: F (Frosted) or S (Striped).
Length: The number after the first “X” represents light length: 2 = 600mm; 4 = 1200mm; 5 = 1500mm.
CCT: The second “X” represents CCT: W (3000K/4000K), P (5000K) or C (6000K).
General Specifications
Optical Performance Options
| Cover Type | Standard Series | Premium Series |
|---|---|---|
| Frosted PC Cover | 135 lm/W | 150 lm/W |
| Striped PC Cover | 140 lm/W | 155 lm/W |
Technical Notes:
- 1. Above efficacy is measured and based on 4000K color temperature.
- 2. All values are tested under an ambient temperature of 25°C.
- 3. Efficacy tolerance is ±10% and wattage tolerance is ±10%.
- 4. If CRI>90 is required, the overall light efficiency will be reduced by 10-15%.
LUMINOUS INTENSITY DISTRIBUTION DIAGRAM
Market-Specific Drivers
Select the ENEC flicker-free driver for EU/AU specification or the UL Class P driver for US specification. Confirm the market version before ordering.
Smart Dimming Function
0/1–10V and DALI dimming are documented options. Microwave sensor configurations support step-dim operation where specified.
Emergency Battery Backup
Optional emergency modules are listed in the Alpha specification. Confirm the selected model, market version and published emergency output before ordering.
Extensive Accessories
We provide full hardware kits tailored for three versatile installation methods. All precise fittings are organized via automated packaging equipment, guaranteeing zero missing components on-site.

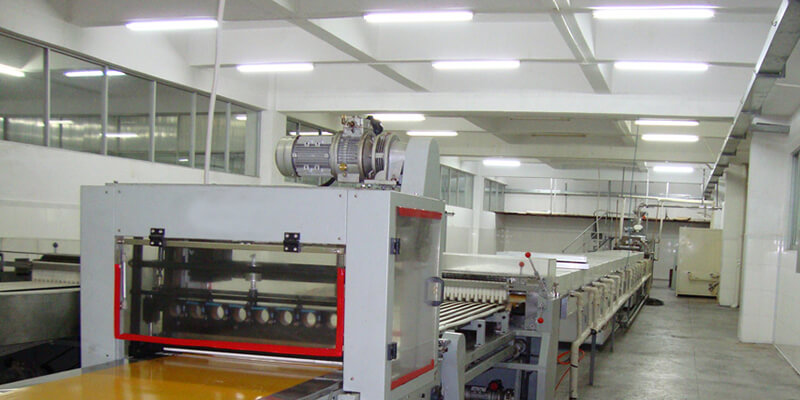

Alpha PC IP65 Application Environments
Suitable for verified Alpha applications where indoor or sheltered applications need a robust tubular fixture within the documented operating conditions tri-proof light. Read our LED Tri-proof Lighting Guide for practical selection and application advice:
Industrial Challenges Solved by ShineLong
Dust & Moisture Protection
Effectively addresses large amounts of dust, particulate matter, dirt, steam, and water droplets common in harsh industrial locations.
Site Condition Review
Alpha is intended for indoor or sheltered use. Do not specify it where large quantities of chemical corrosive substances are present.
Vandal-Proof & Anti-Collision
Withstands severe mechanical impacts and accidental collisions, ensuring a safer working environment and reducing employee injuries.
Project-Based Selection
Compare the specified Alpha output and optical option with the project lighting design before finalizing the configuration.
Which Alpha Configuration Fits Your Indoor Industrial Project?
Alpha is a full-PC IP65 LED vapor-tight light for indoor industrial and commercial spaces that need a durable, configurable linear fixture. Select the suitable output, CCT, control and installation arrangement for your project.
Match the 600mm, 1200mm or 1500mm length and 20W to 60W configuration to the layout, then confirm the frosted or striped cover, CCT, dimming, sensor, emergency and linking requirements.
Assess the installation through our warehouse lighting, workshop lighting, factory lighting and parking garage lighting guides. Do not use Alpha in locations with large quantities of chemical corrosive substances.
Alpha PC IP65 LED Vapor-tight Light Series Video Center
Explore our technical demonstrations, stress tests, and real-world installation case studies for elite engineering projects.
0:46
Alpha PC IP65 LED Vapor Tight Light
0:34
Alpha PC IP65 Vapor-tight Light Production Flow
1:11
>IP65 LED Tri-proof Light Solution
0:41
What's different for the vapor tight light?
FAQ
Frequently Asked Questions About Alpha PC IP65 LED Vapor Tight Light
Review the published material, protection, electrical and functional options before selecting an Alpha configuration for your project.
What is a full-PC LED vapor tight light?
A full-PC fixture uses polycarbonate for the housing and diffuser assembly rather than a metal body with a separate cover. For the Alpha series, confirm the required impact resistance, installation environment, mounting method and cleaning practice before deciding whether this construction is suitable for the project.
Which Alpha configuration suits an indoor project?
Start with the installation height, required illuminance, voltage, mounting method and operating hours. Then select the available power, CCT and control arrangement that matches the layout. A lighting calculation or fixture layout is useful where spacing and uniformity are critical.
How should I evaluate long-term lighting performance?
Review the published model, output, cover, CCT and operating condition rather than assuming all fixtures perform alike. Alpha is specified at L80B10 50,000 hours at Ta 25 ℃; published efficacy varies by cover and selected standard or premium configuration.
Which electrical version should I select for the project?
EU/AU specification is 200-240V, 50/60Hz with an ENEC flicker-free driver. US specification is 100-277V, 50/60Hz with a UL Class P driver. Select the electrical version that matches the project market before ordering.
What cover, CCT and optical options are published?
Choose frosted or striped PC cover. Published CCT options are 3000K, 4000K, 5000K and 6000K; the beam angle is 120 degrees and CRI is greater than 80.
Can CCT, output or control functions be selected for Alpha?
Selection is subject to the article number and project configuration. State the required CCT, output, voltage and control function in the enquiry, and request written confirmation of the exact model before placing the order.
Which compliance documents can be confirmed?
The latest Alpha specification identifies an ENEC flicker-free driver for EU/AU and a UL Class P driver for US configurations. Request the current technical document package for the exact selected model rather than assuming other approvals apply to every configuration.
What information is needed to request an Alpha quotation?
Provide the area type, drawing or dimensions, mounting height, voltage, preferred power and CCT, quantity and delivery country. Add any control, emergency or installation accessory requirement so the quote reflects the required configuration.
Request Alpha PC IP65 Technical Data
Share the application, installation conditions, mounting method and required controls. Our team will help match a verified Alpha configuration.
