Gauls IP68 Tubular Light
A Simple Yet Effective Tubular Light Fixture
Get the 2020 New Price Today!
Gauls IP68 Tubular Light
Product detail
- Unique cylinder design, TUV-GS, UL, DLC, CE, RoHs certified
- IP68 IK09 protection
- 5 Years Warranty
- Capable with emergency, 0~10V dimming, DALI dimming, Meanwell version
Gauls IP68 Tubular Light Features
Tri-proof
Water-proof, Dust-proof, Damp-proof, Vapor-proof
Unique cylinder design
PC/PMMA housing + AL board + Stainless teel clips
LEDs
Global patent protection led source, SMD2835
Long Lifespan
L80B50 lifespan(Ta=25℃): 75,000hrs
Version
100 lm/w or 130 lm/w efficiency optional
Connection
Available in one side, plug-and-play in connection
Tempreature
Operating: -20 ~ +50°C
Application

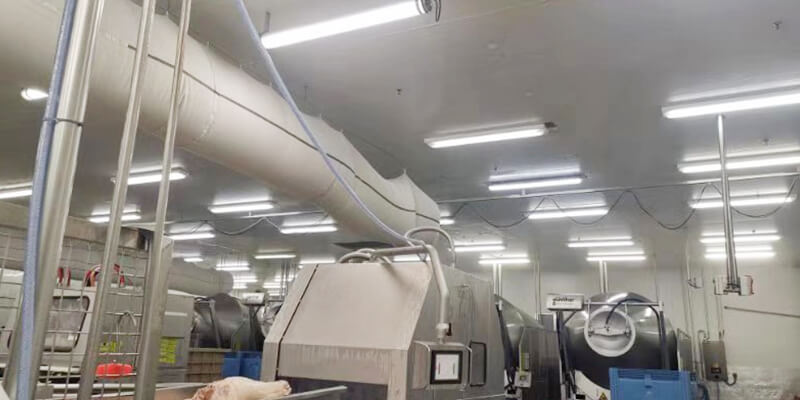

Warehouse / Factory, Food/Meat processing industry, Gas station / Car Washes
Gauls IP68 Tubular Light Descirption
If you’re having trouble with your indoor lighting for animal sheds, farmhouses, gas station, factory, parking garages, warehouses, hallways, slaughterhouses, and so on, you should consider switching to ShineLong’s Gauls LED lights. As LED luminaries continue to become a worldwide trend, it may be the best time to switch to them because they offer a more convenient, cost-effective, high-performance, and brighter lighting solution. Now, you are probably wondering why or, better yet, what makes our LED light fixtures the best for your commercial or farmhouse space. If so, here are a few great reasons why you need these amazing tubular light fixtures.
In today’s world, energy efficiency is always a vital consideration when it comes to finding a great lighting solution. We, at ShineLong, understand that, and that’s why we always engineer our LEDs to be very energy efficient; cutting power consumption by up to 80% without affecting the quality of lighting. Our Gauls tubular light fixture comes with an efficiency rating of 100lm/W or an optional 130lm/W. In addition, it has a 70,000-hour lifespan and a 5-year warranty. As far as damage protection is concerned, these luminaries are rated IP68 – IK09 which means that they are waterproof, vapor-proof, dustproof and impervious to corrosion and impact.
What’s more, ShineLong Gauls LEDs are flicker-free, eco-friendly, and fully certified by global regulatory bodies and authorities including CE, RoHS, UL, DLC, and TUV-GS. Its cylinder design and sturdy PC/PMMA materials help to provide UV shielding and protection against ammonia corrosion. You can also get these fixtures with an emergency option, 0~10V dimming, DALI, and Meanwell versions. All these features coupled with the fact that installation is easy and you get multiple mounting options to make our Gauls LED a must-have luminary. If you are interested in these amazing fixtures, contact us now to get your FREE quote. The future is brighter with ShineLong LEDs!
Gauls IP68 Tubular Light Data Sheet
Article Number | SL-P68X2-20-X | SL-P68X2-30-X | SL-P68X4-40-X | SL-P68X4-50-X | SL-P68X5-50-X | SL-P68X5-60-X |
---|---|---|---|---|---|---|

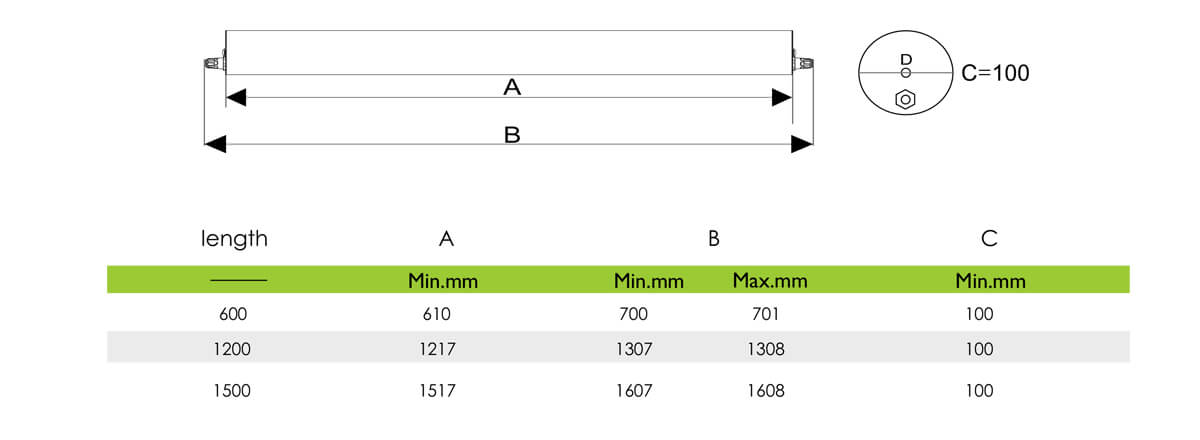

Size | 600*Ø100 mm | 600*Ø100 mm | 1200*Ø100 mm | 1200*Ø100 mm | 1500*Ø100 mm | 1500*Ø100 mm |
Power | 20 W | 30 W | 40 W | 50 W | 50 W | 60 W |
LEDs | 120 | 192 | 240 | 288 | 336 | 384 |
Beam Angle | 120 | 120 | 120 | 120 | 120 | 120 |
CRI | > 80 | > 80 | > 80 | > 80 | > 80 | > 80 |
AC Input | 200~240 V / 100~277 V | 200~240 V / 100~277 V | 200~240 V / 100~277 V | 200~240 V / 100~277 V | 200~240 V / 100~277 V | 200~240 V / 100~277 V |
DC Output | 30~40 V | 30~40 V | 30~40 V | 30~40 V | 30~40 V | 30~40 V |
SDCM | < 4 | < 4 | < 4 | < 4 | < 4 | < 4 |
Efficiency(±5%) | 100~120 lm/w | 100~120 lm/w | 100~120 lm/w | 100~120 lm/w | 100~120 lm/w | 100~120 lm/w |
Lumen Output | 1900~2300 lm | 2900~3500 lm | 3800~4600 lm | 4800~5800 lm | 4800~5800 lm | 5800~7000 lm |
Packing info | 6 pcs/ctn | 6 pcs/ctn | 6 pcs/ctn | 6 pcs/ctn | 6 pcs/ctn | 6 pcs/ctn |
Carton Size | 740*330*225 mm | 740*330*225 mm | 1350*330*225 mm | 1350*330*225 mm | 1650*330*225 mm | 1650*330*225 mm |
N.W.(kg)/CTN | 10 | 10 | 14 | 14 | 18.6 | 18.6 |
G.W.(kg)/CTN | 13 | 13 | 19 | 19 | 25 | 25 |
20’GP | 476 CTNs | 476 CTNs | 258 CTNs | 258 CTNs | 220 CTNs | 220 CTNs |
40’GP | 974 CTNs | 974 CTNs | 530 CTNs | 530 CTNs | 454 CTNs | 454 CTNs |
40’HQ | 1122 CTNs | 1122 CTNs | 628 CTNs | 628 CTNs | 519 CTNs | 519 CTNs |
ASK FOR FREE
We are preparing the price, E-catalog, specification, IES file, test report, and DIALUX, please contact us for FREE.
