T5 Batten Light

The T5 Batten LED Light: Flexible, Convenient, and Most Importantly, Efficient

Product detail

CE, RoHS certified

IP20

3 Years Warranty

Easy installation and replacement, able to be connected into series

Contact us

T5 Batten, Features

T5 Batten, Description

Are you looking for a light-weight but efficient way of lighting up your commercial space, home, or an indoor public area? If so, the ShineLong T5 batten LEDs have what it takes to offers you all these qualities and more. Unlike most of our LED tubes, these fixtures come with one unique quality – they have a batten design. Because of this, ShineLong T5 Batten LEDs are often plug-and-play fixtures that are very portable, easy to use, and highly convenient for all kinds of spaces. Therefore, whether you want to use them in your office, shop, restaurant, pharmacy, bakery, libraries, dressing rooms, bathrooms, barber shops or beauty parlors, you’ll never be disappointed. Here’s why.

For one, we always engineer our LED lights to be very energy efficient.

The T5 Batten LEDs have a 100~110lm/W power efficiency rating. This is great because it guarantees you reduced lighting expenses – by up to 60% – and better/brighter space illumination. What’s more, these fixtures last for years and require very little maintenance. The best part is that their batten design allows for series connections which makes it possible for you to light up clear rows in larger spaces (like a supermarket) with ease, continuity, and style.

In addition, we always test our LED panels thoroughly and we even have certifications of compliance with international standards by CE and RoHS. Among the many other benefits, you get to enjoy when you use our T5 batten lights is the convenience of not having to deal with flickering lights, noise, delayed lighting, UV exposure, toxicity, and frequent breakdowns. Thanks to their varied sizes and wattages, you can use these luminaries in so many areas regardless of size. Take advantage of our FREE quote policy to get yourself the best T5 Batten deals today. It’s as easy as a-b-c!

T5 Batten, Data Sheet

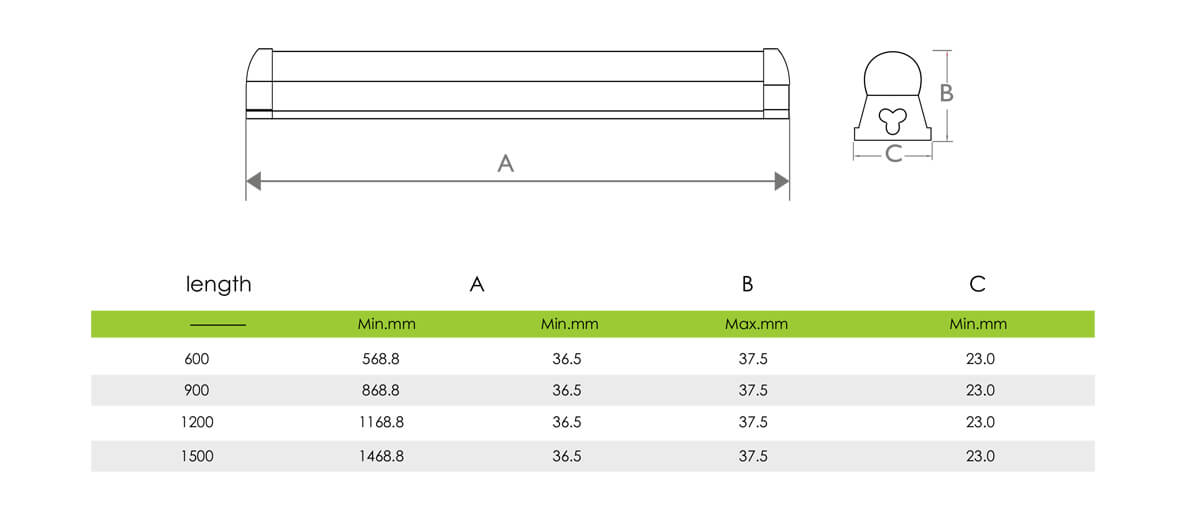

T5 batten Dimension
Article Number SL-T52X10-54-XT SL-T53X12-72-XT SL-T54X20-120-XT SL-T55X25-144-XT
Size 600 mm 900 mm 1200 mm 1500 mm
Power 10 W 12 W 20 W 25 W
LEDs 54 72 120 144
Beam Angle 120° 120° 120° 120°
CRI > 80 > 80 > 80 > 80
AC Input 100~240V / 100~277V 100~240V / 100~277V 100~240V / 100~277V 100~240V / 100~277V
DC Output 50~60 V 70~80 V 70~80 V 70~80 V
SDCM < 4 < 4 < 4 < 4
Efficiency(±5%) 95~105 lm/w 100~110 lm/w 100~110 lm/w 100~110 lm/w
Lumen Output 900~1000 lm 1400~1600 lm 1900~2100 lm 2400~2600 lm
Packing info 25 pcs/ctn 25 pcs/ctn 25 pcs/ctn 25 pcs/ctn
Carton Size 680*510*200 mm 980*510*200 mm 1280*510*200 mm 1580*510*200 mm
N.W.(kg)/CTN 10 13 20 21.5
G.W.(kg)/CTN 17 23 30 35
20’GP 413 CTNs 288 CTNs 225 CTNs 187 CTNs
40’GP 857 CTNs 618 CTNs 473 CTNs 391 CTNs
40’HQ 1202 CTNs 670 CTNs 533 CTNs 432 CTNs

ASK FOR FREE

We are preparing the catalog, specification, IES file, test report, and DIALUX, please contact us for FREE.
