The Working Principle of LED Tri-proof Light
What is the Tri-proof Light
Tri-proof lights are lighting equipment designed for harsh environments. They have three key features: waterproof, dustproof, and moisture-proof. Made from high-strength materials and treated with a special surface process, they effectively block moisture and dust. This ensures the lights work well in various challenging conditions. Due to their excellent protective qualities, LED tri-proof lights are widely used in industrial production, warehousing, logistics, outdoor facilities, and other areas needing high-level protection.
The Components of Tri Proof LED Light
Shell
Light Source
Driving Power Supply
Control System
Triproof light shells are made from high-strength aluminum alloy or stainless steel and undergo special surface treatment. They feature waterproof, dustproof, and moisture-proof properties. The shell’s excellent sealing prevents moisture and dust from entering, protecting the internal components’ safety and stability.
The light source uses a high-efficiency LED chip, offering high luminous efficiency, low power consumption, and long life. The LED chip emits light through current drive, reaching full brightness instantly without any warm-up time. In addition, LED light source also has good color rendering performance, can provide clear, natural lighting effect.
The driving power supply is essential for LED tri-proof lights. It converts utility power into low voltage DC for the LED light source, ensuring normal operation. High-quality power supplies feature over-voltage, over-current, and short-circuit protection. These functions stabilize output current in various grid environments, enhancing the LED light source’s lifespan and performance.
The control system of the triproof light mainly includes intelligent controller, sensor and other components. An intelligent controller allows remote control of lights, including dimming and setting timers. Sensors can automatically adjust the brightness and switch the lights on or off based on environmental brightness and human activity. This enables more efficient energy-saving control.
Working Principle of LED Tri-Proof Light
1. Basic principle of LED tri-proof light source
LED chip consists of two different semiconductor materials: P-type semiconductor and N-type semiconductor. A structure called P-N junction is formed between these two materials. When current flows through an LED, electrons move from the N region to the P region, and holes move from the P region to the N region. They combine at the P-N junction, releasing light energy, which is the light we see. Simply put, the principle of LED light emission is based on the movement of electrons in a semiconductor material. When an electric current passes through the LED chip, electrons jump from a high-energy state to a low-energy state and combine with “holes,” releasing photons.
Compared with traditional incandescent and fluorescent lights, tri-proof LED lights have many advantages. First of all, the luminous efficiency of LED is very high, almost all the electrical energy is converted into light energy, which makes it very energy-saving. Secondly, LED light sources have a very long lifespan, typically lasting more than 50,000 hours, which is more than 10 times longer than the lifespan of traditional light bulbs. In addition, LED lights produce almost no heat when emitting light, avoiding the safety hazards associated with heat from traditional light sources. Lastly, it has excellent color rendering performance and can provide clear and natural lighting effects for a wide range of environments and application scenarios.
2. Three-proof technology (waterproof, dustproof, moistureproof)
LED tri-proof lights use advanced technology to be waterproof, dustproof, and moisture-proof, ensuring stable operation in harsh environments.
The waterproof design uses a multi-layer sealing structure and materials like sealant and rubber rings to prevent moisture from entering the internal components. The dustproof design includes high-density filters and sealing structures to keep dust out of the luminaire’s interior. This is especially important in industrial and storage environments where dust is prevalent, as it helps extend the luminaire’s service life. Moisture-proof design uses special materials and processes to prevent moisture from damaging the internal electronic components. This feature is crucial in humid environments, such as basements or outdoor areas, to ensure the long-term stable operation of the lights.
These protective features allow tri proof LED lights to work efficiently and reliably in various challenging conditions, meeting the lighting needs of different locations. Whether in high-humidity parking garages, dusty industrial workshops, or moist outdoor environments, LED triproof lights provide dependable lighting, extend the life of the fixtures, reduce maintenance costs, and improve work efficiency.
3. Working principle of driving power supply
Driving power supply is an important part of LED triproof lights, responsible for converting the AC power we use every day into DC power suitable for LED light source, and providing stable voltage and current. The drive power supply usually adopts constant current control technology to ensure that the LED light source maintains a stable brightness in various environments. This technology ensures that the LED light source is always in the best working condition and prolongs its service life by adjusting the current size.
In addition, high-quality drive power supply with a variety of protection functions, including over-current protection, over-voltage protection, short-circuit protection and over-temperature protection and so on. These protection functions can automatically cut off the power supply in the event of abnormalities, to prevent damage to the LED light source and other electronic components, to ensure the safe and reliable operation of the lights. Drive power also has a high conversion efficiency, reduce energy loss, improve the overall energy efficiency.
4. Control system of tri-proof light
The control system of the tri-proof light features an intelligent controller and sensor for smart lighting management. The intelligent controller can connect via wireless or wired methods to enable remote control, dimming, timer switching, and other operations.
For example, in large factories or warehouses, the intelligent control system can manage multiple lights centrally, improving efficiency. The dimming function adjusts brightness based on working needs, saving energy and extending the lights’ lifespan. The timer switch function automatically turns lights on and off at set times, reducing manual tasks and enhancing work efficiency. Sensor automatically adjusts the light based on environmental brightness, personnel activity, and other factors. In places like parking lots or corridors, the sensor turns lights on when someone is nearby and off with a delay when they leave, saving energy. The sensor also adjusts brightness based on natural light levels to provide optimal lighting.
The intelligent control system makes LED triproof lights efficient, long-lasting, and adaptable to various complex environments.

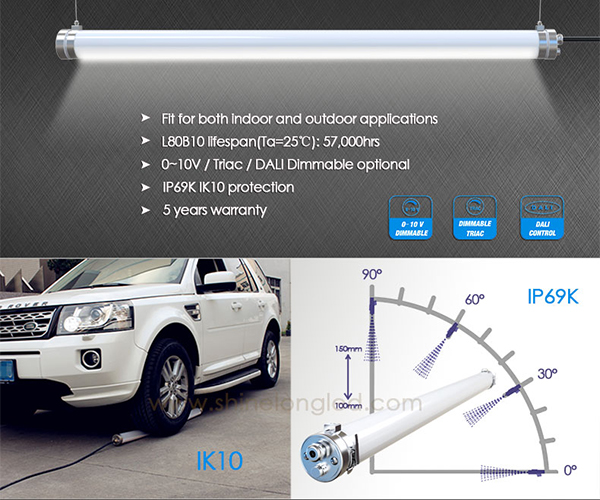

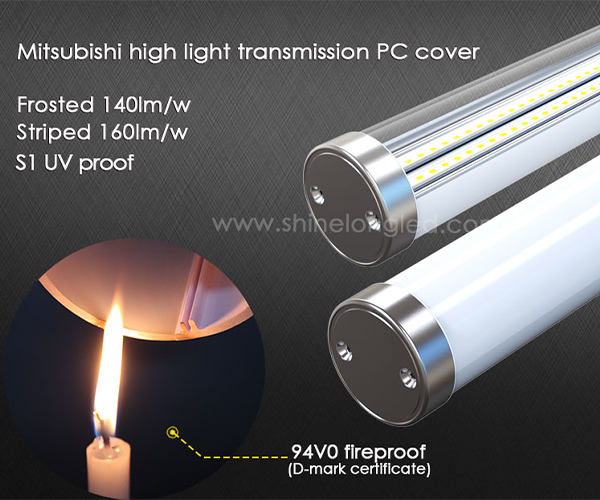

Advantages of ShineLong Triproof LED Lights
ShineLong has been focusing on LED lighting manufacturing for 13 years, providing products for many brand lighting companies and large-scale projects, and has earned a good reputation in the LED market. Among them, the tri-proof series of lights have the most outstanding performance.
Energy Efficient
Long Life
ShineLong LED tri proof light adopts high-efficiency LED light source, high luminous efficacy, low energy consumption, compared with the traditional lights and lanterns can save more than 50% of the electricity. In addition, the intelligent control system can adjust the brightness of the lights and lanterns according to the environment and demand, further improving the energy-saving effect.
The service life of LED light source is usually more than 50,000 hours, which is more than 10 times longer than traditional bulbs. Coupled with high quality driver power supply and protective housing, the overall service life is even longer, reducing the cost of frequent replacement and maintenance.
Environmentally Friendly
High Reliability
Tri-proof LED lights do not contain mercury, lead and other harmful substances, do not produce UV and infrared radiation, harmless to the environment and human body. Its waste can be recycled and reused, which is in line with environmental protection requirements. In addition, its high efficiency and long lifetime also help to reduce energy consumption and waste generation.
ShineLong LED triproof light adopts high-strength materials and advanced protection technology, with good waterproof, dustproof, moisture-proof performance, able to work stably in a variety of harsh environments. No matter how bad the environment can maintain efficient and stable lighting effect.
The Actual Application Cases of ShineLong LED Tri Proof Light

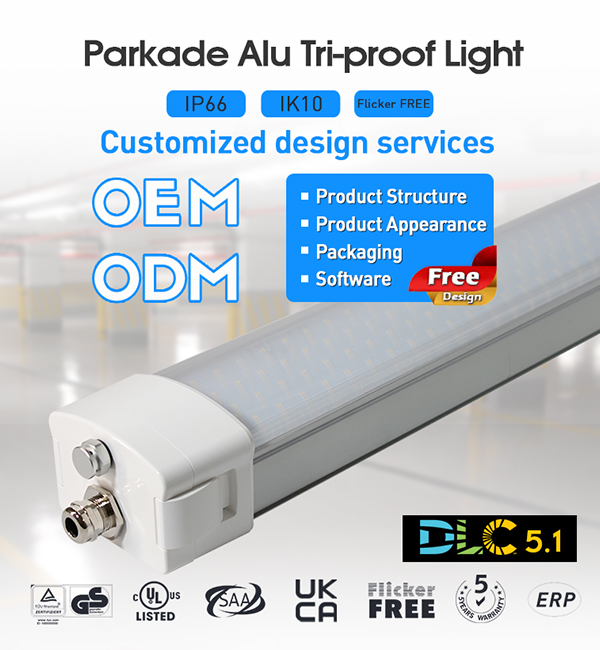

Parking Garage Lighting
Warehouse Lighting

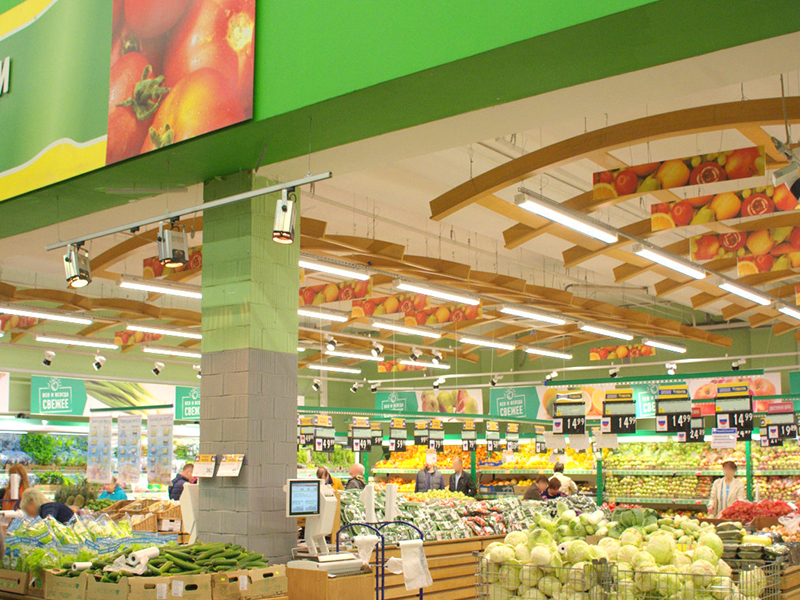

Supermarket Lighting
Train Station Lighting
Mushroom Room Lighting
Electroplating Factory Lighting
Cows House Lighting
Work Shop Lighting

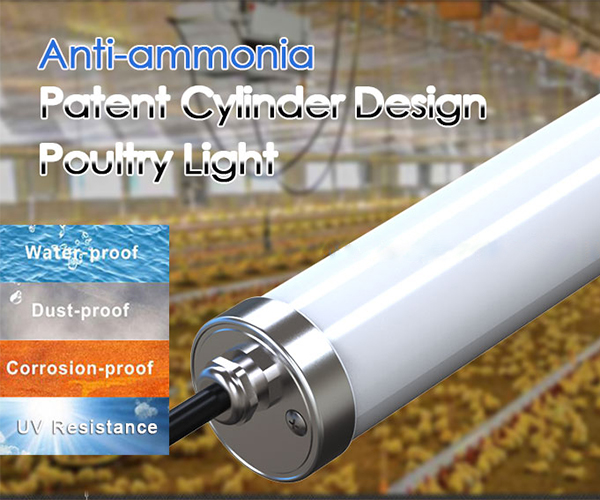

Chicken Farm Lighting
LED tri-proof lights are widely used in industrial production, warehousing, logistics, outdoor facilities and many other fields. Its excellent water, dust and moisture resistance and efficient performance make it ideal for these applications. All components of the luminaire work together to ensure efficient operation.
In the future, with the development trend of intelligence and energy saving, tri proof LED lights will further optimize its performance and functions to meet the lighting needs of more complex environments and contribute to the sustainable development of various industries.
