How Do Linkable LED Tri-Proof Lights Work?
Compatible ShineLong tri-proof luminaires use through-wiring to create a continuous physical run while each fixture remains electrically parallel to the supply. Confirm the model, connector, voltage and controls before setting the run length.

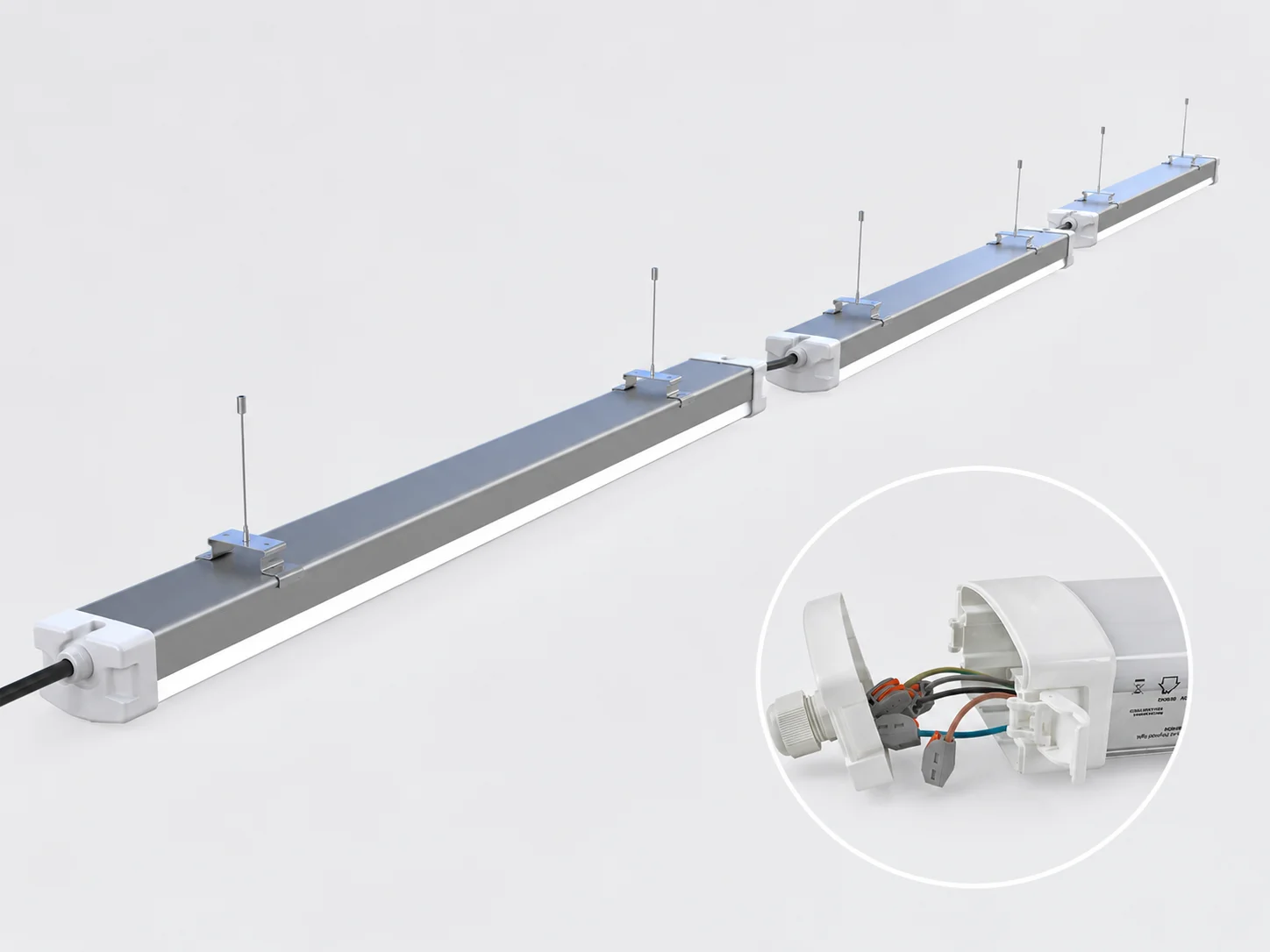

Selected ShineLong tri-proof lights support linked installation through compatible connection options. Parkade offers screw-fastened and tool-free end caps; Rancher has linking connectors. Utilee and EcoMini II also offer linkable configurations. Confirm the exact model and regional wiring requirements before ordering.
Review the Parkade connection options before finalising a garage or warehouse schedule.
Which End Cap and Connector Fit a Linked Tri-Proof Lighting Run?
Use a compatible 3-pin connector for power linking, or a compatible 5-pin connector when the selected control system requires additional conductors. Choose the end-cap access method separately, then confirm both options against the exact fixture configuration.
| Connection option | Typical use | Best suited for |
|---|---|---|
| Parkade screw-fastened end cap | End-cap access requires tools | Projects that need secured access to the wiring compartment. |
| Parkade tool-free end cap | End cap opens without tools for connection access. | Projects that need convenient access during installation. |
| 3-pin connector | Power linking for compatible Rancher and Parkade configurations. | Continuous lighting runs without dimming control. |
| 5-pin connector | Power linking and dimming for compatible Rancher and Parkade configurations. | DALI or 0/1-10V lighting-control systems. |
| US conduit option | Conduit connection on compatible US versions. | Installations that use conduit entry. |

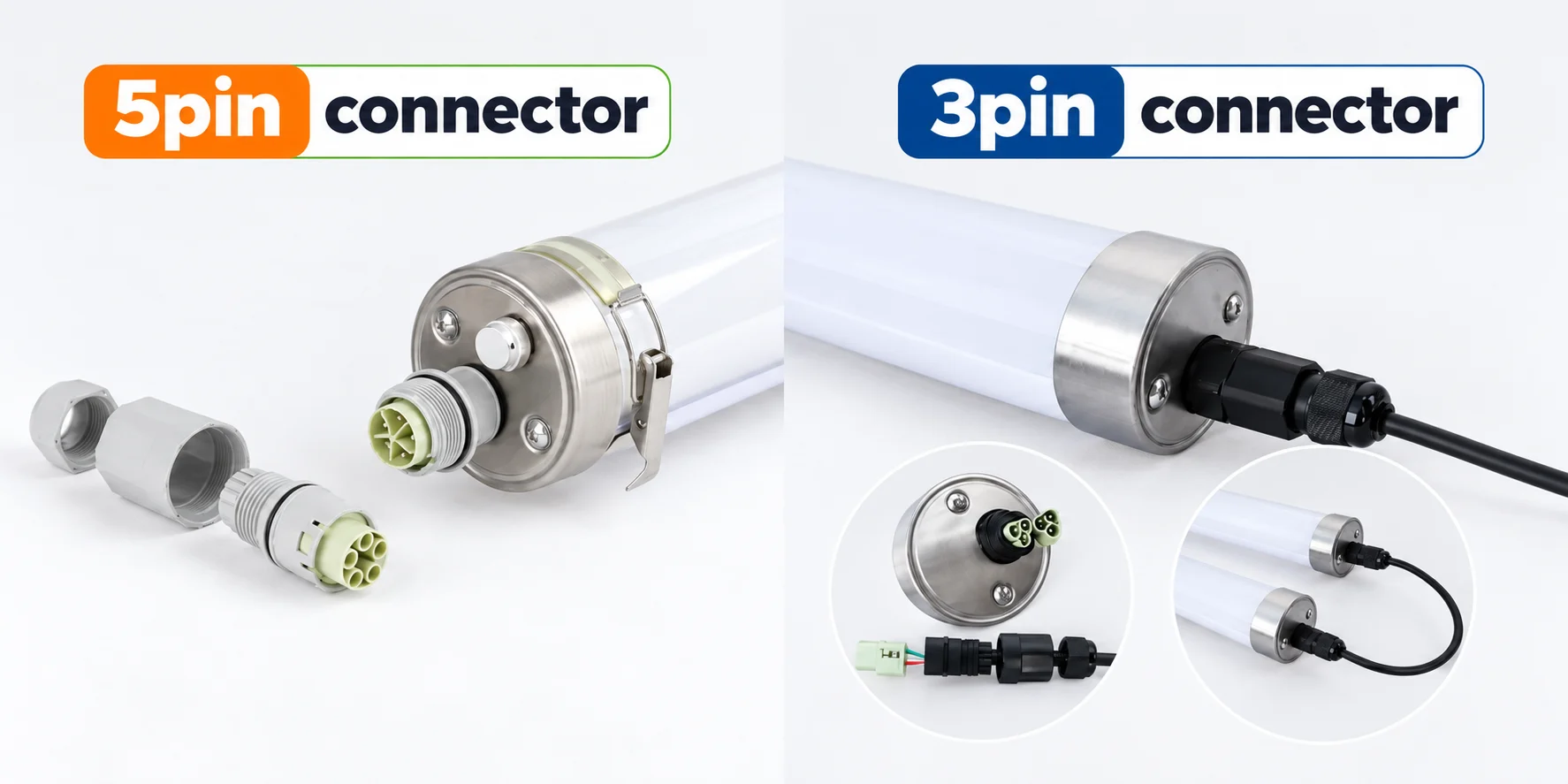

Connection overview: For compatible configurations, a 3-pin connector carries supply power, while a 5-pin connector provides the additional conductors required by the specified dimming system. Confirm the pin assignment in the selected model's installation instructions.
How Many Rancher or Parkade Luminaires Can Be Linked?
The published maximum depends on the fixture model, wattage and supply voltage. At 60 W, Rancher and Parkade list up to 15 linked fixtures at EU 230 V, 5 at US 110 V or 13 at US 277 V; site-specific circuit conditions may require fewer.
| Fixture power | Rancher EU · 230V | Parkade EU · 230V | US · 110V | US · 277V |
|---|---|---|---|---|
| 20 W | 44 | 44 | 16 | 41 |
| 30 W | 29 | 29 | 11 | 27 |
| 36 W | 25 | / | 10 (Rancher) | 26 (Rancher) |
| 40 W | / | 22 | 8 (Parkade) | 20 (Parkade) |
| 45 W | 20 | / | 7 (Rancher) | 18 (Rancher) |
| 50 W | 18 | 18 | 6 | 16 |
| 60 W | 15 | 15 | 5 | 13 |
These published maximums apply to the stated model and supply voltage; they are not a universal permitted run length. Compatible Rancher and Parkade connections specify 0.75–1.5 mm² solid conductors for EU/AU versions and AWG18 for US versions. Confirm cable, voltage drop, driver inrush current, connectors and circuit protection for the actual installation.
A Practical Installation Sequence for Linkable Tri-Proof Lights
Match the Product Configuration
Align the fixture model, supply voltage, wattage, connector type, lighting controls and emergency function with the project layout.
Isolate the Electrical Supply
A qualified electrician should isolate the supply before mounting or wiring the luminaires.
Install the Mounting System
Use surface or suspended mounting accessories that suit the fixture and supporting structure. Set fixture spacing from the lighting layout.
Prepare the Connection Cable
For compatible EU Rancher and Parkade connector configurations, ShineLong recommends using 0.75–1.5 mm² solid conductors with a stripping length of 10–12 mm. Please refer to the terminal layout for the specific product version selected.
Connect Power and Controls
Connect line, neutral, protective earth and any dimming or emergency conductors to the designated terminals. Linked luminaires use through-wiring rather than an electrical series circuit.
Seal the Enclosure
Seat the gasket evenly, secure the cable gland, engage the connector fully and close the end cap so the enclosure remains protected.
Test the Completed Run
Restore power and test light output, controls and any emergency function. Keep the final linked run within its applicable circuit limit.
Installation note: Connection details vary by product version and destination market. Follow the selected fixture's installation instructions, and have a qualified electrician verify the wiring, enclosure sealing and circuit protection before energising the run.
What Information Helps Reduce Installation Rework?
- Building layout, mounting surface, mounting height and the approved fixture spacing.
- Supply voltage, maximum run length, cable specification and circuit protection.
- Wattage, number of luminaires per run and any mixed-load arrangement.
- Dimming, motion sensing, emergency operation and required conductors.
- Cleaning conditions, final sealing arrangement and maintenance access.
Compare Parkade IP66 LED tri-proof light for garage and warehouse runs with Rancher IP69K tubular triproof light where the specified washdown protection is needed. Use the lighting calculator to estimate fixture quantities, then verify the electrical linking limit separately for the selected configuration.
Linkable Tri-Proof Installation FAQs
Are ShineLong tri-proof lights linkable?
No. Linkable options are available on selected ShineLong tri-proof models and configurations. Check the model, connector type and voltage-specific maximum before specifying a linked run.
Does tool-free mean no tools are required for the whole installation?
No. Tool-free refers to quick access or connection features. Mounting, cable preparation, wiring, sealing and circuit testing still form part of a complete installation.
How many 60W Rancher or Parkade lights can be linked?
For 60W versions, the maximum linked quantity is 15 at 230V in the EU, 5 at 110V in the US and 13 at 277V in the US. Circuit, cable and driver-inrush conditions can reduce the final quantity.
Can a 3-pin connector carry the dimming connection?
A 3-pin connector is used for power linking, while a 5-pin connector supports both dimming and linking. The connector should match the lighting-control system, including DALI or 0/1-10V control.
Are linked luminaires electrically connected in series?
A linked run uses through-wiring, so each luminaire is connected in parallel to the supply. Series connection describes the physical run, not an electrical series circuit.
Can I mix wattages or add emergency models to a linked run?
Mixed wattages and emergency versions need a configuration-specific connection plan that accounts for the combined load, cable, connectors, supply voltage, control conductors and emergency permanent-live wiring.
Plan a Reliable Linkable Tri-Proof Lighting Run
ShineLong believes a reliable linked run starts with the correct fixture configuration, not the maximum-count figure alone. Match the connector, cable, controls and mounting plan to the selected model, then verify the completed circuit before installation.
Get a Linkable Lighting Plan for Your Project
Share your layout, mounting height, supply voltage and target fixture quantity. Our lighting team can help you match the product, connector and linking arrangement to your installation.
