Linear Lighting Installation Guide

How to Install Linear Pendant Light

Follow practical installation steps for pendant, track, surface, and recessed linear lighting while keeping safety, wiring, and mounting details under control.

Linear Pendant Lighting Is Flexible, but Installation Method Matters

Linear pendant lighting can brighten a kitchen island, add warmth above a dining area, define a living space, or create a clean architectural lighting line in commercial interiors.

The installation process becomes easier when the mounting method is clear before work begins. Pendant mounting, track mounting, surface mounting, and recessed mounting each use different hardware, ceiling preparation, and wiring steps.

Before starting any work, turn off the power and use a voltage tester to confirm the circuit is off. If wiring conditions are unclear, ShineLong recommends working with a qualified electrician for safe installation.

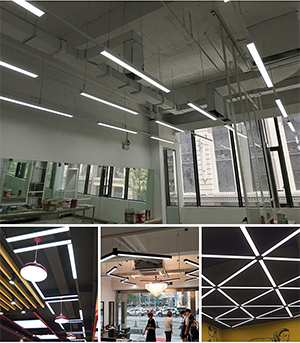

Linear light applications
Linear pendant lights can be adapted to kitchens, dining rooms, living spaces, offices, and commercial interiors.
Power firstTurn off the circuit and confirm with a voltage tester before wiring.
Choose methodSelect pendant, track, surface, or recessed mounting by ceiling condition.
Keep it levelMeasure carefully so the final linear light sits straight and balanced.
Test safelyCheck wiring, fixing points, and light operation before finishing the job.

Before You Install a Linear Pendant Light

Good preparation reduces wiring mistakes, uneven mounting, and avoidable rework. Confirm the power status, ceiling structure, fixture type, and required installation hardware first.

Safety Checks

  • Turn off the power at the circuit breaker.
  • Use a voltage tester to confirm the circuit is off.
  • Confirm the electrical box or mounting point can support the fixture.
  • Ask a qualified electrician if wiring is unclear.

Common Tools

  • Measuring tape and pencil.
  • Level for straight alignment.
  • Power drill, screws, and anchors.
  • Wire strippers, wire nuts, and electrical tape.

Planning Points

  • Confirm light length and ceiling position.
  • Check suspension height or recessed cutout size.
  • Match live, neutral, and ground wires correctly.
  • Test the fixture before final cleanup.

Four Installation Methods for Linear Pendant Lights

Choose the installation method that matches your ceiling condition, lighting layout, and design goal.

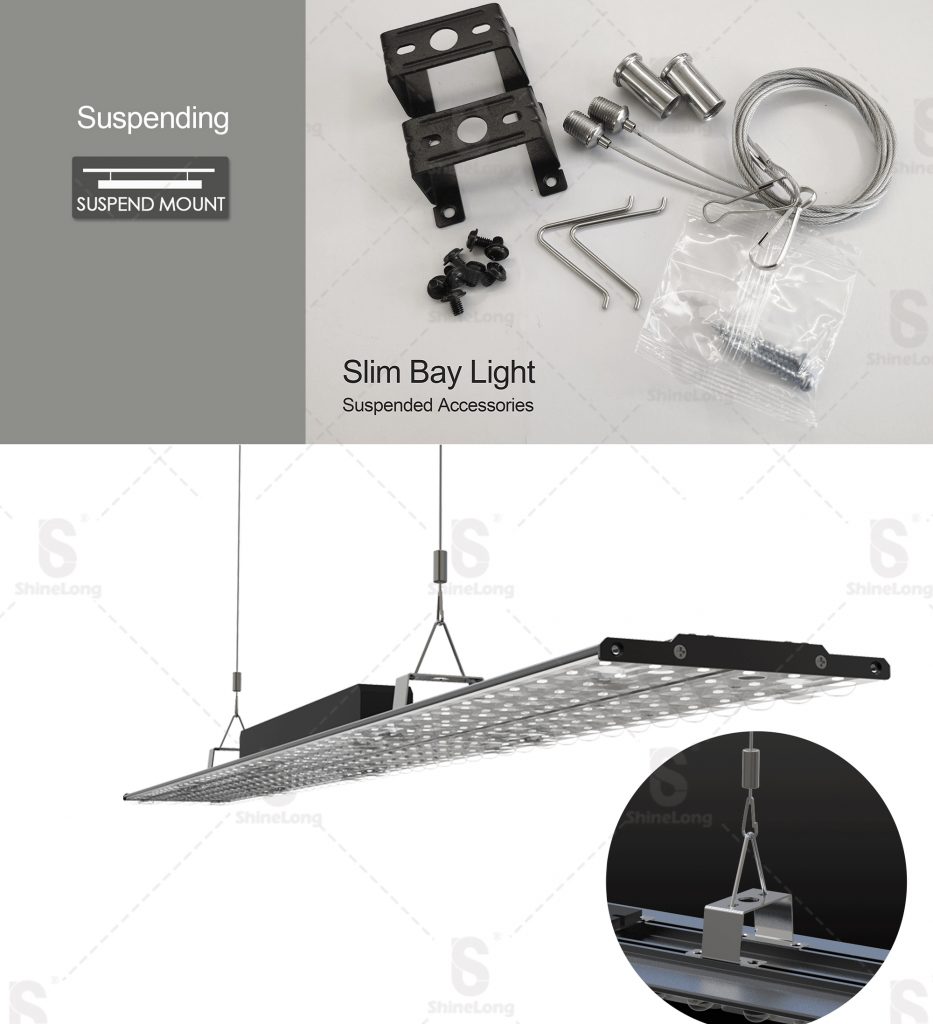

Linear pendant light suspension mounting
Pendant mounting is commonly used above kitchen islands, dining tables, and open work areas.

Pendant Mounting

Pendant mounting is the most common method for installing linear pendant lighting and works well when the fixture needs to hang below the ceiling plane.

  1. Mark the installation location with measuring tape and pencil.
  2. Secure the mounting bracket to the electrical box with screws.
  3. Strip about 1 cm of insulation from the fixture wires.
  4. Match live to live, neutral to neutral, and ground to ground.
  5. Secure connections with wire nuts and electrical tape.
  6. Attach the linear pendant light to the bracket and tighten screws.
  7. Install bulbs or shades if required, then test the light.
Tip: Keep the fixture level during installation. For heavier lights, use suitable anchors and confirm load capacity.

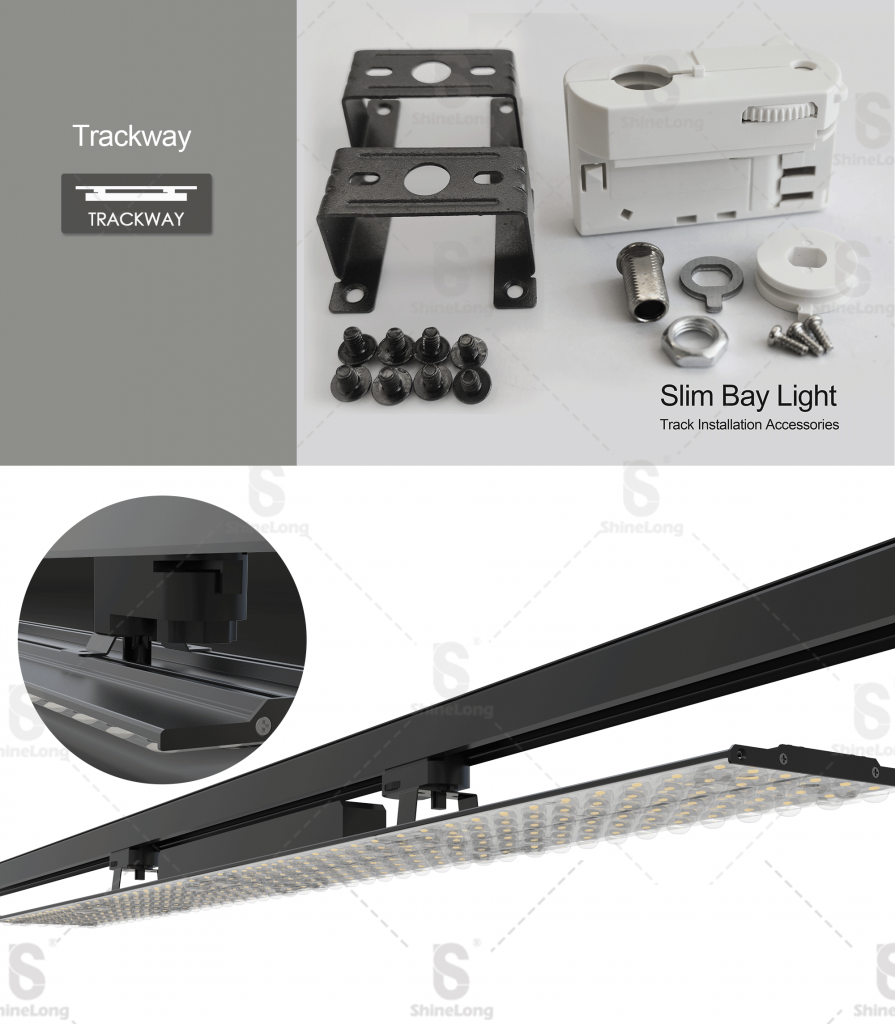

Track mounted linear pendant light
Track mounting allows fixture position and quantity to be adjusted for focused lighting areas.

Track Mounting

Track mounting is useful above desks, sofas, displays, and spaces that need adjustable focused lighting.

  1. Mark the track position with pencil and measuring tape.
  2. Drill ceiling holes and insert anchors.
  3. Secure the track and use a level to keep it straight.
  4. Connect track power wires to the electrical box wires.
  5. Secure all wiring connections with wire nuts and electrical tape.
  6. Attach the linear lights to the track and adjust their positions.
  7. Turn on power and test the full track system.
Tip: Choose a track system compatible with the selected linear lighting. The track can be cut to fit some spaces when the system allows it.

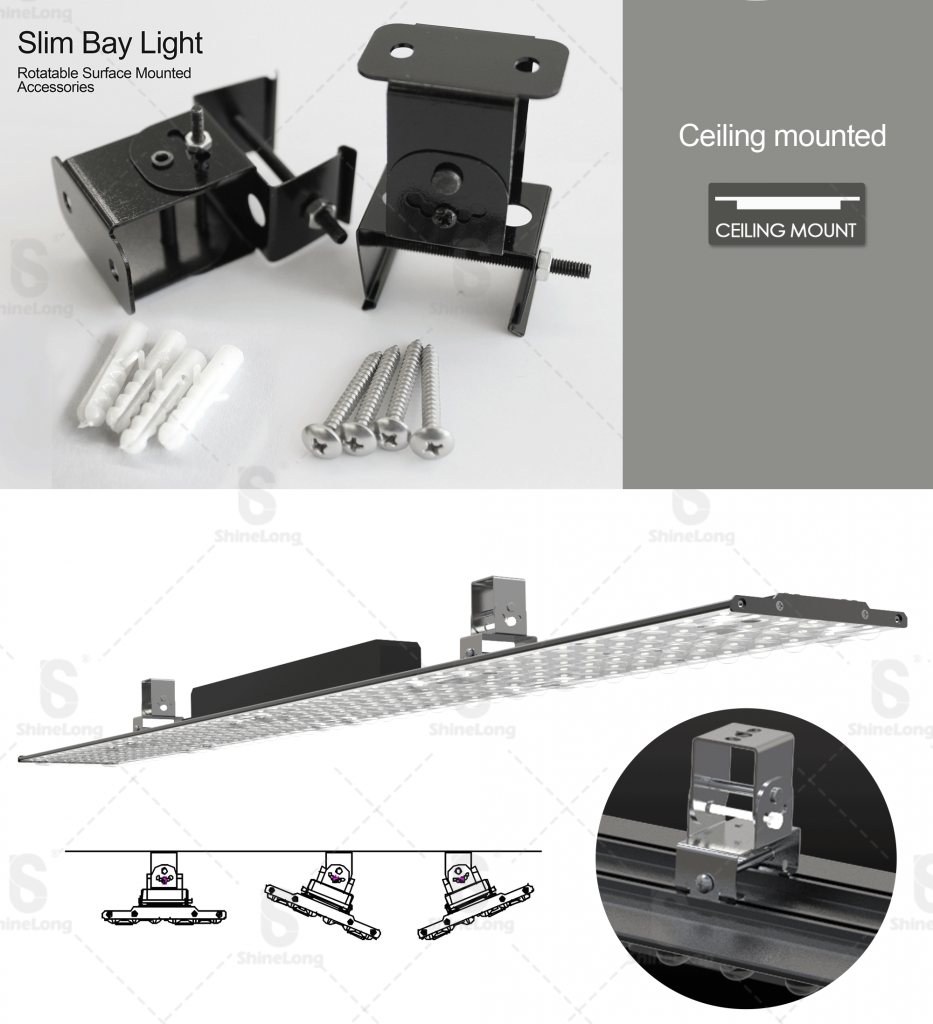

Surface mounted linear pendant light installation
Surface mounting is practical when the ceiling has limited space for recessed work.

Surface Mounting

Surface mounting is practical for drywall, wooden ceilings, or spaces where recessed mounting is not suitable.

  1. Mark the installation location on the ceiling.
  2. Align the base plate with the marked position.
  3. Secure the base plate to the ceiling using screws.
  4. Thread fixture wires through the base plate.
  5. Connect fixture wires to the power wires and secure them.
  6. Attach the linear light to the base plate and tighten screws.
  7. Install bulbs if required, then test the light.
Tip: Use cable channels to hide exposed wiring and keep the ceiling appearance clean.

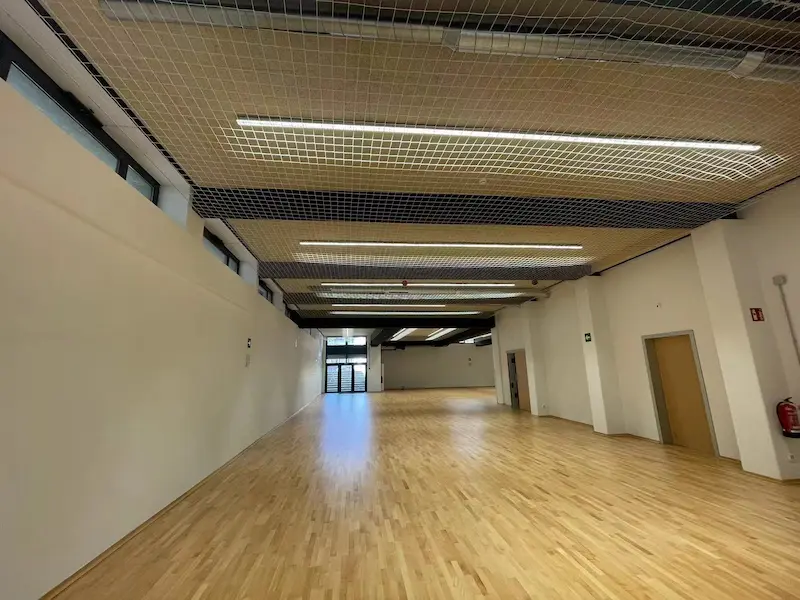

Linear pendant light installation reference
Recessed mounting creates a clean minimalist appearance when the ceiling structure supports it.

Recessed Mounting

Recessed mounting integrates linear lighting into the ceiling and creates a sleek modern look for minimalist interiors.

  1. Mark the installation location and required cutout dimensions.
  2. Cut the ceiling opening with the appropriate tool.
  3. Insert the linear light into the opening.
  4. Secure the fixture with spring clips or the specified mounting hardware.
  5. Connect the wires and secure them with wire nuts and electrical tape.
  6. Install bulbs or covers if required.
  7. Turn on the power and test operation.
Tip: Cutout dimensions must be accurate. If the ceiling structure or wiring is uncertain, consult a professional installer.

Related Linear Lighting Resources

These ShineLong resources help buyers compare linear lighting products, installation options, and project applications before selecting a fixture.

ShineLong LED linear lights

LED Linear Lights

Review ShineLong linear lighting options for pendant, surface, and commercial applications.

View Product
Slim Bay linear lights

Slim Bay Linear Lights

Explore slim linear lighting for modern spaces that need clean shape and flexible mounting.

View Product
LED linear lighting guide

What Is LED Linear Lighting?

Learn the basic structure, benefits, and application logic of LED linear lighting.

Read Guide

FAQ About Linear Pendant Light Installation

Check whether the power is on, whether the wires are connected correctly, and whether the bulbs or LED module are intact.
Flicker may come from loose wire connections, incompatible dimming, or faulty bulbs or drivers. Turn off power first, then check the wiring and compatible control system.
Use a soft dry cloth to wipe the fixture surface. Avoid abrasive or corrosive cleaners that may damage the housing or diffuser.
Pendant mounting is commonly used above kitchen islands because the suspension height can be adjusted and the light can be centered over the work area.
Yes. ShineLong can help buyers compare LED linear lights, mounting options, and project requirements before purchasing.

Conclusion: Install Linear Lighting by Method, Not Guesswork

Installing a linear pendant light becomes much easier when the mounting method, ceiling condition, wiring route, and fixture weight are clear before the work begins.

ShineLong believes safe installation should always come before appearance. Turn off power, confirm wiring, keep the fixture level, secure the mounting hardware, and test the light before completing the project.

Whether the design uses pendant, track, surface, or recessed mounting, linear lighting can create a clean and modern lighting effect when the product and installation method are matched correctly.
