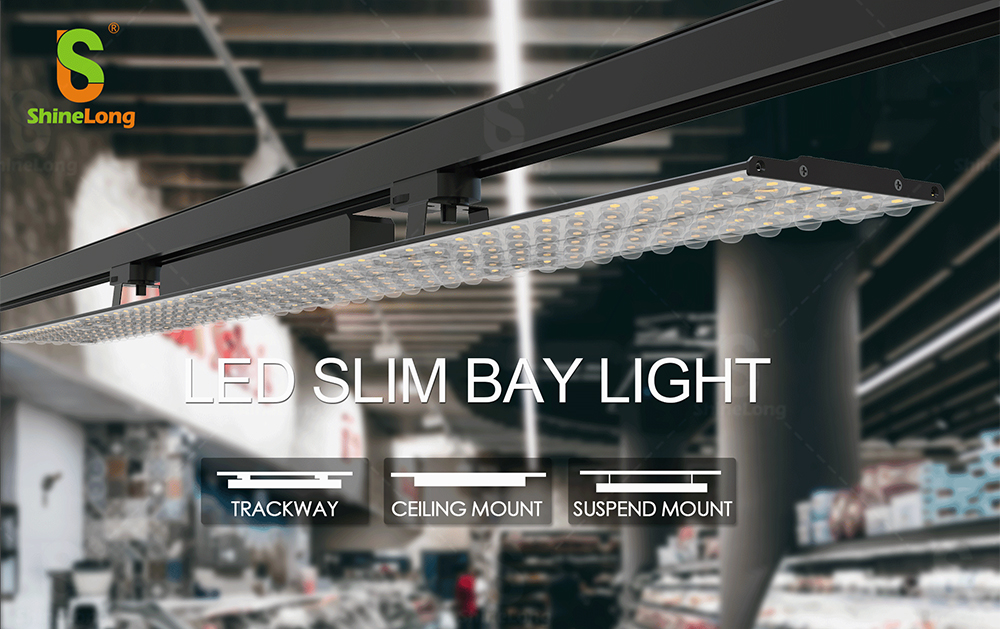

Slim Bay Linear Light Features

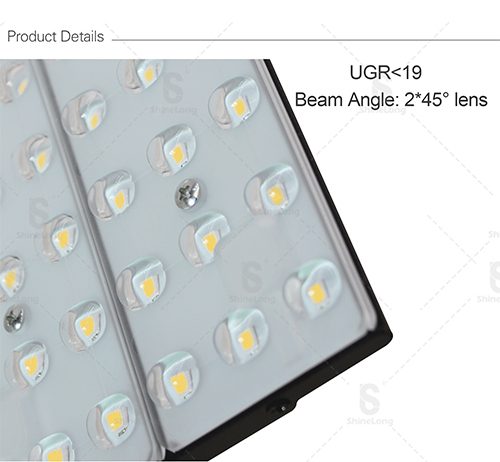

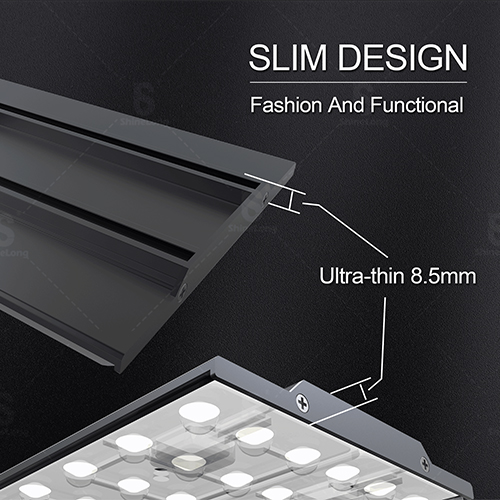

- Ultra Slim Design 8.5mm, UGR less 19
- Beam Angle: 2*45° lens
- High Efficacy: 140lm/w ±10%

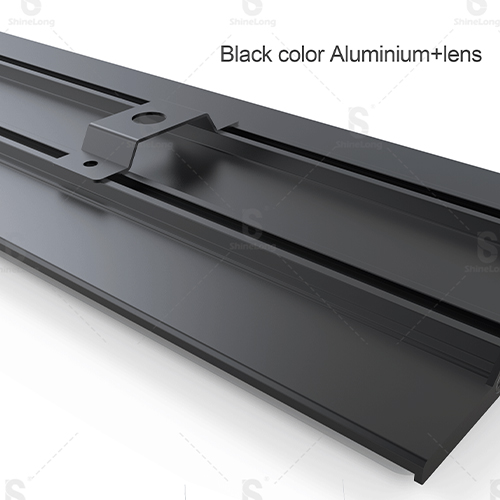

- Black Aluminum + lens (White color for options)
- SMD2835 LED Light Source with Global Patent Protection
- Flicker Free Internal Driver

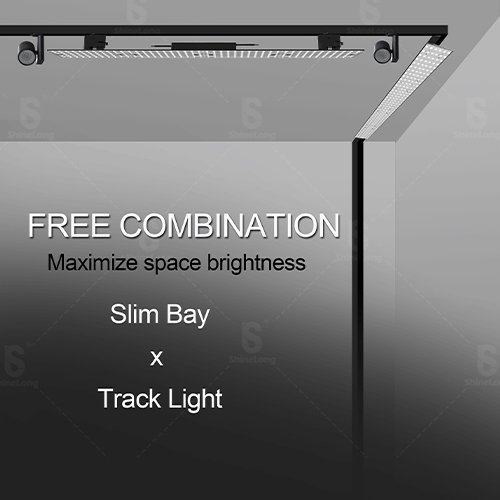

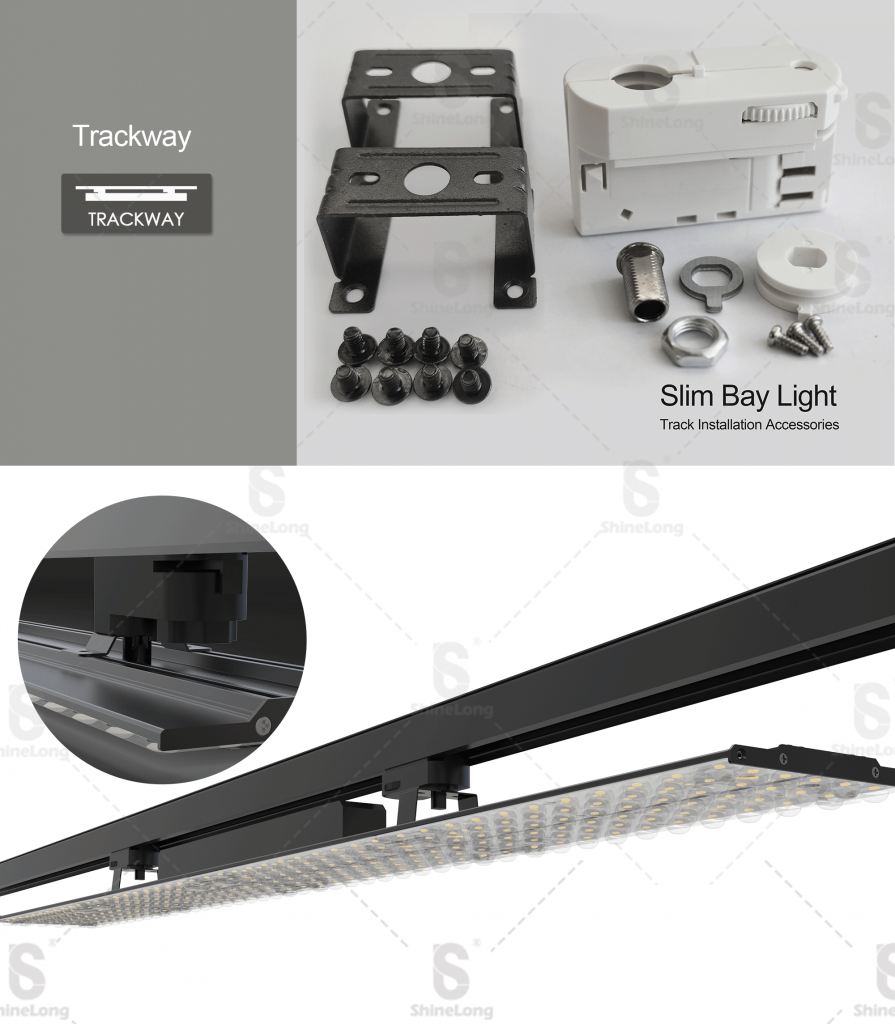

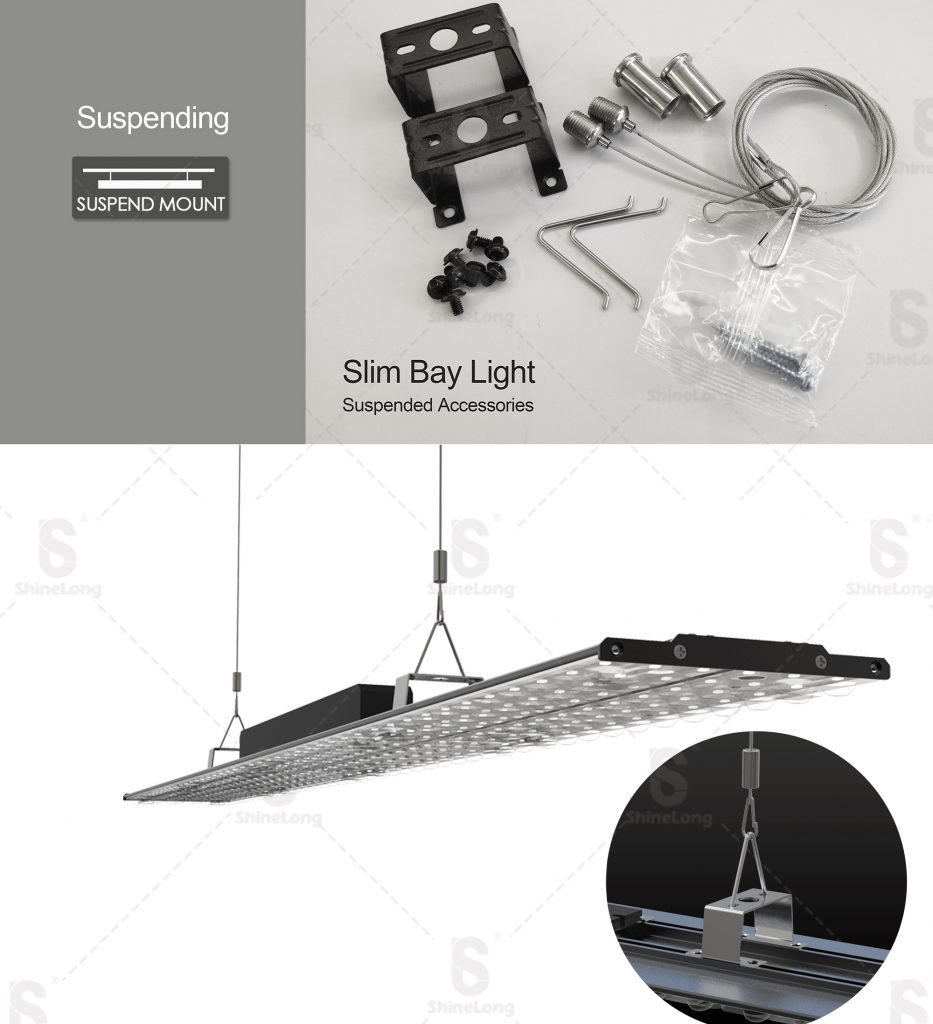

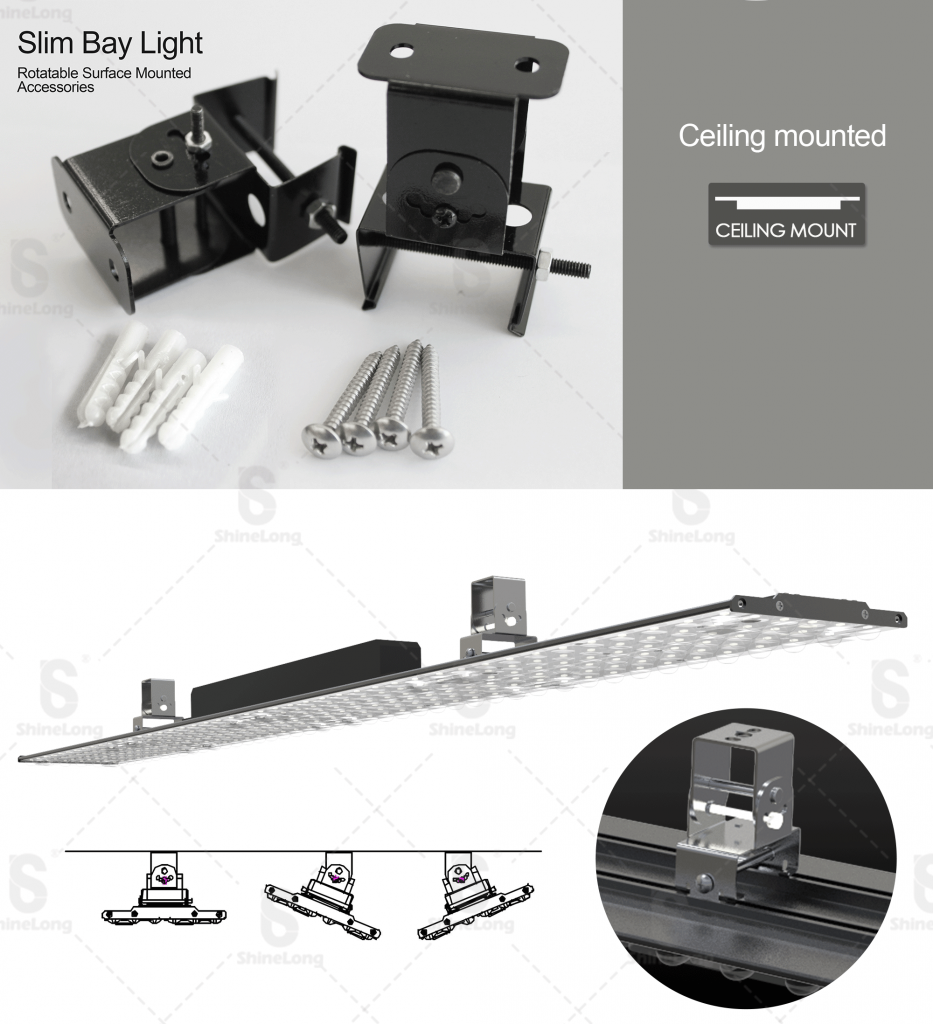

- Suspending&Ceiling mounted&Trackway for convenient installation
- L80B10 lifespace of 50,000 Hours (@ Ta = 25°C)
All Products of Slim Bay Linear Light
- Article No.: SL-B40X2-40-X
- Power: 40W
- Lumen: 5600lm
- Size: 630*350*190mm
- CCT: 3000K/4000K/5000K/6000K
- AC Input: 200-240V
- SDCM: <4
- CRI: >80
- Power Factor: >0.95
Operating Temperature: -20~+40℃
- Article No.: SL-B40X4-60-X
- Power: 60W
- Lumen: 8400lm
- Size: 1230*350*190mm
- CCT: 3000K/4000K/5000K/6000K
- AC Input: 200-240V
- SDCM: <4
- CRI: >80
- Power Factor: >0.95
Operating Temperature: -20~+40℃
- Article No.: SL-B40X5-75-X
- Power: 75W
- Lumen: 10500lm
- Size: 1530*350*190mm
- CCT: 3000K/4000K/5000K/6000K
- AC Input: 200-240V
- SDCM: <4
- CRI: >80
- Power Factor: >0.95
Operating Temperature: -20~+40℃
The Slim Bay LED Linear Light is an efficient LED lighting fixture designed for commercial and industrial environments. With its ultra-slim design and simple appearance, it is suitable for places with limited ceilings. Slim bay linear light supports a wide range of color temperature and luminous flux choices to meet the lighting needs of different places. It provides uniform, strobe-free light. Its IP65 protection rating makes it highly dustproof and waterproof, making it suitable for use in warehouses, workshops, underground parking lots and other industrial locations.
Easy to install and maintenance-free, it can quickly replace traditional fluorescent lamps and other high energy-consuming lamps. In addition, slim bay linear light is made of environmentally friendly materials, which meets the standards of modern green lighting.
Multiple Mounting Options
Guarantee with ShineLong
Response Time
Our response time is around 3 hours,so if you have an urgent problem with your project,you can call the business directly to secure your project.
Reliable Delivery
We have implemented ERP,PMC system management.Sample orders about 7 days,large orders about 15 days,special oeders can be expedited delivery time.
Guaranteed Warranty
Factory passed ISO9001:2015 international quality management system,all of LED lights have a 5-7 year warranty and all accessories have certifications.
Energy Savings
Up to 70% energy savings over traditional lights,report a 50 percent drop in their energy bill than they would have with conventional lights.
ShineLong's Five Value-added Services
ODM services, brand product modeling, and promotional materials, LED light design, LED power supply customization, lighting software development, LED lights for the full range of qualification certificates for the docking service and billing.
We ShineLong can provide you with value-added services for deep cooperation customers, and ODM services, only need you to provide LED light software and appearance ideas, our R & D team can help you with free design software and product appearance, in addition to LED light power supply can be specially customized, LED lights after the completion of the development of LED certificates samples and information can also be provided for the whole docking, until the LED Lights on the market, at the same time, our marketing department is responsible for 3D modeling and design colleagues, but also according to the idea to design your brand needs to promote promotional materials and videos. Most importantly, ShineLong also provides a billing period for large LED lighting customers.
Come and join us to make LED light installation easier and let ShineLong light fixtures light up the world.
Discounts for Electrician,Contractor,or other Trade
Our team continuously creates valuable partnerships with various electricians, contractors, lighting solution businesses, lighting design companies, and other tradespeople to ensure you all receive the special discounts and services possible with unbeatable quality and a proven track record.
