What is a Highbay LED Light

What is a Highbay LED Light?

UFO highbay lights in the stadium

Industrial highbay LED light is a type of lighting fixture designed for high ceiling locations, typically for heights of 20 feet (about 6 meters) to 40 feet (about 12 meters) or more. These fixtures are widely used in industrial plants, warehouses, gymnasiums, large retail malls, and other spaces that require powerful and even lighting. The main purpose of high ceiling lights is to provide bright, efficient and even light to ensure visibility and safety in these environments.

How Highbay Light Works

It projects light downward from an elevated position to cover a large area. To accomplish this, they are often equipped with reflectors or lenses to help focus or diffuse the light downward. Industrial highbay LED lights are compatible with various light sources. These include LED lights, fluorescent lights, and HID lamps (High Intensity Discharge Lamps). Of these, the Highbay LED lights are the most popular choice due to their energy efficiency, long lifespan, and superior brightness.

Basic Characteristics of Industrial Highbay LED Light

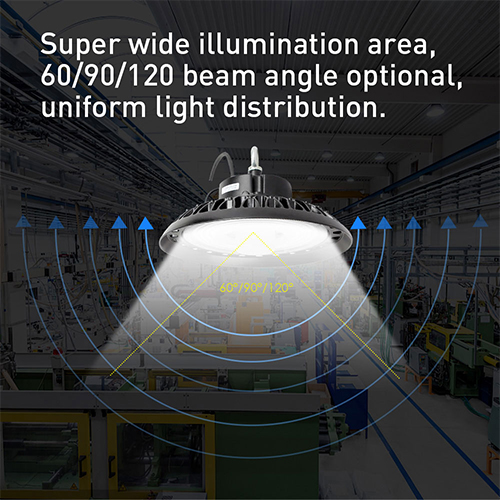

LED high bay light has extra wide illumination area, 60/90/120 beam angle options, and even light distribution.

Highly Adaptable

Manufacturers design these industrial highbay LED light fixtures for high ceiling environments. Depending on the specific requirements of the location, they supply the fixtures with beams at 60 degrees, 90 degrees, 120 degrees, or even greater angles to adjust the beam angle based on the installation height, ensuring even illumination across every area. This means that a larger area can be effectively covered and shadows eliminated even on higher ceilings.

Long Life

LED luminaires typically have a lifespan of 50,000 hours or more, compared to around 15,000 hours for traditional lights such as metal halide and sodium lamps. The actual application environment determines that LED fixtures typically require replacement every 5 to 7 years, while traditional fixtures usually need replacement every 2 to 3 years.

Versatile Designs

LED industrial high bay light fixtures offer diverse design options to meet the needs of different spaces. Common designs include round UFO lamps, which are suitable for large spaces and provide uniform illumination and a wider beam angle; linear lights, which are suitable for long areas and provide flexible installation and uniform illumination; customized designs, which adjust the beam direction and coverage to meet individual requirements; and modular designs, which allow for adjustment of the light area according to actual needs.

Powerful Lighting Capability

Modern high bay industrial led lights typically have a luminous flux of between 10,000 and 50,000 lumens, depending on the power and design of the fixture. This is significantly higher than traditional metal halide lamps, which typically range from 5,000 to 30,000 lumens. The higher luminous flux ensures illumination in large spaces, enhances visibility in the work environment, and improves employee safety and productivity.

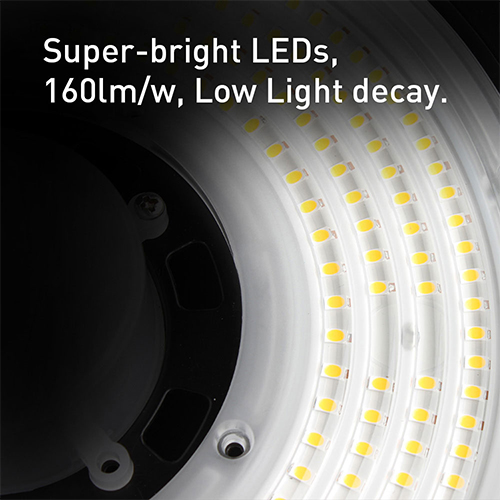

Super bright LED, high lumen, low light decay

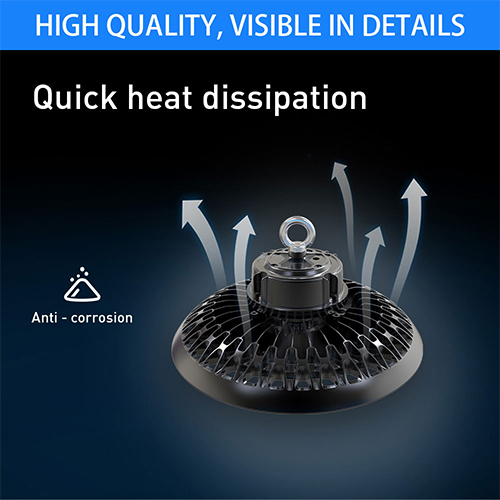

LED highbay light fixtures, fast heat dissipation at the back, corrosion resistant

Low Heat Output

LED luminaires generate less heat than conventional luminaires. Metal halide and sodium lamps produce more heat, raising workplace temperatures and increasing air conditioning use. In contrast, LED lights produce less heat, reducing energy consumption in air-conditioned environments.

Instant on and off

No warm-up time and fast switching response makes it suitable for locations where frequent switching is required.

These features make Highbay LED lights more efficient, economical and practical for industrial and commercial applications.

Installation and Maintenance of Highbay LED Lights

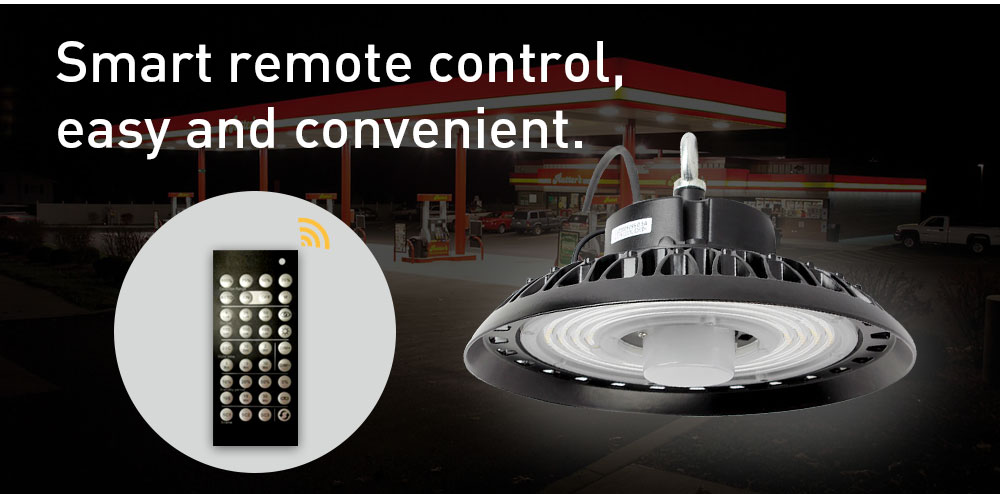

Remote control light, remote intelligent adjustment, convenient

Factors to Consider When Installing

1. Installation Height

Highbay LED lights are best suited for installation at heights between 15 and 45 feet. For heights between 15-25 feet, lower wattage (100-150 watts) fixtures can be selected with a beam angle of typically 90° to cover a larger area. For heights between 30-45 feet, higher wattage (200 watts and above) fixtures are required, and a narrower beam angle (60°) is recommended to ensure that the light reaches the ground and provides sufficient brightness. In addition, mounting too high or too low will affect the lighting effect, such as uneven light distribution or insufficient brightness.

2. Power Requirements

It is very important to make sure that the power supply of the fixture matches the voltage of the power grid on site. LED highbay lights usually support wide voltage inputs (e.g. 100V-277V), but in some industrial environments, an additional transformer is required if a 480V power grid is used. In addition, check the power factor and stability of the power supply to avoid flickering or damage to the fixture due to voltage fluctuations. It is recommended to contact an electrician before installation to confirm whether the wiring can carry the total power of the fixture to ensure the long-term stable operation of the fixture.

3. Light arrangement

In order to achieve a uniform lighting effect, you need to design the layout according to the size of the site, the use of function and the beam angle of the lights.
– For long and narrow spaces such as warehouses, it is recommended that the lamps and lanterns are evenly distributed along the aisles, and attention is paid to reducing the overlap of the light area.
– Within large factories or gymnasiums, a grid arrangement is usually used, and the distance between luminaires (usually 1.2-1.5 times the height of the luminaires) needs to be calculated to ensure that the entire space is covered without obvious dark areas.
Also, in the areas that need to focus on lighting, such as machine operating platforms or competition venues, you can choose to enhance the local brightness with a spotlight effect of the lights.

As for maintenance, LED lights require low maintenance, but still need to be cleaned regularly to ensure performance. Installation should consider the accessibility of the luminaire, such as the use of adjustable hooks, booms or rail mounting methods, to facilitate the maintenance or replacement of the luminaire later. Especially in places with a height of more than 25 feet, it is recommended to configure light fixtures with remote control adjustments to reduce the hassle of having to ascend to high places to adjust the light. In addition, regular inspection of the driver and wiring of the lamps and lanterns to prevent dust or moisture from affecting the life of the lights.

Taking these factors into consideration not only ensures that industrial highbay LED lights perform at their best, but also improves efficiency and safety after installation.

Applications

Highbay LED lights are suitable for a wide range of large space environments. According to industry research, the brightness of this type of fixtures can increase the lighting effect in large spaces by 20-30% while reducing energy consumption by 40-50%.

Industrial Warehouses

Industrial warehouses are often large and have high ceilings, so they need strong, even light to ensure the safety and efficiency of stacking and moving goods. While traditional lamps tend to create dark areas that affect visibility, industrial highbay LED lights are not only bright, but also have a very even light distribution, which significantly reduces operational errors and safety hazards. In addition, the energy-saving characteristics of LED lights can also reduce the cost of electricity in large warehouses, and for those warehouses that need to operate 24 hours a day to reduce the cost of frequent replacement of lamps and lanterns.

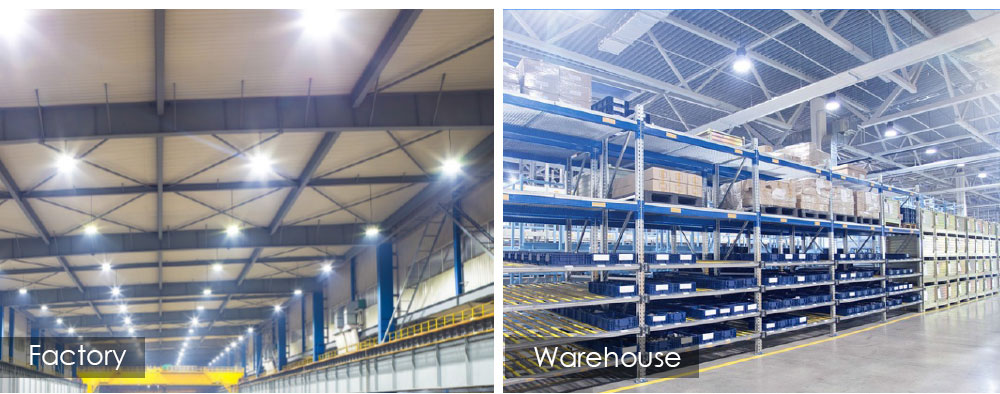

factory lighting, warehouse lighting

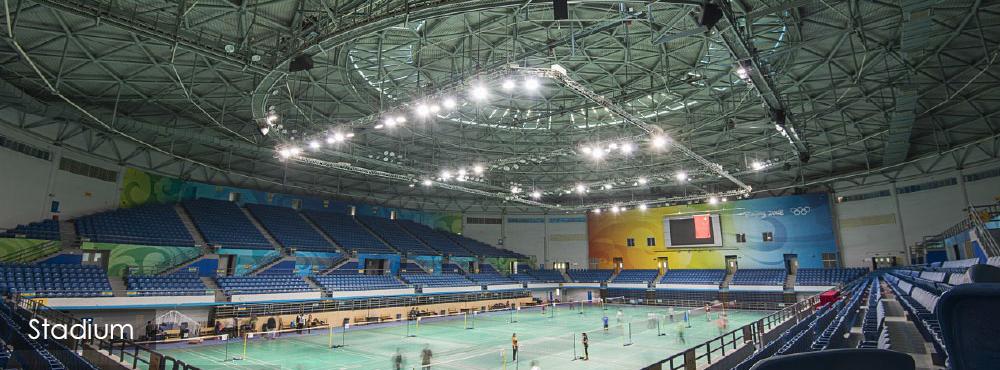

Stadiums

Stadiums are often used for competitions or large-scale events, and the lighting requirements are extremely high. Highbay lights provide a high level of brightness and even distribution of light, ensuring that athletes can clearly recognize every detail on the field during fast-moving sports, while allowing spectators to have a good viewing experience from any angle. In addition, LED lights do not produce harsh light spots compared to traditional fixtures, and their quick start function is especially suitable for lighting control between games, improving the flexibility and efficiency of lighting management during games.

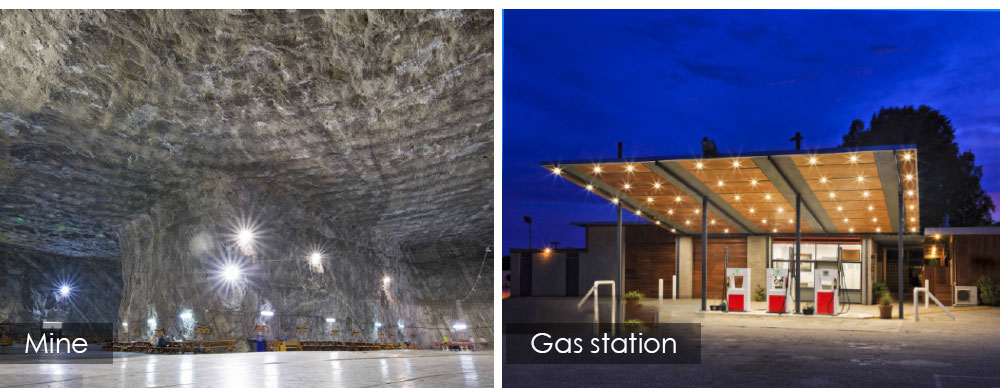

mine lighting, gas station lighting

Aircraft Hangars

Aircraft hangars require adequate and even lighting to ensure the accuracy of aircraft maintenance and inspection work. Industrial high bay led lights, especially LED lights, provide even and clear illumination above high ceilings, ensuring that staff can see the details of each component throughout the inspection process, and also achieve even distribution of light, so as to avoid shadows or reflections of the light source to interfere with the LED. The high performance and long life of the highbay lamps also help to adapt to the high altitude, vibration and harsh environment in the hangar to ensure long-term stable lighting effect.

Industrial high bay led lighting offers excellent energy efficiency, long life and low maintenance costs. LED fixtures outperform traditional metal halide and sodium lights in energy efficiency, lifespan, and light quality. They deliver better illumination while using less power. Whether in industrial warehouses, gymnasiums or commercial spaces, LED highbay lights are ideal for improving lighting quality and reducing energy consumption.
