Start with the Ceiling, Fixture, and Electrical Plan
Installing an LED panel light in an existing ceiling can modernize a home or office while providing even, efficient illumination. The correct method depends on whether the ceiling is an integrated modular ceiling or a non-integrated ceiling such as plasterboard, timber, or concrete.
Before selecting a fixture, confirm panel size, power, ceiling thickness, opening dimensions, mounting method, driver location, supply voltage, cable routing, and future access for maintenance. For slim ceiling projects, review Slim LED Panel Lights and the wider LED Panel Light range.
Precautions Before Installing LED Panel Lights
1. Circuit Safety
Turn off the power before installation and confirm the circuit is de-energized with a suitable tester. Use wiring, connectors, insulation, and load capacity that match the fixture and installation environment.
2. Ceiling Structure Check
Check whether the existing ceiling can support the fixture and fixing method, especially in older ceilings, damaged ceilings, or ceilings with unknown services above the surface.
3. Lighting Position Design
Plan the fixture positions before installation so the room has even light distribution. Avoid dark corners, excessive overlap, glare, and conflicts with joists, HVAC, plumbing, or concealed cables.
Preparing Tools and Materials
- Integrated ceiling tools: screwdriver, ladder, and connecting wire.
- Non-integrated ceiling tools: screwdriver, electric drill, cutting tool, and ladder.
- Materials: LED panel light, LED driver, connector, cable, and fixing hardware.
How to Choose the Right LED Panel Light
Select size and power according to room area and brightness requirements. Common sizes include 600 x 600 mm and 300 x 300 mm; common power options include 20W and 40W. Larger spaces may need higher output or more fixtures.
Choose warm 2700-3000K for a cosy residential atmosphere or 4000-5000K for brighter office-oriented lighting. Confirm that the ceiling type, fixture thickness, and mounting method are compatible before installation.
Installation Steps by Ceiling Type

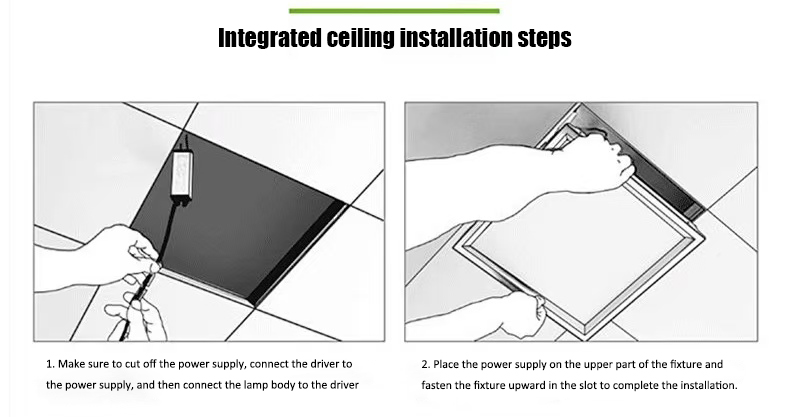

Integrated Ceiling LED Panel Light Installation
- Prepare the screwdriver, ladder, connecting wire, LED panel light, LED driver, and connector.
- Turn off and verify the circuit before wiring.
- Connect the power supply wires to the LED driver according to the fixture documentation.
- Check whether the existing supply has enough connection points for the new light.
- Place the LED panel directly into the matching integrated ceiling grille.
- Adjust the panel so it is level and flush with the surrounding ceiling surface.
- Restore power and test the fixture for normal, even, flicker-free operation.

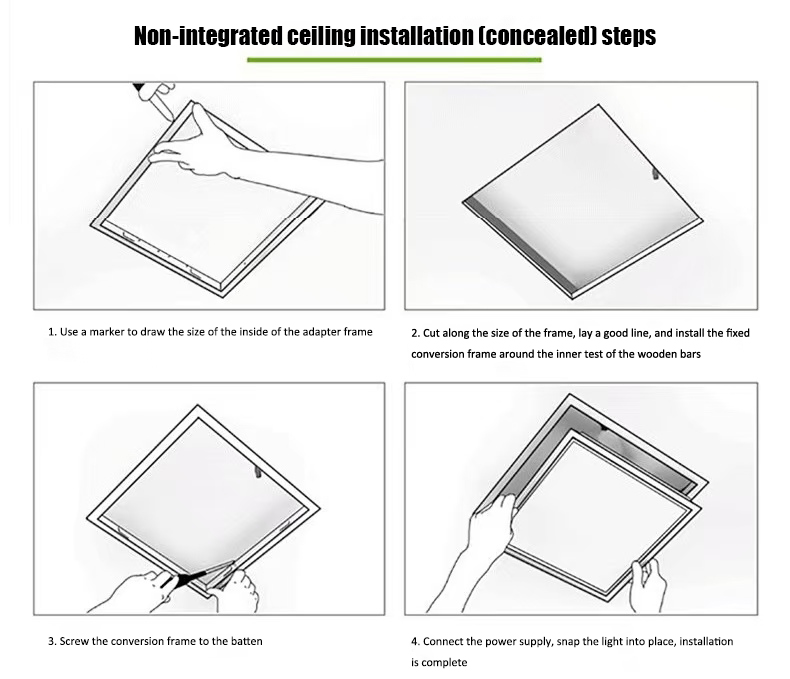

Non-Integrated Ceiling LED Panel Light Installation
- Prepare the screwdriver, electric drill, cutting tool, ladder, LED panel light, fixer, wire, and driver.
- Measure and mark the opening according to the selected panel-light size or template.
- Cut the ceiling opening carefully and confirm the fixture fits the aperture.
- Route the wiring and connect it to the LED driver as specified.
- Secure exposed wires with suitable insulation and approved connectors.
- Insert the panel light into the opening and secure it with the retainer or spring clips.
- Turn on the power, test operation, and recheck fixture security and wiring if the light does not operate correctly.
Why Choose LED Panel Light

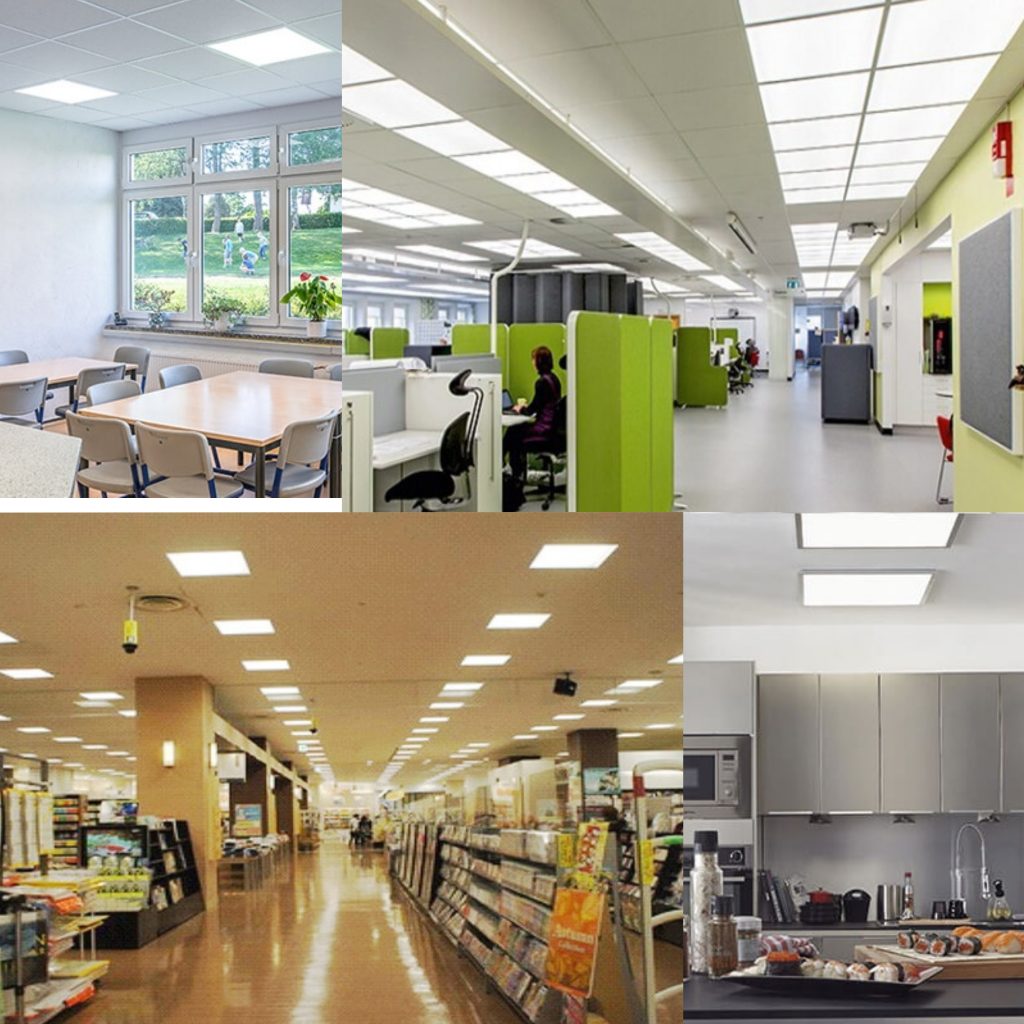

LED panel lights are used in ceiling upgrades because they combine energy efficiency, even illumination, long service life, and a clean architectural appearance.
Energy Saving and Environmental Protection
Compared with traditional lighting, LED panel lights can reduce energy consumption by up to 50%, helping lower electricity costs while supporting a more efficient lighting system.
Soft and Even Light
LED panel lights distribute light across a broad surface, which helps reduce glare and shadows and creates a more comfortable visual environment.
Long Life
A quality LED panel light can offer a service life of up to 50,000 hours, reducing lamp replacement frequency and maintenance work.
Beautiful Design
The slim panel structure integrates neatly with modern ceilings, making the lighting look simple, flat, and visually clean after installation.
Related LED Panel Light Options
Slim LED Panel Lights
Thin-profile panel lights designed for neat ceiling integration, with options for indoor projects that need a clean appearance and even illumination.
View product →LED Panel Light Range
Compare fixture dimensions, driver configuration, ceiling compatibility, light output, glare performance, and control requirements across the panel-light range.
View product →Recessed LED Panel Light FAQ
Can an LED panel light be installed in an existing ceiling?
Do I need to cut the ceiling?
What colour temperature should I choose?
Should an electrician install recessed LED panel lights?
Fit, Wiring, and Fixing Determine a Successful Installation
ShineLong believes a recessed LED panel light installation succeeds when the ceiling structure, cutout, driver, wiring, fixture size, and final test are planned together. ShineLong recommends confirming compatibility before ordering and using qualified electrical support whenever fixed wiring is involved.
