Why End Cap Design Matters
When selecting tri-proof lighting for industrial or commercial projects, installation compatibility is just as important as product performance.
If the fixture structure or wiring method does not match the actual installation environment, additional tools, junction boxes, or connectors may be required. This can delay installation and affect the purchasing experience.
Before choosing an LED tri-proof light fixture, confirm whether the end cap design and installation method align with your project requirements.
Understanding Installation Scenarios for Tri-Proof Lighting
Typical scenarios include new installations, replacement of existing fixtures, and projects that require single units or continuous connection. If the installation method is not clarified in advance, even a well-designed tri-proof light may become difficult to install once it arrives on site.
ShineLong provides solutions for different installation conditions commonly found in wet, dusty, or industrial environments. The following end cap designs are used with Parkade IP66 tri-proof lights.
New Installation
Best when wiring and power input points can be planned before fixtures arrive.
Replacement Project
Best when existing wiring is already available and direct access to terminals is useful.

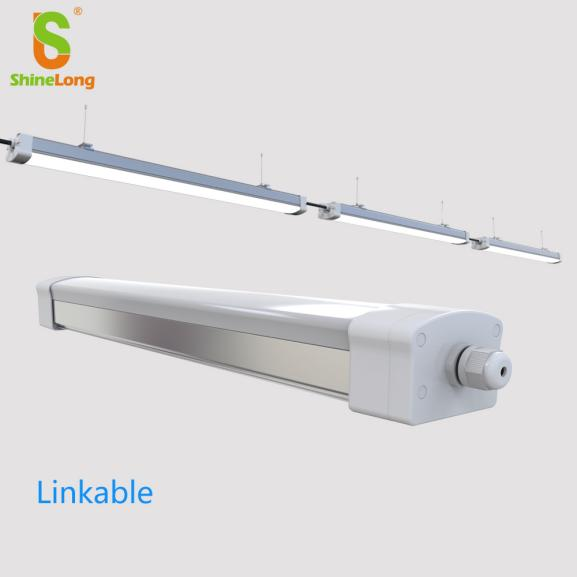

Continuous Connection
Best when multiple fixtures need to be linked in a row with reliable power input and output.
Three End Cap Options for LED Tri-Proof Light Fixtures

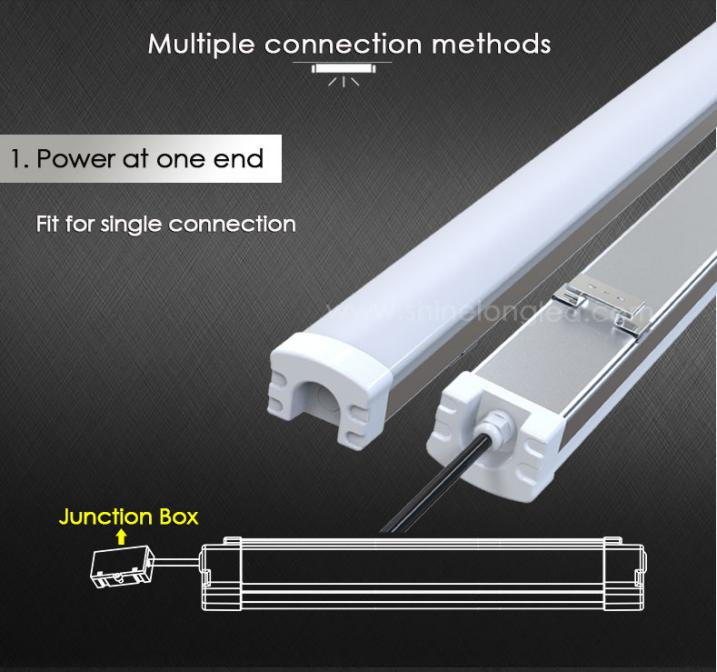

Generation II End Cap: Fixed Structure Design
This model uses a fixed end cap that cannot be opened during installation. ShineLong provides a pre-wired cable to connect the fixture to the power supply.
- Suitable for new projects where wiring is planned in advance.
- Installers usually need a junction box to connect the light to mains wiring.

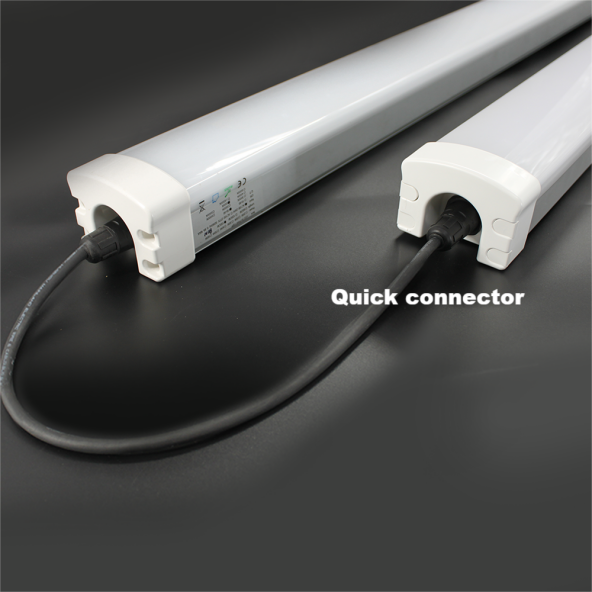

- Continuous connection can use double-side power input with a junction box or quick connector.

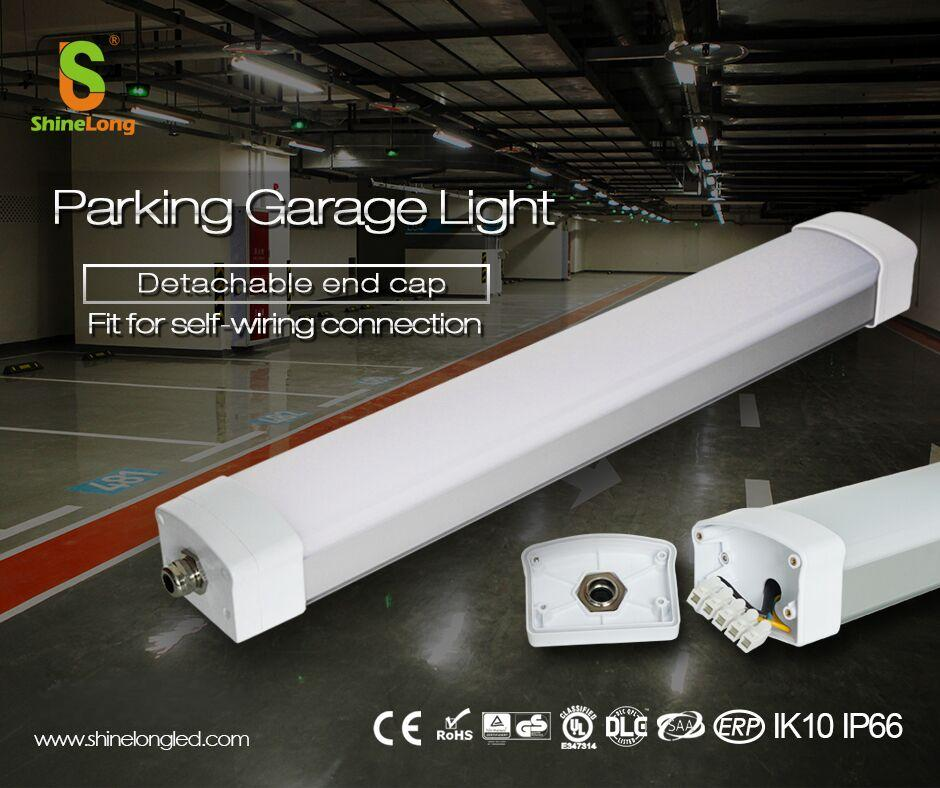

Generation III End Cap: Screw-Open Terminal Design
The Generation III aluminum tri-proof light has a flat-faced end cap that can be opened by removing screws. A terminal block inside allows direct wire connection.
- Suitable for replacing existing fixtures where wiring is already available on site.
- Allows direct connection without additional junction boxes in many retrofit projects.
- Continuous connection is easier for industrial replacement work.

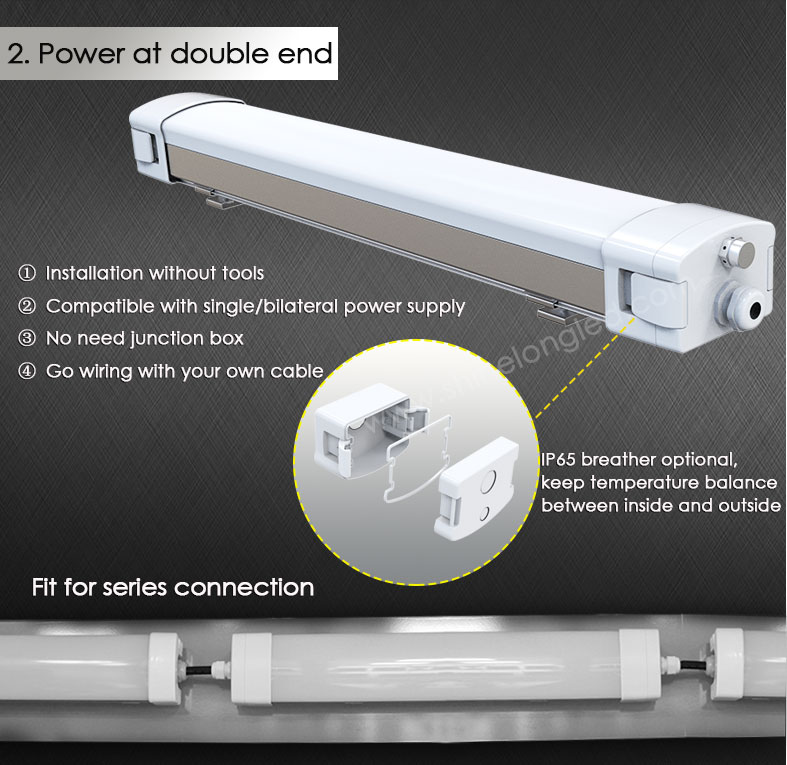

Generation IV End Cap: Tool-Free Latch Design
The Generation IV aluminum tri-proof light uses a latch-type end cap that can be opened without screws. This gives faster access to the internal terminal block and simplifies wiring.
- Suitable for both new installations and replacement projects.
- Supports series connection for linked fixture rows.

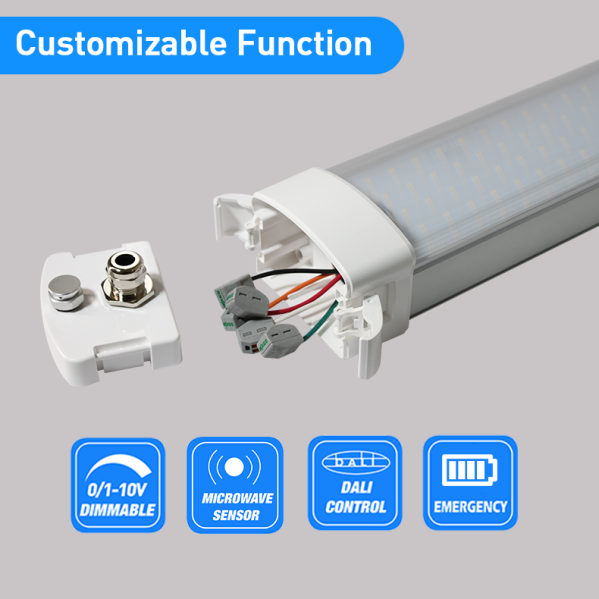

- Can be configured with optional functions such as sensor control or emergency operation.
How to Choose the Right End Cap
Choose Fixed End Cap
Use it when wiring can be planned in advance and a junction box or quick connector is acceptable for installation.
Choose Screw-Open End Cap
Use it for retrofit projects where existing wiring is already on site and direct terminal access helps installation.
Choose Tool-Free Latch End Cap
Use it when faster wiring, easier access, series connection, or optional sensor/emergency functions are needed.
FAQ
Conclusion
ShineLong believes the right LED tri-proof light end cap should be selected according to the real installation environment, not only by fixture appearance.
From ShineLong's perspective, confirming wiring method, replacement conditions, continuous connection needs, and optional functions before ordering can reduce installation risk and improve project efficiency.
Need Help Choosing a Tri-Proof Light End Cap?
Contact ShineLong with your project type, wiring method, installation environment, and function requirements. Our team can help match the right end cap design.
