Key Feature
- Ultra-thin 10mm
- TUV-GS (S50395351), SAA (SAA170039 ), CE, RoHS Certified
- IK06 IP40 approved
- Material: High-quality Aluminum + PMMA
- Efficacy: 100lm/w ± 5%
- ENEC Certifed flicker free driver, support dimming
- Instant on/off, edge-lit, no dark area, anti-yellowing
- Recessed installation only
- L80B10 Lifespan(Ta=25℃):50,000hrs, Warranty: 5 years
All Products of Smart LED Surface Panel Light
1x1ft 12W LED Panels
1x1ft 25W LED Panels
2x2ft 40W LED Panels
2x2ft 50W LED Panels
1x4ft 40W LED Panels
2x2ft 40W LED Panels
2x2ft 50W LED Panels
2x4ft 60W LED Panels
1x1ft 12W LED Panels
- Article No.: SL-P1112-X-ST-BX6
- Power: 12W
- Standard: 100lm/w
- Lumen: 1000~1100lm
- Size: 295*295*10 mm
- CCT: 3000K/4000K/5000K/6000K
- AC Input: 200-240V
- DC Output: 30-40V
- SDCM: <4
- CRI: >82
- Power Factor: >0.95
- Operating Temperature: -20~+40℃
1x1ft 25W LED Panels
- Article No.: SL-P1125-X-ST-BX6
- Power: 25W
- Standard: 100lm/w
- Lumen: 2100~2400lm
- Size: 295*295*10 mm
- CCT: 3000K/4000K/5000K/6000K
- AC Input: 200-240V
- DC Output: 30-40V
- SDCM: <4
- CRI: >82
- Power Factor: >0.95
- Operating Temperature: -20~+40℃
2x2ft 40W LED Panels
- Article No.: SL-P2240-X-ST-BX6
- Power: 40W
- Standard: 100lm/w
- Lumen: 3800~4200lm
- Size: 595*595*10 mm
- CCT: 3000K/4000K/5000K/6000K
- AC Input: 200-240V
- DC Output: 30-40V
- SDCM: <4
- CRI: >82
- Power Factor: >0.95
- Operating Temperature: -20~+40℃
2x2ft 50W LED Panels
- Article No.: SL-P2250-X-ST-BX6
- Power: 50W
- Standard: 100lm/w
- Lumen: 4800~5200lm
- Size: 595*595*10 mm
- CCT: 3000K/4000K/5000K/6000K
- AC Input: 200-240V
- DC Output: 30-40V
- SDCM: <4
- CRI: >82
- Power Factor: >0.95
- Operating Temperature: -20~+40℃
1x4ft 40W LED Panels
- Article No.: SL-P1440-X-ST-BX6
- Power: 40W
- Standard: 100lm/w
- Lumen: 3800~4200lm
- Size: 1195*295*10 mm
- CCT: 3000K/4000K/5000K/6000K
- AC Input: 200-240V
- DC Output: 30-40V
- SDCM: <4
- CRI: >82
- Power Factor: >0.95
- Operating Temperature: -20~+40℃
2x2ft 40W LED Panels
- Article No.: SL-P2240-X-ST-BX6A
- Power: 40W
- Standard: 100lm/w
- Lumen: 3800~4200lm
- Size: 620*620*10 mm
- CCT: 3000K/4000K/5000K/6000K
- AC Input: 200-240V
- DC Output: 30-40V
- SDCM: <4
- CRI: >82
- Power Factor: >0.95
- Operating Temperature: -20~+40℃
2x2ft 50W LED Panels
- Article No.: SL-P2250-X-ST-BX6A
- Power: 50W
- Standard: 100lm/w
- Lumen: 4800~5200lm
- Size: 620*620*10 mm
- CCT: 3000K/4000K/5000K/6000K
- AC Input: 200-240V
- DC Output: 30-40V
- SDCM: <4
- CRI: >82
- Power Factor: >0.95
- Operating Temperature: -20~+40℃
2x4ft 60W LED Panels
- Article No.: SL-P2460-X-ST-BX6
- Power: 60W
- Standard: 100lm/w
- Lumen: 5800~6200lm
- Size: 1195*595*10 mm
- CCT: 3000K/4000K/5000K/6000K
- AC Input: 200-240V
- DC Output: 30-40V
- SDCM: <4
- CRI: >82
- Power Factor: >0.95
- Operating Temperature: -20~+40℃
Request A Quote
Need something helped in a short time? We’ve got a plan for you.

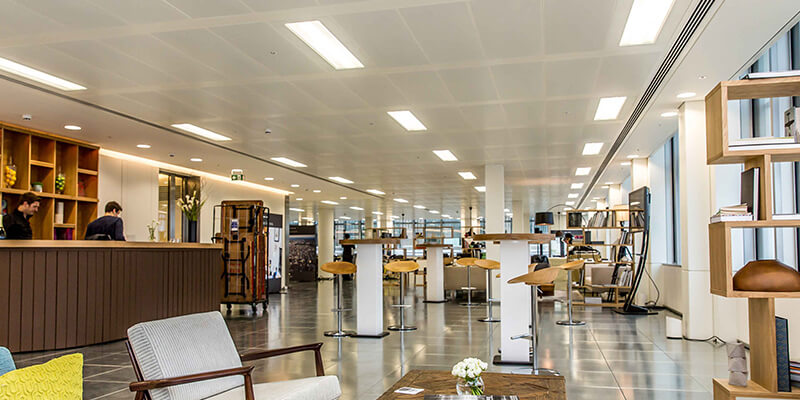

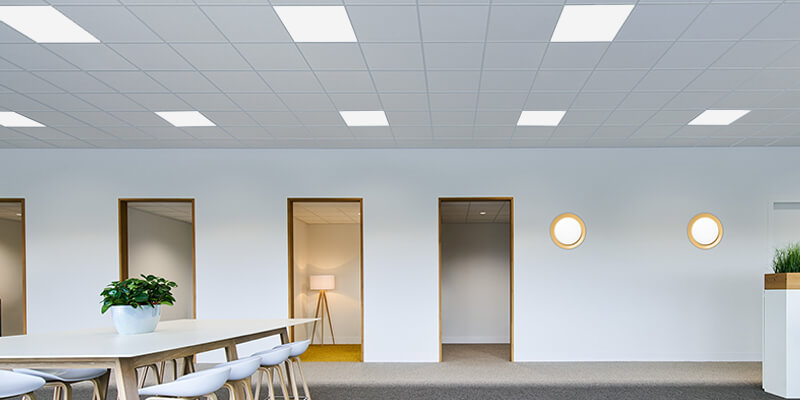

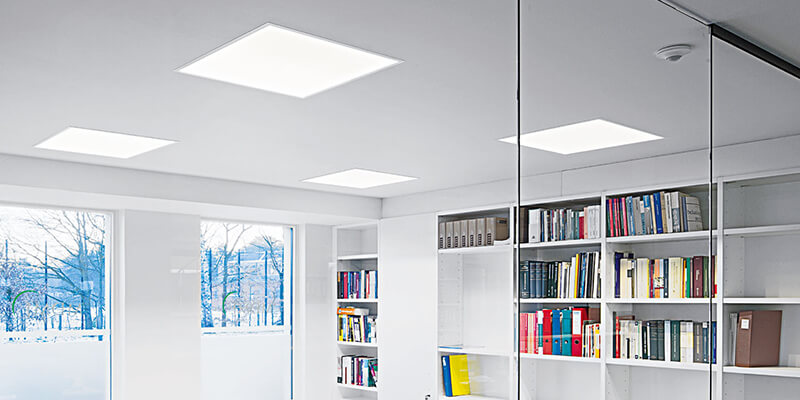

LED Surface Panel Light Applications
