Reflex 0-10V Dimming
LED Linear Light
Reflex LED Indirect Light for EU&AU Features
- Indirect Lighting, No Spot or Glare
- DIP Switch Power Available: 0.6m(10w/15w/20w), 1.2m(25w/30w/36w), 1.5m(35w/40w/45w)
- DIP switch CCT Available: (3000K/4000K/5000K or 4000K/5000K/6000K)
- Multi Dimming Support, 0/1-10V, DALI Available
- UGR <19 Available
- Material: Integrated Aluminum Housing
- Light Efficacy: 100lm/w ±10%
- Input Voltage: AC200-240V 50/60Hz
- High CRI: Ra>80, SDCM<4
- Suspending & Ceiling mounted for convenient installation and maintenance
- Shopping Mall/Supermarket/Office/Museum/Art Gallery/Exhibition Hall/Gallery
The reflex 0-10V dimmable linear light is a highly efficient lighting fixture with precise dimming capabilities for commercial and industrial environments. It realizes flexible brightness adjustment through 0-10V standard dimming interface, from full brightness to as low as 10% light output, to meet the lighting needs of different scenarios.
This linear light not only has excellent light efficiency, but also adopts an energy-saving design, which helps reduce energy consumption. In addition, its minimalist design and multiple mounting options make it easy to integrate into all types of modern spaces, making it an ideal choice for enhancing the quality of space lighting.
Date Sheet
| Article Number | Power (W) | Lumen (lm) |
| SL-LD70X2-20-XD | 20 | 2000 |
| SL-LD70X4-36-XD | 36 | 3600 |
| SL-LD70X5-45-XD | 45 | 4500 |
* Where the first “X” represents diffuser type, it can be N(No Cover), G(With Grille)
The number after the first “X” represents length of light. “2”= 600mm, “4” = 1200mm, “5” = 1500mm
The second “X” represents CCT, it can be W(3000K/4000K), P(5000K), C(6000K), D(DIP Switch CCT)
| Light Source | SMD2835 |
| CRI | >80 |

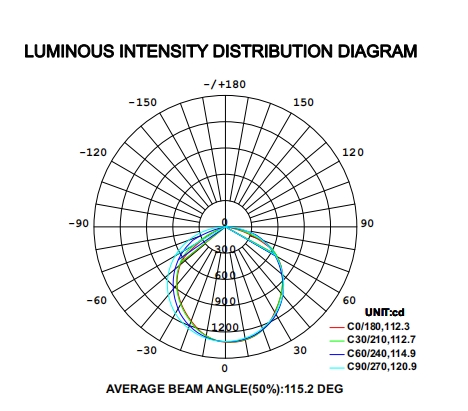

| Beam Angle | 120° |
| CCT | 3000K/4000K/5000K/6000K |
| AC Input | 200-240V 50/60Hz |
| SDCM | <4 |
| Power Factor | >0.95 |
| Warranty | 5 Years |
| Operating Temperature | -20~+40℃ |
Reflex 0-10V Dimming LED Linear Light Efficacy Version
Cover Standard
/ 100lm/w
Please note:
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
3. Efficacy tolerance is ±10% and wattage tolerance is ±10%
