Gauls IP68
Emergency Triproof LED Light

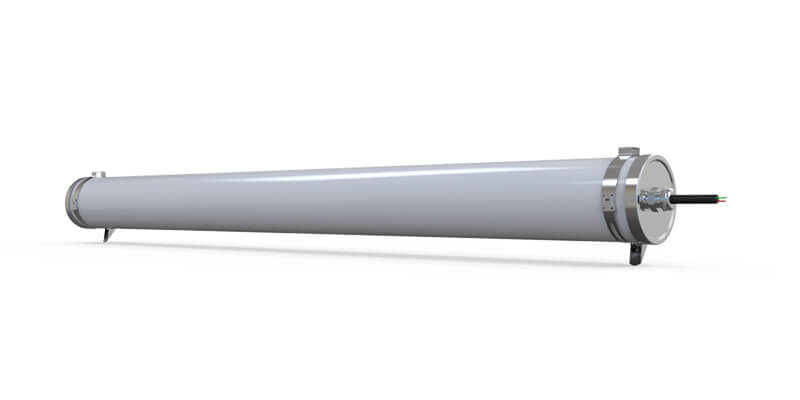

ShineLong’s Guals IP68 Emergency Triproof LED Light
Key Feature
- IP68 Waterproof, IK10 Protection, 94V0 materials
- SAA, UKCA, CE, RoHs Certified
- Emergency function
- Material: Full PC Housing with S304 clips
- The dimensions can be customized
- No dark, Non-cracking, Anti-yellowing
- Linkable with quick connector
- High Efficacy: 120lm/w, up to 140 lm/w (+/-10%)
- L80B10 lifespace of 50,000 Hours (@ Ta = 25°C)
- 5 Years Warranty
Date Sheet
| Article Number | Power (W) | Lumen (lm) | Working Current (mA) |
| SL-P68X2-20-XB | 20 | 2400 | 450 |
| SL-P68X2-30-XB | 30 | 3600 | 750 |
| SL-P68X4-40-XB | 40 | 4800 | 950 |
| SL-P68X4-50-XB | 50 | 6000 | 1200 |
| SL-P68X5-50-XB | 50 | 6000 | 1200 |
| SL-P68X5-60-XB | 60 | 7200 | 1400 |
* Where the first “X” represents diffuser type, it can be F(Frosted), T(Transparent)
The number after the first “X” represents length of light. “2”=600mm, “4”=1200mm, “5”=1500mm
The second “X” represents CCT, it can be W(3000K/4000K), P(5000K), C(6000K)
| Light Source | SMD2835 |
| CRI | >80 |
| Beam Angle | 120° |
| CCT | 3000K/4000K/5000K/6000K |
| AC Input | 220-240V/100-277V |
| DC output | 30-40V |
| SDCM | <4 |
| Power Factory | >0.95 |
| Operating Temperature | -20~+40℃ |
Gauls Emergency Battery Information
Article Number Emergency Power Battery Parameters
SL-P68X2-20-XB 3W 3.6V 2600mAh
SL-P68X2-30-XB 3W 3.6V 2600mAh
SL-P68X4-40-XB 4W 7.2V 2500mAh
SL-P68X4-50-XB 8W 3.6V 4400mAh
SL-P68X5-50-XB 8W 3.6V 4400mAh
SL-P68X5-60-XB 8W 3.6V 4400mAh
Remark:
1. Indicator color (Green – Recharging & Working, Yellow – malfunction)
2. Battery can be recharged at least 500 times. In order to maintain the battery well it must be discharged every 3 months.
Efficacy Version
Cover Standard Premium
Frosted 120lm/w 140lm/w
Transparent 130lm/w 150lm/w
Please note:
1. Above efficacy based on 4000K
2. All values are based on an ambient temperature of 25°C
3. Efficacy tolerance is ±10% and wattage tolerance is ±10%
4. If CRI>90, light efficiency will be reduced by 10-15%
LUMINOUS INTENSITY DISTRIBUTION DIAGRAM
Gauls Details
Product Video
Gauls IP68 Emergency Triproof LED Light Description
The Emergency LED Tri-Proof Light is a tough and reliable lighting solution suitable for a variety of industrial and commercial settings. With its waterproof construction and high-quality LED technology, it can withstand harsh environments and provide efficient illumination. It has an emergency mode that activates automatically during power failures, making it ideal for safety-critical areas such as hospitals, warehouses, and parking garages. It’s tri-proof design makes it resistant to dust, water, and other environmental factors, requiring little maintenance and enhancing durability. The light is easy to install and energy-efficient, giving you excellent value for your money.
